3-11 — PARKING BRAKE CONTROL (#112610) — 84 parça

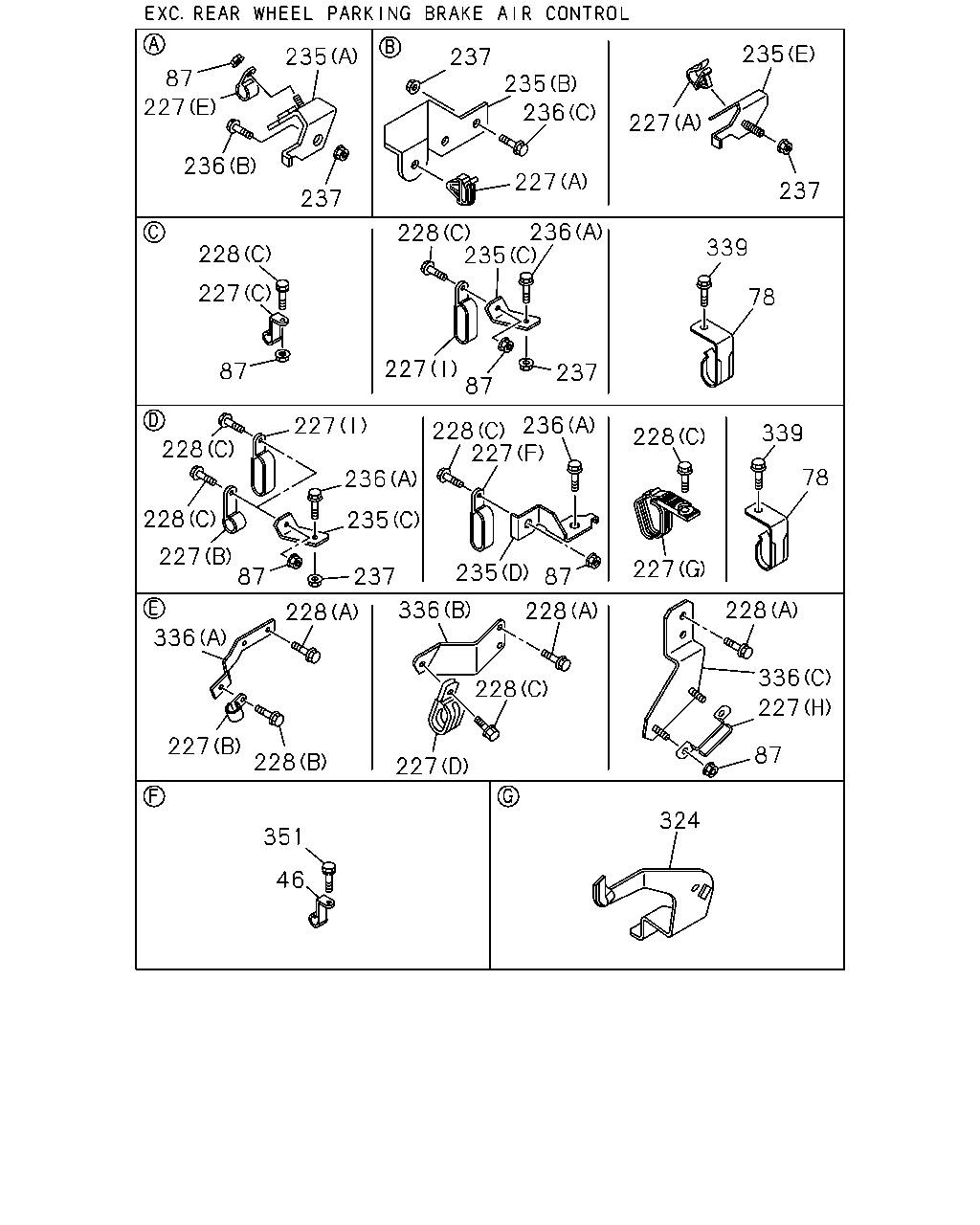

87 227 236 235 237 237 236 235 227 236 235 228 227 235 237 78 339 228 339 78 227 228 336 227 87 324 228 227 336 228 228 336 227 228 351 46 87 227 228 228 227 236 237 235 227 228 87 227 228 236 237 227 235 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1302-
78	PIN; SPLIT,PARK BRK CABLE JOINT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98299-530-0	02	1	1503-1511
78	PIN; SPLIT,PARK BRK CABLE JOINT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98299-530-0	02	1	1512-
87	NUT 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),VIN MODEL YEAR 2015<VZF> M8 FLANGE	0-91180-108-0	04	1	1411-1502
87	NUT 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	1503-
87	NUT 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	1305-1410
87	NUT 4HK1-TCS ENG(RJS) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	1411-1502
87	NUT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1503-1511
87	NUT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1512-
87	NUT 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
227	CLIP; RAD 4HK1-TCS ENG(RJS) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I)	8-98036-791-0	02	1	1411-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=16 L=20	0-95235-535-0	01	1	1305-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9.5	5-09709-020-0	01	1	1305-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 13 L=32	8-97389-264-0	01	1	1305-1410
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),VIN MODEL YEAR 2015<VZF> (F) ID=13 & 13 L=32	8-97389-264-0	01	1	1411-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 & 13 L=32	8-97389-264-0	01	1	1503-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1305-1410
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),VIN MODEL YEAR 2015<VZF> (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1411-1502
227	CLIP; RAD 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1503-
227	CLIP; RAD 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H)	8-98080-966-0	01	1	1305-
227	CLIP; RAD 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40	1-09701-014-0	01	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	01	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20	0-95235-235-0	01	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35	1-09701-103-0	01	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9.5	5-09709-020-0	02	1	1302-
227	CLIP; RAD 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40	8-98119-885-0	01	1	1302-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1302-1502
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1503-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	1503-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	03	1	1302-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE	0-28050-816-0	01	1	1302-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1302-1304
228	BOLT; CLIP RAD MTG 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1305-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1305-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	02	1	1411-1502
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98250-897-0	01	1	1307-1410
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),VIN MODEL YEAR 2015<VZF> (D)	8-98250-897-0	01	1	1411-1502
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98077-903-2	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98126-426-0	01	1	1305-1306
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98126-426-0	01	1	1307-
235	BRACKET; CONT CABLE TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98126-934-0	01	1	1305-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	01	1	1302-
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98100-152-0	01	1	1302-
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),VIN MODEL YEAR 2015<VZF> (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-1502
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1411-1502
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1410
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	02	1	1411-1502
236	BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1503-
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1503-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-1504
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE	0-28650-830-0	02	1	1302-
237	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) VIN MODEL YEAR 2015<VZF> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1411-1502
237	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1305-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1302-
324	BRACKET 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98208-213-4	01	1	1305-
336	BRACKET; RADIATOR 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98232-681-1	01	1	1305-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98105-405-0	01	1	1302-
336	BRACKET; RADIATOR 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	1302-
339	BOLT; GUIDE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1503-1511
339	BOLT; GUIDE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1512-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1302-

4 73 73 73 51 28 61 218 23 28 343 97 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

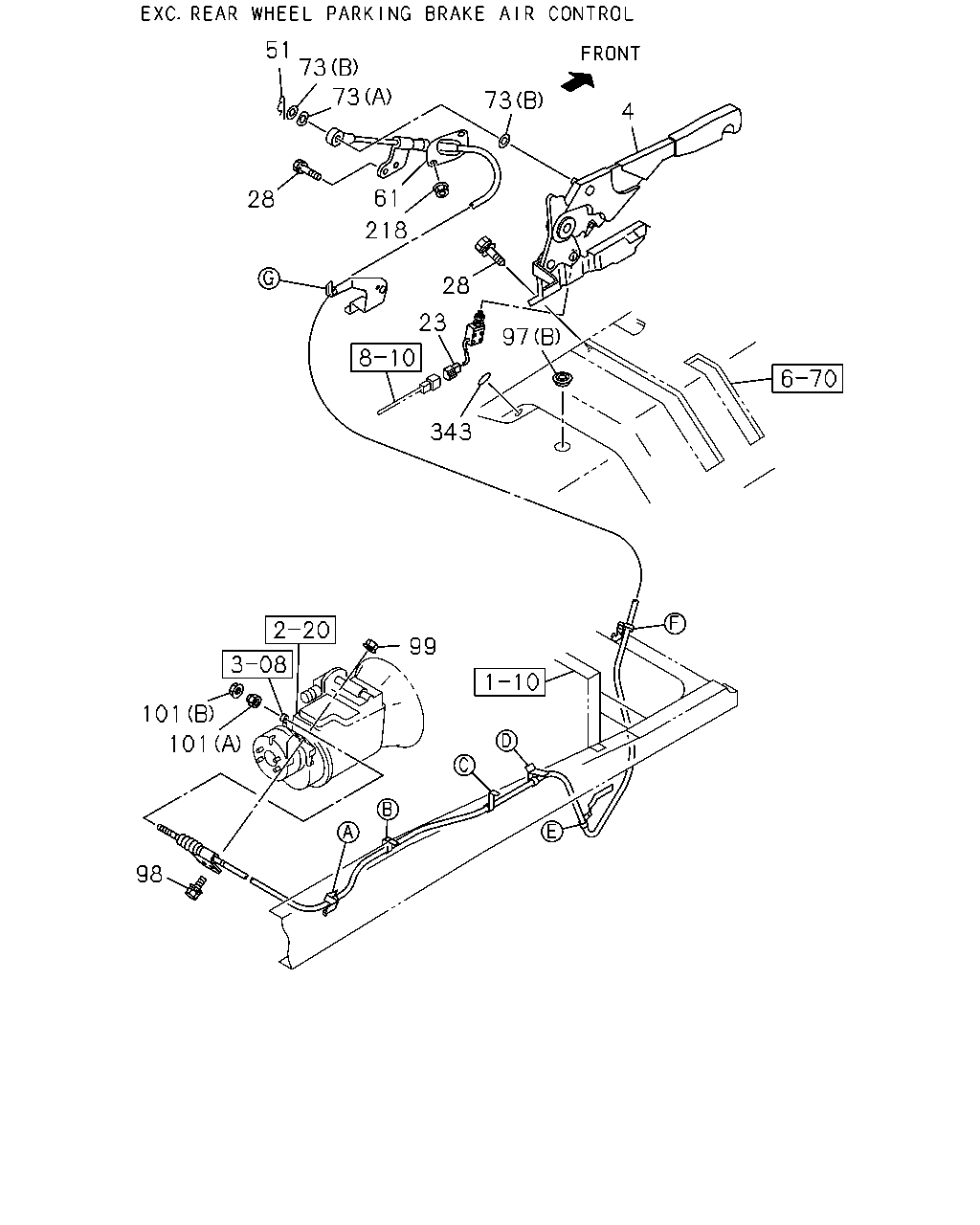

4	STEM; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-697-0	01	1	1302-
23	SWITCH; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1302-
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1302-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1302-
61	CABLE; PARKING BRK 4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4379	8-98208-211-3	01	1	1305-
61	CABLE; PARKING BRK 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4740	8-98135-025-1	01	1	1302-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1302-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1302-
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1302-
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1302-1510
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98029-219-1	01	1	1511-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1302-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1302-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8	1-46259-007-0	01	1	1302-
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1302-1304
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1305-
343	SEAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	07	1	1302-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1302-
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1302-1510
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98029-219-1	01	1	1511-
