◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11512 - FTR(LHD) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#112606) — 69 parça
çizim 327727
207 80 273 76 159 1 332 27 332 93 183 4 10 2 4 6
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 1302-
2 PEDAL; BRK 8-98064-200-0 01 1 1302-
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 1302-
6 COVER; BRK PEDAL 8-98056-865-0 01 1 1302-
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 1302-
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 1302-
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1302-
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1302-
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 1302-
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 1302-
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 1302-
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1302-
273 ROD; PULL 8-98057-233-0 01 1 1302-
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 1302-

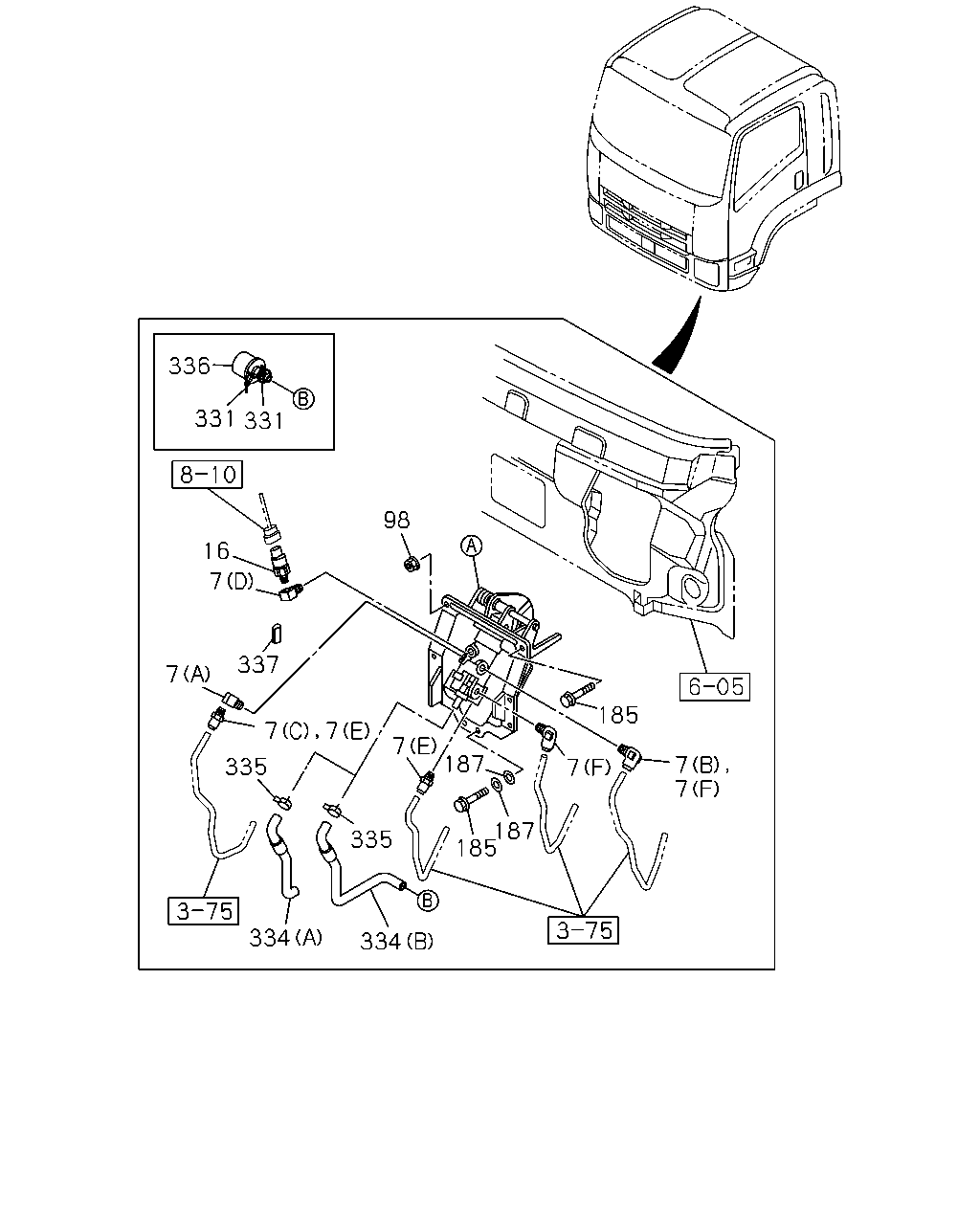

çizim 327837
185 7 187 187 185 335 334 334 7 337 7 16 336 331 331 98 7 335 7 7 7 7
BalonParca AdiParca NoAdetTipApplied Date
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1402-
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1402-
7 CONNECTOR; BRK VALVE
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1402-1510
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1402-1510
7 CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1511-
7 CONNECTOR; BRK VALVE
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1302-1401
7 CONNECTOR; BRK VALVE
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1402-1510
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1402-1510
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1511-
16 SWITCH; STOP LAMP
STAMP 0.3 		8-98010-857-0 01 1 1302-
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 1302-
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 1302-1506
185 BOLT; BRKT
M8X25 HEXALOBULAR 		8-98316-699-0 07 1 1507-
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 1302-1506
187 WASHER; PL,BRKT
ID=8.4 OD=26 		8-98316-762-0 04 1 1507-
331 CLIP; BAND
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) L=197 		1-83574-032-0 02 1 1302-1401
331 CLIP; BAND
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) EXC. COLOMBIA EQUIPMENT(CB7) L=197 		1-83574-032-0 02 1 1402-
334 HOSE; AIR,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) (B) 		8-98017-119-3 01 1 1302-1401
334 HOSE; AIR,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) EXC. COLOMBIA EQUIPMENT(CB7) (B) 		8-98017-119-3 01 1 1402-
334 HOSE; AIR,BRK
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) (A) 		8-97611-147-2 01 1 1302-1401
334 HOSE; AIR,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) BRAKE REGULATION ADR(TDU) (A) 		8-97611-147-2 01 1 1302-1401
334 HOSE; AIR,BRK
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1402-1510
334 HOSE; AIR,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) COLOMBIA EQUIPMENT(CB7) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1402-1510
334 HOSE; AIR,BRK
COLOMBIA EQUIPMENT(CB7) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1511-
334 HOSE; AIR,BRK
EXC. BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) (A) 		8-97611-147-2 01 1 1511-
335 CLAMP; HOSE
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU) ID=24 		8-98025-921-0 01 1 1302-1401
335 CLAMP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) ID=24 		8-98025-921-0 01 1 1302-1401
335 CLAMP; HOSE
EXC. COLOMBIA EQUIPMENT(CB7),BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) ID=24 		8-98025-921-0 01 1 1402-1510
335 CLAMP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) ID=24 		8-98025-921-0 01 1 1402-1510
335 CLAMP; HOSE
ID=24 		8-98025-921-0 01 1 1511-
336 SILENCER; AIR
BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) 		1-48199-544-0 01 1 1302-1401
336 SILENCER; AIR
BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) EXC. COLOMBIA EQUIPMENT(CB7) 		1-48199-544-0 01 1 1402-
337 PROTECTOR; AIR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) L=30 L=50 		8-94270-377-1 01 1 1302-1401
337 PROTECTOR; AIR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ADR(TDU),BRAKE REGULATION ECE(TDV) EXC. COLOMBIA EQUIPMENT(CB7) L=30 L=50 		8-94270-377-1 01 1 1402-
