Isuzu WW
▶
TRUCKS
▶
FRR
▶
11505 - FRR(LHD) SPACECAB
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#112604) — 31 parça
◀

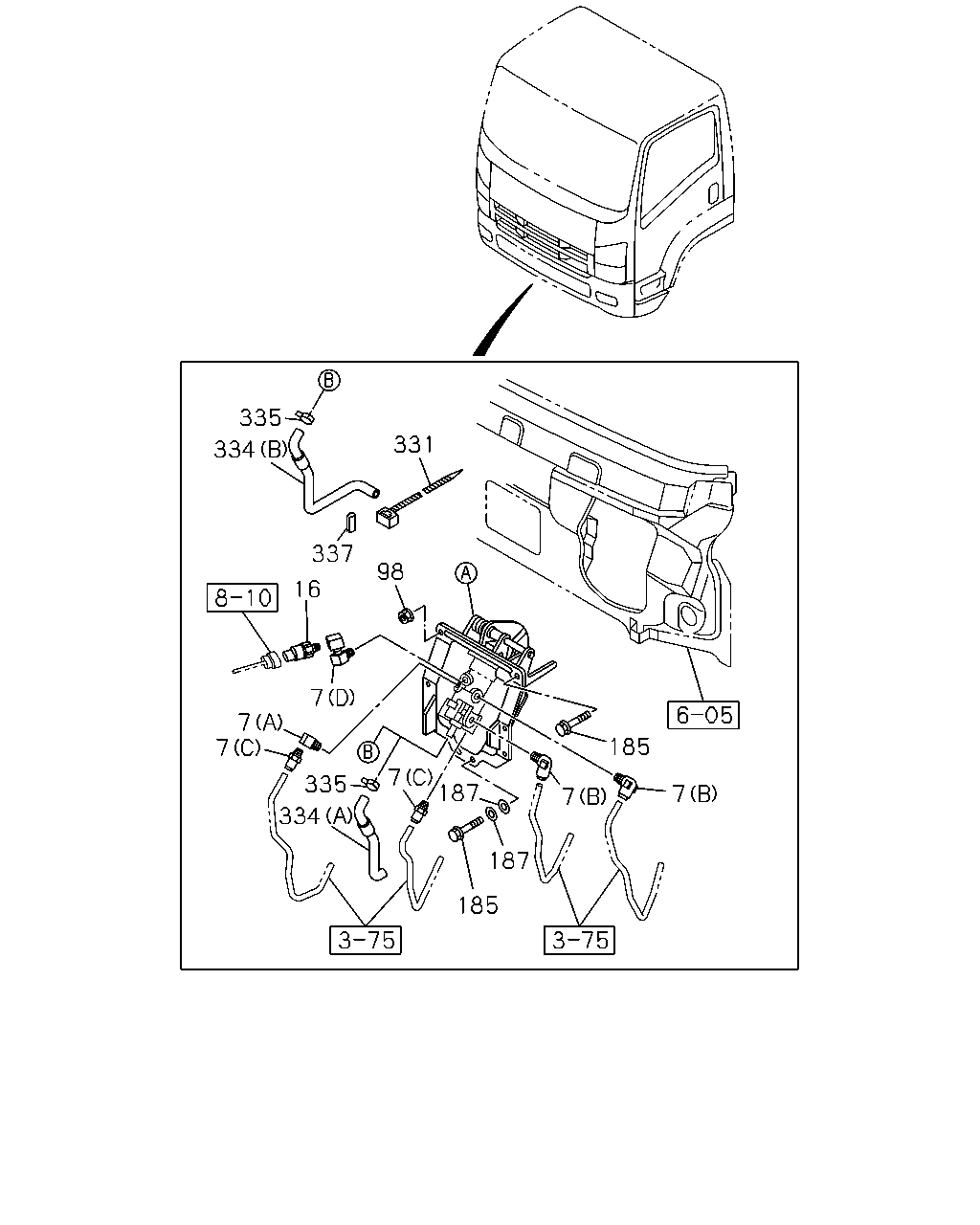

[310A] FIXING (17 parça)

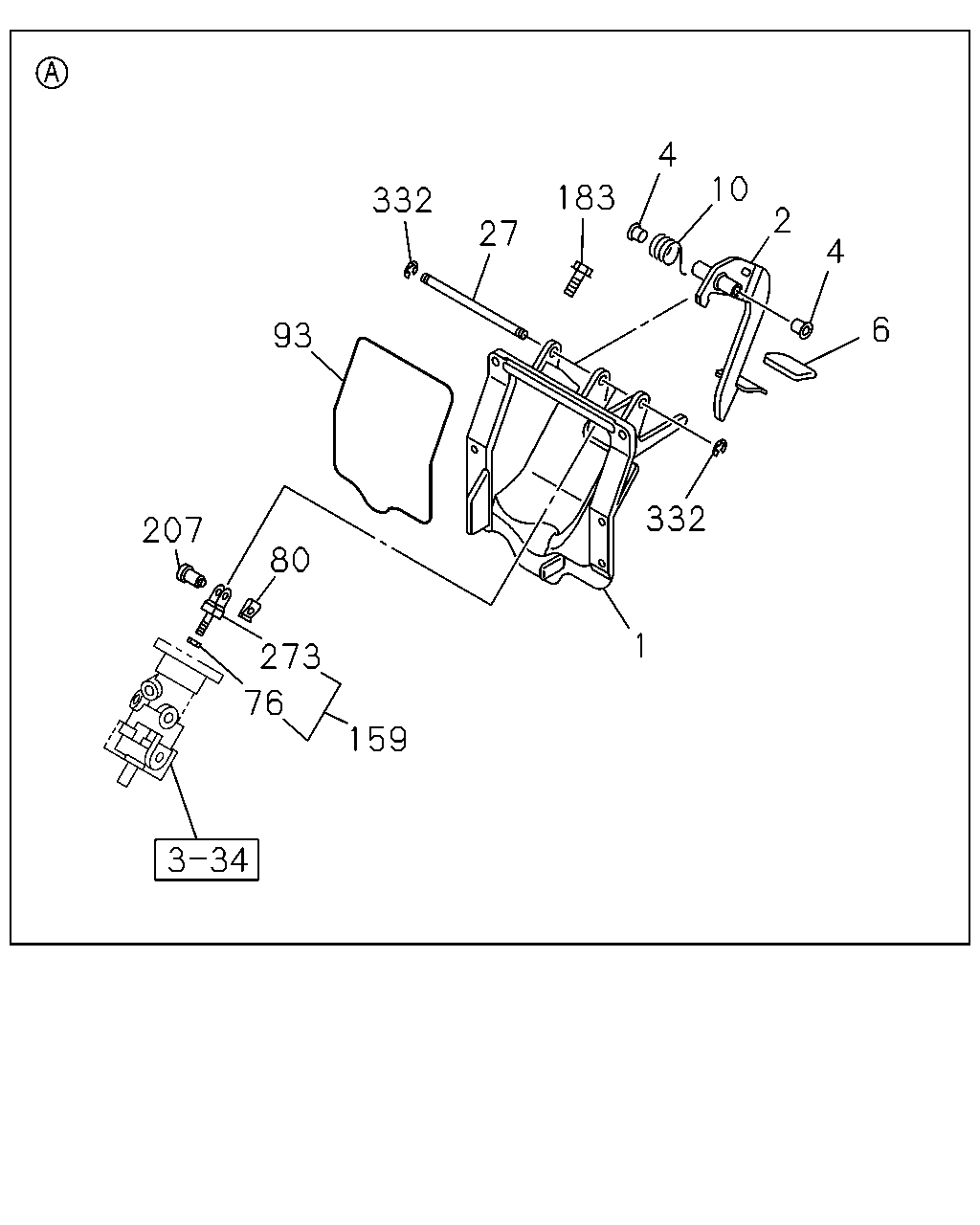

[310A] COMPONENT (14 parça)
▶
335
337
16
7
7
7
98
334
7
7
187
7
334
331
335
187
185
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW
1-09660-696-0
01
1
1302-
7
CONNECTOR; BRK VALVE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1302-
7
CONNECTOR; BRK VALVE
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1302-
7
CONNECTOR; BRK VALVE
(D)
8-98098-087-0
01
1
1302-
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
01
1
1302-
98
NUT; BRKT
M8 FLANGE
0-91180-208-0
01
1
1302-
185
BOLT; BRKT
M8X25 FLANGE
8-98057-109-0
07
1
1302-1506
185
BOLT; BRKT
M8X25 HEXALOBULAR
8-98316-699-0
07
1
1507-
187
WASHER; PL,BRKT
ID=8.4 OD=26
0-91614-808-0
04
1
1302-1506
187
WASHER; PL,BRKT
ID=8.4 OD=26
8-98316-762-0
04
1
1507-
331
CLIP; BAND
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) L=197
1-83574-032-0
02
1
1310-
334
HOSE; AIR,BRK
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) (B)
8-98017-119-3
01
1
1310-
334
HOSE; AIR,BRK
(A)
8-97611-147-2
01
1
1302-1309
334
HOSE; AIR,BRK
COLOMBIA EQUIPMENT(CB7) BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (A)
8-97611-147-2
01
1
1310-
334
HOSE; AIR,BRK
EXC. BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) (A)
8-97611-147-2
01
1
1310-
335
CLAMP; HOSE
ID=24
8-98025-921-0
01
1
1302-
337
PROTECTOR; AIR BRK
BRAKE REGULATION ECE(NBE),BRAKE REGULATION ADR(TDU) EXC. COLOMBIA EQUIPMENT(CB7) L=30 L=50
8-94270-377-1
01
1
1310-
207
93
332
80
273
76
159
1
27
332
183
6
2
4
4
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-98071-972-1
01
1
1302-
2
PEDAL; BRK
8-98064-200-0
01
1
1302-
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
1302-
6
COVER; BRK PEDAL
8-98056-865-0
01
1
1302-
10
SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1302-
27
SHAFT; BRK PEDAL
8-98057-231-0
01
1
1302-
76
NUT; PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1302-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1302-
93
SEAL; BRK PEDAL
1-48199-534-0
01
1
1302-
159
ROD ASM; PUSH,BRK
8-98057-234-0
01
1
1302-
183
BOLT; BRK VLV
M8X30 FLANGE
0-28660-830-0
04
1
1302-
207
PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1302-
273
ROD; PULL
8-98057-233-0
01
1
1302-
332
RING; SNAP
ID=12
0-91805-512-0
02
1
1302-
