3-20 — AIR TANK (#112602) — 294 parça

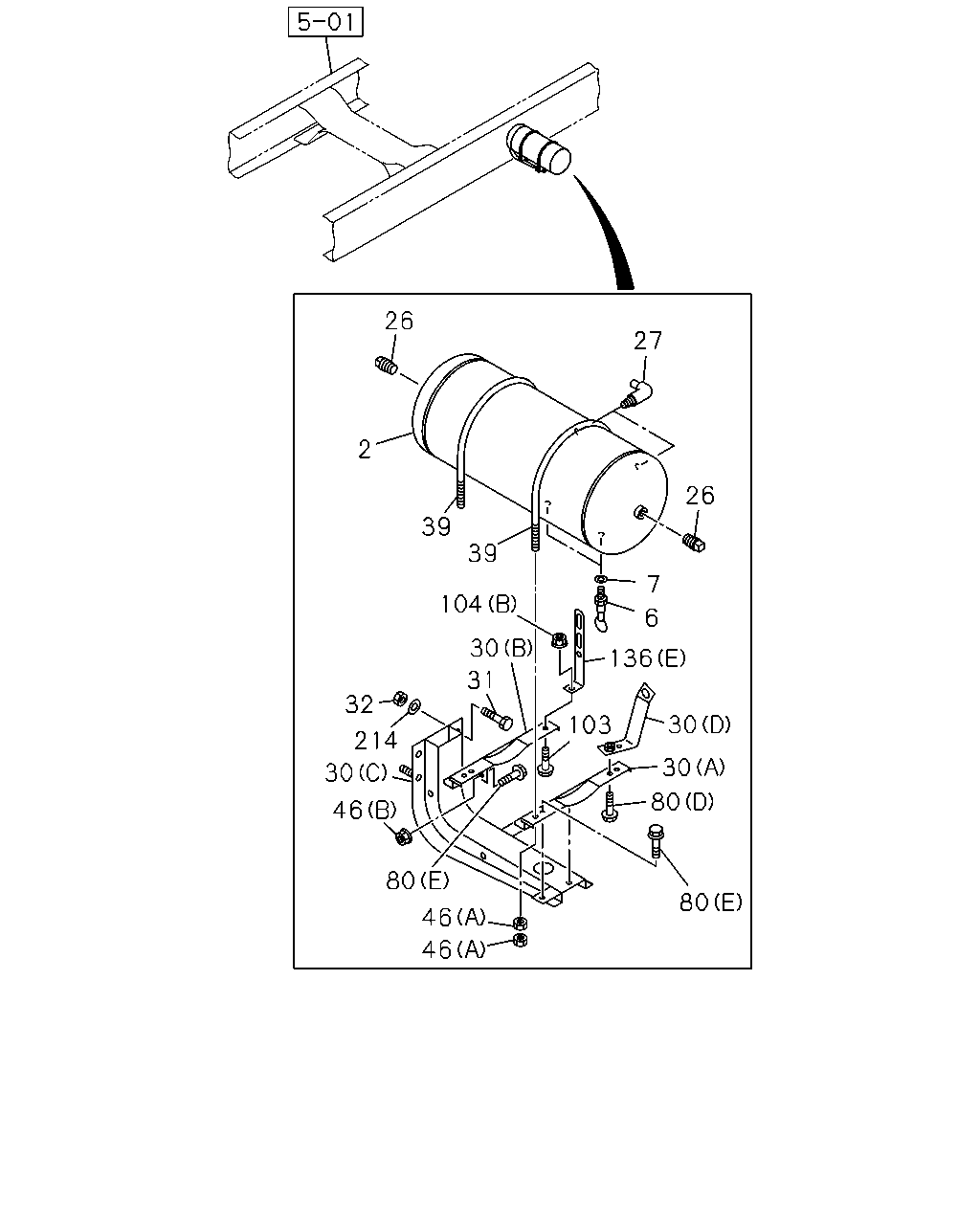

27 26 2 39 39 7 26 6 136 103 30 30 80 80 46 80 46 46 32 31 104 30 214 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COCK; DRAIN,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1302-
7	GASKET; DRAIN COCK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1302-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	04	1	1302-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1302-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
104	NUT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	1302-
104	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=225	1-47477-646-3	01	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=112	1-47475-694-1	01	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	02	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=90 B=25	1-47475-530-0	01	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (D) L=90 B=25	1-47475-530-0	01	1	1302-

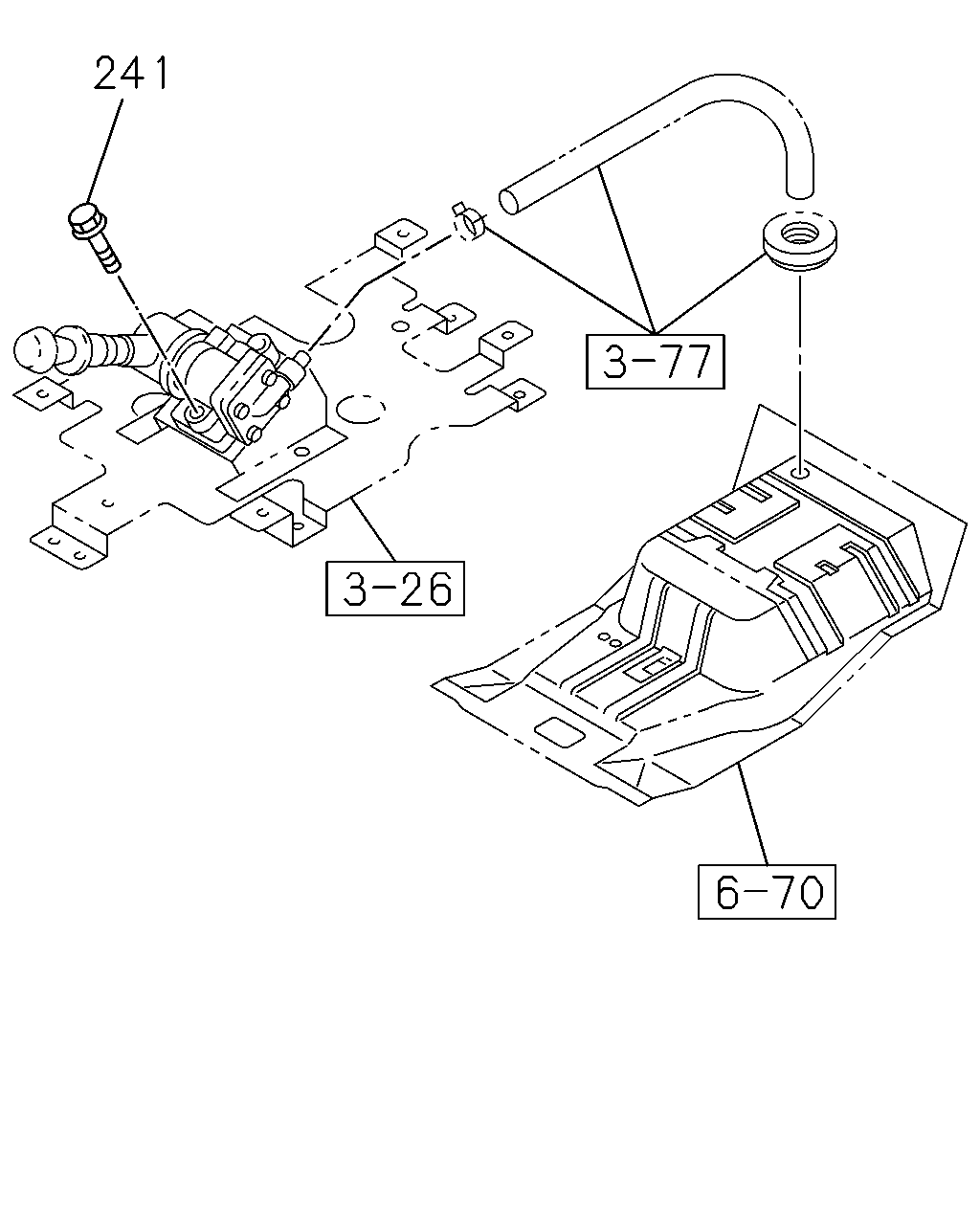

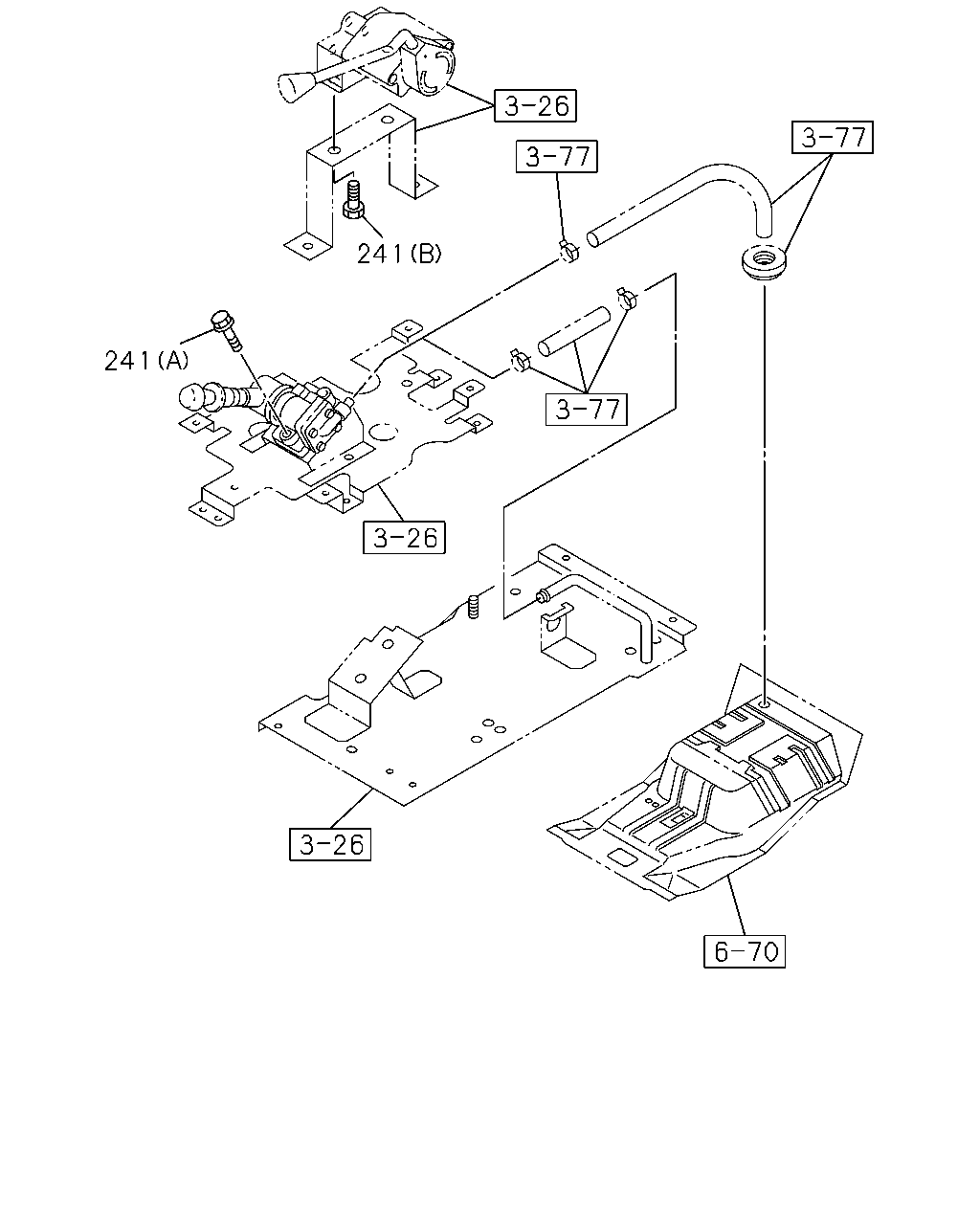

241 241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1302-

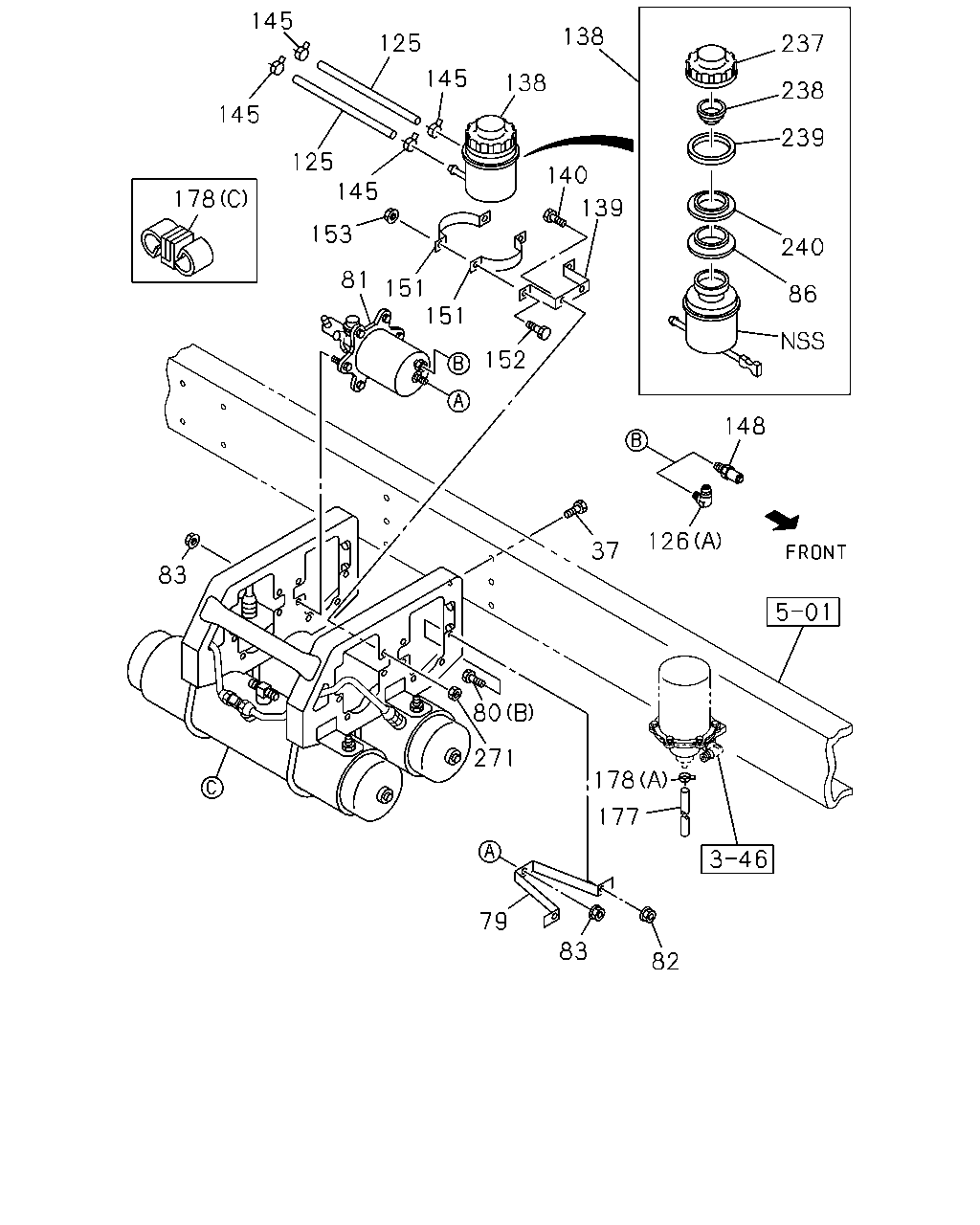

126 37 178 177 83 82 79 271 80 83 81 151 151 152 153 145 125 145 178 145 125 138 145 138 140 139 237 239 238 240 86 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1302-
37	BOLT; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1302-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1302-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	04	1	1302-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1302-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-663-1	02	1	1302-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1302-
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	1302-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98197-596-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (F) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (M) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (M) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (H) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1302-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1302-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	1302-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1302-
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1302-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	02	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1302-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1302-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1302-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1302-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1302-
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	1302-

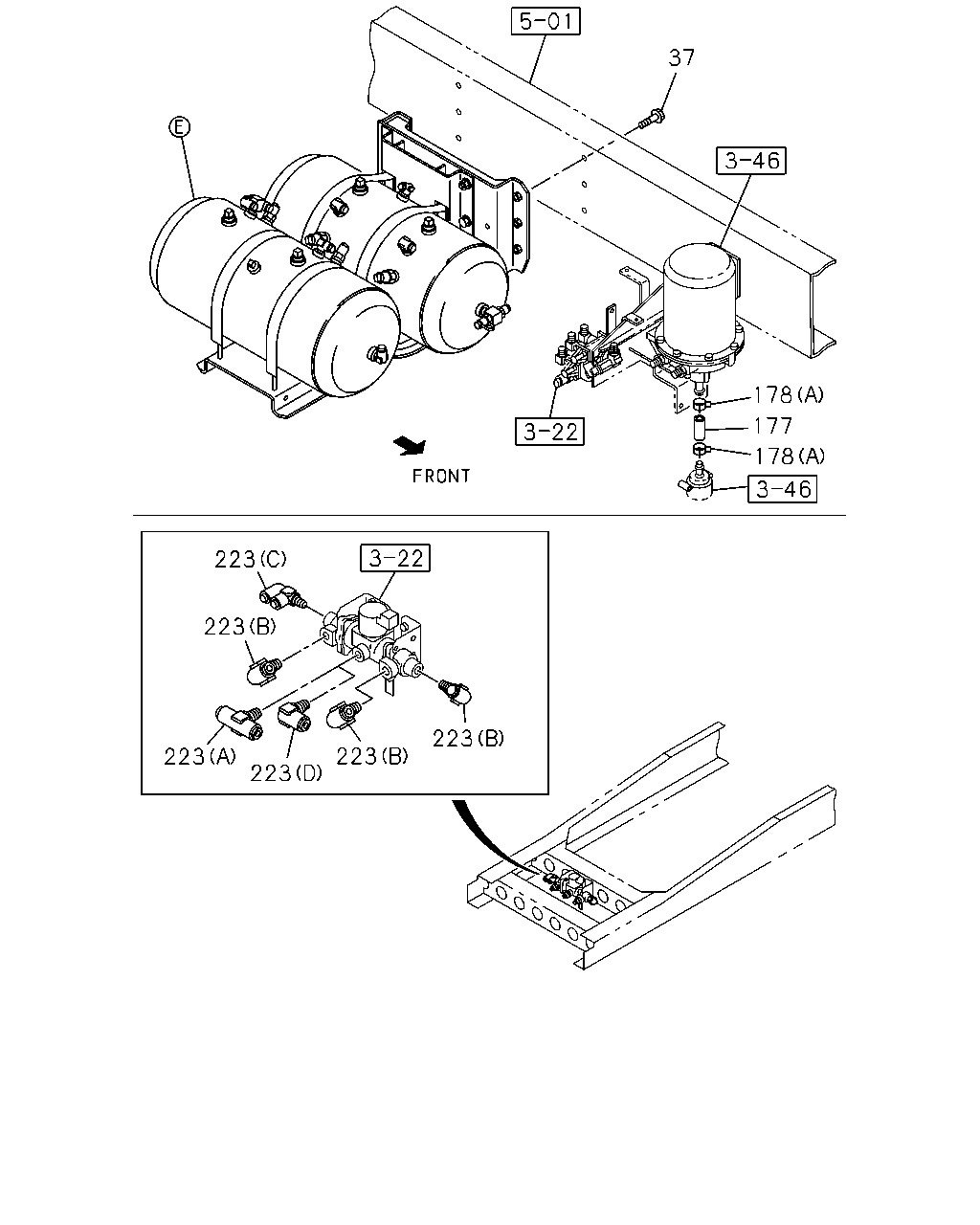

37 178 178 177 223 223 223 223 223 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1302-
37	BOLT; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1302-
223	UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1302-
223	UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1302-
223	UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1302-
223	UNION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	1-09661-073-0	01	1	1302-

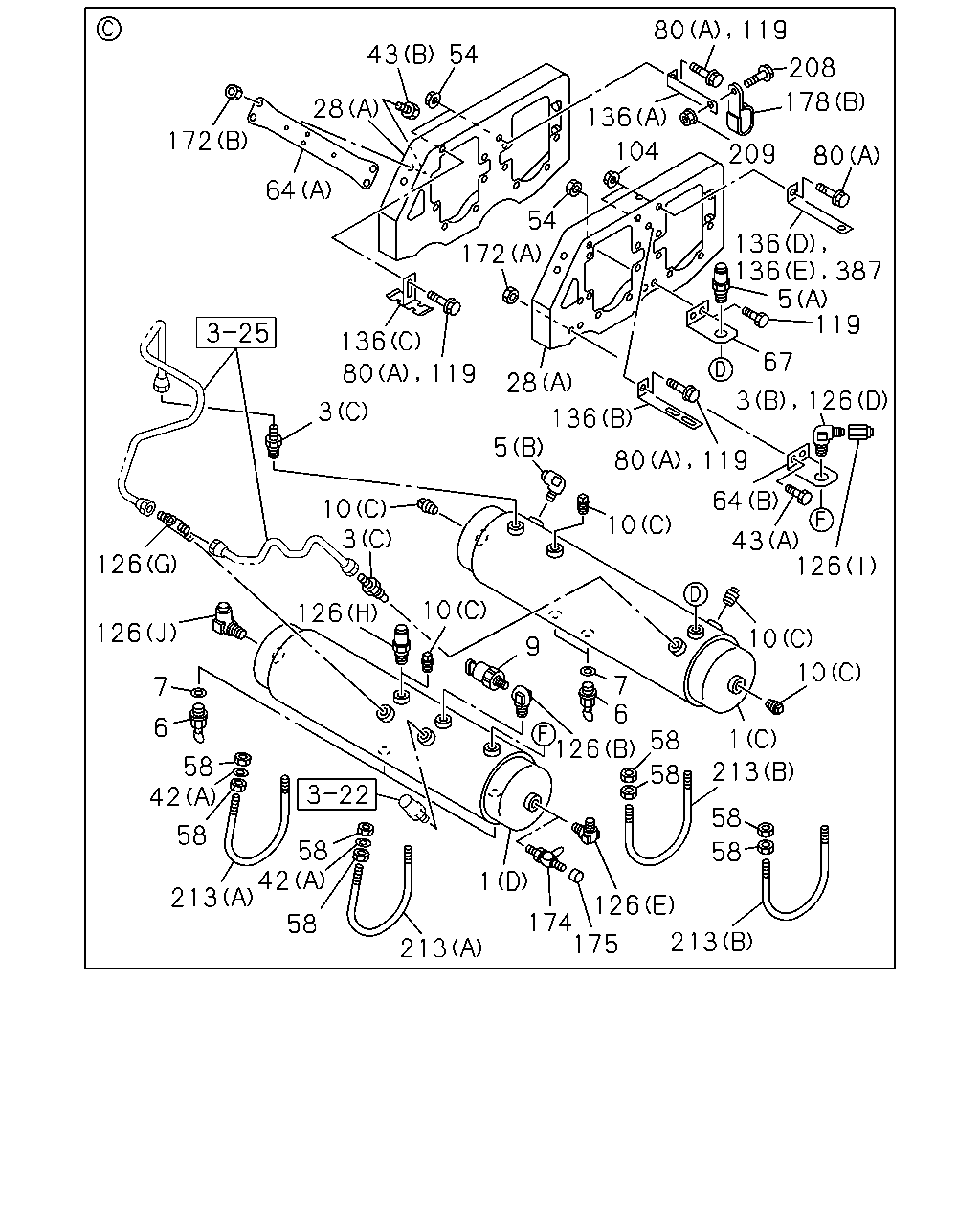

172 43 54 80 119 178 208 80 209 136 136 119 387 136 67 5 104 3 126 28 80 119 43 64 126 136 54 172 28 64 136 5 80 119 3 10 3 10 10 10 1 213 58 58 213 126 175 174 126 58 6 58 7 9 10 1 126 126 126 7 6 58 42 58 58 42 58 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98184-783-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B)	8-98184-783-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	1-48370-181-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48410-182-3	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
5	UNION; AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
5	UNION; AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
6	COCK; DRAIN,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1302-
7	GASKET; DRAIN COCK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4	9-99204-513-0	05	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (C) PT1/4	9-99204-513-0	04	1	1302-
28	BRACKET; AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1302-
28	BRACKET; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48317-601-5	02	1	1302-
28	BRACKET; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B)	1-48317-601-5	02	1	1302-
42	WASHER; PL 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	1302-
42	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1302-
42	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 FLANGE	0-28650-825-0	06	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (C) M8X25 FLANGE	0-28650-825-0	06	1	1302-
54	NUT; STAY 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1302-
58	NUT; BAND,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (C)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-691-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (D)	1-48317-691-0	01	1	1302-
67	STAY; SUB TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1302-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	04	1	1302-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1302-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	05	1	1302-
104	NUT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	1302-
104	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	1302-
119	BOLT; STAY 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (F) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (M) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (M) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (H) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=225	1-47477-646-3	01	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=112	1-47475-694-1	01	1	1302-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	02	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=90 B=25	1-47475-530-0	01	1	1302-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (D) L=90 B=25	1-47475-530-0	01	1	1302-
172	NUT; STAY,AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	1302-
172	NUT; STAY,AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	04	1	1302-
174	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1302-
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	1302-
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-
213	BOLT; U AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1302-
213	BOLT; U AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1302-
387	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=90 B=25	1-47475-530-0	01	1	1302-
387	BRACKET; UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> L=90 B=25	1-47475-530-0	01	1	1302-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1302-

3 126 126 126 10 38 185 185 42 41 42 126 7 64 6 64 41 43 43 43 126 126 126 10 38 38 45 45 126 126 9 9 7 6 176 126 126 10 126 10 9 9 126 126 38 126 45 45 10 175 174 1 3 126 1 126 28 37

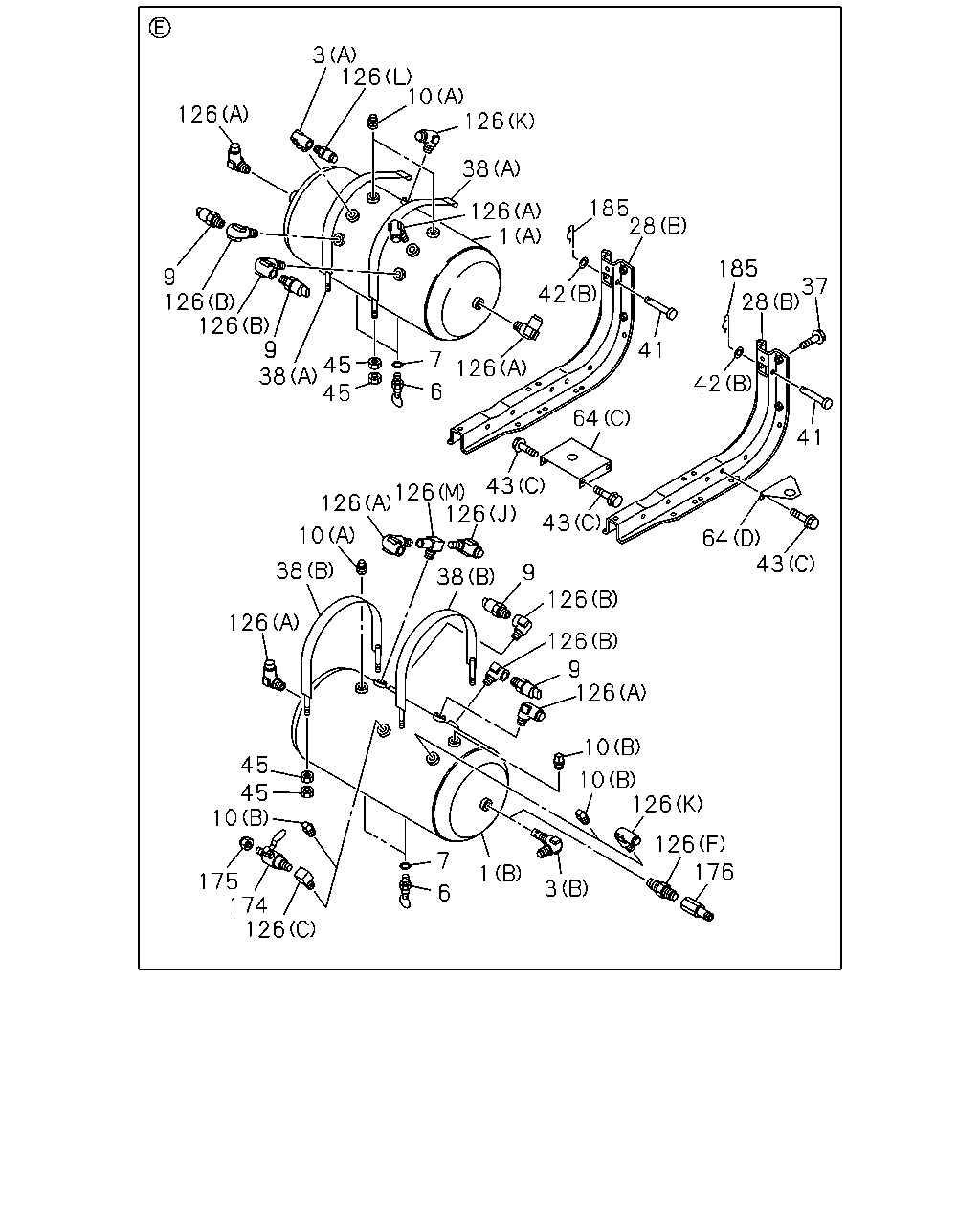

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98184-783-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B)	8-98184-783-0	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48370-181-1	01	1	1302-
1	TANK ASM; AIR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	1-48370-181-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48410-182-3	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
6	COCK; DRAIN,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1302-
6	COCK; DRAIN,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T>	1-48312-015-0	05	1	1302-
7	GASKET; DRAIN COCK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1302-
7	GASKET; DRAIN COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> ID=14	1-09630-145-0	05	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> STAMP 5.5	8-97609-249-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4	9-99204-513-0	05	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	05	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TIRE INFLATOR DEVICE<SG4> (C) PT1/4	9-99204-513-0	06	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) PT3/4	9-09204-526-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	03	1	1302-
10	PLUG; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (C) PT1/4	9-99204-513-0	04	1	1302-
28	BRACKET; AIR TANK 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-338-6	02	1	1302-
28	BRACKET; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48317-601-5	02	1	1302-
28	BRACKET; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B)	1-48317-601-5	02	1	1302-
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1302-
37	BOLT; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1302-
38	BAND; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A)	1-48317-108-2	02	1	1302-
38	BAND; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A)	1-48317-108-2	02	1	1302-
38	BAND; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48317-109-2	02	1	1302-
38	BAND; AIR TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B)	1-48317-109-2	02	1	1302-
41	PIN; BAND FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> OD=10 L=60	0-82254-060-0	02	1	1302-
41	PIN; BAND FIX 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> OD=10 L=60	0-82254-060-0	02	1	1302-
42	WASHER; PL 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=8.4 OD=18	0-91610-608-0	04	1	1302-
42	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1302-
42	WASHER; PL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5	0-91614-510-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 FLANGE	0-28650-825-0	06	1	1302-
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (C) M8X25 FLANGE	0-28650-825-0	06	1	1302-
45	NUT; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> M8	0-91110-508-0	12	1	1302-
45	NUT; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> M8	0-91110-508-0	12	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (C)	1-48317-607-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D)	1-48317-691-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (D)	1-48317-691-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1302-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (F) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (B) PT1/4 2WAY	1-09660-693-0	04	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (L) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (M) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (M) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (H) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1302-
174	COCK; AIR,INFLATOR 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
174	COCK; AIR,INFLATOR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TIRE INFLATOR DEVICE<SG4> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
176	ADAPTER 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1302-
185	PIN; SNAP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> L=32.6	8-98062-280-0	02	1	1302-
185	PIN; SNAP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> L=32.6	8-98062-280-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
