2-25A — SPEEDOMETER DRIVEN GEAR (#11260) — 62 parça

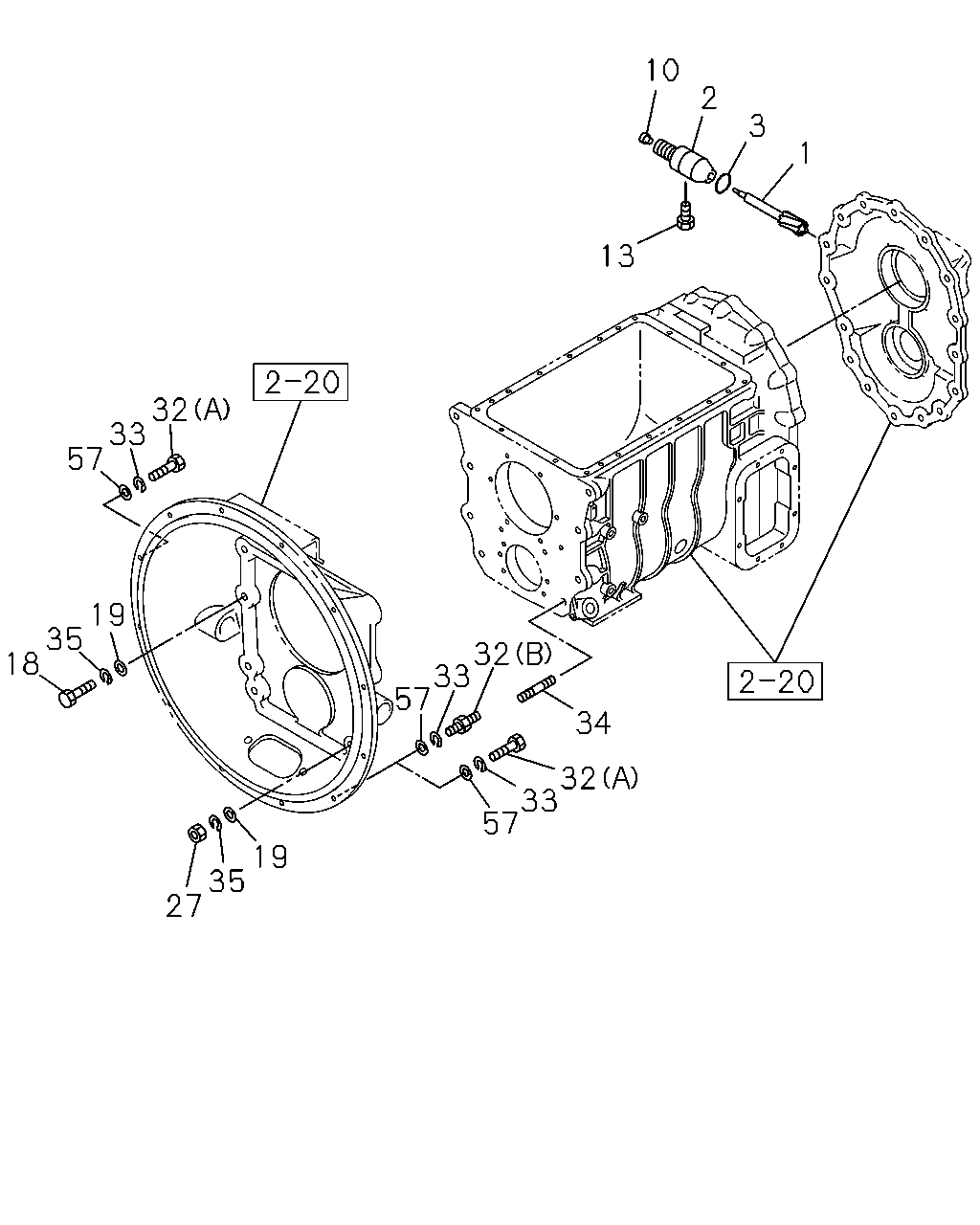

10 2 3 1 13 32 33 57 19 35 18 32 33 57 34 32 33 57 19 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0107-	●
1	GEAR; DRIVEN,SPD Z=17	1-33372-120-4	01	1	0107-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0107-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-084-0	01	1	0107-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0107-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-069-0	01	1	0107-		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0107-	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0107-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0107-0512	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●
18	BOLT; CLU HSG TO TRANS M12X50 FLANGE	0-28181-250-0	19	1	0107-0512		●
18	BOLT; CLU HSG TO TRANS M12X50 FLANGE	0-28151-250-0	19	1	0601-		●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0107-0605	●
19	WASHER; PL,CLU HSG TO TRANS ID=17 OD=30	0-91610-516-0	02	1	0606-	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0107-0512	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (D) M10X16,M12X100 L=129.5	1-09049-039-1	02	1	0306-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M12X100 FLANGE	0-28181-200-0	08	1	0107-0110		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M12X100 FLANGE	0-28181-200-0	06	1	0111-0512		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M12X100 FLANGE	0-28151-200-0	06	1	0601-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	08	1	0107-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0107-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M12X35 FLANGE	0-28781-235-0	08	1	0107-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M12X35 FLANGE	0-28751-235-0	08	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0107-	●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0107-0603	●
33	WASHER; LK,CLU HSG ID=12.2	0-91510-612-0	04	1	0604-	●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0107-	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0107-0603	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	0-91510-516-0	02	1	0604-	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0107-	●

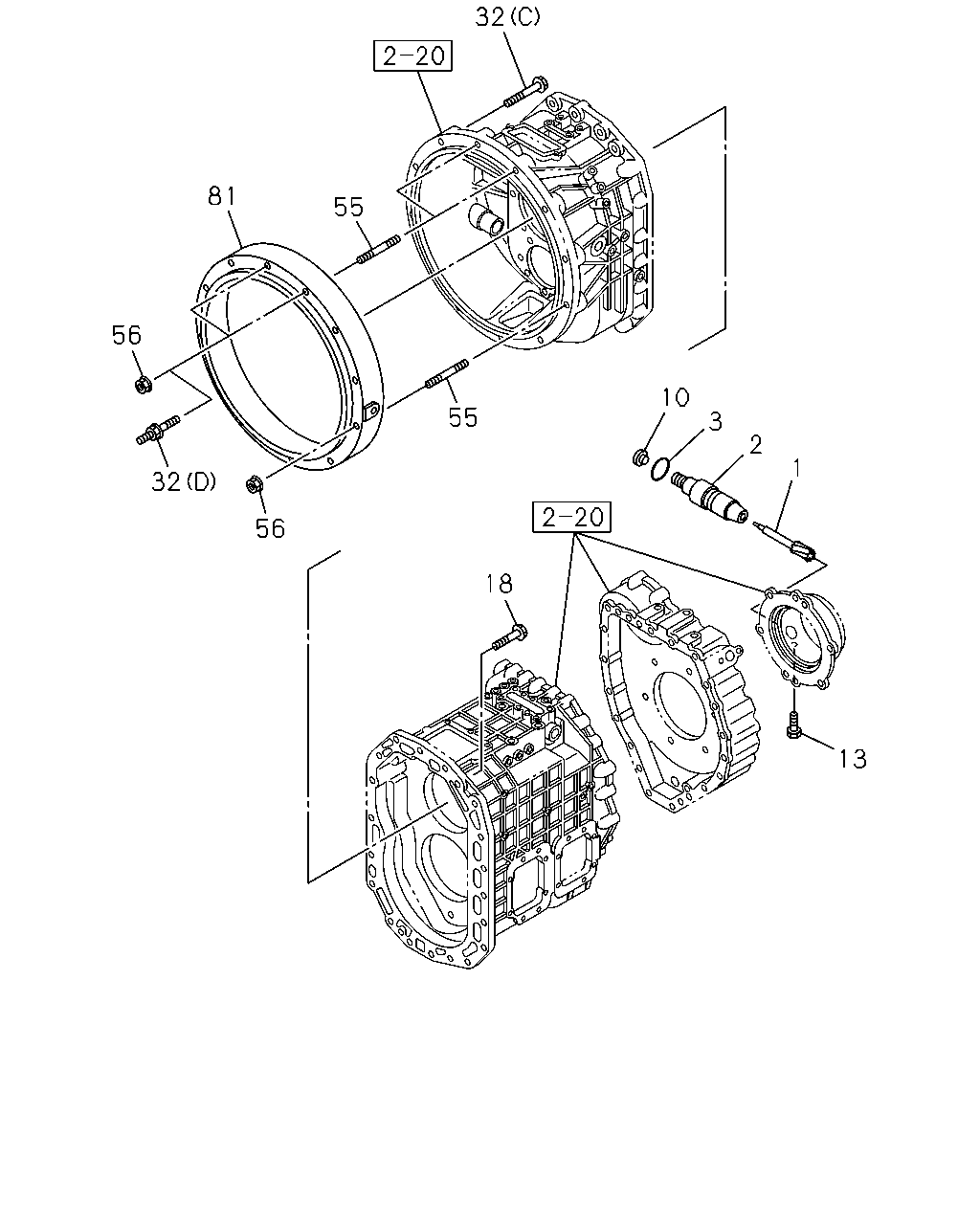

32 81 55 56 10 55 3 2 1 32 56 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0107-	●
1	GEAR; DRIVEN,SPD Z=17	1-33372-120-4	01	1	0107-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0107-	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-084-0	01	1	0107-		●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0107-	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-069-0	01	1	0107-		●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0107-	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0107-	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0107-0512	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●
18	BOLT; CLU HSG TO TRANS M12X50 FLANGE	0-28181-250-0	19	1	0107-0512		●
18	BOLT; CLU HSG TO TRANS M12X50 FLANGE	0-28151-250-0	19	1	0601-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (D) M10X16,M12X100 L=129.5	1-09049-039-1	02	1	0306-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M12X100 FLANGE	0-28181-200-0	08	1	0107-0110		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M12X100 FLANGE	0-28181-200-0	06	1	0111-0512		●
32	BOLT; CLU HSG TO FLYWHEEL HSG (C) M12X100 FLANGE	0-28151-200-0	06	1	0601-		●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60	0-28181-260-0	08	1	0107-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0107-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M12X35 FLANGE	0-28781-235-0	08	1	0107-0512	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M12X35 FLANGE	0-28751-235-0	08	1	0601-	●
32	BOLT; CLU HSG TO FLYWHEEL HSG EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0107-	●
55	STUD; FLYWHEEL HSG M12X105 L=123	1-09302-166-0	04	1	0107-0110		●
55	STUD; FLYWHEEL HSG M12X105 L=123	1-09302-166-0	06	1	0111-0305		●
55	STUD; FLYWHEEL HSG M12X105 L=123	1-09302-166-0	04	1	0306-		●
56	NUT; CLU HSG TO FLYWHEEL HSG M12 FLANGE	0-91150-212-0	04	1	0107-0110		●
56	NUT; CLU HSG TO FLYWHEEL HSG M12 FLANGE	0-91150-212-0	06	1	0111-0305		●
56	NUT; CLU HSG TO FLYWHEEL HSG M12 FLANGE	0-91150-212-0	04	1	0306-0602		●
56	NUT; CLU HSG TO FLYWHEEL HSG M12 FLANGE	0-91180-212-0	04	1	0603-		●
81	SPACER	1-31119-017-0	01	1	0107-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
