Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#112599) — 360 parça

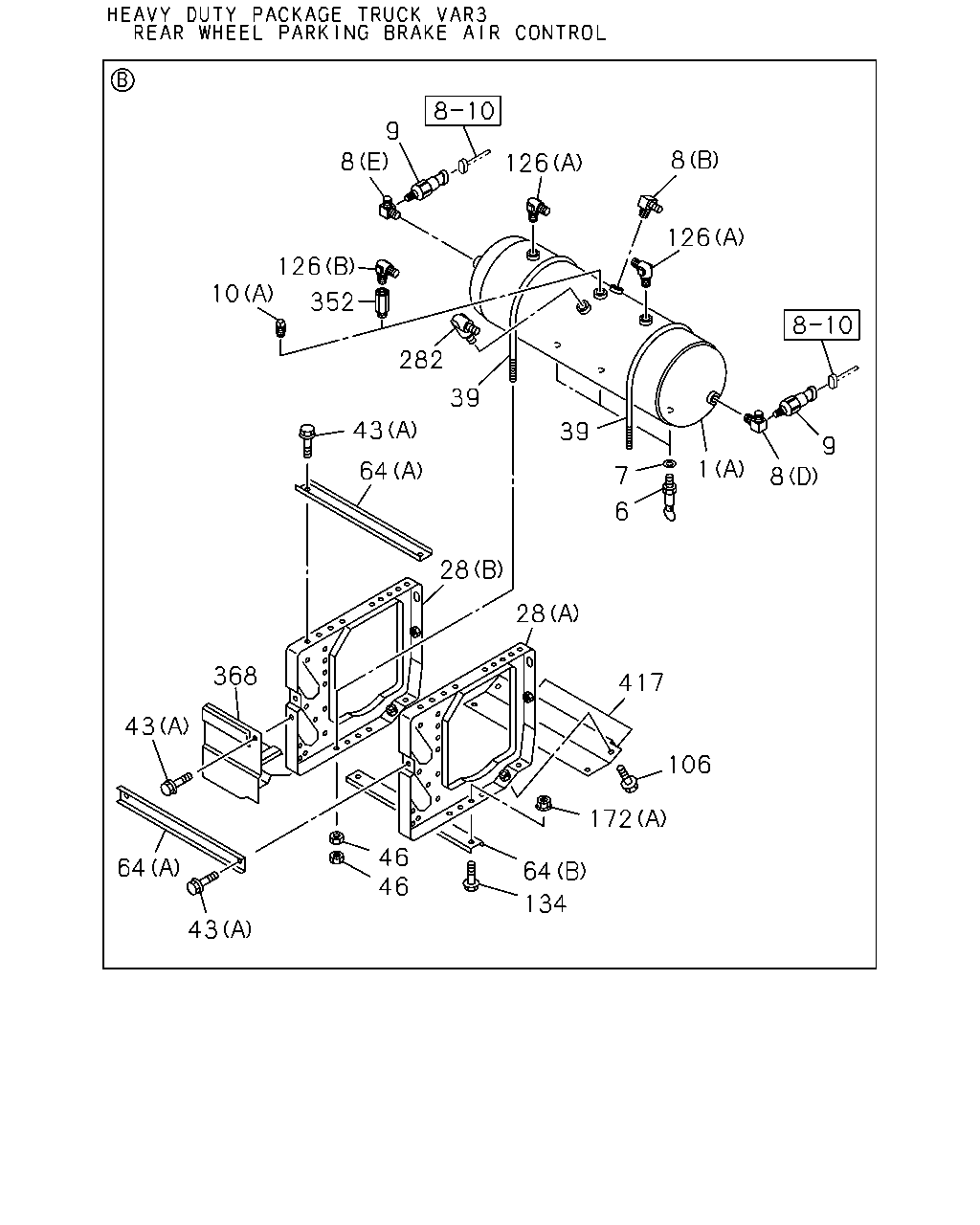

9 8 126 8 126 9 8 1 7 39 6 126 10 352 282 43 39 64 28 417 28 106 172 64 134 46 46 43 64 43 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1302-
6	COCK; DRAIN,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1302-
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1302-
7	GASKET; DRAIN COCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09656-759-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1302-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	03	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	02	1	1302-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	1302-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	1302-
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	1302-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98022-041-0	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28050-816-0	10	1	1302-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1302-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	08	1	1302-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1302-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1302-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	01	1	1302-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98213-729-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-94301-490-0	01	1	1302-
106	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K)	1-09650-536-0	01	1	1406-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I)	8-98190-623-0	01	1	1302-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) M20	0-92121-812-0	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) M20	0-92121-812-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1406-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1406-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
134	BOLT; COVER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1302-
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1302-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	1302-
282	UNION; 2 WAY 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-
282	UNION; 2 WAY 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-
352	CONNECTOR; STRAIGHT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98133-234-0	01	1	1302-
368	COVER; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98061-625-3	01	1	1302-
417	COVER; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-401-0	01	1	1302-

10 8 40 3 8 6 124 8 203 203 34 31 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1302-
3	VALVE; CHECK,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	02	1	1302-
3	VALVE; CHECK,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48410-182-3	01	1	1302-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
6	COCK; DRAIN,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1302-
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	1302-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-09656-759-0	01	1	1302-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	03	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	02	1	1302-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	1302-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1302-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	1302-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	1302-
124	SWITCH; AIR PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1302-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	1302-

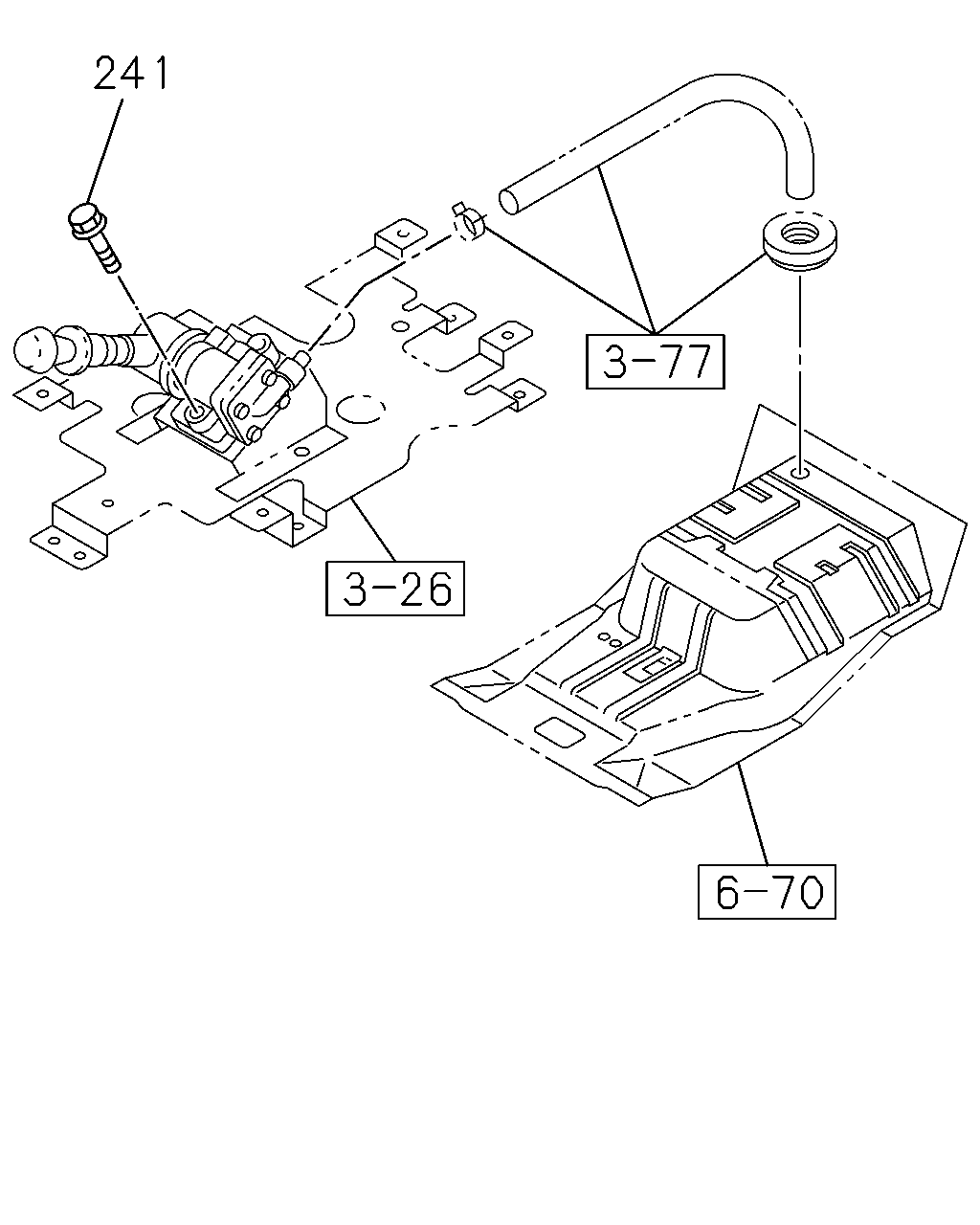

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1302-

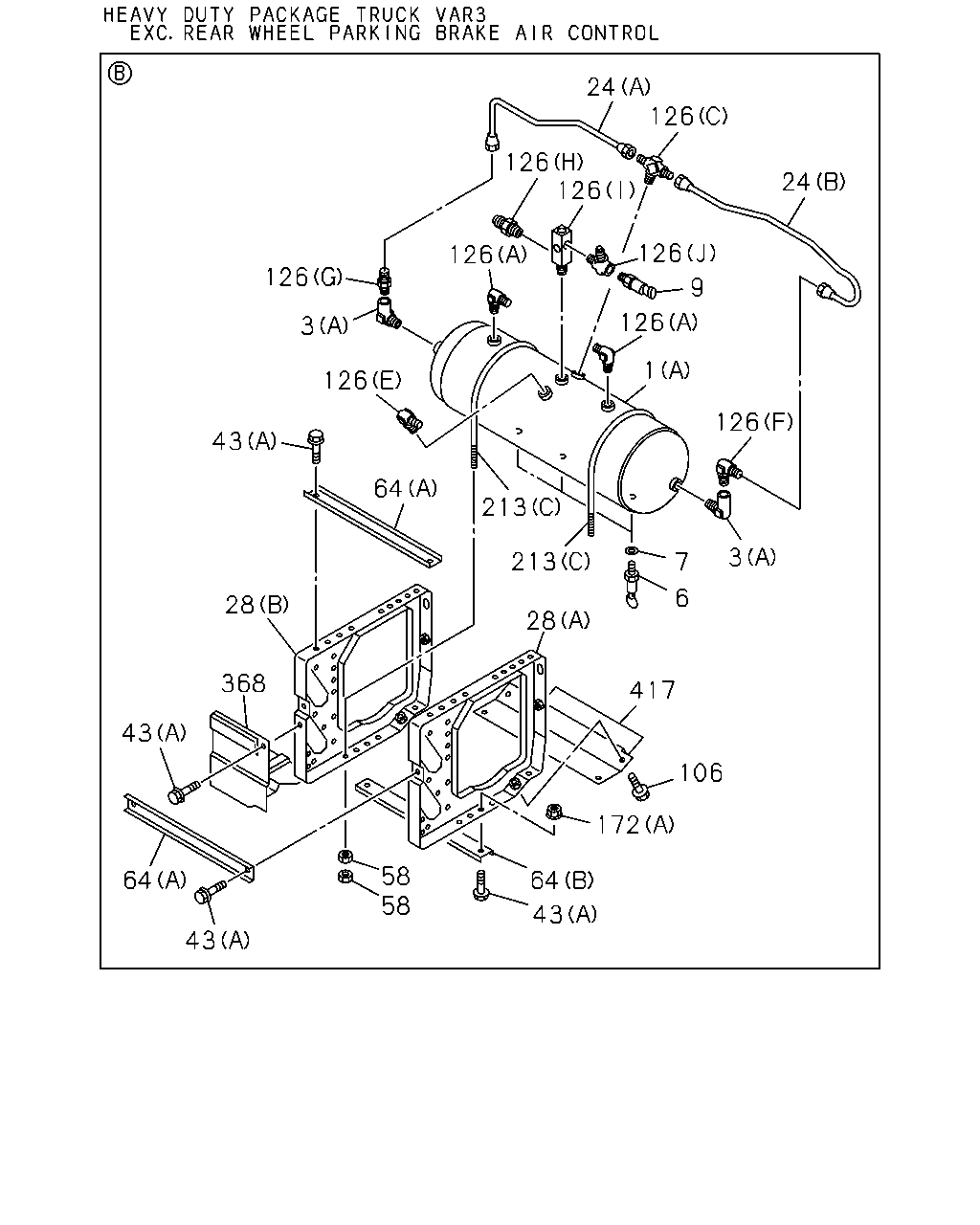

24 24 126 126 126 126 126 126 126 1 126 3 6 7 417 28 213 213 64 126 3 43 28 368 43 106 172 64 43 58 58 43 64 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1302-
3	VALVE; CHECK,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	02	1	1302-
3	VALVE; CHECK,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48410-182-3	01	1	1302-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
6	COCK; DRAIN,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1302-
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1302-
7	GASKET; DRAIN COCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1302-
24	PIPE ASM; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98178-465-0	01	1	1302-
24	PIPE ASM; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98178-466-0	01	1	1302-
24	PIPE ASM; AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98227-506-0	01	1	1302-
24	PIPE ASM; AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98227-507-0	01	1	1302-
24	PIPE ASM; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98163-929-0	01	1	1302-
24	PIPE ASM; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98163-930-0	01	1	1302-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	1302-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	1302-
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28050-816-0	10	1	1302-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1302-
58	NUT; BAND,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1302-
58	NUT; BAND,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	16	1	1302-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1302-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1302-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	01	1	1302-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98213-729-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-94301-490-0	01	1	1302-
106	BOLT; COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X16 FLANGE	0-28050-816-0	04	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K)	1-09650-536-0	01	1	1406-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I)	8-98190-623-0	01	1	1302-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) M20	0-92121-812-0	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) M20	0-92121-812-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1406-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1406-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1302-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	1302-
213	BOLT; U AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98022-041-0	02	1	1302-
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=97.5	1-48317-323-1	02	1	1302-
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=195	1-48317-367-2	02	1	1302-
368	COVER; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98061-625-3	01	1	1302-
417	COVER; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-401-0	01	1	1302-

43 172 126 64 172 10 126 126 126 9 1 176 28 172 28 64 43 43 10 3 5 3 10 10 64 5 1 10 5 213 58 58 213 58 58 6 7 10 126 175 174 126 126 3 126 10 126 7 6 58 42 42 58 213 58 42 42 58 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98018-785-3	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48330-598-0	01	1	1302-
1	TANK ASM; AIR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48370-541-0	01	1	1302-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98166-972-0	01	1	1302-
3	VALVE; CHECK,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	02	1	1302-
3	VALVE; CHECK,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-48410-182-3	01	1	1302-
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48320-031-1	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) EXC. AIR DRYER<PS7>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
3	VALVE; CHECK,AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1302-
5	UNION; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1302-
5	UNION; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1302-
6	COCK; DRAIN,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	03	1	1302-
6	COCK; DRAIN,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-48312-015-0	04	1	1302-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	03	1	1302-
7	GASKET; DRAIN COCK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=14	1-09630-145-0	04	1	1302-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	01	1	1302-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> STAMP 5.5	8-97609-249-0	03	1	1302-
10	PLUG; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) PT3/8	9-09204-517-0	01	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	03	1	1302-
10	PLUG; AIR TANK 4HK1-TCS ENG(RJS) EXC. TIRE INFLATOR DEVICE<SG4>,HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	04	1	1302-
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) PT1/4	9-99204-513-0	02	1	1302-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98021-918-5	01	1	1302-
28	BRACKET; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-509-5	01	1	1302-
28	BRACKET; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-53318-338-6	02	1	1302-
42	WASHER; PL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=8.4 OD=18	0-91610-608-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28050-816-0	10	1	1302-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M8X20 FLANGE	0-28650-820-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10X25 FLANGE	0-28651-025-0	04	1	1302-
43	BOLT; STAY,AIR TANK,MAIN REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X16 FLANGE	0-28050-816-0	06	1	1302-
58	NUT; BAND,AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1302-
58	NUT; BAND,AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8	0-91110-508-0	16	1	1302-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98044-510-3	02	1	1302-
64	STAY; AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98044-511-2	01	1	1302-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	1-48317-349-0	01	1	1302-
64	STAY; AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	1-53318-293-1	01	1	1302-
64	STAY; AIR TANK,MAIN 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-98213-729-0	01	1	1302-
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E)	8-94301-490-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K)	1-09650-536-0	01	1	1406-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (I)	8-98190-623-0	01	1	1302-
126	CONNECTOR; ELBOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) PT1/4 2WAY	1-09660-693-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) M20	0-92121-812-0	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) M20	0-92121-812-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1302-1405
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1406-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (E) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1406-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
126	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TURBO - CONVENTIONAL<Q5T> (J) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1302-
172	NUT; STAY,AIR TANK,MAIN HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1302-
172	NUT; STAY,AIR TANK,MAIN EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	04	1	1302-
174	COCK; AIR,INFLATOR 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1302-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
176	ADAPTER 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1302-
213	BOLT; U AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98022-041-0	02	1	1302-
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=97.5	1-48317-323-1	02	1	1302-
213	BOLT; U AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=195	1-48317-367-2	02	1	1302-

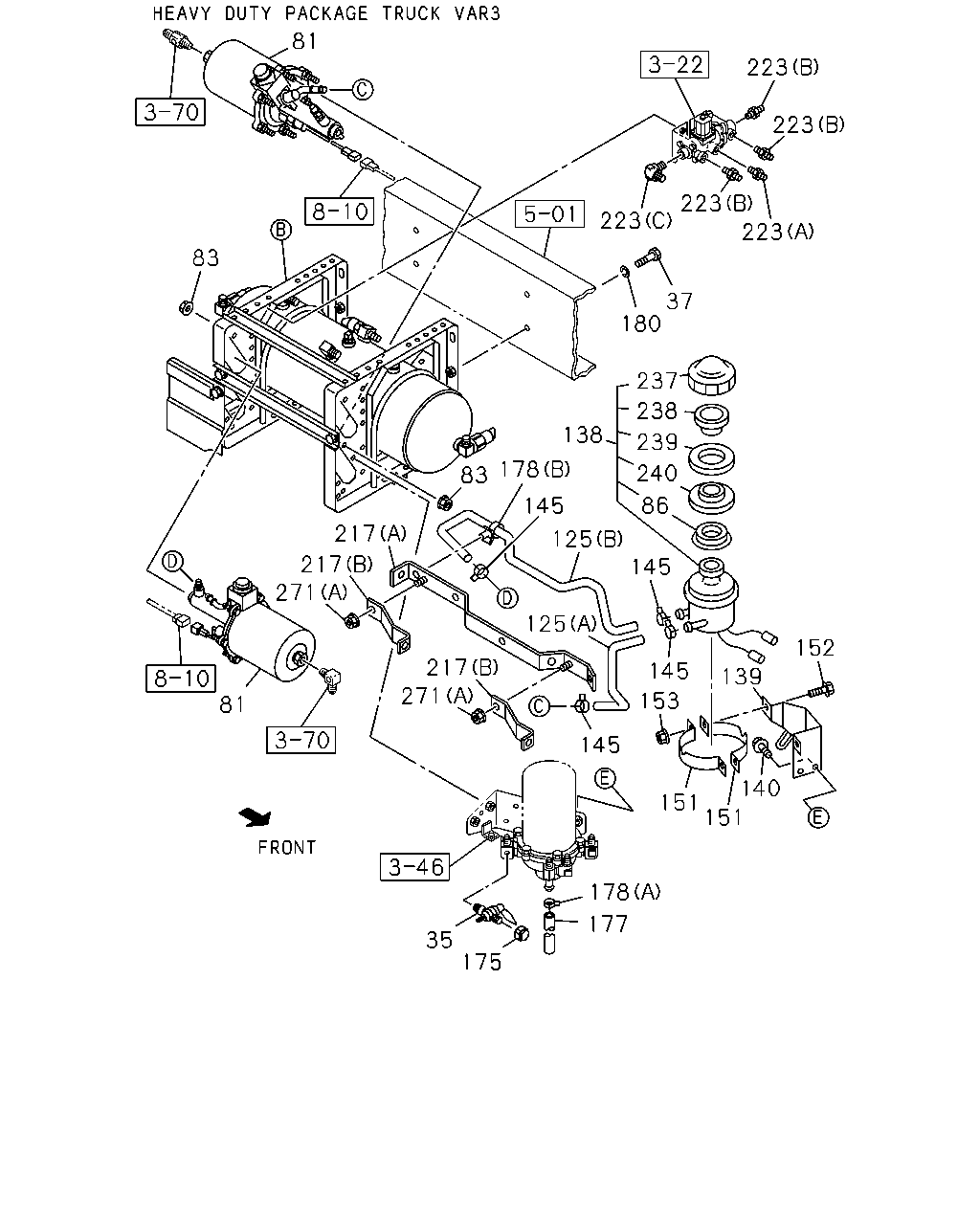

175 177 178 151 151 152 139 140 145 153 145 125 125 217 271 81 271 217 83 223 223 223 223 223 81 83 86 240 239 238 237 145 178 217 37 180 138 145 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	COCK; AIR,AIR TANK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-09680-099-0	01	1	1302-
35	COCK; AIR,AIR TANK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	1-09680-099-0	01	1	1302-
37	BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	04	1	1302-
37	BOLT; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	06	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-663-1	02	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-826-0	02	1	1302-
83	NUT; AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	09	1	1302-
83	NUT; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	08	1	1302-
86	SEAL; DUST	1-47529-019-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98051-217-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-218-1	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98197-596-0	01	1	1302-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1302-
139	BRACKET; OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-105-0	01	1	1302-
139	BRACKET; OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47537-081-2	01	1	1302-
140	BOLT; OIL TANK TO BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-
140	BOLT; OIL TANK TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X20 FLANGE	0-28651-020-0	02	1	1302-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1302-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1302-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1302-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1302-
175	CAP; AIR COCK 6HK1-TCN ENG(82L) TIRE INFLATOR DEVICE<SG4> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T>	9-48319-102-0	01	1	1302-
175	CAP; AIR COCK 4HK1-TCS ENG(RJS) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1302-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	9-09917-171-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1302-
180	WASHER; LK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=12.5 OD=32	0-91614-712-0	04	1	1302-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-871-0	01	1	1302-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98085-273-1	02	1	1302-
217	BRACKET; RUBBER HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=112	1-47475-694-1	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1302-
223	UNION H.S.A SYSTEM<6EP> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1302-
237	CAP; OIL TANK	1-47525-030-0	01	1	1302-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1302-
239	FILTER; DUST	1-47529-017-0	01	1	1302-
240	HOLDER; FILTER	1-47529-018-0	01	1	1302-
271	NUT; BRKT,HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1302-

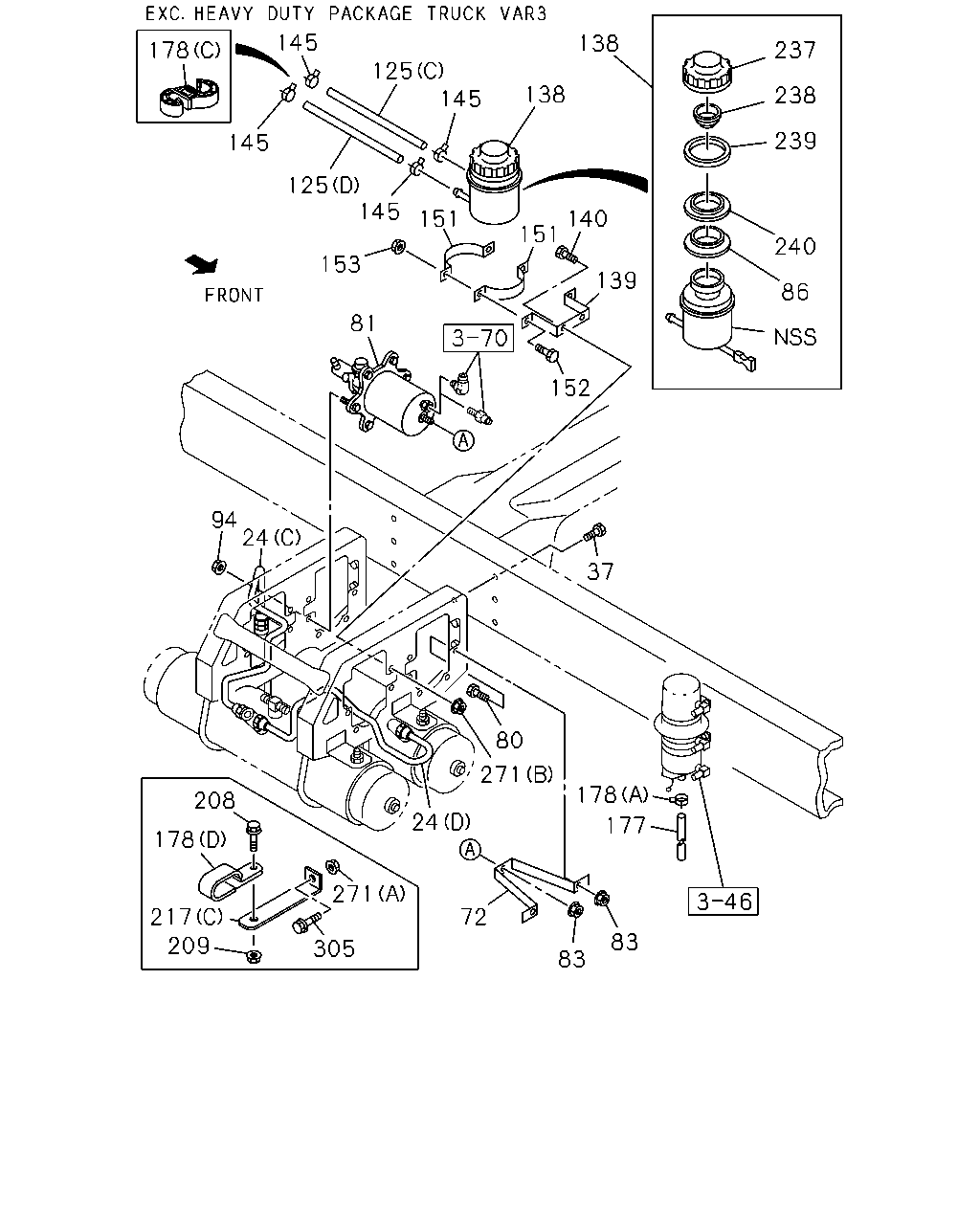

178 145 125 125 145 151 145 138 138 151 140 139 152 81 153 145 237 238 239 240 86 94 24 208 178 217 209 305 271 72 83 83 177 178 24 271 80 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98178-465-0	01	1	1302-
24	PIPE ASM; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98178-466-0	01	1	1302-
24	PIPE ASM; AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98227-506-0	01	1	1302-
24	PIPE ASM; AIR TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98227-507-0	01	1	1302-
24	PIPE ASM; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98163-929-0	01	1	1302-
24	PIPE ASM; AIR TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98163-930-0	01	1	1302-
37	BOLT; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	04	1	1302-
37	BOLT; AIR TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X40 FLANGE	0-28651-240-0	06	1	1302-
72	BRACKET; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98120-254-0	02	1	1302-
80	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	04	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-663-1	02	1	1302-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-826-0	02	1	1302-
83	NUT; AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	09	1	1302-
83	NUT; AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	08	1	1302-
86	SEAL; DUST	1-47529-019-0	01	1	1302-
94	NUT; BRKT FIX EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE	0-91180-210-0	06	1	1302-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98051-217-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-218-1	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1302-
125	HOSE; OIL TANK TO AIR MASTER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98197-596-0	01	1	1302-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1302-
139	BRACKET; OIL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98051-105-0	01	1	1302-
139	BRACKET; OIL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-47537-081-2	01	1	1302-
140	BOLT; OIL TANK TO BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-
140	BOLT; OIL TANK TO BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X20 FLANGE	0-28651-020-0	02	1	1302-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1302-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1302-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1302-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1302-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1302-
178	CLIP; HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=13-18 L=14.5	1-09709-290-0	08	1	1302-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=12 & 12	1-09709-280-1	01	1	1302-
178	CLIP; HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	9-09917-171-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=21	8-94242-034-0	01	1	1302-
178	CLIP; HOSE 4HK1-TCS ENG(RJS) (A) ID=21	8-94242-034-0	01	1	1302-
208	BOLT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1302-
209	NUT; CLIP EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 FLANGE	0-91180-108-0	01	1	1302-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98082-871-0	01	1	1302-
217	BRACKET; RUBBER HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98085-273-1	02	1	1302-
217	BRACKET; RUBBER HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=112	1-47475-694-1	01	1	1302-
237	CAP; OIL TANK	1-47525-030-0	01	1	1302-
238	PLATE; BAFFLE	1-47529-022-0	01	1	1302-
239	FILTER; DUST	1-47529-017-0	01	1	1302-
240	HOLDER; FILTER	1-47529-018-0	01	1	1302-
271	NUT; BRKT,HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1302-
271	NUT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	02	1	1302-
305	BOLT; BRKT,HOSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
