4-40 — STEERING UNIT (#112594) — 204 parça

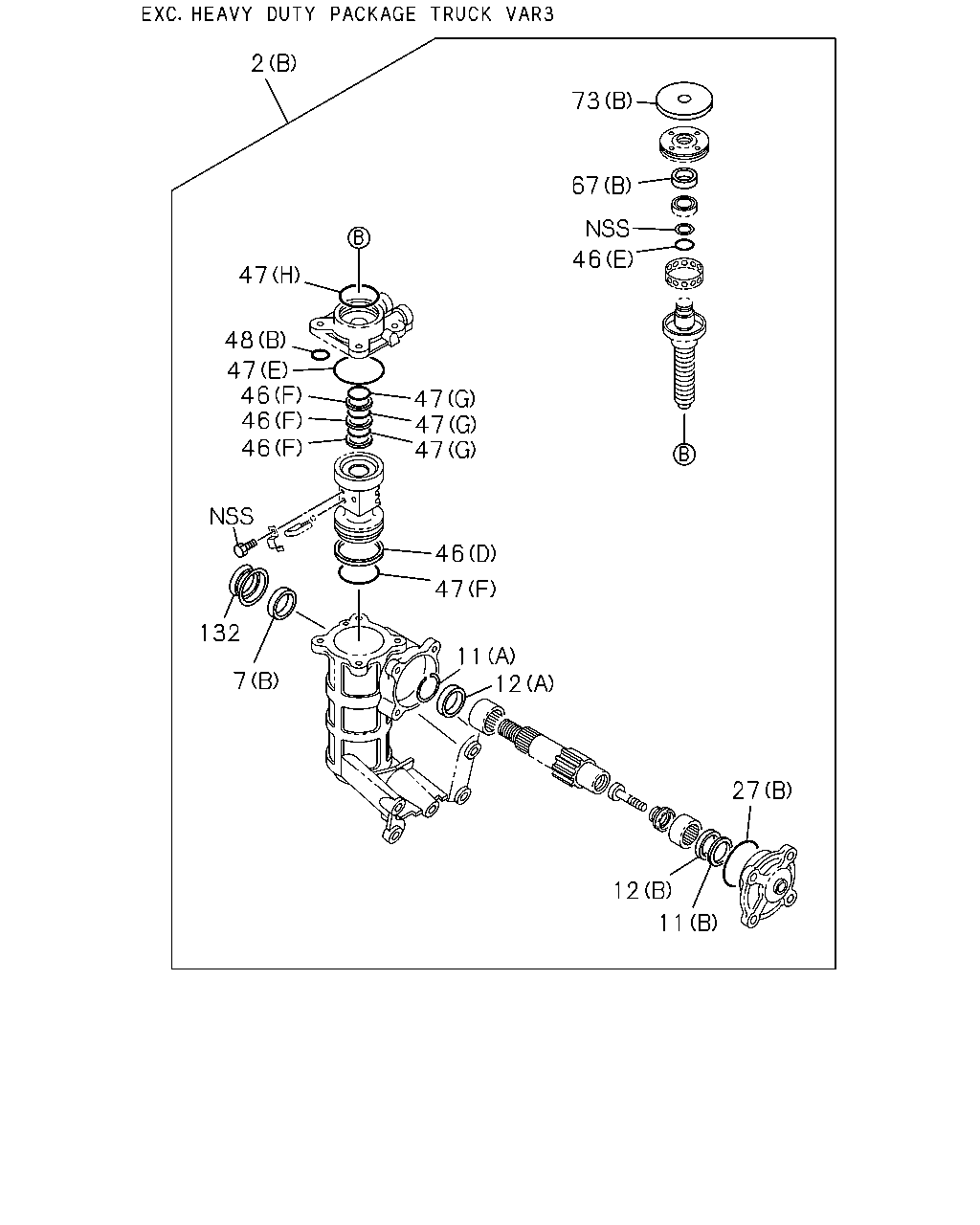

çizim 328680
73 67 46 2 47 48 47 46 46 46 47 47 47 132 46 47 11 12 7 27 12 11
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
(B) ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
(A) ASM PART: B = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -

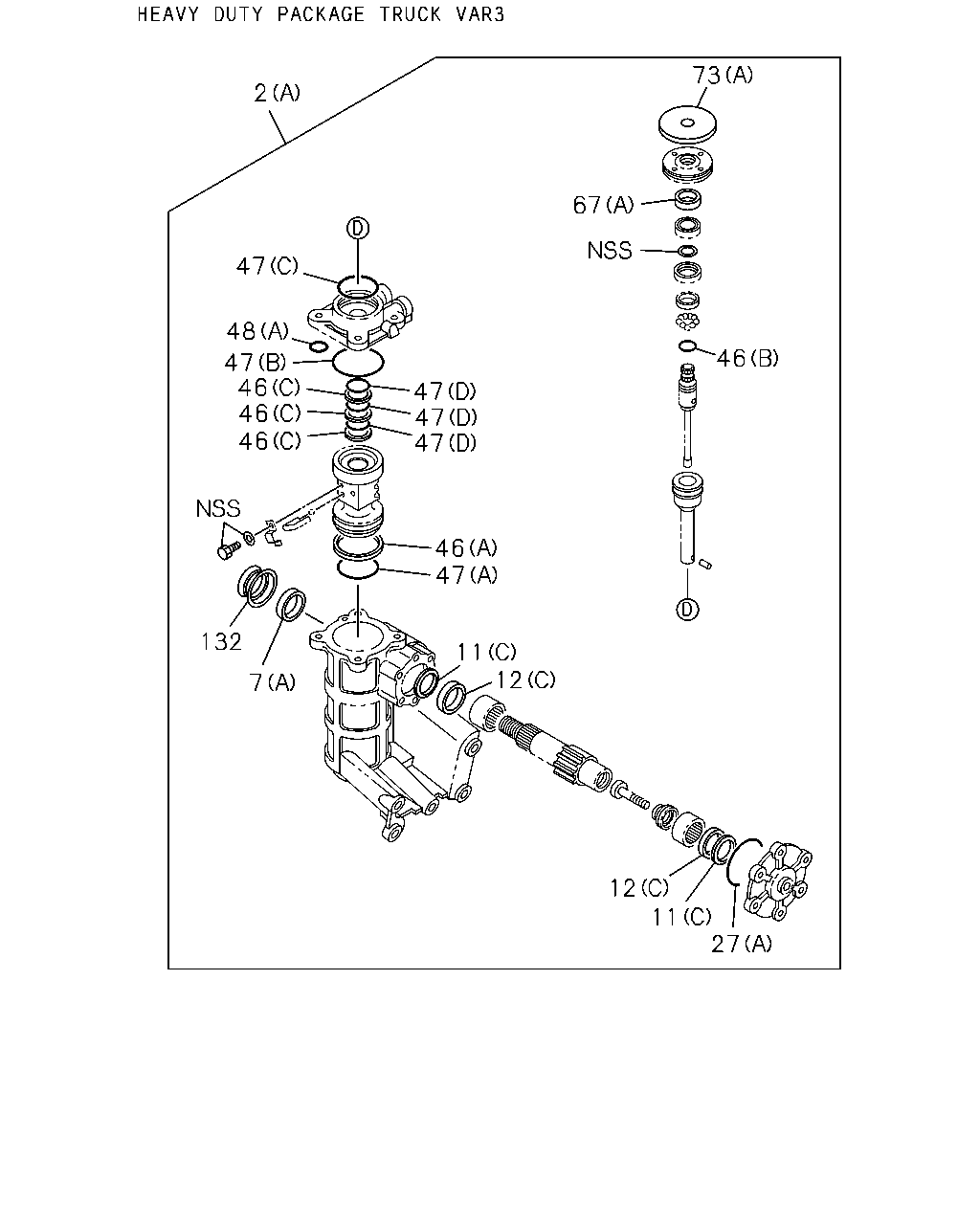

çizim 328890
73 67 46 2 47 48 47 47 47 46 47 46 46 46 132 47 11 12 12 11 27 7
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
(B) ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
(A) ASM PART: B = 1-44000-952-2 		8-98075-903-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -

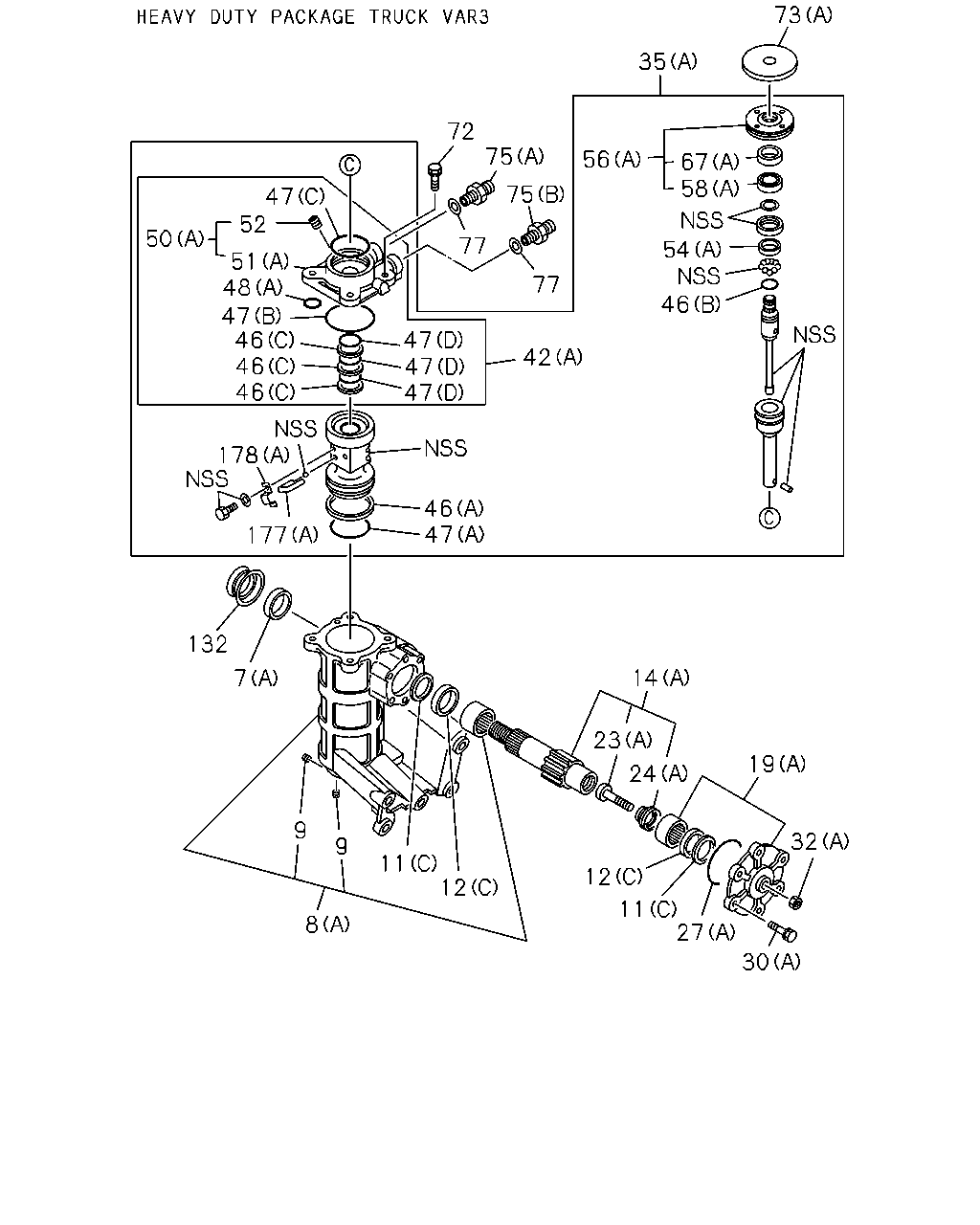

çizim 331950
73 35 67 56 58 54 46 72 75 75 77 42 77 47 47 47 47 52 50 47 48 51 46 46 46 178 177 46 47 132 7 14 23 24 19 32 30 27 11 12 12 11 9 9 8
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-675-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
(B), M12 ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-052-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-053-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44561-015-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44151-017-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -

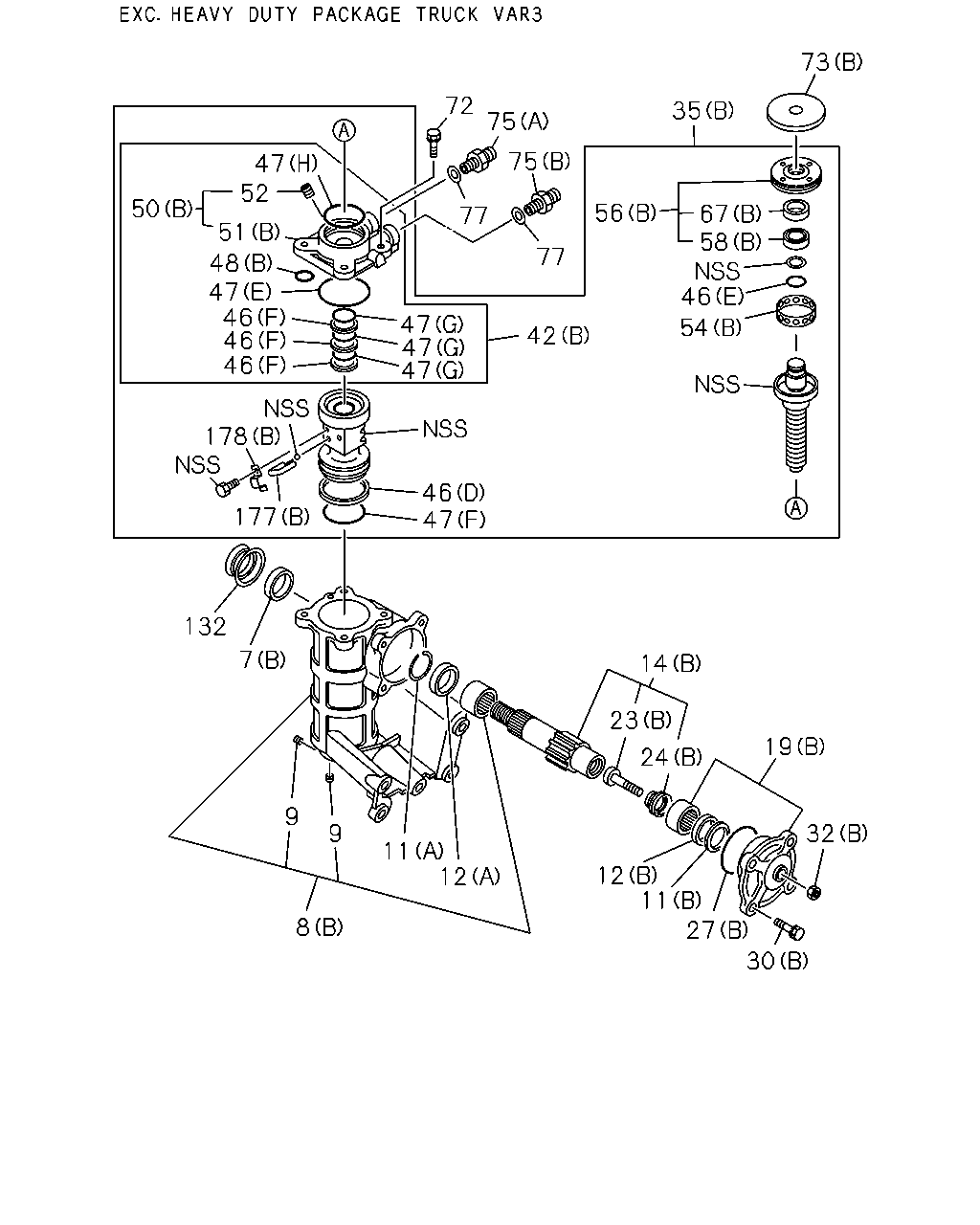

çizim 331960
72 75 35 73 56 67 46 58 54 75 77 77 42 47 50 52 51 48 46 46 46 47 47 47 47 47 46 177 178 132 7 9 9 8 11 12 14 23 24 12 11 27 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-102-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
8 BOX ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-675-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-103-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-226-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44320-026-0 01 1 -
19 COVER; SIDE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98159-681-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-109-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-107-0 06 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44269-037-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
(B), M12 ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98095-590-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-052-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-046-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-090-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-952-2 		1-44519-098-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-952-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-952-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(F) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(G) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(H) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44519-097-0 01 1 -
48 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44560-053-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44561-015-0 01 1 -
51 HOUSING; VALVE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44250-006-1 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44259-036-1 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
73 COVER; DUST,STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1, B = 1-44000-952-2 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44151-017-0 02 1 -
177 TUBE; BALL BRG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
(A) ASM PART: B = 1-44000-952-2 		1-44159-034-0 01 1 -
178 CLIP; BALL TUBE STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
