◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11506 - FRR RHD EURO2 EXC.SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#112593) — 57 parça

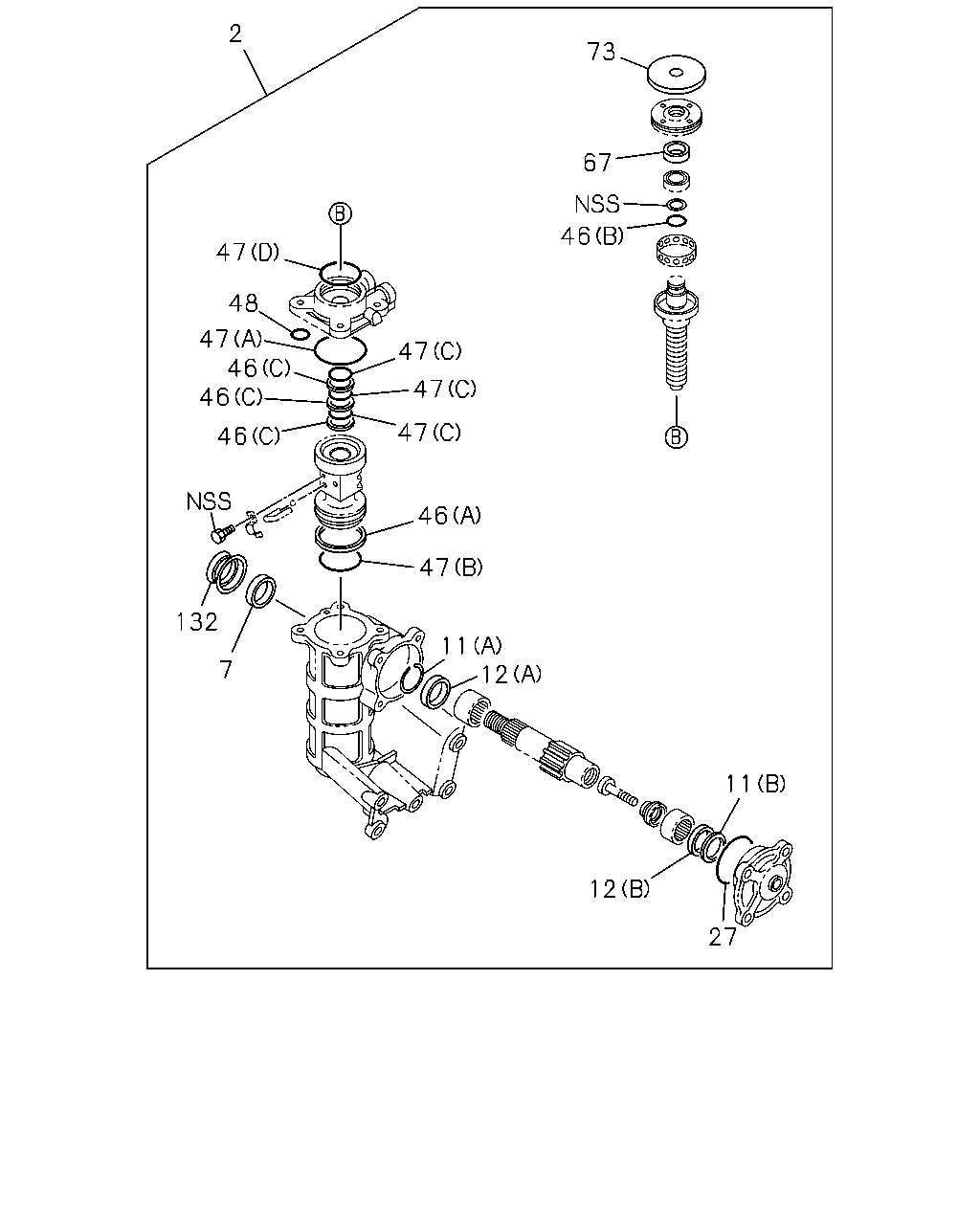

çizim 328657
2 73 67 46 47 48 47 46 46 46 132 47 47 47 46 47 11 12 12 11 27 7
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-951-1 		1-85574-090-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-119-0 01 1 -

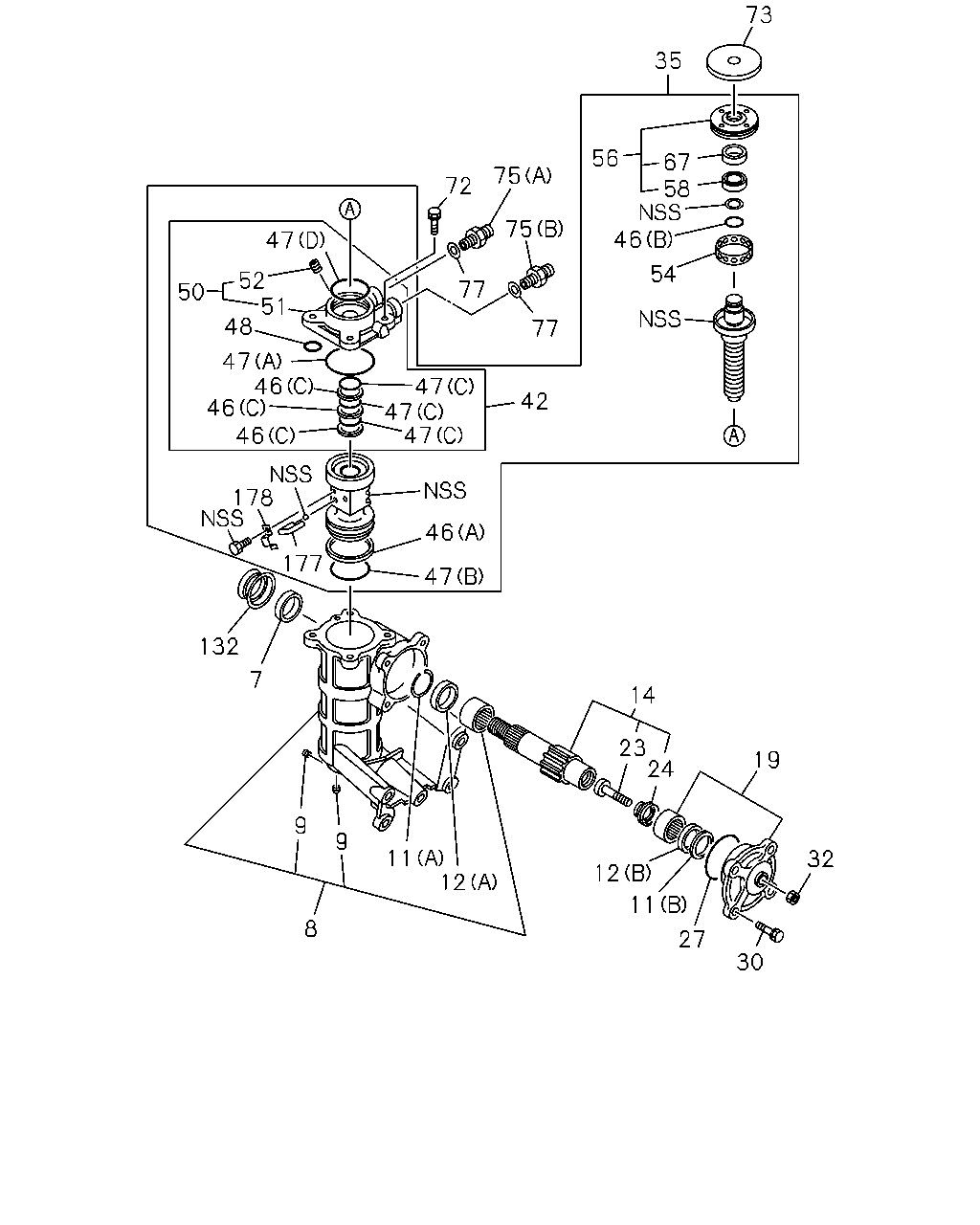

çizim 331924
47 50 52 48 46 47 46 46 47 47 47 42 77 77 72 75 75 56 35 73 67 46 58 54 51 178 46 47 132 7 9 9 8 11 12 14 19 23 24 32 30 27 11 12 177
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44240-157-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-162-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44320-012-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44260-027-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44277-006-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44569-103-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: A = 1-44000-951-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		8-98095-566-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-155-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		8-98081-685-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-951-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-951-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-951-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-951-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44519-303-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-951-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-951-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-951-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-119-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-060-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: A = 1-44000-951-1 		1-44159-064-0 01 1 -
