Sayfa 4-35 - Isuzu EPC

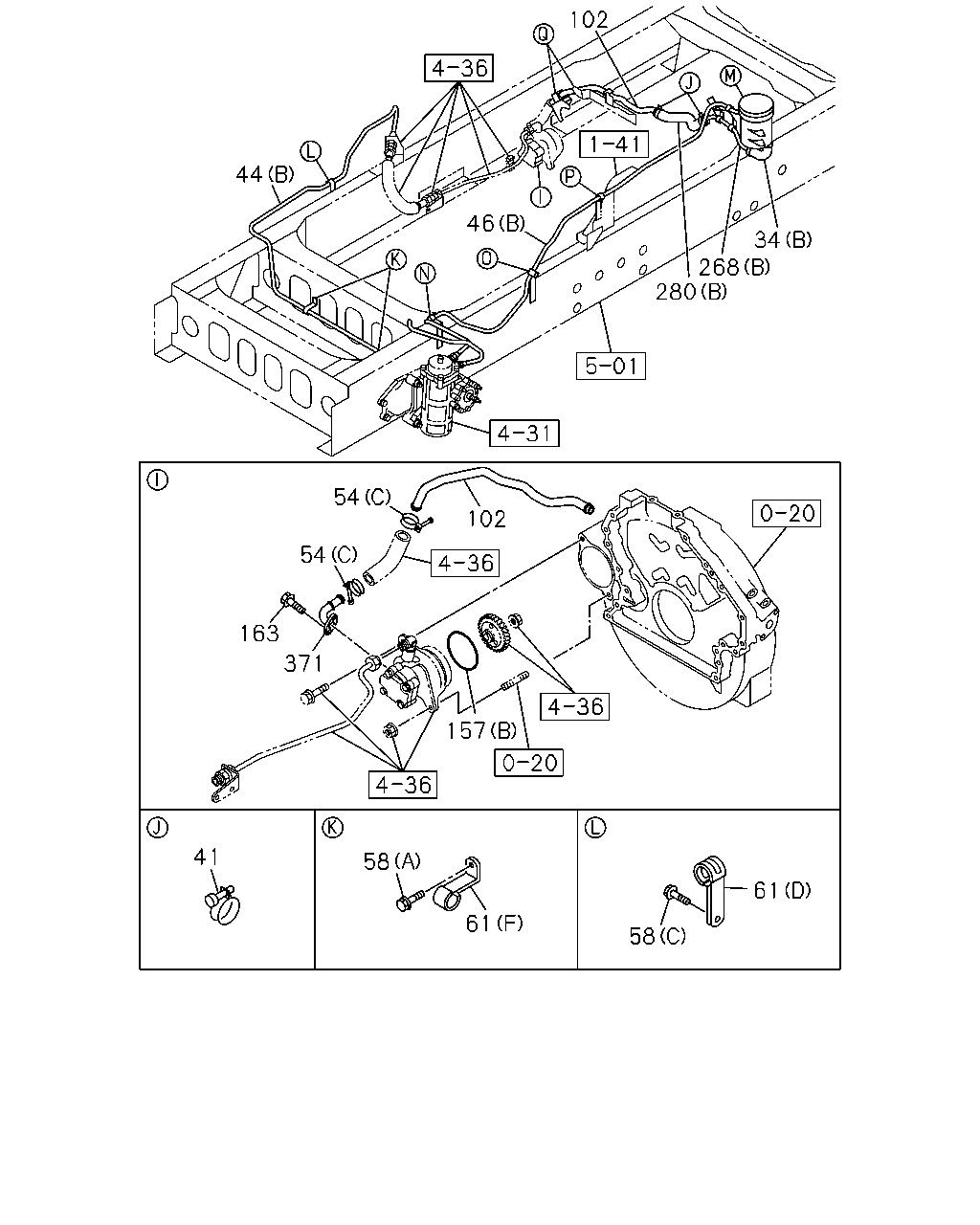

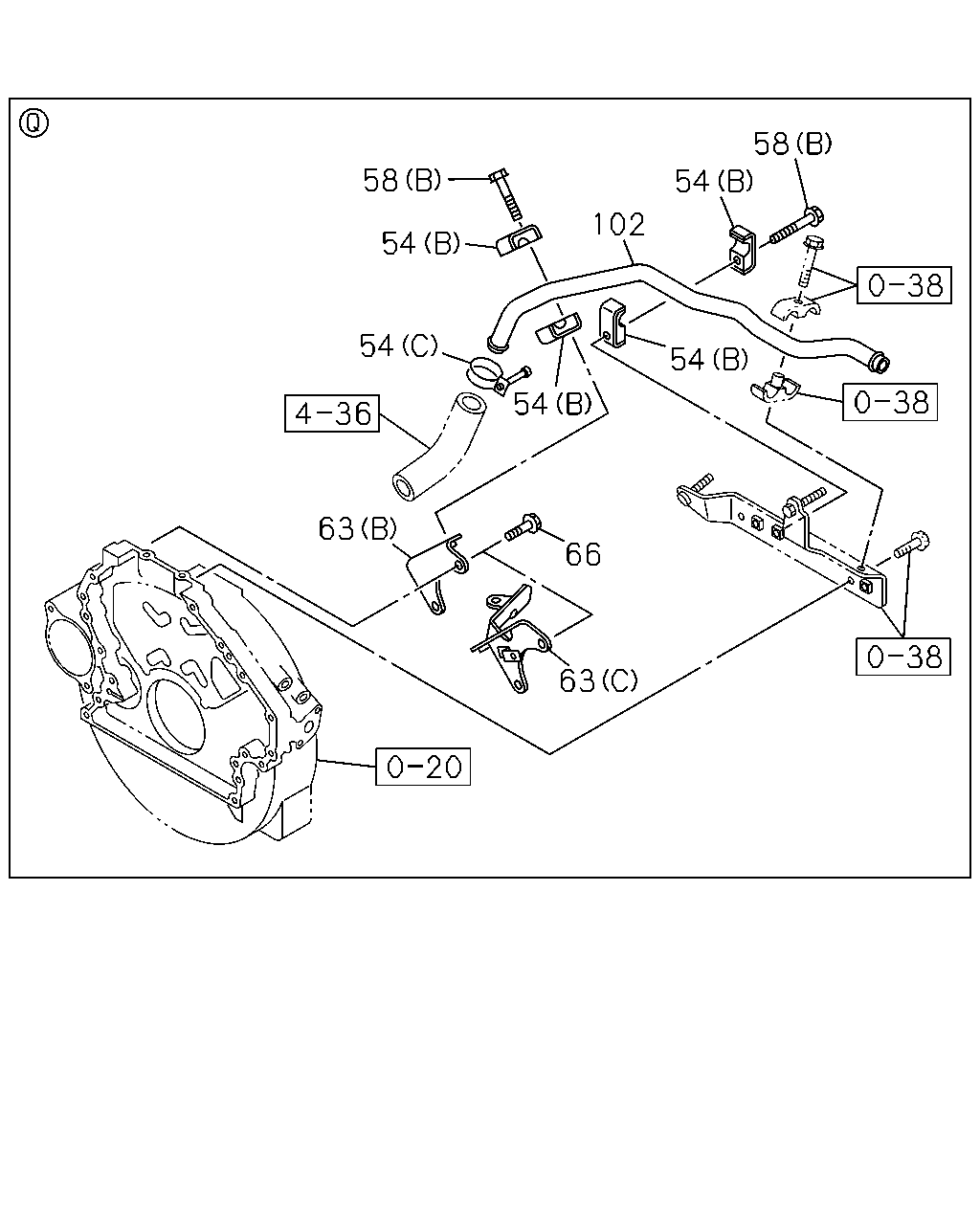

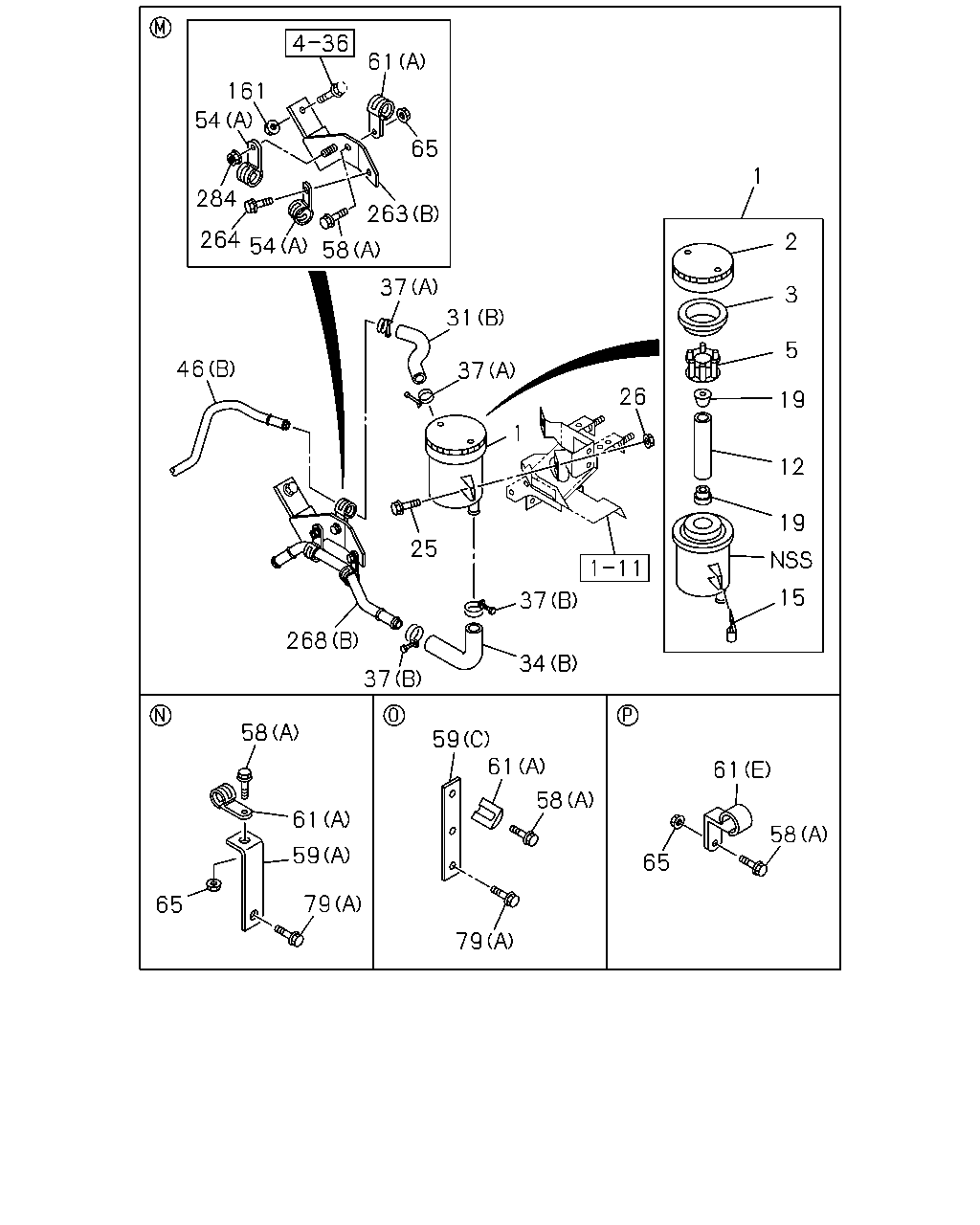

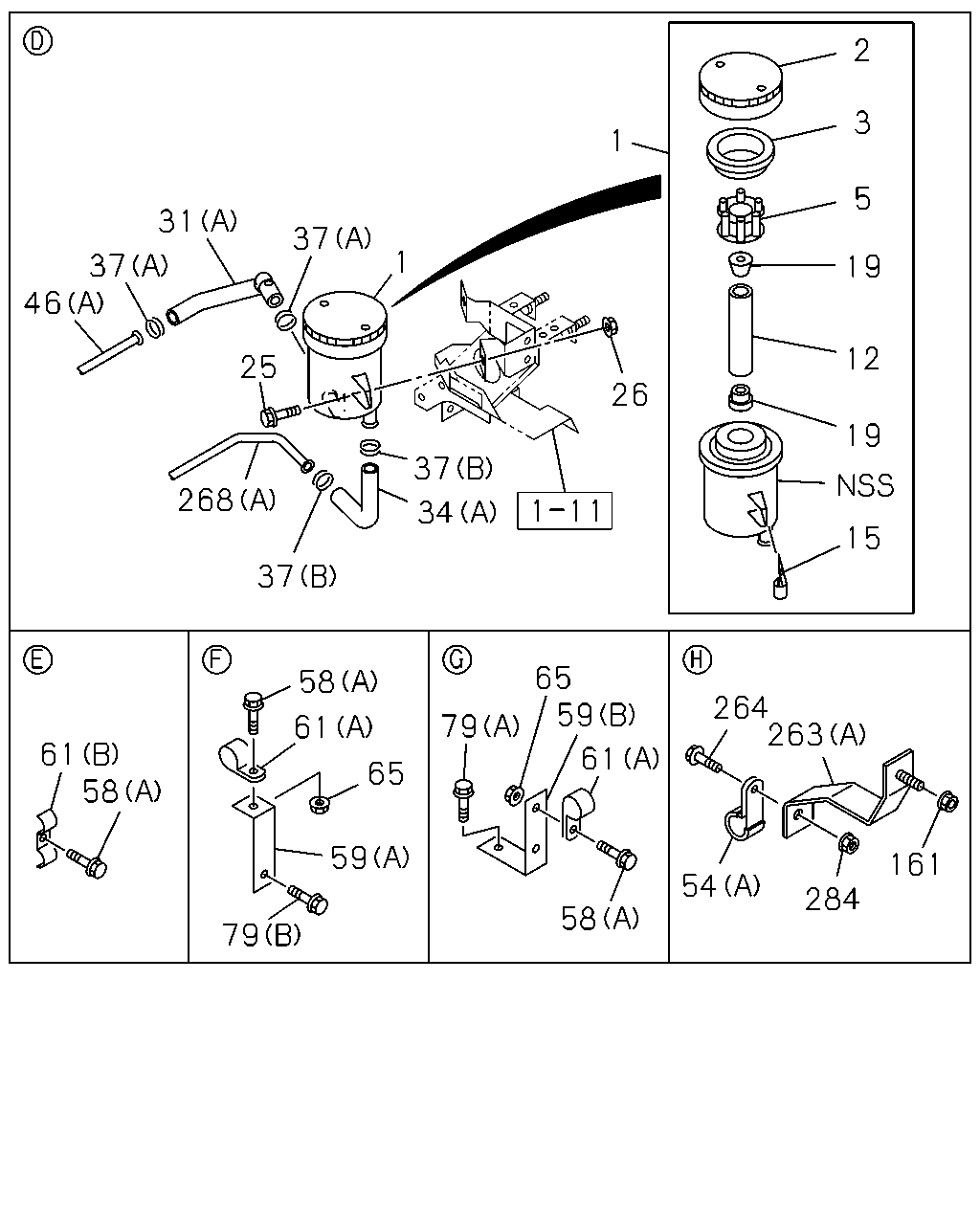

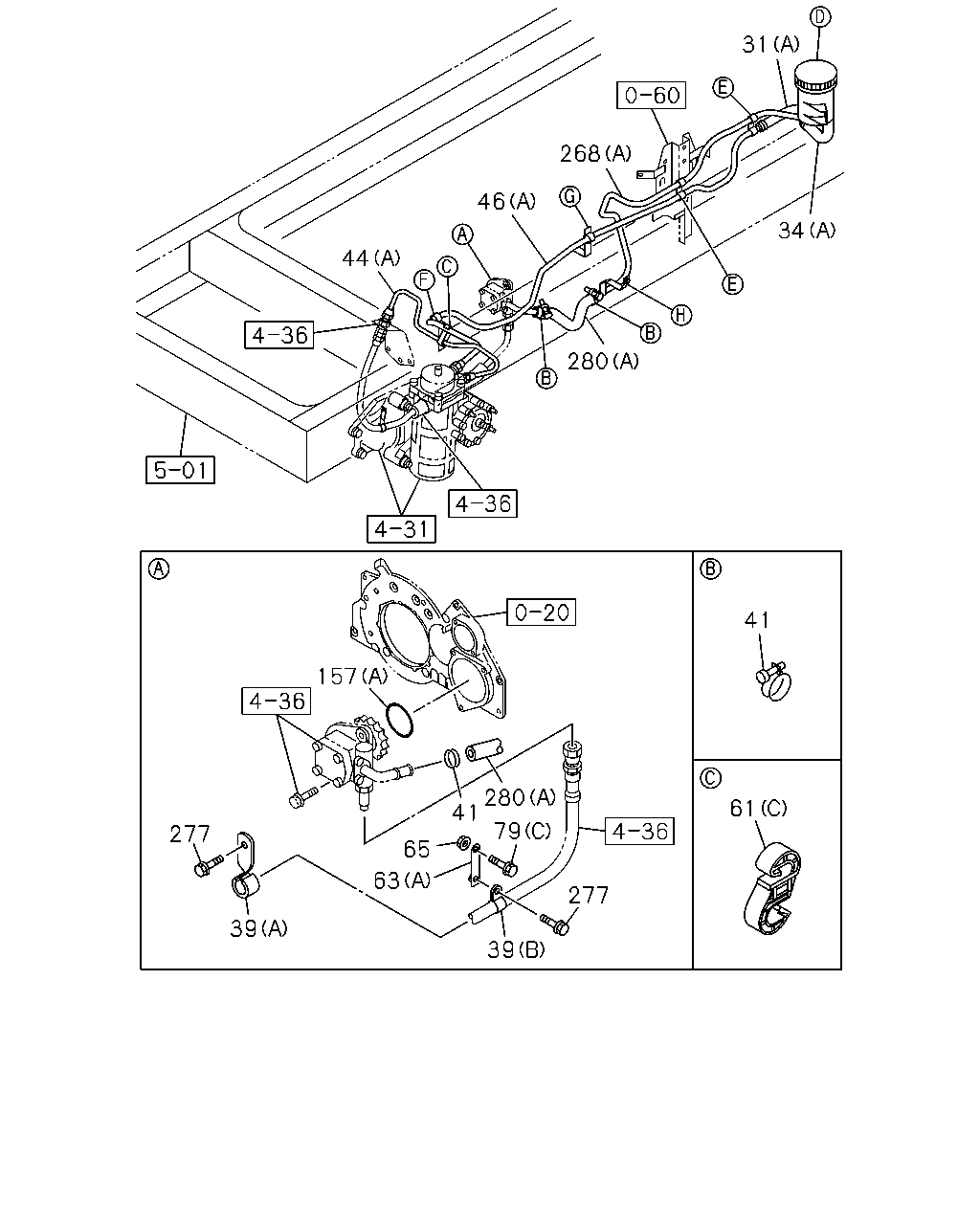

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#112590) — 378 parça

31 268 46 44 34 280 41 61 157 280 79 277 41 65 63 39 39 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98196-261-0	01	1	1305-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1302-1505	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1302-1505		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1506-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L) (A)	8-98092-730-0	01	1	1506-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1305-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-1505	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1302-1505		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1506-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L) (A)	8-98021-827-0	01	1	1506-		●
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=58	1-09700-733-1	01	1	1302-1505	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1302-1505		●
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=19 L=58	1-09700-733-1	01	1	1506-	●
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L) (A) ID=19 L=58	1-09700-733-1	01	1	1506-		●
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=40	8-94226-553-0	01	1	1302-1505	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1302-1505		●
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=40	8-94226-553-0	01	1	1506-	●
39	CLIP; FLEX HOSE 6HK1-TCS ENG(80L) (B) ID=40	8-94226-553-0	01	1	1506-		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98330-423-0	01	1	1512-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98229-107-0	01	1	1305-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98079-653-1	01	1	1302-1505	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L) (A)	8-98079-653-1	01	1	1302-1505		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98079-653-1	01	1	1506-1511	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L) (A)	8-98079-653-1	01	1	1506-1511		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A)	8-98079-653-1	01	1	1512-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L) (A)	8-98079-653-1	01	1	1512-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2050	8-98238-758-0	01	1	1305-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1506-1511	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1821	8-98330-424-0	01	1	1512-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1302-1505		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1506-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1506-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (F) ID=13 H=40 L=25	1-09700-620-0	02	1	1305-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1302-1505	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1506-	●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97375-107-0	01	1	1305-1511	●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	1512-	●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98196-131-0	01	1	1305-	●
63	BRACKET; CLIP,P/S 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-47476-396-1	01	1	1302-	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1305-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-	●
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1506-	●
65	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1506-		●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1305-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1305-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-1505	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1506-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1305-1307	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-1505	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-047-0	01	1	1302-1505		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1506-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L) (A)	8-98154-047-0	01	1	1506-		●
277	BOLT; HOSE CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-1505		●
277	BOLT; HOSE CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
277	BOLT; HOSE CLIP 6HK1-TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	1506-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98179-991-0	01	1	1305-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98090-818-0	01	1	1302-1505	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98090-818-0	01	1	1302-1505		●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98090-818-0	01	1	1506-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L) (A)	8-98090-818-0	01	1	1506-		●

31 37 46 37 1 25 26 1 2 3 5 19 12 19 15 37 37 34 268 61 58 79 59 65 61 58 79 65 59 61 58 264 263 161 284 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98196-261-0	01	1	1305-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1302-1505	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1302-1505		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1506-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L) (A)	8-98092-730-0	01	1	1506-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1305-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-1505	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1302-1505		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1506-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L) (A)	8-98021-827-0	01	1	1506-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2050	8-98238-758-0	01	1	1305-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1506-1511	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1821	8-98330-424-0	01	1	1512-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1302-1505		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1506-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1506-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1305-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505		●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	06	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1305-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (C)	1-36183-202-0	01	1	1305-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98083-607-0	01	1	1302-1505	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	1302-1505		●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98083-607-0	01	1	1506-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L) (B)	8-98083-607-0	01	1	1506-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (F) ID=13 H=40 L=25	1-09700-620-0	02	1	1305-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1302-1505	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1506-	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1305-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-	●
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1506-	●
65	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1506-		●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1305-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-		●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98225-632-0	01	1	1305-1307	●
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98249-963-0	01	1	1308-	●
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98096-820-1	01	1	1302-1505	●
263	BRACKET; P/S PIPE (A)	8-98096-820-1	01	1	1302-1505		●
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98096-820-1	01	1	1506-	●
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L) (A)	8-98096-820-1	01	1	1506-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1305-1307	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-1505	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-047-0	01	1	1302-1505		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1506-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L) (A)	8-98154-047-0	01	1	1506-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●

102 46 44 268 280 34 102 54 54 163 371 157 58 61 58 61 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1305-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-1505	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1302-1505		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1506-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L) (A)	8-98021-827-0	01	1	1506-		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A)	8-98330-423-0	01	1	1512-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) (B)	8-98229-107-0	01	1	1305-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98079-653-1	01	1	1302-1505	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L) (A)	8-98079-653-1	01	1	1302-1505		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98079-653-1	01	1	1506-1511	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L) (A)	8-98079-653-1	01	1	1506-1511		●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A)	8-98079-653-1	01	1	1512-	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCS ENG(80L) (A)	8-98079-653-1	01	1	1512-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2050	8-98238-758-0	01	1	1305-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1506-1511	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1821	8-98330-424-0	01	1	1512-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1302-1505		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1506-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1506-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1305-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505		●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	06	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1305-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (F) ID=13 H=40 L=25	1-09700-620-0	02	1	1305-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1302-1505	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1506-	●
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1305-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1305-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-1505	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1506-	●	●
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1305-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1305-1307	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-1505	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-047-0	01	1	1302-1505		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1506-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L) (A)	8-98154-047-0	01	1	1506-		●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) (B)	8-98179-991-0	01	1	1305-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98090-818-0	01	1	1302-1505	●
280	HOSE; P/S OIL PUMP,INL (A)	8-98090-818-0	01	1	1302-1505		●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98090-818-0	01	1	1506-	●
280	HOSE; P/S OIL PUMP,INL 6HK1-TCS ENG(80L) (A)	8-98090-818-0	01	1	1506-		●
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1305-	●

58 54 54 102 54 58 54 54 63 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1305-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505		●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	06	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1305-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-97375-107-0	01	1	1305-1511	●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B)	8-97375-107-0	01	1	1512-	●
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98196-131-0	01	1	1305-	●
63	BRACKET; CLIP,P/S 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A)	1-47476-396-1	01	1	1302-	●
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1305-	●
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1305-	●

61 161 54 284 54 264 58 263 65 31 37 37 1 26 1 2 3 5 19 12 19 15 61 58 65 79 59 61 58 79 59 58 65 61 268 25 46 34 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	8-98196-261-0	01	1	1305-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1302-1505	●
31	HOSE; P/S OIL TANK,INL (A)	8-98092-730-0	01	1	1302-1505		●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98092-730-0	01	1	1506-	●
31	HOSE; P/S OIL TANK,INL 6HK1-TCS ENG(80L) (A)	8-98092-730-0	01	1	1506-		●
34	HOSE; P/S OIL TANK,OUTLET 4HK1-TCS ENG(RJS) (B)	8-98194-565-0	01	1	1305-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1302-1505	●
34	HOSE; P/S OIL TANK,OUTLET (A)	8-98021-827-0	01	1	1302-1505		●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98021-827-0	01	1	1506-	●
34	HOSE; P/S OIL TANK,OUTLET 6HK1-TCS ENG(80L) (A)	8-98021-827-0	01	1	1506-		●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) (B) L=2050	8-98238-758-0	01	1	1305-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1853	8-98151-041-0	01	1	1506-1511	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (A) L=1821	8-98330-424-0	01	1	1512-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1302-1505	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1302-1505		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. CAB SUSPENSION FULL FLOATING<W16> (A) L=1874	8-98126-456-0	01	1	1506-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCS ENG(80L) (A) L=1874	8-98126-456-0	01	1	1506-		●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1305-	●
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1305-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1302-1505		●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-	●
54	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=19 L=20	0-95235-836-0	01	1	1506-		●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	06	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X30 FLANGE	0-28650-830-0	01	1	1305-	●
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1305-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1506-		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-1505		●
58	BOLT; CLIP 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-	●
58	BOLT; CLIP 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1506-		●
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) (C)	1-36183-202-0	01	1	1305-	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1302-	●	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B)	8-98083-607-0	01	1	1302-1505	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98083-607-0	01	1	1302-1505		●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B)	8-98083-607-0	01	1	1506-	●
59	BRACKET; CLIP,OIL PIPE 6HK1-TCS ENG(80L) (B)	8-98083-607-0	01	1	1506-		●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=13 L=50	0-95235-286-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	03	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	1305-	●
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (F) ID=13 H=40 L=25	1-09700-620-0	02	1	1305-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (A) ID=16 L=20	0-95235-536-0	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-1505		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1506-		●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1302-1505	●
61	CLIP; OIL PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) CAB SUSPENSION FULL FLOATING<W16> (C) ID=12 & 15	1-09709-281-1	01	1	1506-	●
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1305-	●
65	NUT; BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) M8 FLANGE	0-91180-108-0	01	1	1302-	●
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-1505	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-1505		●
65	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1506-	●
65	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1506-		●
79	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	02	1	1305-	●
79	BOLT; BRKT 6HK1-TCN ENG(82L) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505	●
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-1505		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L) (A) M8X25 FLANGE	0-28650-825-0	01	1	1506-		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505	●
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1505		●
79	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-	●
79	BOLT; BRKT 6HK1-TCS ENG(80L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1506-		●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98225-632-0	01	1	1305-1307	●
263	BRACKET; P/S PIPE 4HK1-TCS ENG(RJS) (B)	8-98249-963-0	01	1	1308-	●
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98096-820-1	01	1	1302-1505	●
263	BRACKET; P/S PIPE (A)	8-98096-820-1	01	1	1302-1505		●
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98096-820-1	01	1	1506-	●
263	BRACKET; P/S PIPE 6HK1-TCS ENG(80L) (A)	8-98096-820-1	01	1	1506-		●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98194-491-0	01	1	1305-1307	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) (B)	8-98249-962-0	01	1	1308-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1302-1505	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A)	8-98154-047-0	01	1	1302-1505		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L),6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A)	8-98154-047-0	01	1	1506-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCS ENG(80L) (A)	8-98154-047-0	01	1	1506-		●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
