Sayfa 3-05 - Isuzu EPC

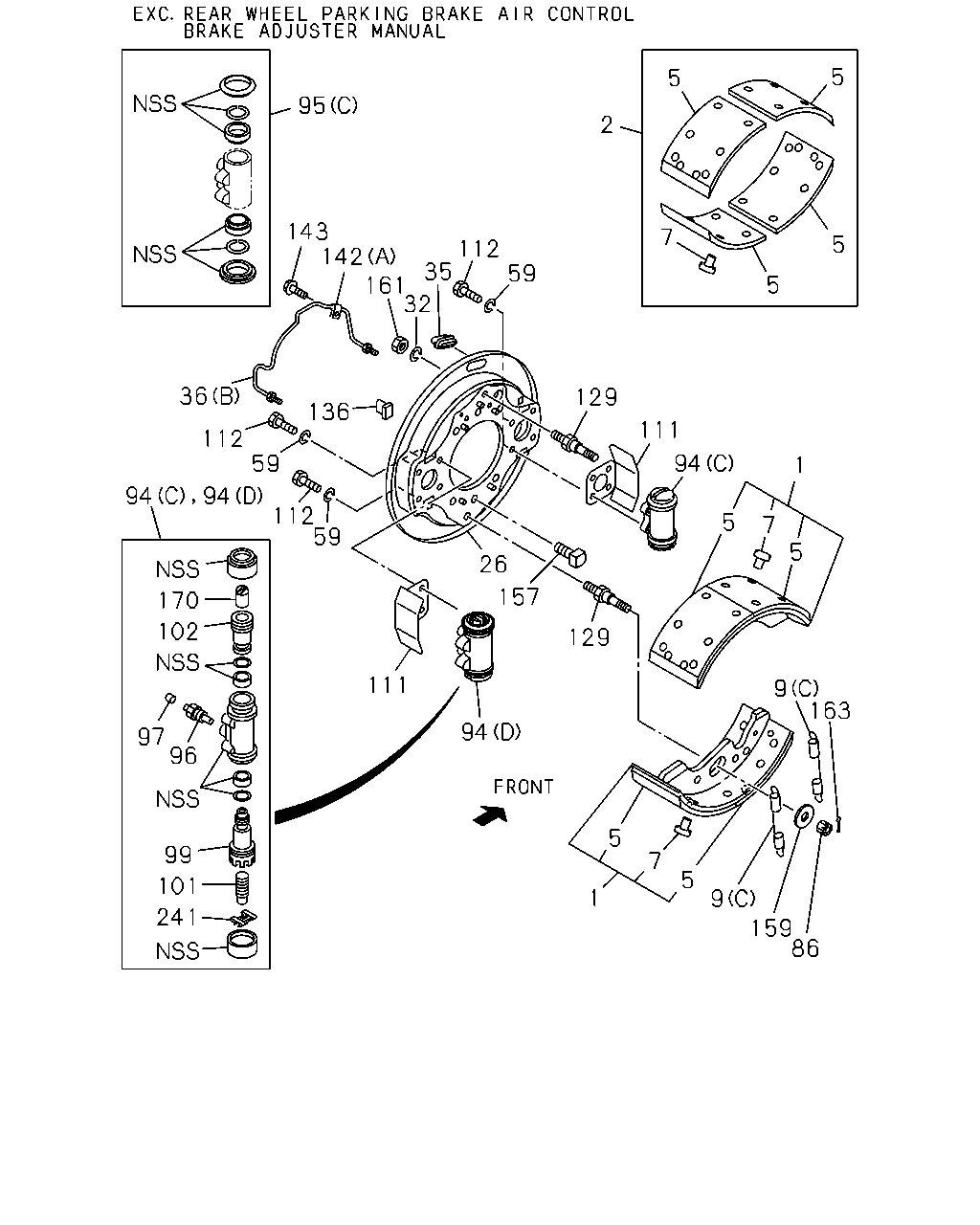

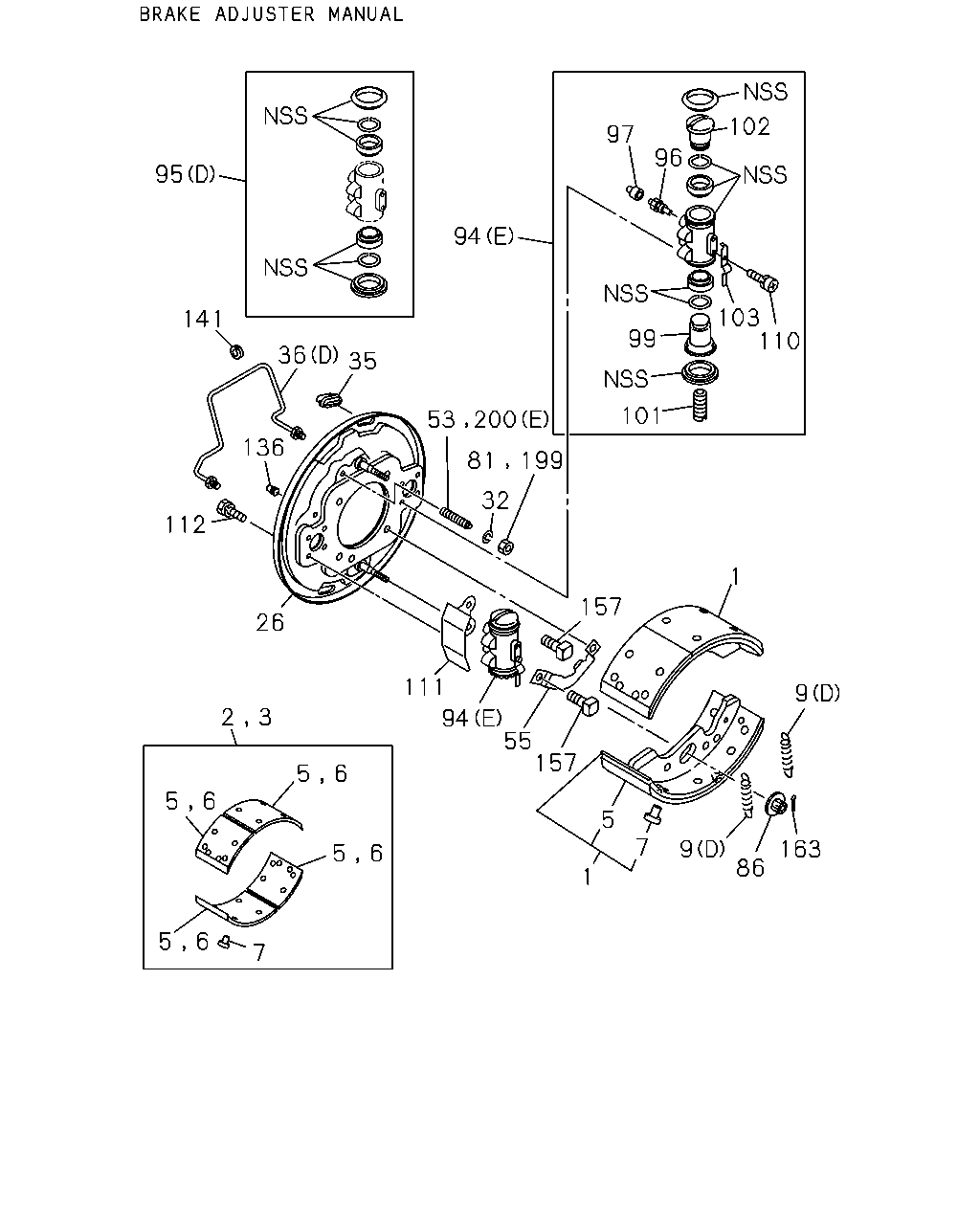

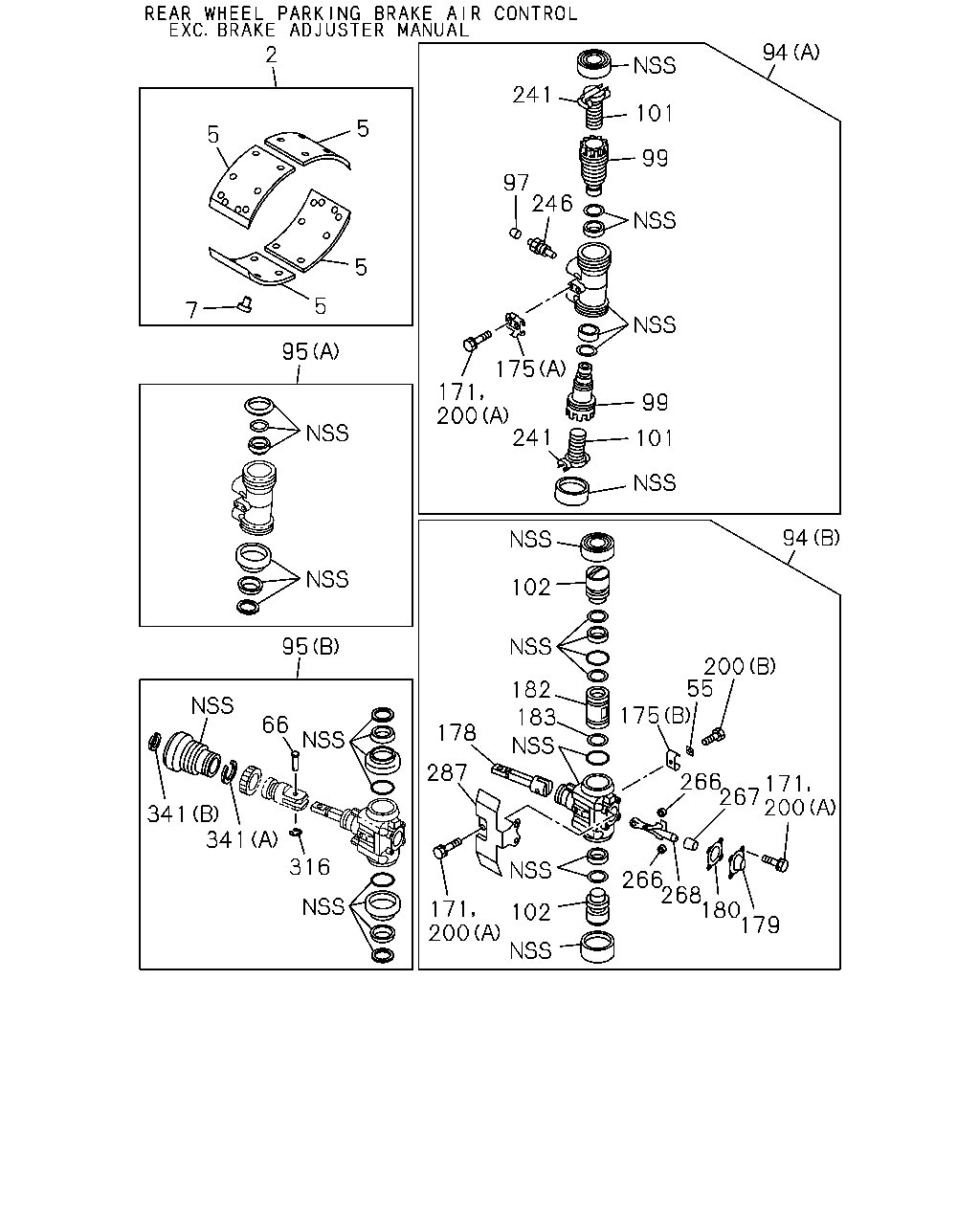

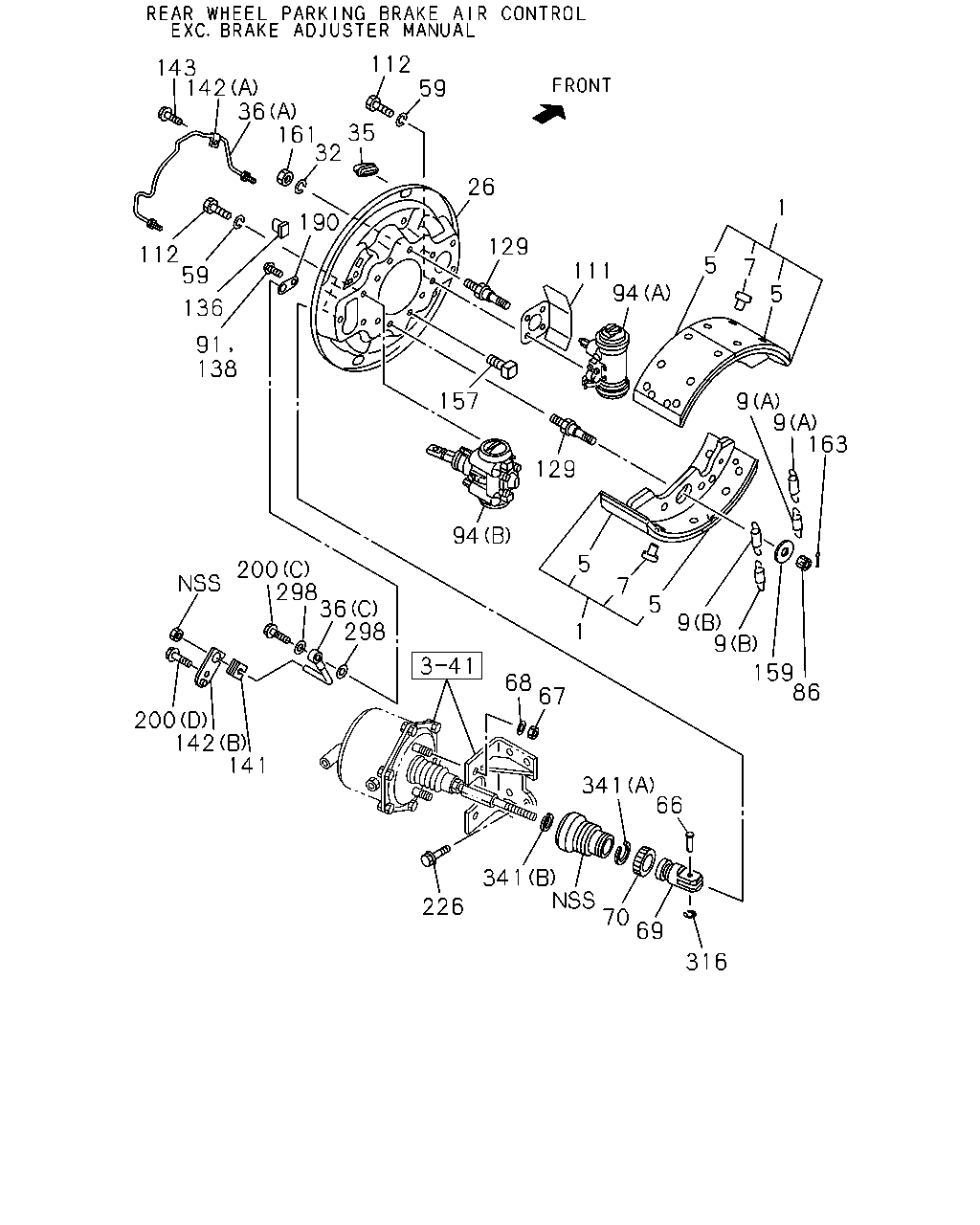

3-05 — REAR WHEEL BRAKE (#112584) — 332 parça

2 5 5 5 5 7 95 95 66 341 341 316 241 101 99 94 97 246 171 17 200 241 99 101 94 102 182 183 178 287 171 200 102 200 55 175 266 267 171 200 266 268 180 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-073-0	02	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09744-129-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-87831-325-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1302-
171	BOLT; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-071-0	10	1	1302-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47619-187-0	02	1	1302-
175	HANGER; RR WHEEL BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-188-0	02	1	1302-
178	WEDGE; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47640-013-0	02	1	1302-
179	COVER; WEDGE,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-045-0	02	1	1302-
180	GASKET; COVER,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-013-0	02	1	1302-
182	TAPPET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-280-0	04	1	1302-
183	GASKET; TAPPET,WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09623-690-0	02	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-018-1	02	1	1302-1406
246	BLEEDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-009-0	02	1	1407-
266	ROLLER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47643-003-0	04	1	1302-
267	CAGE; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-004-0	02	1	1302-
268	RETAINER; WEDGE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47649-003-0	02	1	1302-
287	COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-186-0	02	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47616-110-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-184-0	02	1	1302-

143 142 36 161 35 32 112 59 26 129 111 94 5 7 5 1 190 112 59 136 91 138 200 298 36 298 200 142 141 157 129 94 9 9 163 5 7 5 1 9 9 159 86 68 67 34 1 66 226 341 70 69 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-381-1	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-382-0	04	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-713-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-712-2	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1601-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1601-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-857-0	01	1	1302-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1302-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	14	1	1302-
66	PIN; JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09744-129-0	02	1	1302-
67	NUT; POWER CHAMBER FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M16	0-91110-516-0	04	1	1302-
68	WASHER; LK,CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=16.2	0-91510-816-0	04	1	1302-
69	JOINT; JAW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09768-106-1	02	1	1302-
70	NUT; LK,JAW JOINT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M18	0-91111-518-0	02	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
91	BOLT; CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M5X10 W/LK WASHER	0-36220-510-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1302-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
138	SCREW; LOCK PLATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M5X10 W/LK WASHER	0-36220-510-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR>	9-47461-158-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09332-133-0	02	1	1302-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1302-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-189-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
190	PLATE; LK,CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-032-0	04	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1302-
226	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> M14X35 FLANGE	0-28651-435-0	08	1	1302-
298	GASKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47616-115-0	04	1	1302-
316	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=9	0-91805-509-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47616-110-0	02	1	1302-
341	SPRING; ASSIST,BOOT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-184-0	02	1	1302-

241 170 102 97 96 99 101 59 112 59 112 94 94 36 111 26 157 129 94 5 7 5 1 9 159 86 163 9 1 5 7 5 94 111 129 59 112 35 32 161 142 143 95 136 7 5 5 5 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-381-1	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-382-0	04	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-713-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-712-2	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1601-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1601-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-857-0	01	1	1302-
59	WASHER; LK,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=12.2	0-91510-612-0	16	1	1302-
59	WASHER; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-612-0	14	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-87831-325-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47615-020-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1302-
129	PIN; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47162-044-0	04	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
142	CLAMP; OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09701-322-0	02	1	1302-
142	CLAMP; OIL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47619-189-0	02	1	1302-
143	BOLT; CLAMP,OIL PIPE EXC. BRAKE ADJUSTER MANUAL<BJR> M6X10	9-01900-610-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
159	WASHER; SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47169-037-0	04	1	1302-
161	NUT; SHOE HOLD LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-111-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
170	PIECE; ANCHOR,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47619-185-0	04	1	1302-
241	HOLDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-097-0	04	1	1302-

95 94 97 96 102 110 103 99 101 141 36 35 53 200 81 199 32 157 111 94 55 157 1 9 163 9 7 5 86 26 112 136 2 3 5 6 5 6 5 6 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE ADJUSTER MANUAL<BJR>	1-47120-626-0	04	1	1302-
1	SHOE; BRK,RR EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47170-484-0	04	1	1302-
1	SHOE; BRK,RR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47170-485-1	04	1	1302-
2	LINING SET; RR BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-551-1	02	1	1302-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-88311-386-0	02	1	1302-
2	LINING SET; RR BRK,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-387-0	02	1	1302-
3	LINING SET; RR BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-552-1	02	1	1302-
5	LINING; RR BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-803-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47126-801-0	08	1	1302-
5	LINING; RR BRK SHOE,STANDARD REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-802-0	08	1	1302-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-804-0	08	1	1302-
7	RIVET; LINING,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-09732-029-0	96	1	1302-
7	RIVET; LINING,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	96	1	1302-
9	SPRING; RETURN,BRK SHOE BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-271-0	04	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-384-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09583-383-0	02	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-09583-381-1	04	1	1302-
9	SPRING; RETURN,BRK SHOE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-382-0	04	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-703-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47150-702-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-713-2	01	1	1302-
26	PLATE; BACK,RR BRK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47150-712-2	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-468-0	01	1	1302-
26	PLATE; BACK,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-467-0	01	1	1302-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-709-2	01	1	1601-
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1302-1512
26	PLATE; BACK,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),ANTI LOCK BRAKE(JE5)	1-47150-708-2	01	1	1601-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-715-2	01	1	1302-
26	PLATE; BACK,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5)	1-47150-714-2	01	1	1302-
32	WASHER; LK BRAKE ADJUSTER MANUAL<BJR> ID=12.2	0-91510-512-0	04	1	1302-
32	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-110-0	04	1	1302-
35	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-033-0	04	1	1302-
35	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-139-0	04	1	1302-
36	PIPE; OIL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (D)	1-47421-815-0	02	1	1302-
36	PIPE; OIL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-49167-859-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-49167-905-0	02	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-858-0	01	1	1302-
36	PIPE; OIL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-49167-857-0	01	1	1302-
53	BOLT; LOCK PLATE BRAKE ADJUSTER MANUAL<BJR>	1-47162-050-0	02	1	1302-
55	PLATE; LK,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47139-064-0	04	1	1302-
55	PLATE; LK,RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-073-0	02	1	1302-
81	NUT BRAKE ADJUSTER MANUAL<BJR>	1-09400-100-0	02	1	1302-
86	NUT; FLANGE BRAKE ADJUSTER MANUAL<BJR>	1-09440-003-0	04	1	1302-
86	NUT; FLANGE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09440-101-0	04	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-958-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-959-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) FORWARD	1-47600-956-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK BRAKE ADJUSTER MANUAL<BJR> (E) BACKWARD	1-47600-957-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) BACKWARD	1-47601-169-0	02	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-171-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) FORWARD	1-47601-170-1	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-47601-166-1	02	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-219-0	01	1	1302-
94	CYLINDER; WHEEL,RR BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-47601-218-0	01	1	1302-
95	CUP SET; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (D)	1-87830-770-0	04	1	1302-
95	CUP SET; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-87831-323-0	04	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) FORWARD	1-87831-324-0	02	1	1302-
95	CUP SET; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD	1-87831-325-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47615-020-0	02	1	1302-
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-018-1	02	1	1302-1406
96	SCREW; BLEEDER,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47615-009-0	02	1	1407-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47619-009-0	02	1	1302-
97	CAP; BLEEDER,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-310-0	02	1	1302-
99	PISTON; RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-309-0	02	1	1302-
99	PISTON; RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-238-0	04	1	1302-
99	PISTON; RR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-240-0	04	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 RH THREAD	1-47622-034-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> M22 LH THREAD	1-47622-033-0	02	1	1302-
101	SCREW; ADJ,RR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47622-070-0	04	1	1302-
102	PISTON; REAR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47624-311-0	04	1	1302-
102	PISTON; REAR WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47620-239-0	04	1	1302-
102	PISTON; REAR WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47620-241-0	02	1	1302-
103	SPRING; LK,RR WHEEL CYL,ADJ BRAKE ADJUSTER MANUAL<BJR>	1-47629-072-0	04	1	1302-
110	SCREW; LOCK SPRING,RR WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-94128-727-0	04	1	1302-
111	COVER; WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47159-103-0	04	1	1302-
111	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-230-0	04	1	1302-
111	COVER; WHEEL CYL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-230-0	02	1	1302-
112	BOLT; WHEEL CYL SETTING BRAKE ADJUSTER MANUAL<BJR> M12	1-47159-184-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING EXC. BRAKE ADJUSTER MANUAL<BJR>,REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47159-112-0	16	1	1302-
112	BOLT; WHEEL CYL SETTING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-112-0	14	1	1302-
136	GROMMET BRAKE ADJUSTER MANUAL<BJR>	9-09956-640-0	04	1	1302-
136	GROMMET EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-138-0	04	1	1302-
141	PROTECTOR; RR BRK PIPE BRAKE ADJUSTER MANUAL<BJR>	9-47461-158-0	02	1	1302-
141	PROTECTOR; RR BRK PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09332-133-0	02	1	1302-
157	BOLT; RR BRK SET BRAKE ADJUSTER MANUAL<BJR> M14X45 SQUARE HEAD	1-09060-015-0	12	1	1302-
157	BOLT; RR BRK SET EXC. BRAKE ADJUSTER MANUAL<BJR> M14X43	1-09060-003-0	12	1	1302-
163	PIN; SPLIT,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR>	9-09874-040-0	04	1	1302-
163	PIN; SPLIT,SHOE HOLD EXC. BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20	0-81122-020-0	04	1	1302-
199	NUT BRAKE ADJUSTER MANUAL<BJR>	1-09400-100-0	02	1	1302-
200	BOLT BRAKE ADJUSTER MANUAL<BJR> (E)	1-47162-050-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-47159-240-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (D)	1-47159-241-0	02	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47622-071-0	04	1	1302-
200	BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47622-072-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
