3-01 — FRONT WHEEL BRAKE (#112582) — 155 parça

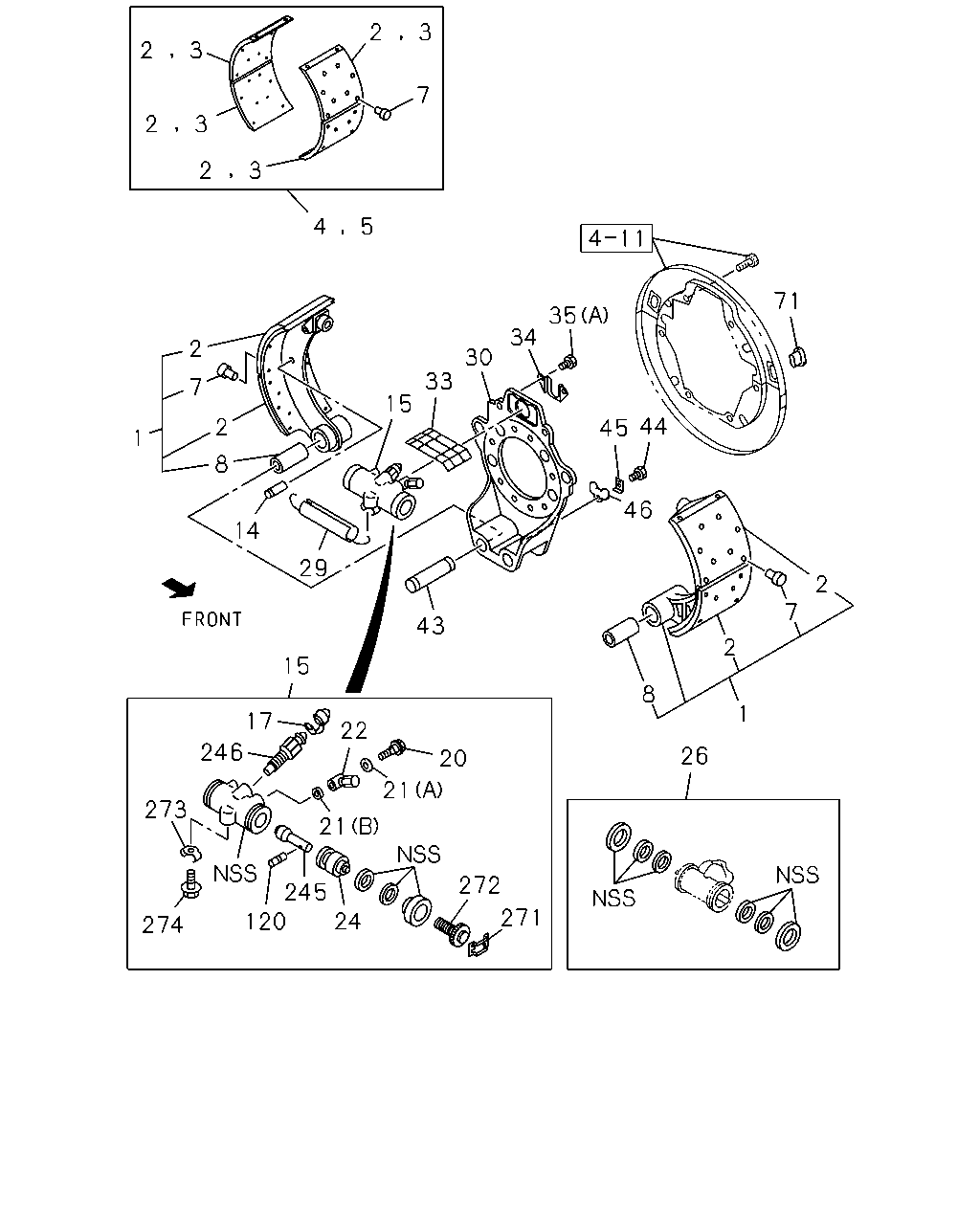

çizim 331480
3 2 3 2 3 2 3 2 5 4 2 1 7 2 8 14 29 15 17 246 273 274 120 24 245 22 21 20 21 272 271 26 8 2 1 7 2 71 44 46 45 35 34 30 33 15 43 7
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-47170-519-0 02 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47126-818-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-806-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-819-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47126-819-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-88311-403-0 02 1 1302-
7 RIVET; LINING,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> D6X11.5 		1-09732-019-0 64 1 1302-
7 RIVET; LINING,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) L=18.5 		1-09732-034-0 80 1 1302-
8 BUSHING; BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47112-011-0 04 1 1302-
8 BUSHING; BRK SHOE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47112-011-0 04 1 1302-
14 PIN; SHOE RETURN SPR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47119-134-0 04 1 1302-
14 PIN; SHOE RETURN SPR
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47119-134-0 04 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-485-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-484-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-093-1 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47601-093-1 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-092-1 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47601-092-1 01 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> OD=9.5 		9-47619-005-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) OD=12 		1-47619-011-0 02 1 1302-
20 BOLT; JOINT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X40.5 EYE BOLT 		1-47634-006-0 02 1 1302-
20 BOLT; JOINT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X40.5 EYE BOLT 		1-47634-006-0 02 1 1302-
21 GASKET; UNION BOLT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) ID=15.2 		1-09630-019-0 02 1 1302-
21 GASKET; UNION BOLT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (A) ID=15.2 		1-09630-019-0 02 1 1302-
21 GASKET; UNION BOLT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) ID=12.2 		1-09630-020-0 02 1 1302-
21 GASKET; UNION BOLT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) ID=12.2 		1-09630-020-0 02 1 1302-
22 JOINT; PIPE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47631-057-1 02 1 1302-
22 JOINT; PIPE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47631-057-1 02 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-768-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-767-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-369-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47624-369-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-87831-416-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87830-930-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-87830-930-0 02 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-09583-362-0 04 1 1302-
30 BRACKET; ANCHOR,FRT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47137-513-0 02 1 1302-
30 BRACKET; ANCHOR,FRT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47137-513-0 02 1 1302-
33 COVER; WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 1302-
33 COVER; WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47159-197-0 02 1 1302-
34 PLATE; DIRECTION,FRT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-094-0 02 1 1302-
34 PLATE; DIRECTION,FRT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47159-094-0 02 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (B) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (A) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
43 PIN; ANCHOR
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> L=106.5 		1-47131-038-0 04 1 1302-
43 PIN; ANCHOR
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) L=106.5 		1-47131-038-0 04 1 1302-
44 BOLT; LOCK,ANCHOR PIN
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M10X16 		0-20851-016-0 02 1 1302-
44 BOLT; LOCK,ANCHOR PIN
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M10X16 		0-20851-016-0 02 1 1302-
45 WASHER; LK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47133-011-0 02 1 1302-
45 WASHER; LK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47133-011-0 02 1 1302-
46 PLATE; LOCK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47133-005-0 02 1 1302-
46 PLATE; LOCK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47133-005-0 02 1 1302-
71 GROMMET; CHECK HOLE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-09333-151-0 04 1 1302-
120 SPRING; LK,ADJ,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-544-0 04 1 1302-
120 SPRING; LK,ADJ,FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-09580-544-0 04 1 1302-
245 SHAFT; ADJ
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47623-027-1 04 1 1302-
245 SHAFT; ADJ
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47623-027-1 04 1 1302-
246 BLEEDER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47615-002-0 02 1 1302-
246 BLEEDER
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47615-002-0 02 1 1302-
271 CLIP; ADJ
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-016-0 04 1 1302-
271 CLIP; ADJ
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47621-016-0 04 1 1302-
272 ADJUSTER; MANUAL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-015-0 04 1 1302-
272 ADJUSTER; MANUAL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47621-015-0 04 1 1302-
273 HANGER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-145-0 02 1 1302-
273 HANGER
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47619-145-0 02 1 1302-
274 BOLT; HANGER
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-
274 BOLT; HANGER
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M8X16 W/LK WASHER 		0-50540-816-0 02 1 1302-

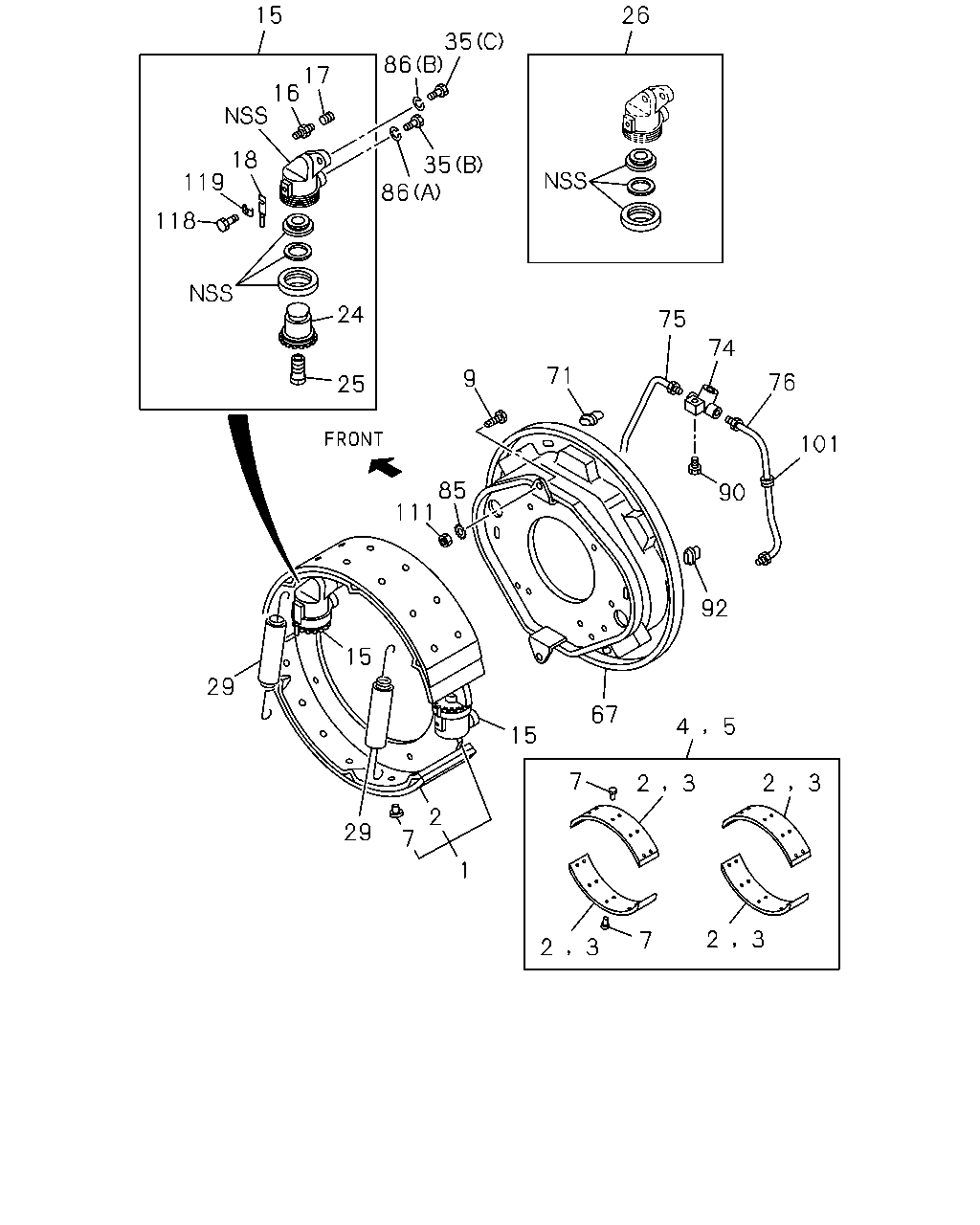

çizim 331499
3 2 3 2 7 3 2 3 2 7 4 5 67 15 1 2 7 29 29 15 111 85 92 90 101 76 74 75 71 9 25 24 118 119 18 16 17 15 86 35 86 35 26
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47120-628-0 04 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) LEADING 		1-47170-518-0 02 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-519-0 02 1 1302-
1 SHOE; BRK,FRT
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) TRAILING 		1-47170-519-0 02 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-805-0 04 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-818-0 08 1 1302-
2 LINING; FRT BRK SHOE,STANDARD
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47126-818-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47125-806-0 04 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-819-0 08 1 1302-
3 LINING; FRT BRK SHOE,OVER SIZE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47126-819-0 08 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-505-0 01 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-88311-402-0 02 1 1302-
4 LINING SET; FRT BRK,STANDARD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS 		1-87610-127-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-88310-506-0 01 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-88311-403-0 02 1 1302-
5 LINING SET; FRT BRK,OVER SIZE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-88311-403-0 02 1 1302-
7 RIVET; LINING,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> D6X11.5 		1-09732-019-0 64 1 1302-
7 RIVET; LINING,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5 		1-09732-034-0 80 1 1302-
7 RIVET; LINING,FRT BRK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) L=18.5 		1-09732-034-0 80 1 1302-
9 PIN; SHOE HOLDER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47162-036-0 04 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-485-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-484-0 02 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-093-1 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47601-093-1 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47601-092-1 01 1 1302-
15 CYLINDER; WHEEL,FRT BRK
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47601-092-1 01 1 1302-
16 SCREW; BLEEDER,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> L=44 		1-47615-007-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> OD=9.5 		9-47619-005-0 04 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1302-
17 CAP; BLEEDER,FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) OD=12 		1-47619-011-0 02 1 1302-
18 STOPPER; ADJ SCREW
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-008-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-768-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-767-0 02 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-369-0 04 1 1302-
24 PISTON; FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-47624-369-0 04 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47622-015-0 02 1 1302-
25 SCREW; ADJ,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47622-014-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-87831-416-0 04 1 1302-
26 CUP SET; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-87830-930-0 02 1 1302-
26 CUP SET; FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-87830-930-0 02 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09583-126-1 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-362-0 04 1 1302-
29 SPRING; RETURN,FRT BRK SHOE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-09583-362-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (B) 		0-23851-022-0 08 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (C) 		0-23851-630-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
35 BOLT; FRT WHEEL CYL
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (A) M12X35 W/LK WASHER 		0-50551-235-0 04 1 1302-
67 PLATE; BACK,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47150-357-1 01 1 1302-
67 PLATE; BACK,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47150-356-1 01 1 1302-
71 GROMMET; CHECK HOLE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09333-058-1 04 1 1302-
71 GROMMET; CHECK HOLE
FINAL GEAR 39/7 15.5"(W3K) EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-151-0 04 1 1302-
71 GROMMET; CHECK HOLE
FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) 		1-09333-151-0 04 1 1302-
74 CONNECTOR; FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47630-003-2 02 1 1302-
75 PIPE; OIL,FWD,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47413-792-0 01 1 1302-
75 PIPE; OIL,FWD,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47413-791-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47413-790-0 01 1 1302-
76 PIPE; OIL,BACKWARD,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47413-789-0 01 1 1302-
85 PLATE; LK,CONNECTOR
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09533-006-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (A) 		8-98188-784-0 04 1 1302-
86 WASHER; LK,FRT WHEEL CYL
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> (B) 		8-98188-785-0 08 1 1302-
90 BOLT; CONNECTOR
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		8-98188-787-0 02 1 1302-
92 GROMMET; ADJ HOLE
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-09333-010-0 04 1 1302-
101 PROTECTOR; OIL PIPE,FRT BRK
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> ID=5 OD=18 T=8 		1-09332-063-0 02 1 1302-
111 NUT; FLANGE,SHOE HOLD
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> M16 		0-91111-516-0 04 1 1302-
118 BOLT; STOPPER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> M6X10 		8-98030-649-0 04 1 1302-
119 PLATE; LK,STOPPER
FINAL GEAR 39/7 15.5"(W3K) BRAKE ADJUSTER MANUAL<BJR> 		1-47169-009-0 04 1 1302-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
