Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#112566) — 265 parça

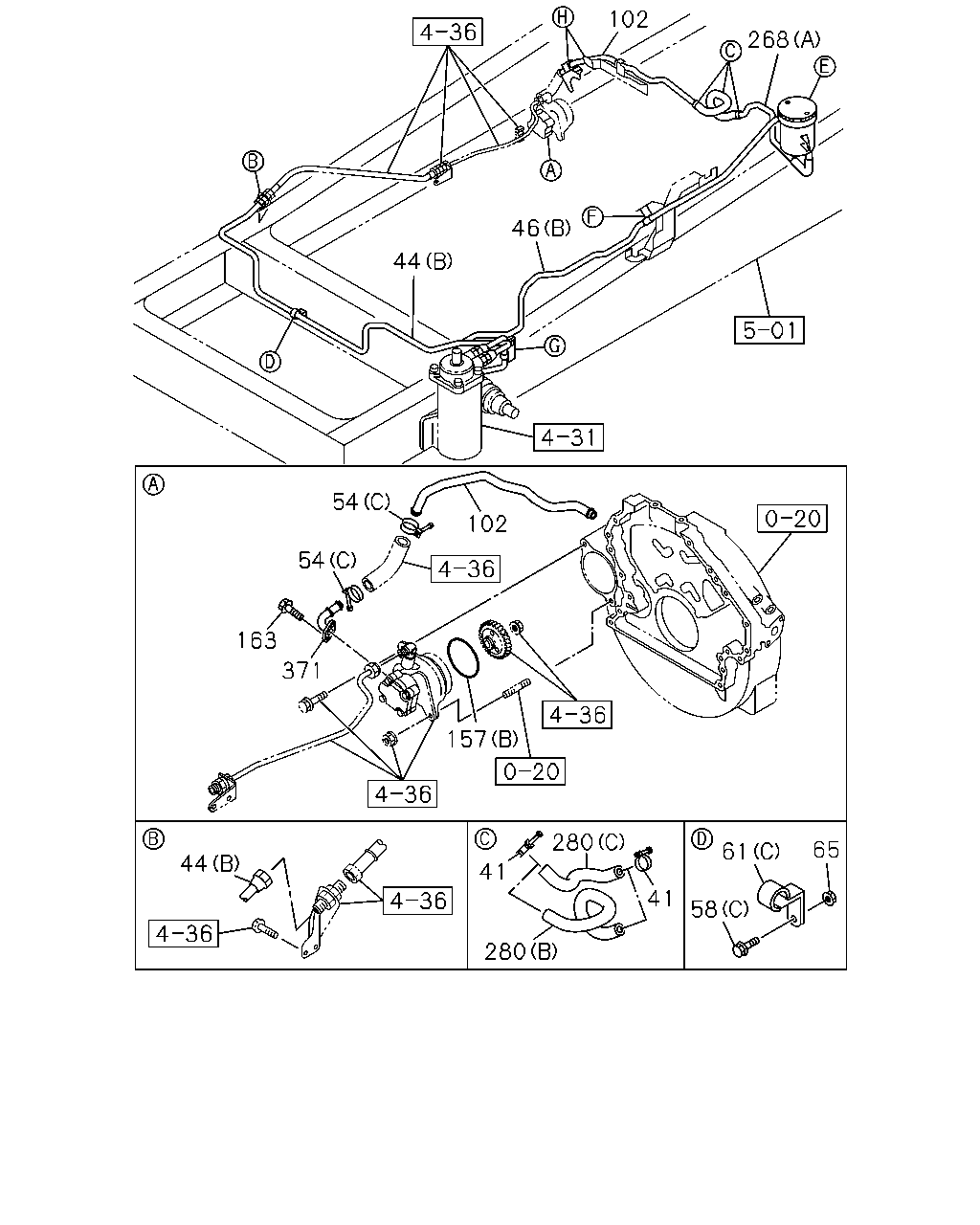

102 268 46 44 54 102 54 163 371 157 65 61 58 280 41 280 44 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98215-420-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (B)	8-98212-854-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. GENERATOR 24V90A(K44) (B)	8-98215-419-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-889-1	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98112-952-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98212-858-0	01	1	1302-1302
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) L=1993	8-98212-858-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) L=1993	8-98212-858-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1997	8-98212-856-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1970	8-98274-917-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1309-1405
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-1308
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	02	1	1309-1404
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	02	1	1405-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1309-1405
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1308
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	01	1	1309-1404
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	01	1	1405-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X20 FLANGE	0-28050-820-0	02	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	8-98195-050-0	01	1	1309-1404
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3)	8-98195-050-0	01	1	1405-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1302-1308
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98080-186-2	01	1	1309-1405
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98080-186-2	01	1	1406-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3)	8-98080-186-2	01	1	1406-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-
163	BOLT; OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98251-233-0	01	1	1309-1309
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98252-788-0	01	1	1310-1405
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98252-788-0	01	1	1406-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98165-266-1	01	1	1302-1308
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B)	8-98165-266-1	01	1	1309-1405
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B)	8-98165-266-1	01	1	1406-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98179-991-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1302-
371	PIPE; OIL,INLET 4HK1-TCS ENG(RJS)	8-98072-089-1	01	1	1302-

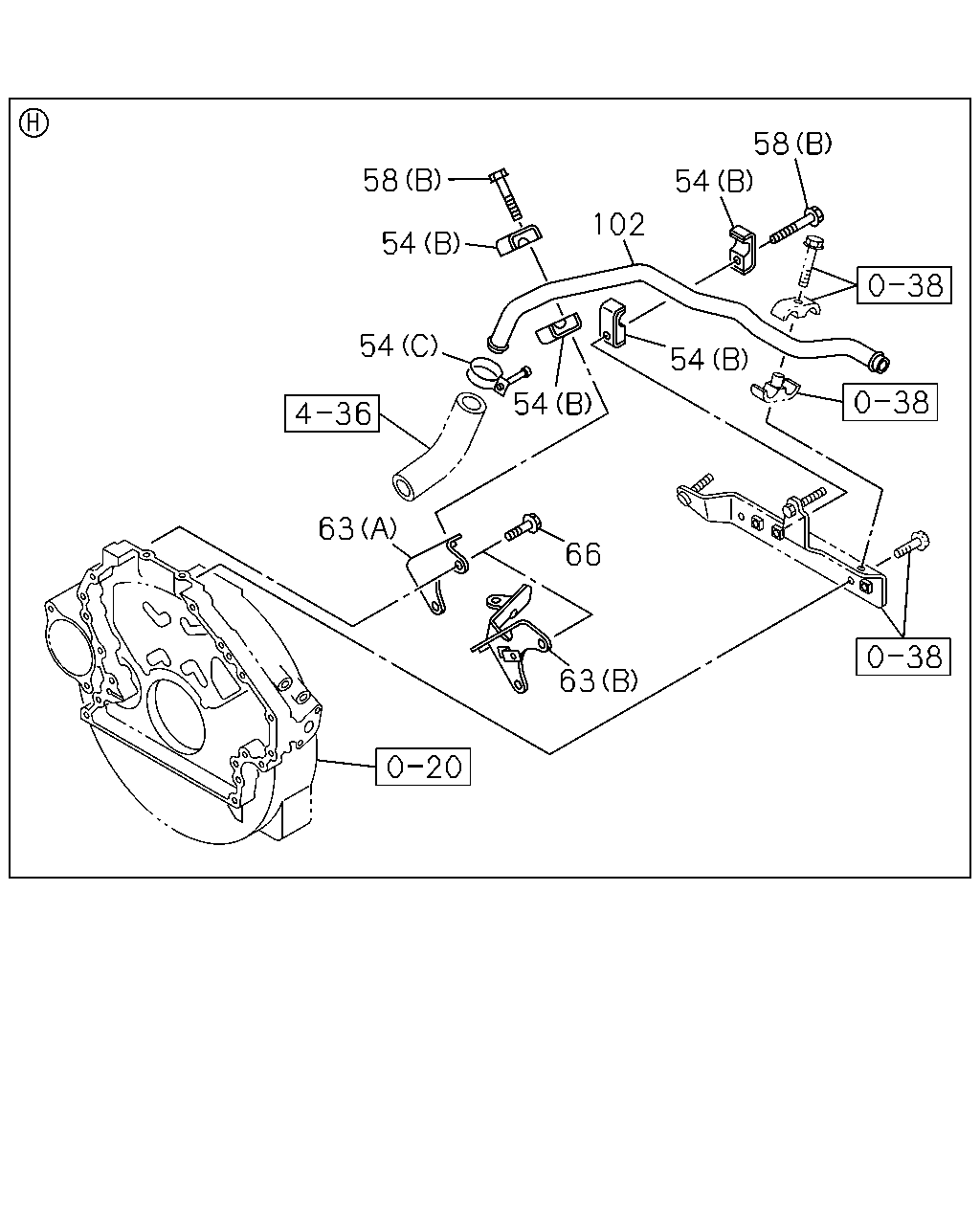

58 54 102 58 54 54 63 66 63 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1309-1405
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-1308
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	02	1	1309-1404
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	02	1	1405-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1309-1405
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1308
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	01	1	1309-1404
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	01	1	1405-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X20 FLANGE	0-28050-820-0	02	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-97375-107-0	01	1	1302-
63	BRACKET; CLIP,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B)	8-98196-131-0	01	1	1302-
66	BOLT; BRKT,OIL PIPE 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	8-98195-050-0	01	1	1309-1404
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3)	8-98195-050-0	01	1	1405-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS)	8-98080-186-2	01	1	1302-1308
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98080-186-2	01	1	1309-1405
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98080-186-2	01	1	1406-
102	PIPE; SUCTION,P/S 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3)	8-98080-186-2	01	1	1406-

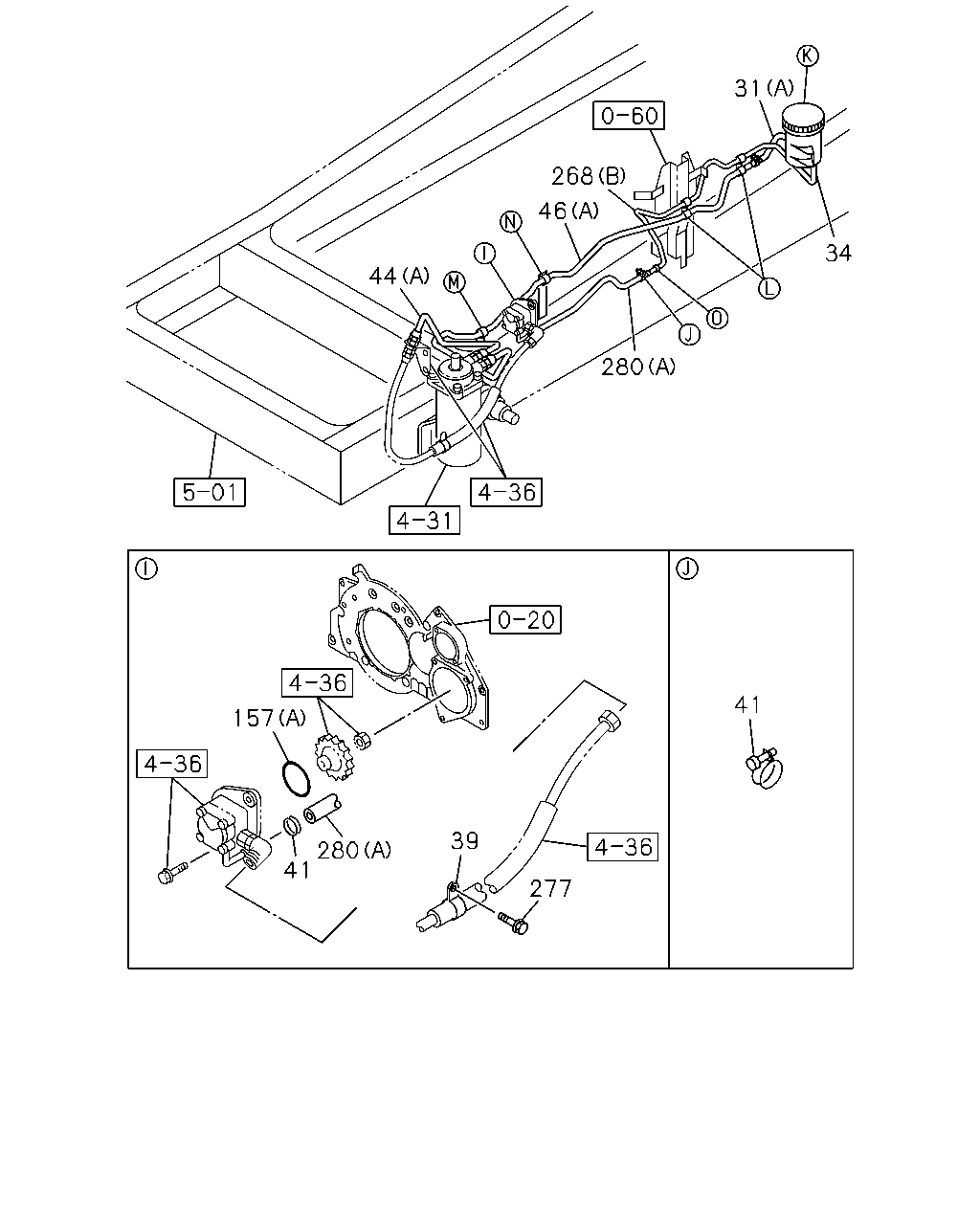

268 46 44 31 34 280 157 280 41 39 277 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-110-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1302-1405
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-080-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
39	CLIP; FLEX HOSE 6HK1-TCN ENG(82L) ID=40	8-94226-553-0	01	1	1302-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98215-420-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44),HEAVY DUTY PACKAGE TRUCKVAR3<Y48> (B)	8-98212-854-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. GENERATOR 24V90A(K44) (B)	8-98215-419-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-889-1	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98112-952-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98212-858-0	01	1	1302-1302
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) L=1993	8-98212-858-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) L=1993	8-98212-858-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1997	8-98212-856-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1970	8-98274-917-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B) ID=105.6	8-97386-295-0	01	1	1302-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=96.4	1-09623-467-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
277	BOLT; HOSE CLIP 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98251-233-0	01	1	1309-1309
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98252-788-0	01	1	1310-1405
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98252-788-0	01	1	1406-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98165-266-1	01	1	1302-1308
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B)	8-98165-266-1	01	1	1309-1405
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B)	8-98165-266-1	01	1	1406-
280	HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98179-991-0	01	1	1302-
280	HOSE; P/S OIL PUMP,INL 6HK1-TCN ENG(82L) (A)	8-98094-167-0	01	1	1302-

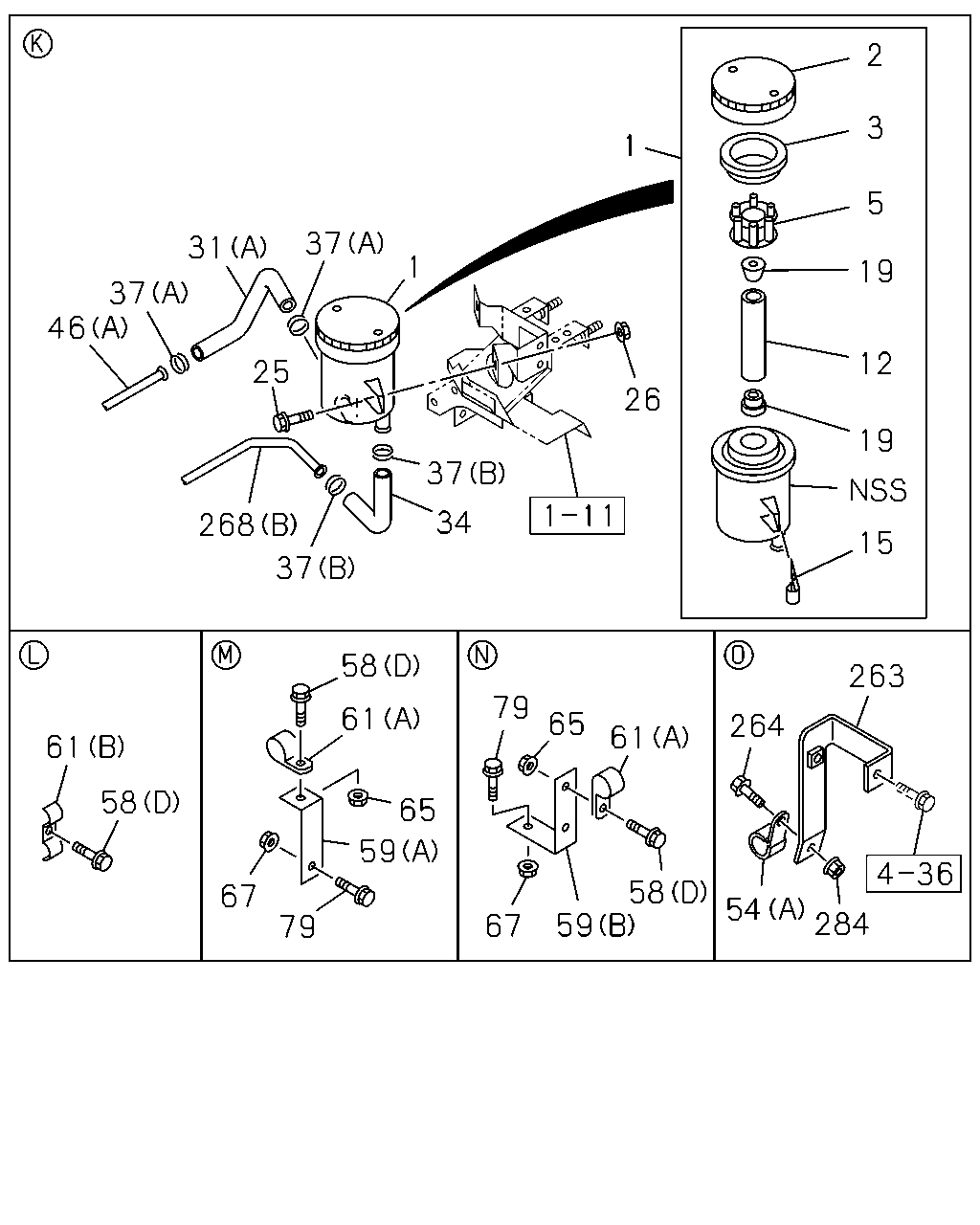

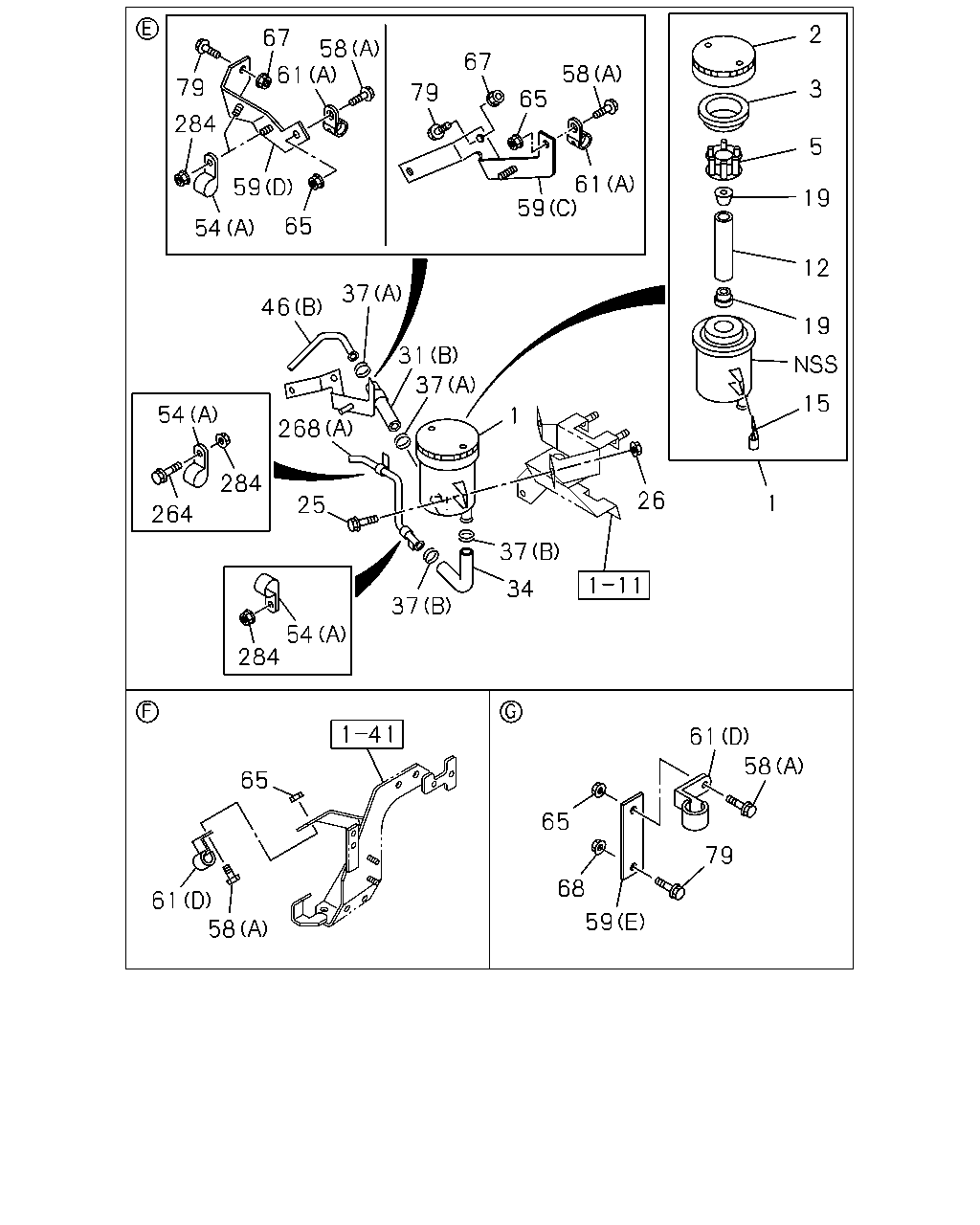

2 3 5 19 12 19 15 26 37 34 37 268 25 46 37 31 37 1 263 264 54 284 61 79 65 59 58 67 58 61 65 59 79 67 61 58 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-110-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1302-1405
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-080-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98212-858-0	01	1	1302-1302
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) L=1993	8-98212-858-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) L=1993	8-98212-858-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1997	8-98212-856-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1970	8-98274-917-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1309-1405
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-1308
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	02	1	1309-1404
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	02	1	1405-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1309-1405
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1308
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	01	1	1309-1404
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	01	1	1405-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X20 FLANGE	0-28050-820-0	02	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98064-809-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98212-860-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12) (E) L=85	8-98044-743-0	01	1	1302-1405
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (E) L=85	8-98044-743-0	01	1	1406-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-21464-481-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (A) L=95	1-82699-085-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT RUSSIA EQUIPMENT(B12) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
79	BOLT; BRKT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8X25 FLANGE	0-28650-825-0	01	1	1406-
79	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) M8X25 FLANGE	0-28650-825-0	02	1	1302-1405
79	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8X25 FLANGE	0-28650-825-0	02	1	1406-
263	BRACKET; P/S PIPE 6HK1-TCN ENG(82L)	8-98079-444-0	01	1	1302-
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1302-
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-

67 79 59 54 67 79 58 65 59 61 1 2 3 5 19 12 19 15 65 284 58 61 37 46 54 268 31 25 264 284 37 54 284 37 26 34 1 37 65 61 65 61 58 68 79 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-110-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) (B)	0-09814-080-0	01	1	1302-1405
31	HOSE; P/S OIL TANK,INL 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	0-09814-080-0	01	1	1406-
31	HOSE; P/S OIL TANK,INL 6HK1-TCN ENG(82L) (A)	8-98093-500-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98240-217-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1993	8-98212-858-0	01	1	1302-1302
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12) (B) L=1993	8-98212-858-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (B) L=1993	8-98212-858-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1997	8-98212-856-0	01	1	1302-1405
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=1970	8-98274-917-0	01	1	1406-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1885	8-98098-577-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1878	8-98104-595-0	01	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1309-1405
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	04	1	1406-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (B) ID=17 L=17	1-09701-284-0	04	1	1302-1308
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	02	1	1309-1404
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) ID=17 L=17	1-09701-284-0	02	1	1405-
54	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=19 L=20	0-95235-836-0	01	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1309-1405
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> EXC. FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	02	1	1406-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1308
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	01	1	1309-1404
58	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> FRIGID ZONE KIT(YL3) (B) M8X45 FLANGE	0-28050-845-0	01	1	1405-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1302-
58	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X16 FLANGE	0-28050-816-0	02	1	1302-
58	BOLT; CLIP 6HK1-TCN ENG(82L) (D) M8X20 FLANGE	0-28050-820-0	02	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98064-809-1	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98212-860-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12) (E) L=85	8-98044-743-0	01	1	1302-1405
59	BRACKET; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) (E) L=85	8-98044-743-0	01	1	1406-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (B)	1-21464-481-0	01	1	1302-
59	BRACKET; CLIP,OIL PIPE 6HK1-TCN ENG(82L) (A) L=95	1-82699-085-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (D) ID=15 H=24 L=20	1-09700-606-0	02	1	1302-
61	CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (A) ID=16 L=20	0-95235-536-0	02	1	1302-
61	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1302-
65	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	03	1	1302-
65	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1302-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1302-
68	NUT; CLIP,OIL PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
79	BOLT; BRKT RUSSIA EQUIPMENT(B12) M8X25 FLANGE	0-28650-825-0	01	1	1302-1405
79	BOLT; BRKT RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8X25 FLANGE	0-28650-825-0	01	1	1406-
79	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12) M8X25 FLANGE	0-28650-825-0	02	1	1302-1405
79	BOLT; BRKT EXC. RUSSIA EQUIPMENT(B12),MOROCCO EQUIPMENT(CGA) M8X25 FLANGE	0-28650-825-0	02	1	1406-
264	BOLT; PIPE BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	01	1	1302-
264	BOLT; PIPE BRKT 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98165-444-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 4HK1-TCS ENG(RJS) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98212-859-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6HK1-TCN ENG(82L) (B)	8-98154-041-0	01	1	1302-
284	NUT; PIPE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1302-
284	NUT; PIPE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
