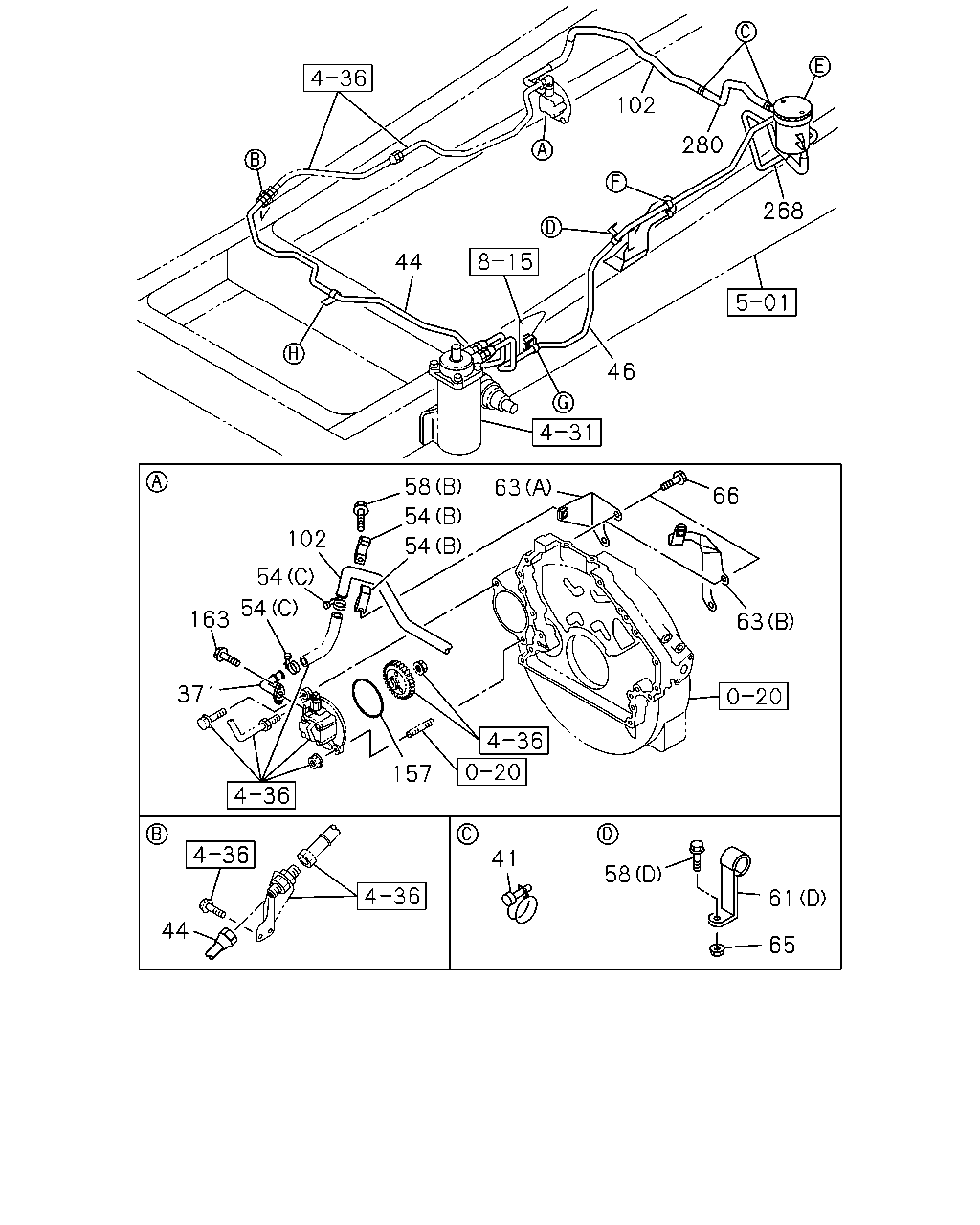

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#112565) — 74 parça

268 280 102 46 44 66 63 63 58 54 54 102 54 54 163 371 157 58 61 65 41 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98179-618-0	01	1	1302-
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. GENERATOR 24V90A(K44)	8-98173-341-0	01	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1550	8-98214-946-0	01	1	1302-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=17 L=17	1-09701-284-0	04	1	1302-1511
54	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> ID=17 L=17	1-09701-284-0	04	1	1512-
54	CLIP; OIL PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	02	1	1302-1505
54	CLIP; OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	02	1	1506-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-
58	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
58	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1511
58	BOLT; CLIP EURO2 SPECIFICATION<NT2> M8X45 FLANGE	0-28050-845-0	02	1	1512-
58	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	01	1	1302-1505
58	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X45 FLANGE	0-28050-845-0	01	1	1506-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1302-
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-97375-107-0	01	1	1302-1511
63	BRACKET; CLIP,P/S EURO2 SPECIFICATION<NT2>	8-97375-107-0	01	1	1512-
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4> (B)	8-98075-954-0	01	1	1302-1505
63	BRACKET; CLIP,P/S EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98075-954-0	01	1	1506-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1302-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98080-186-2	01	1	1302-1511
102	PIPE; SUCTION,P/S EURO2 SPECIFICATION<NT2>	8-98080-186-2	01	1	1512-
102	PIPE; SUCTION,P/S EURO4 SPECIFICATION<NT4>	8-98057-017-4	01	1	1302-1505
102	PIPE; SUCTION,P/S EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98057-017-4	01	1	1506-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1302-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1302-
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	1302-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1302-

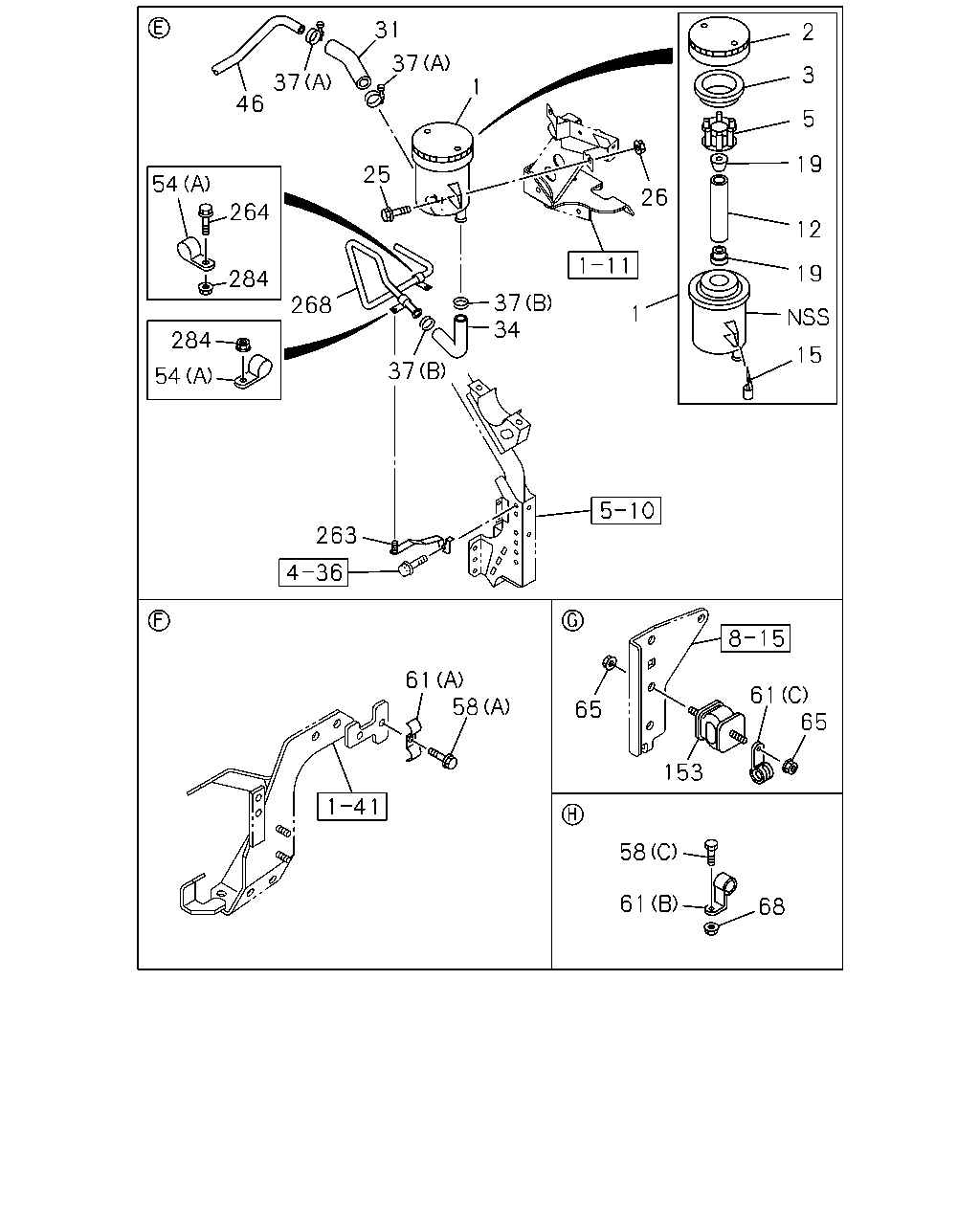

54 37 31 46 25 37 37 268 284 54 34 26 37 264 284 65 153 61 65 58 61 68 61 58 263 2 3 19 5 12 15 19 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1302-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1302-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1302-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1302-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1302-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1302-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1302-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1302-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1302-
31	HOSE; P/S OIL TANK,INL	8-98131-108-0	01	1	1302-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1302-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1302-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1302-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1550	8-98214-946-0	01	1	1302-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1302-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1302-
54	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=17 L=17	1-09701-284-0	04	1	1302-1511
54	CLIP; OIL PIPE EURO2 SPECIFICATION<NT2> ID=17 L=17	1-09701-284-0	04	1	1512-
54	CLIP; OIL PIPE EURO4 SPECIFICATION<NT4> (B) ID=17 L=17	1-09701-284-0	02	1	1302-1505
54	CLIP; OIL PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) ID=17 L=17	1-09701-284-0	02	1	1506-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1302-
58	BOLT; CLIP (D) M8X20 FLANGE	0-28650-820-0	01	1	1302-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	1302-
58	BOLT; CLIP EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) M8X45 FLANGE	0-28050-845-0	02	1	1302-1511
58	BOLT; CLIP EURO2 SPECIFICATION<NT2> M8X45 FLANGE	0-28050-845-0	02	1	1512-
58	BOLT; CLIP EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	01	1	1302-1505
58	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X45 FLANGE	0-28050-845-0	01	1	1506-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	01	1	1302-
61	CLIP; OIL PIPE (D) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1302-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	1302-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1302-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1302-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	01	1	1302-
263	BRACKET; P/S PIPE	8-98130-274-0	01	1	1302-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1302-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1302-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1302-
