◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11508 - FSR(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#112563) — 22 parça

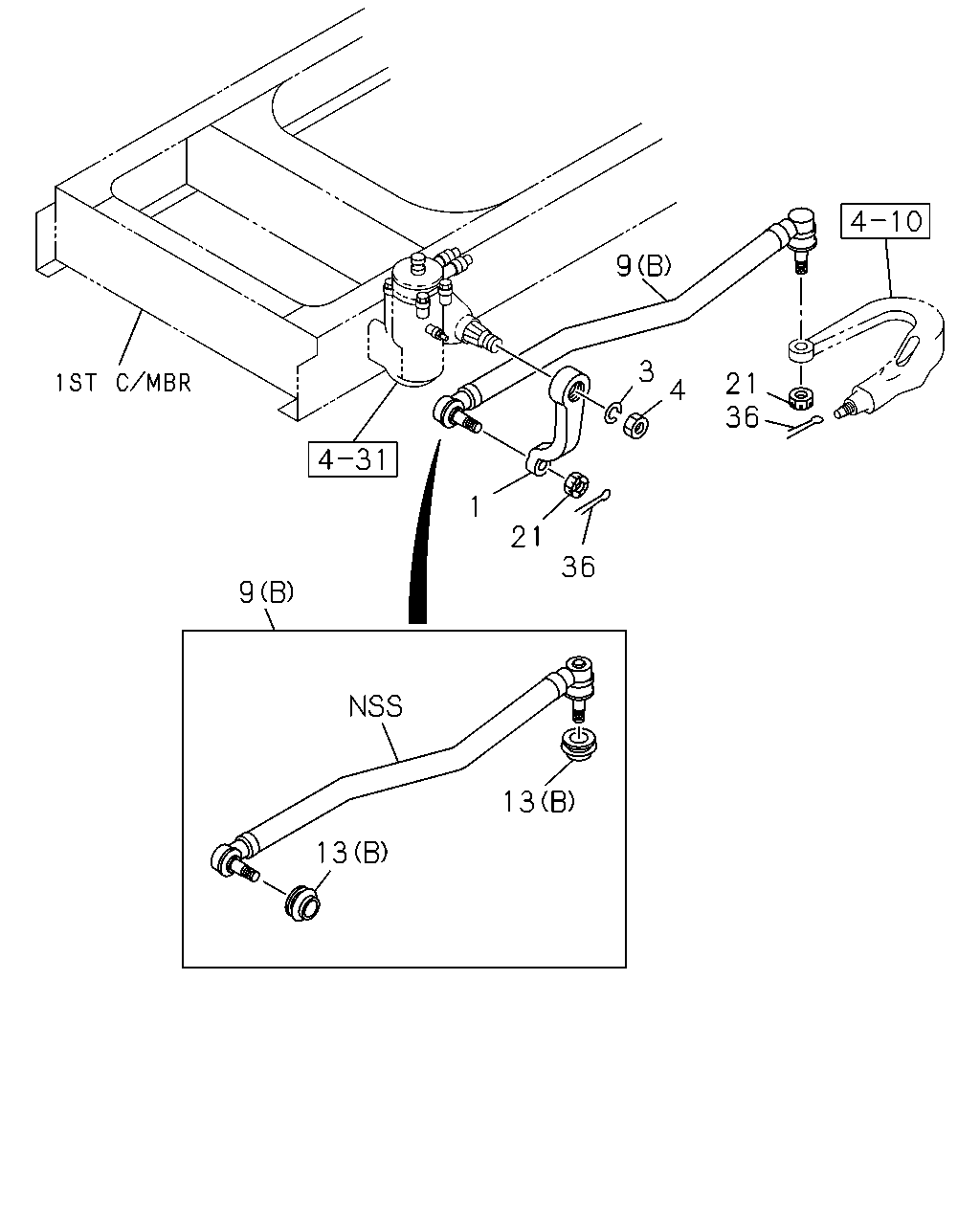

çizim 328514
9 36 21 4 3 1 21 36 9 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98085-760-1 01 1 1302-
1 ARM; PITMAN,STRG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98065-071-1 01 1 1302-
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 1302-
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 1302-
9 LINK; DRAG
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-44380-134-0 01 1 1302-
9 LINK; DRAG
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-44380-303-0 01 1 1302-
9 LINK; DRAG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-44380-305-0 01 1 1302-
13 BOOT; DRAG LINK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-85574-046-0 02 1 1302-
13 BOOT; DRAG LINK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-85574-063-0 02 1 1302-
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 1302-
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 1302-

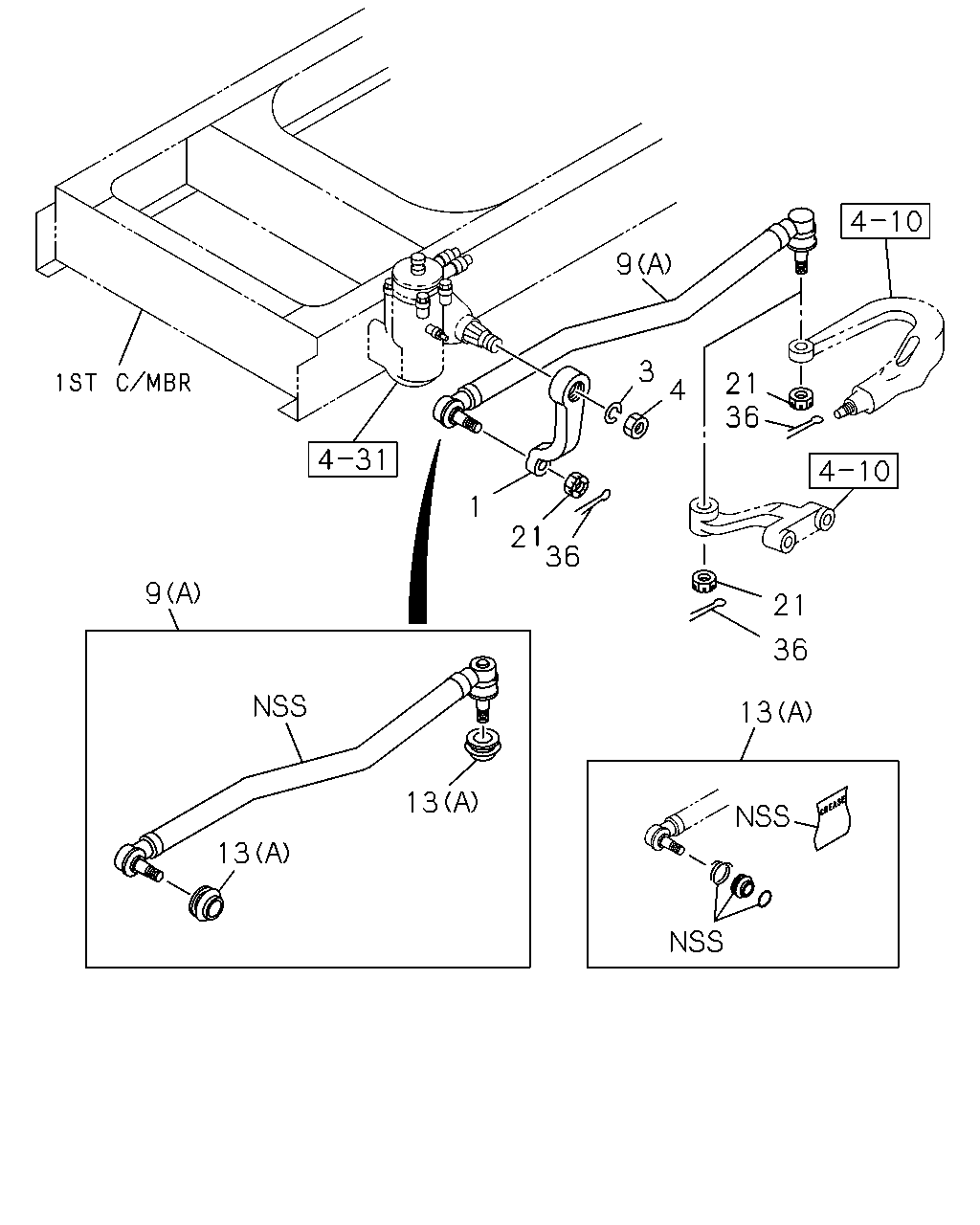

çizim 328794
9 3 4 1 21 36 21 36 21 36 13 13 13 9
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; PITMAN,STRG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98085-760-1 01 1 1302-
1 ARM; PITMAN,STRG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98065-071-1 01 1 1302-
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-055-0 01 1 1302-
4 NUT; PITMAN ARM
M30 		1-09400-166-0 01 1 1302-
9 LINK; DRAG
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-44380-134-0 01 1 1302-
9 LINK; DRAG
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3),HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		1-44380-303-0 01 1 1302-
9 LINK; DRAG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-44380-305-0 01 1 1302-
13 BOOT; DRAG LINK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		1-85574-046-0 02 1 1302-
13 BOOT; DRAG LINK
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		1-85574-063-0 02 1 1302-
21 NUT; LK,JOINT BALL
M16 SLOTTED 		1-09442-031-0 02 1 1302-
36 PIN; SPLIT,DRAG LINK
OD=3.7 L=25 		0-81124-025-0 02 1 1302-
