◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#11256) — 11 parça

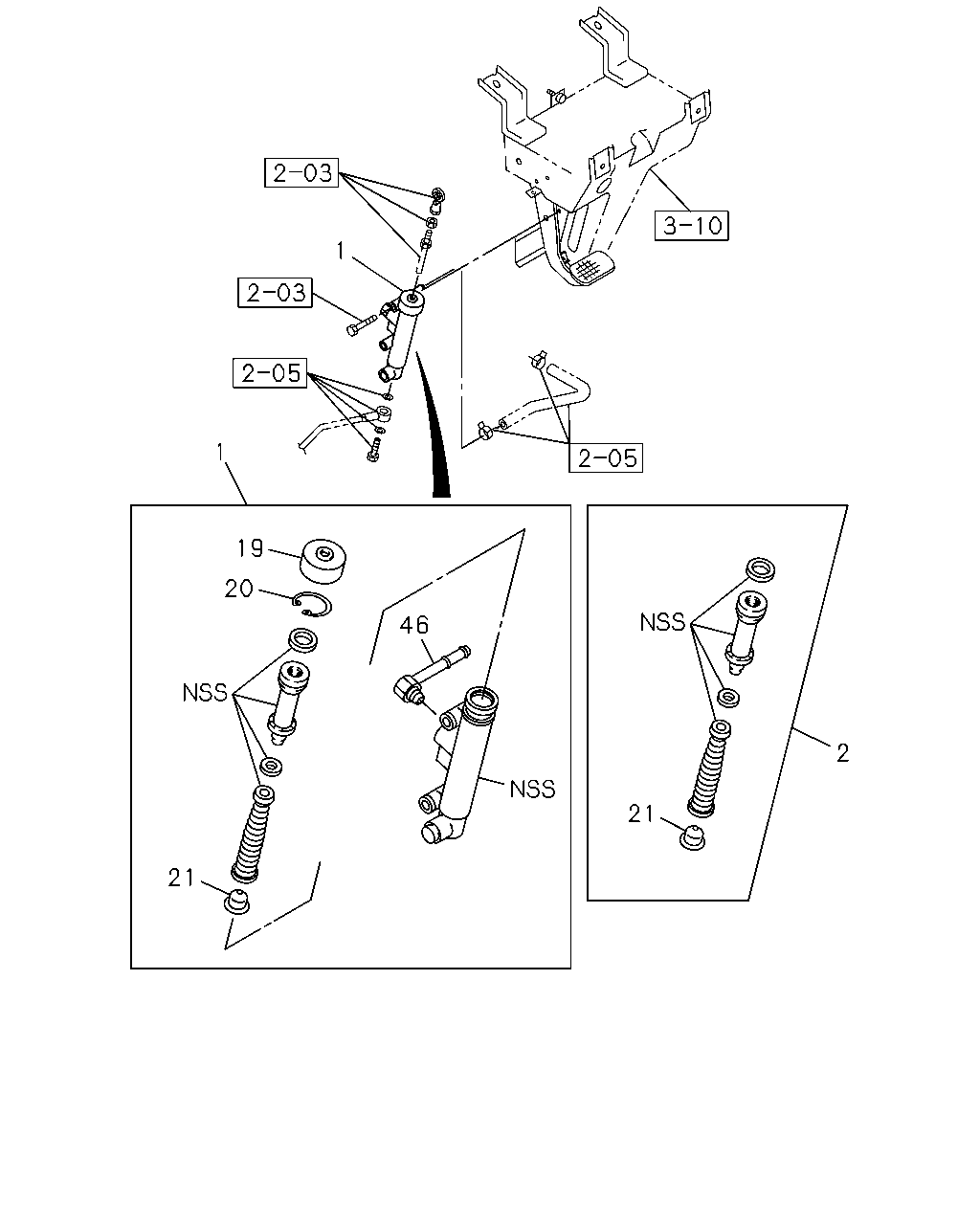

çizim 75593
1 1 19 20 46 2 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
ZF M/T<X9E> 		1-47500-241-3 01 1 0107-
1 CYLINDER ASM; CLUTCH MASTER
ISUZU M/T<X9A> 		1-47500-239-2 01 1 0107-
2 REPAIR KIT; CLU M/CYL
ZF M/T<X9E> 		1-47550-046-0 01 1 0107-
2 REPAIR KIT; CLU M/CYL
ISUZU M/T<X9A> 		1-85572-010-0 01 1 0107-
19 BOOT; CLU M/CYL
ZF M/T<X9E> 		1-47545-011-0 01 1 0107-
19 BOOT; CLU M/CYL
ISUZU M/T<X9A> 		9-47545-032-0 01 1 0107-
20 RING; SNAP,BODY
ZF M/T<X9E> 		1-47515-009-0 01 1 0107-
20 RING; SNAP,BODY
ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 0107-
21 VALVE; CHECK 1-47565-004-0 01 1 0107-
46 CONNECTOR; PIPE
ZF M/T<X9E> 		1-47517-003-0 01 1 0107-
46 CONNECTOR; PIPE
ISUZU M/T<X9A> 		1-47559-016-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
