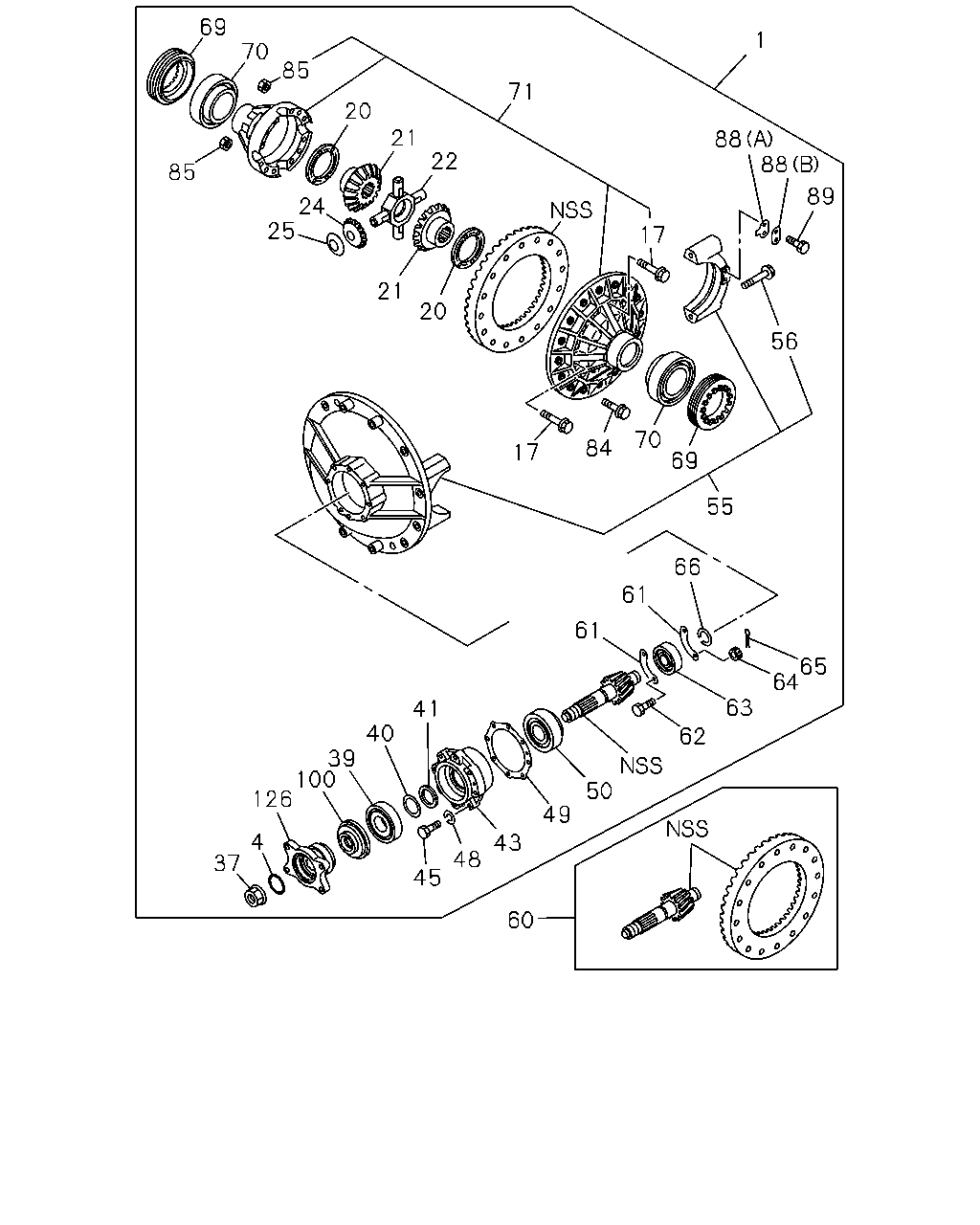

4-25A — REAR FINAL DRIVE (#112552) — 86 parça

85 69 85 20 22 71 21 24 25 21 17 84 70 20 55 69 56 88 89 17 88 66 61 61 62 64 63 50 49 43 48 45 60 37 126 4 40 39 100 41 65 1 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DRIVE ASM; FINAL,RR 39/6	1-41002-771-0	01	1	1302-	●
1	DRIVE ASM; FINAL,RR 43/6	1-41000-937-0	01	1	1302-		●
1	DRIVE ASM; FINAL,RR 39/7	1-41001-031-0	01	1	1302-			●
1	DRIVE ASM; FINAL,RR P46 PROP SHAFT(C4Z) 43/7	1-41000-923-0	01	1	1302-				●
1	DRIVE ASM; FINAL,RR P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) 43/7	1-41001-356-0	01	1	1302-				●
1	DRIVE ASM; FINAL,RR 41/6	1-41003-298-0	01	1	1302-					●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1302-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	1302-	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	1302-	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	1302-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	02	1	1302-					●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	02	1	1302-					●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	02	1	1302-					●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	02	1	1302-					●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	02	1	1302-					●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	02	1	1302-					●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	02	1	1302-					●
21	GEAR; SIDE,DIFF Z=16	1-41561-162-0	02	1	1302-	●	●	●	●	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-1	01	1	1302-	●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-052-0	04	1	1302-	●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	1302-	●	●	●	●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	1302-	●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	1302-	●	●	●	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	1302-	●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	1302-	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	1302-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	1302-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	1302-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	1302-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	1302-	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	1302-	●	●	●	●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	1302-	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1302-	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	1302-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	1302-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	1302-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-104-0	AR	1	1302-	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-105-0	AR	1	1302-	●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	1302-	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	1302-	●	●	●	●	●
55	CARRIER; DIFF	1-41110-120-1	01	1	1302-	●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	1302-	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	1302-	●
60	GEAR SET; FINAL DRIVE,RR 43/6	1-41210-375-2	01	1	1302-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-517-0	01	1	1302-			●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-549-0	01	1	1302-				●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-515-0	01	1	1302-					●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	1302-	●	●	●	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	1302-	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1302-	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1302-	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1302-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1302-1311	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	1312-	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1302-1311	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	1312-	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	1302-	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	1302-	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1302-	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1302-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	02	1	1302-	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	1302-	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1302-	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1302-	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-387-0	01	1	1302-		●	●		●
126	COUPLING; DRIVING PINION P46 PROP SHAFT(C4Z)	1-37245-387-0	01	1	1302-				●
126	COUPLING; DRIVING PINION	1-37245-390-0	01	1	1302-	●
126	COUPLING; DRIVING PINION P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T)	1-37245-390-0	01	1	1302-				●
