Sayfa 2-81 - Isuzu EPC

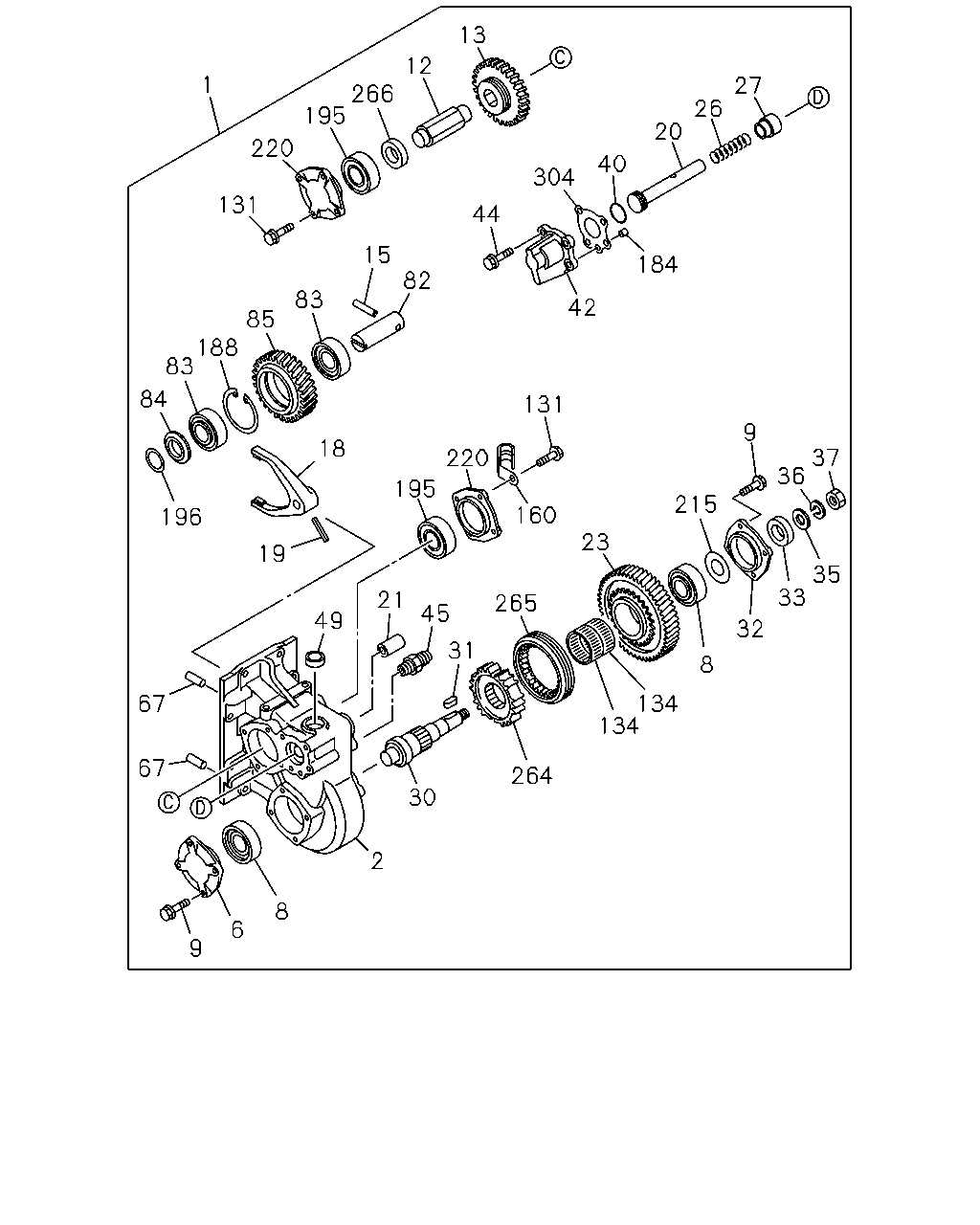

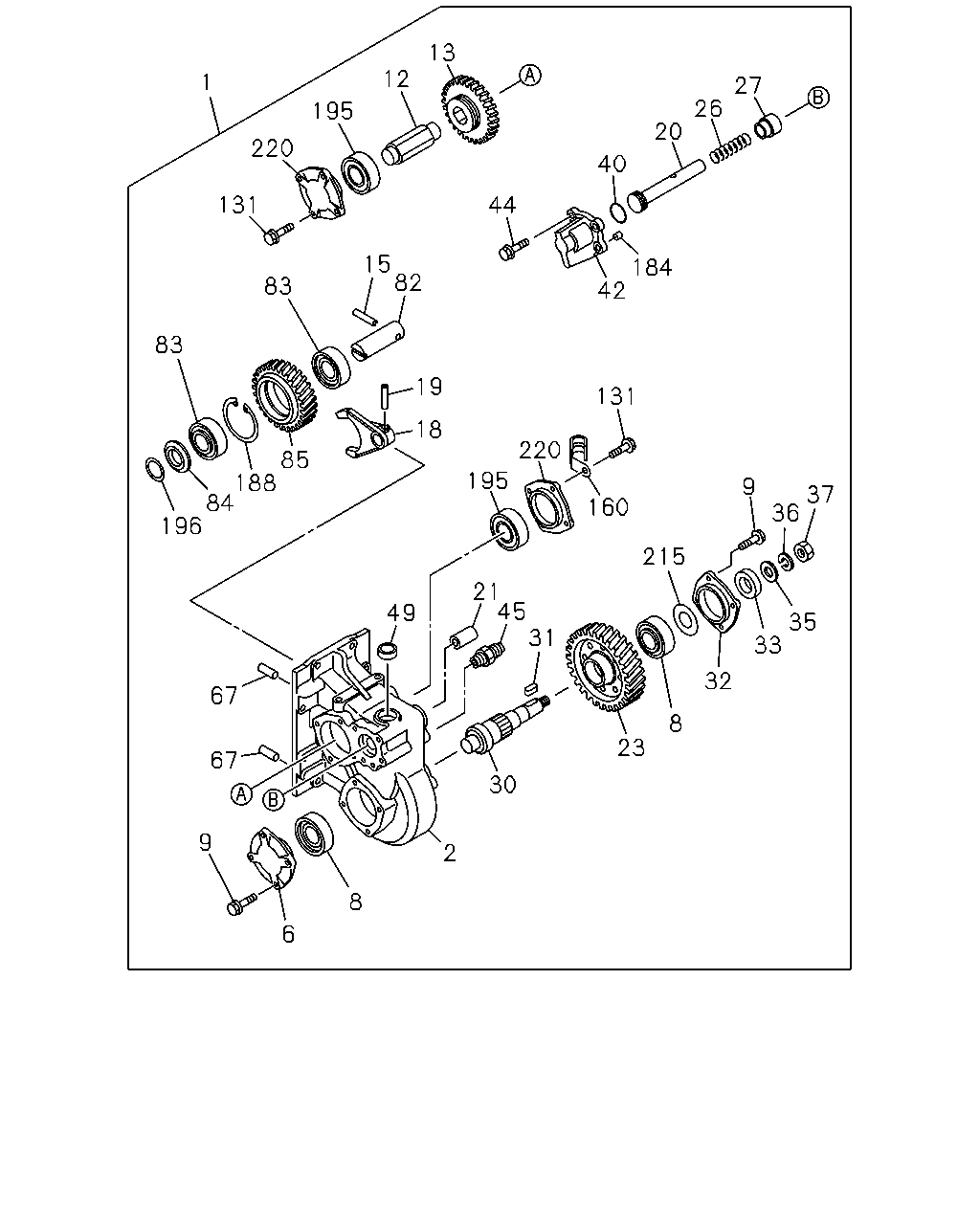

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#112546) — 213 parça

1 220 195 12 13 131 83 83 196 84 188 85 18 19 82 15 44 40 20 26 27 220 131 42 184 160 45 21 49 67 67 9 6 2 8 30 23 31 8 215 32 36 9 33 37 35 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1302-1312	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97257-443-4	01	1	1302-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1302-1312	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-792-1	01	1	1302-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1302-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1302-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1302-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=25 OD=62	8-94343-031-1	02	1	1302-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1302-1312	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-817-0	01	1	1302-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1302-1312	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	8-97305-810-0	01	1	1302-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1302-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1302-1312	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98009-081-0	01	1	1302-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1302-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1302-1312	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-820-1	01	1	1302-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1302-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1302-1312	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=26	8-97305-798-0	01	1	1302-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1302-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1302-1312	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1302-1312	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1302-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1302-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1302-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1302-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1302-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1302-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1302-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1302-1312	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	1302-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1302-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1302-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	02	1	1302-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1302-1312	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-	●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1302-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1302-	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1302-1312	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1302-1312	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-	●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1302-	●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1302-	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1302-	●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1302-	●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1302-	●

9 6 8 2 30 264 134 8 33 32 35 37 36 9 215 23 265 31 45 21 49 67 67 19 18 196 84 83 188 85 83 15 82 44 42 131 160 220 195 304 40 20 26 27 1 220 195 266 12 13 131 184 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1302-1312	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97257-443-4	01	1	1302-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1302-1312	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-792-1	01	1	1302-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1302-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1302-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1302-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=25 OD=62	8-94343-031-1	02	1	1302-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1302-1312	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-817-0	01	1	1302-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1302-1312	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	8-97305-810-0	01	1	1302-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1302-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1302-1312	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98009-081-0	01	1	1302-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1302-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1302-1312	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-820-1	01	1	1302-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1302-	●	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1302-1312	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=26	8-97305-798-0	01	1	1302-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1302-	●	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1302-1312	●
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1302-1312	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1302-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1302-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1302-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1302-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1302-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1302-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1302-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1302-1312	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	1302-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1302-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1302-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	02	1	1302-		●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1302-1312	●
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-	●
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1302-	●
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1302-	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1302-1312	●
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1302-1312	●
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-	●
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1401-	●
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1302-	●
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1302-	●
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1302-	●
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1302-	●
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1302-	●
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1302-	●
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1302-	●
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-804-0	01	1	1401-	●
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1401-	●
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-806-0	01	1	1401-	●
304	PACKING; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98328-479-0	01	1	1401-	●

1 26 112 40 20 19 18 13 11 50 12 44 45 42 9 37 15 33 8 22 50 23 31 30 8 6 9 36 35 32 79 2 21 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1302-1312	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-	●
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97257-443-4	01	1	1302-		●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1302-1312	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-	●
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-792-1	01	1	1302-		●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1302-	●
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1302-		●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1302-	●
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=25 OD=62	8-94343-031-1	02	1	1302-		●
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1302-	●	●
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98068-087-0	01	1	1302-		●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1302-1312	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-	●
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-817-0	01	1	1302-		●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1302-1312	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-	●
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36	8-97305-810-0	01	1	1302-		●
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1302-	●	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1302-1312	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-	●
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98009-081-0	01	1	1302-		●
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1302-	●	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1302-1312	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-	●
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-820-1	01	1	1302-		●
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1302-	●	●
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98068-086-0	01	1	1302-		●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1302-1312	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-	●
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=26	8-97305-798-0	01	1	1302-		●
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1302-	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1302-1312	●	●
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1401-		●
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1302-	●	●
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1302-	●	●
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1302-	●	●
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1302-	●	●
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1302-	●	●
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1302-	●	●
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1302-	●	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1302-1312	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-	●
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-597-0	01	1	1302-		●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1302-	●
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	02	1	1302-		●
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-	●	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1302-	●
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	02	1	1302-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38226-058-1	01	1	1302-		●
50	WASHER; THRUST,IDLE GEAR,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	8-97305-818-0	01	1	1302-		●
79	COVER; DUST,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1302-		●
112	COLLAR; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98149-248-0	01	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
