2-61 — TRANSFER CASE AND GEAR SHIFTER (#112544) — 82 parça

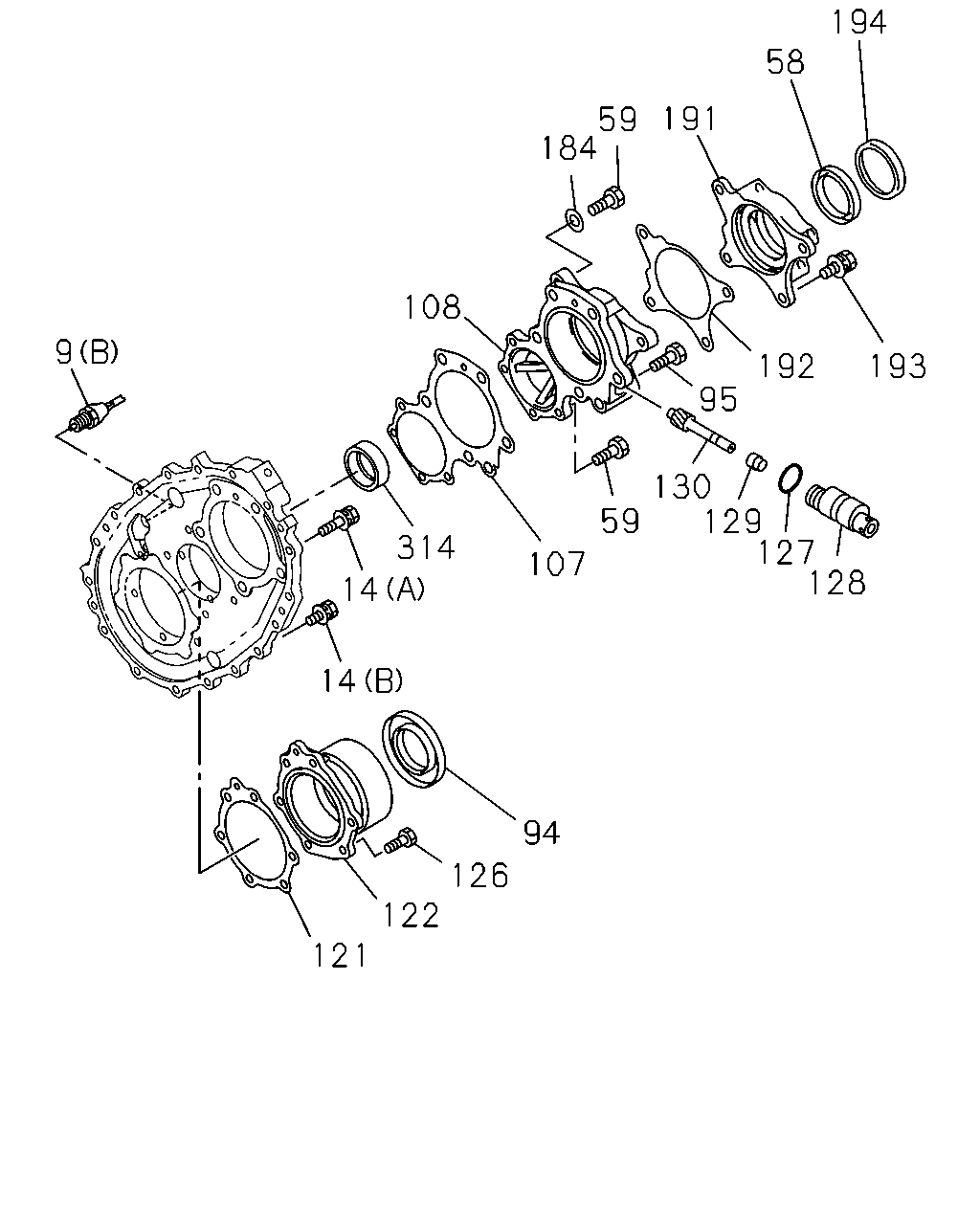

çizim 327524
9 108 184 59 191 58 194 14 107 59 130 95 192 193 129 127 128 314 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1302-
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1302-
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 1302-
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 1302-
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 1302-
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 1302-
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 1302-
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 1302-
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 1302-
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1302-
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 1302-
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 1302-
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 1302-
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 1302-
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 1302-
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 1302-
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 1302-
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1302-
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 1302-
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 1302-
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 1302-
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 1302-
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 1302-
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 1302-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 1302-

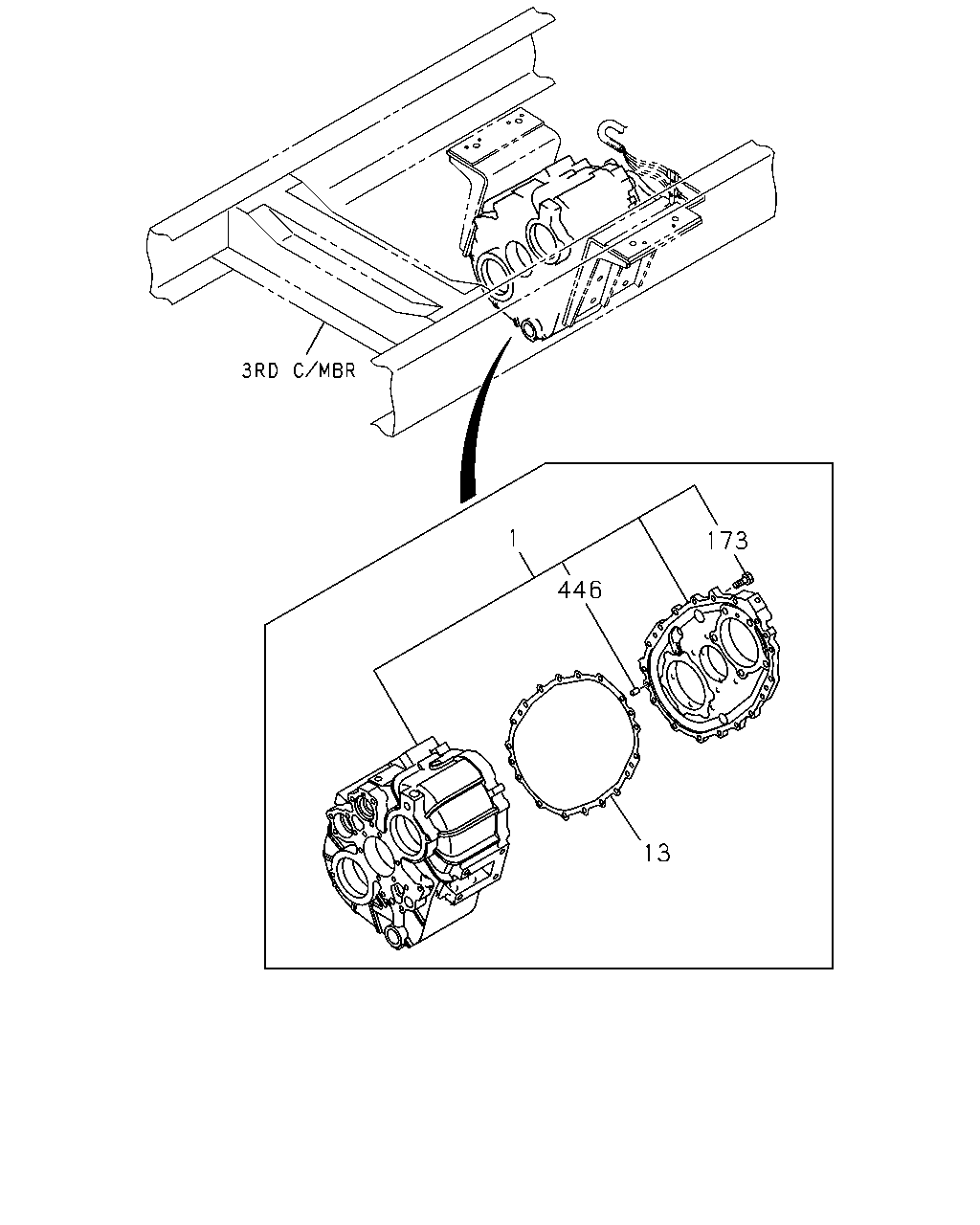

çizim 331328
13 446 173 1
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER 1-36110-050-0 01 1 1302-
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 1302-
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 1302-
446 PIN; STRAIGHT 9-08161-016-0 02 1 1302-

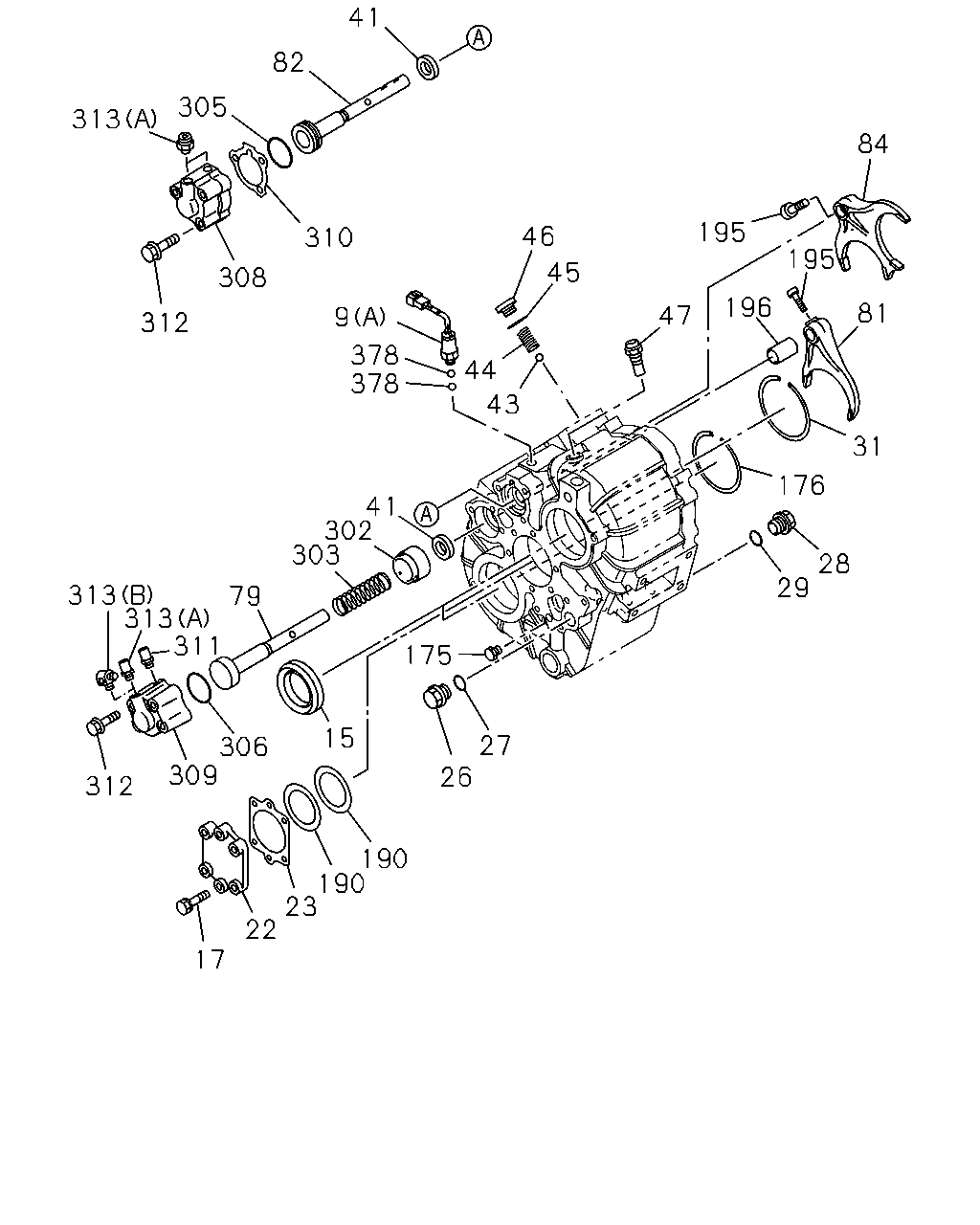

çizim 331416
17 190 190 23 22 26 175 27 15 306 309 312 311 313 313 79 302 303 41 29 176 28 31 81 196 47 195 84 195 45 44 46 43 378 378 9 308 312 310 305 313 82 41
BalonParca AdiParca NoAdetTipApplied Date
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1302-
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1302-
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 1302-
17 BOLT; BRG COVER
M10X28 		0-50551-028-0 06 1 1302-
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 1302-
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 1302-
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1302-
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1302-
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1302-
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1302-
31 RING; SNAP,INPUT 9-09950-184-0 01 1 1302-
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 1302-
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1302-
44 SPRING; COIL,LK 9-09940-323-0 01 1 1302-
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1302-
46 SEAT; SPR 9-09862-175-0 01 1 1302-
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 1302-
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 1302-
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 1302-
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 1302-
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 1302-
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 1302-
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 1302-
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 1302-
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 1302-
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 1302-
302 SEAT; SPRING 1-36572-002-1 01 1 1302-
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 1302-
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 1302-
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 1302-
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 1302-
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 1302-
310 GASKET; AIR CYL 1-36579-001-0 01 1 1302-
311 BREATHER; AIR CYL 9-36122-013-0 01 1 1302-
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 1302-
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1302-
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302-
378 BALL; CONT SWITCH 9-00097-013-0 02 1 1302-
