Isuzu WW
▶
TRUCKS
▶
FSS
▶
11510 - FSS(RHD)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶
2-60 — TRANSFER
(#112542) — 21 parça
Tümü
A - FCS5MS
B - FGS5MS
◀

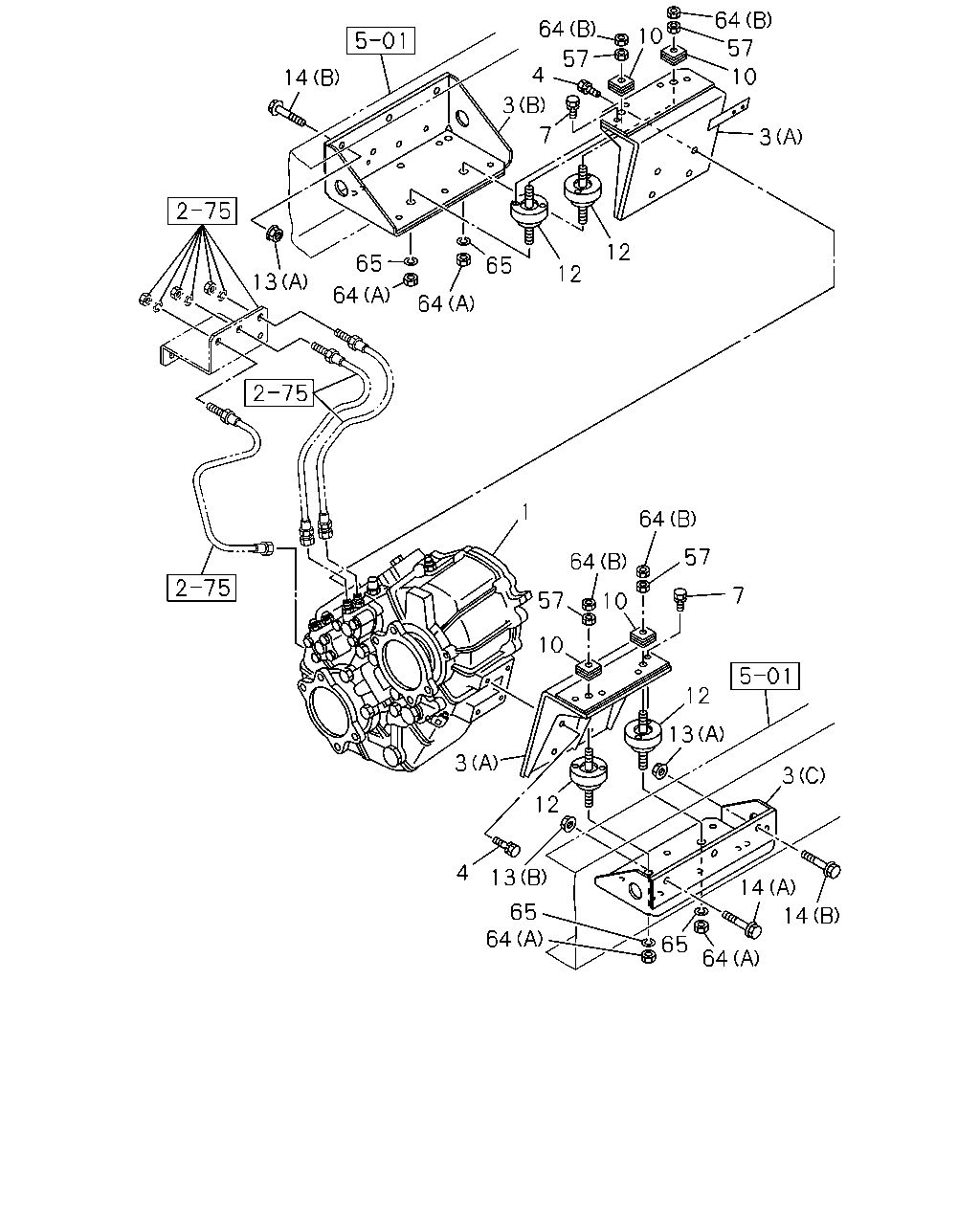

[260A] TRANSFER FIXING (20 parça)

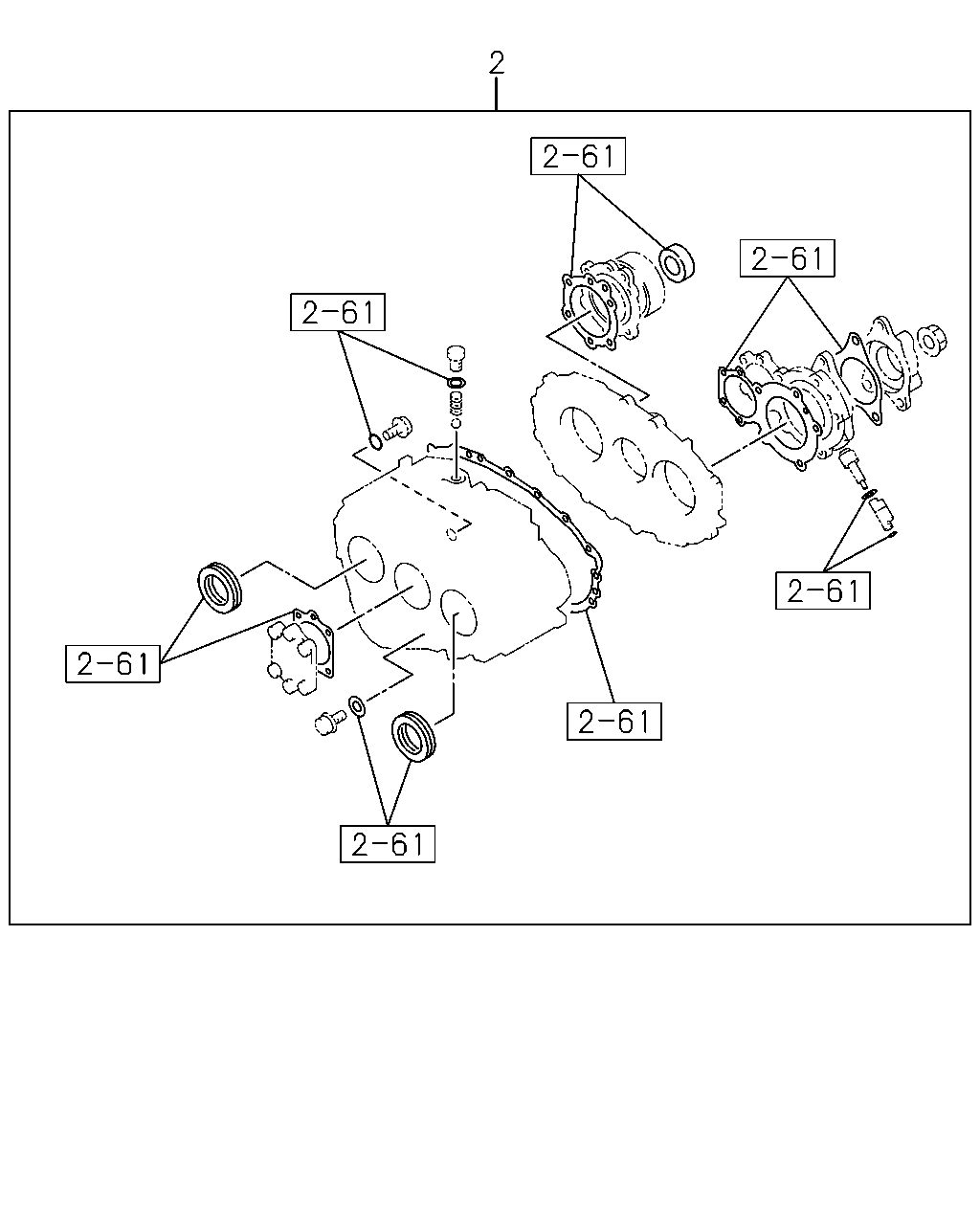

[260A] REPAIR KIT (1 parça)
▶
14
14
64
65
64
13
4
12
3
65
3
13
7
12
10
10
57
1
64
64
13
65
64
65
64
12
12
3
10
57
64
10
57
4
64
3
14
7
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TRANSFER ASM
1-36000-732-0
01
1
1302-
●
●
3
BRACKET; TRANSFER
(C)
8-97614-324-1
01
1
1302-
●
●
3
BRACKET; TRANSFER
(B)
8-97613-315-1
01
1
1302-
●
●
3
BRACKET; TRANSFER
(A)
8-98093-614-0
01
1
1302-
●
●
3
BRACKET; TRANSFER
(A)
8-98093-613-0
01
1
1302-
●
●
3
BRACKET; TRANSFER
(C)
8-97614-324-1
01
1
1302-
●
●
3
BRACKET; TRANSFER
(B)
8-97613-315-1
01
1
1302-
●
●
4
BOLT; BRKT TO TRANSFER
M12X30 FLANGE
0-28051-230-0
AR
1
1302-
●
●
4
BOLT; BRKT TO TRANSFER
M12X25 FLANGE
0-28151-225-0
08
1
1302-
●
●
7
BOLT; CUSHION RUBBER
M10X25 FLANGE
0-28051-025-0
08
1
1302-
●
●
10
RUBBER; CUSHION,UPR,TRANSFER
1-36189-027-0
04
1
1302-
●
●
12
RUBBER; CUSHION,LWR,TRANSFER
1-36189-026-2
04
1
1302-
●
●
13
NUT; BRKT
(A) M14
0-91110-514-0
11
1
1302-
●
13
NUT; BRKT
(B) M10 FLANGE
0-91180-110-0
01
1
1302-
●
14
BOLT; BRKT
(B) M14X40
0-20851-440-0
11
1
1302-
●
14
BOLT; BRKT
(A) M10X30 FLANGE
0-28651-030-0
02
1
1302-
●
57
NUT; CUSHION RUBBER,UPR
M12
0-91110-512-0
04
1
1302-
●
●
64
NUT; CUSHION RUBBER,LWR
(A) M14
0-91110-514-0
04
1
1302-
●
●
64
NUT; CUSHION RUBBER,LWR
(B) M12
0-91111-512-0
04
1
1302-
●
●
65
WASHER; LK,CUSHION RUBBER,LWR
ID=14.2
0-91510-514-0
04
1
1302-
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; TRANSFER OVERHAUL
1-87831-338-0
01
1
1302-
●
●
