◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11507 - FRR RHD EURO2/4 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#112538) — 29 parça

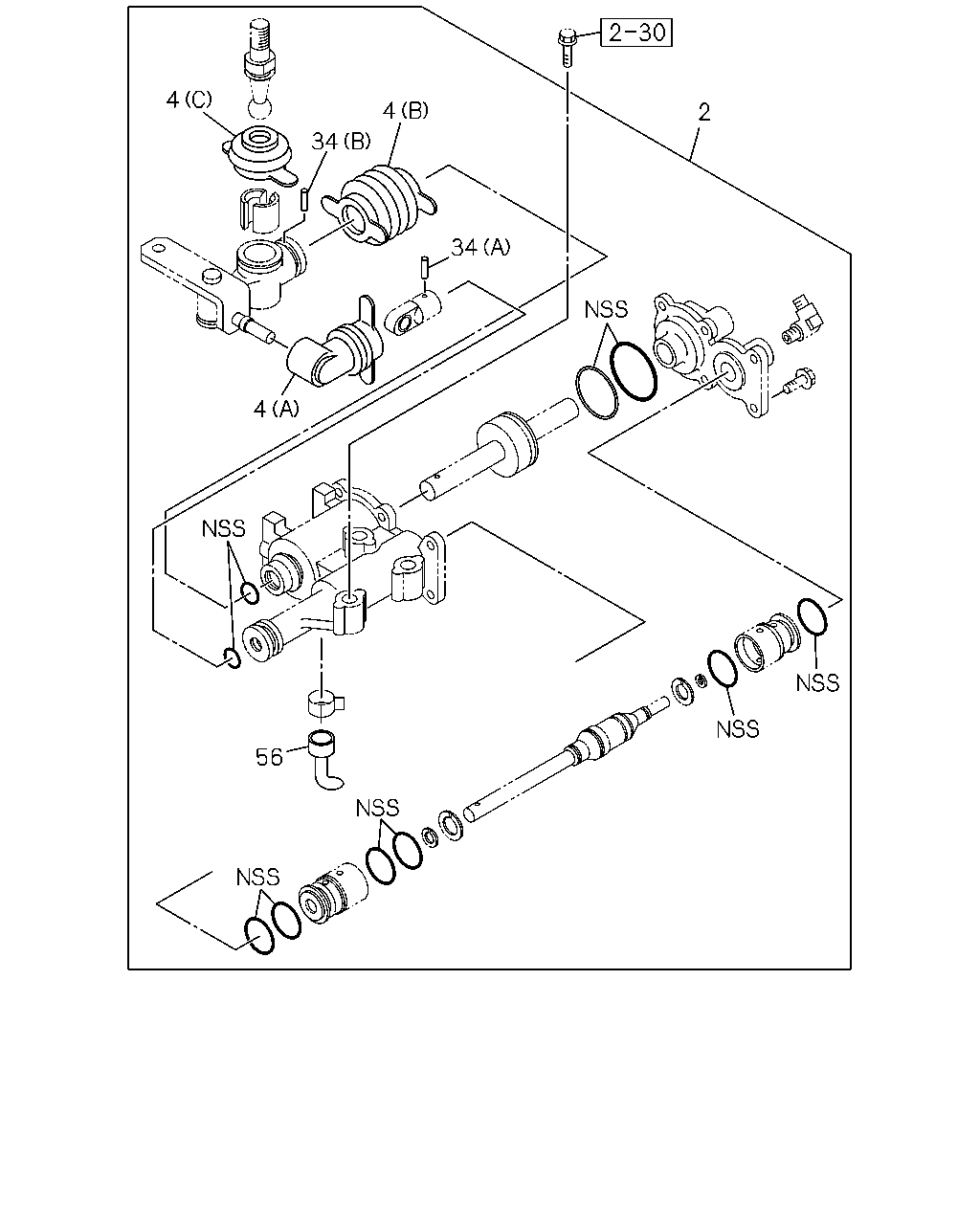

çizim 327362
4 34 4 34 4 56 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-035-0 01 1 1302- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 1302- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 1302- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 1302- ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 1302- ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 1302- ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 1302- ● ●

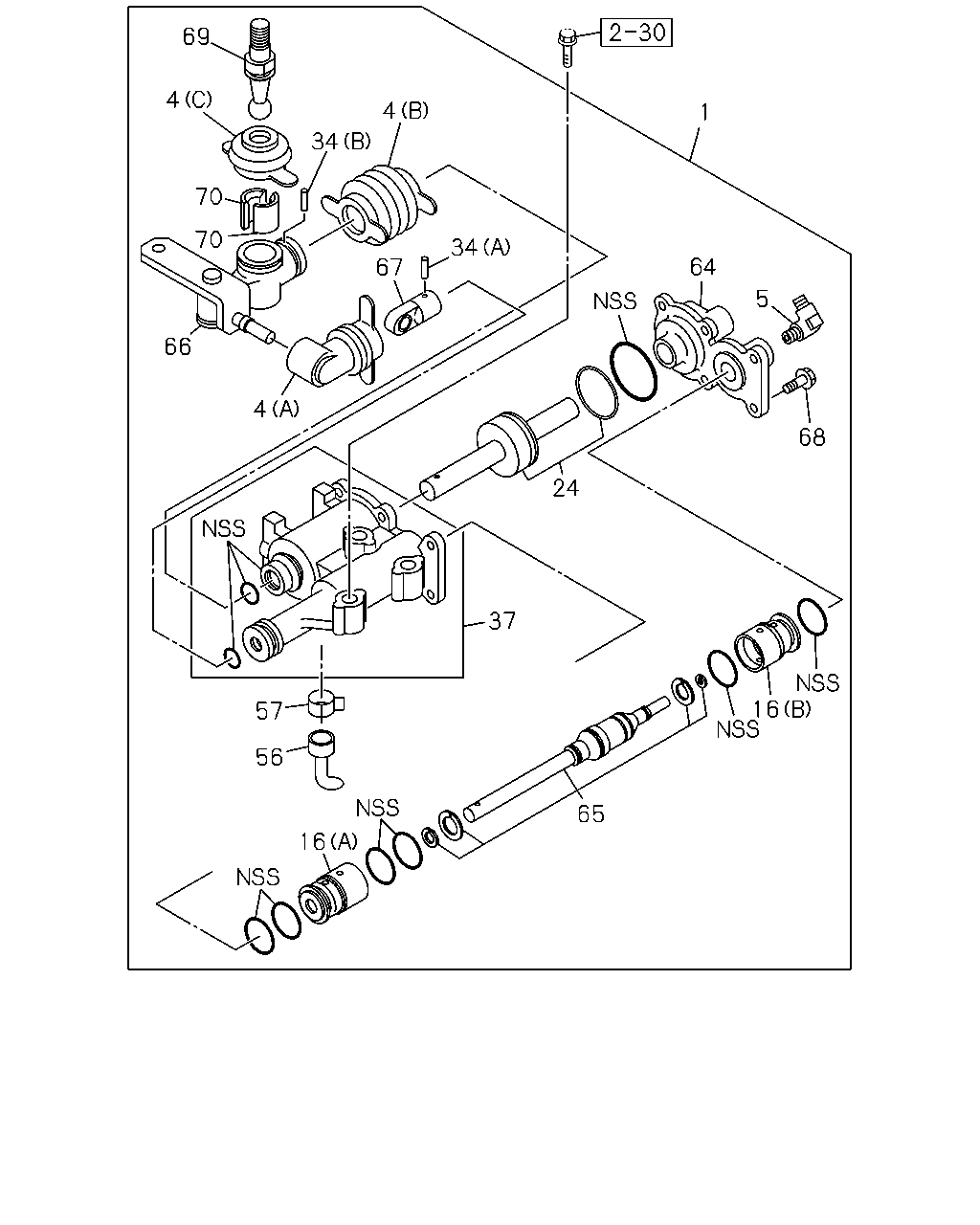

çizim 327583
69 4 34 4 70 70 66 67 4 34 64 68 5 1 24 37 57 56 16 65 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		8-98022-853-1 01 1 1302- ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		8-98044-183-1 01 1 1302- ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 1302- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 1302- ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 1302- ● ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 1302- ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> 		8-98047-175-0 01 1 1302- ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 1302- ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 1302- ● ●
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		8-98065-242-0 01 1 1302- ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 1302- ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 1302- ● ●
37 HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-027-0 01 1 1302- ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 1302- ● ●
57 CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 1302- ● ●
64 COVER; HOUSING
ASSISTOR SHIFT CONTROL<WX8> 		8-98025-483-0 01 1 1302- ● ●
65 VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 1302- ● ●
66 JOINT ASM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-137-0 01 1 1302- ● ●
67 JOINT; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 1302- ● ●
68 BOLT; COVER
ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 1302- ● ●
69 STUD; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 1302- ● ●
70 SEAT; BALL STUD
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 1302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
