◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11518 - FVR/GVR LHD EURO2/3/4/5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#112534) — 59 parça

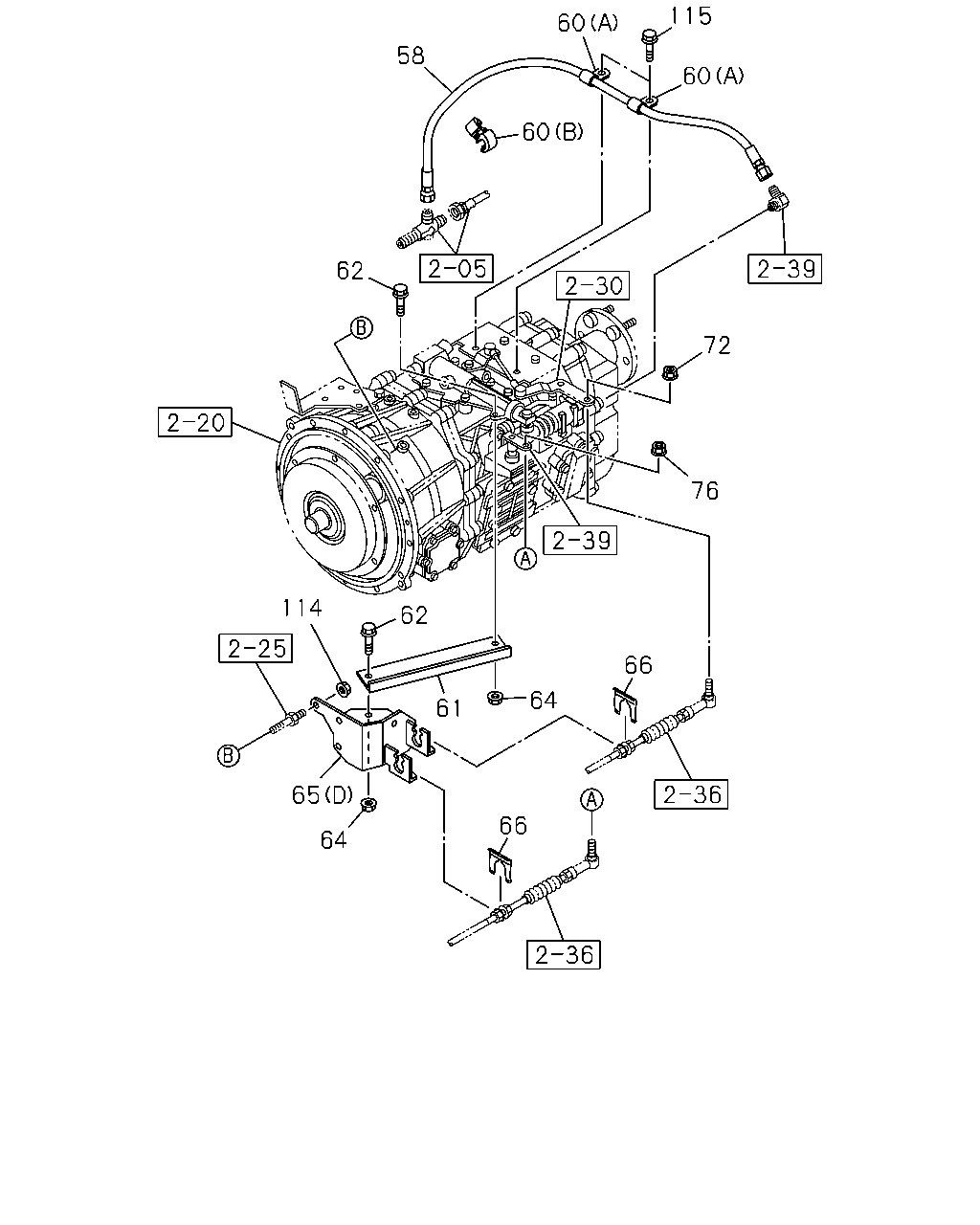

çizim 327415
60 115 60 72 76 66 64 66 65 64 114 62 61 62 58 60
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 1305- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1302-1510 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1511- ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1302-1510 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1511- ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1302-1304 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1305-1510 ●
60 CLIP; FLEX HOSE
MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1511- ●
61 STAY; BRKT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 		8-98165-370-0 01 1 1305-1309 ●
61 STAY; BRKT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) 		8-98251-404-0 01 1 1310- ●
61 STAY; BRKT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) 		1-33657-267-0 01 1 1302- ●
62 BOLT; STAY
MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1302- ●
64 NUT; STAY
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (C) 		8-98131-609-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98131-609-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98010-158-1 01 1 1305- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98050-563-1 01 1 1305- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98010-160-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 1302- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1302- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1302- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
FULLER FS8209HD DD M/T(Y3A) M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 1302- ●
114 NUT; BRKT
MZW6P M/T(RSZ) M10 FLANGE 		0-91180-210-0 02 1 1302- ●
115 BOLT; CLIP
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1302-1510 ●
115 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●

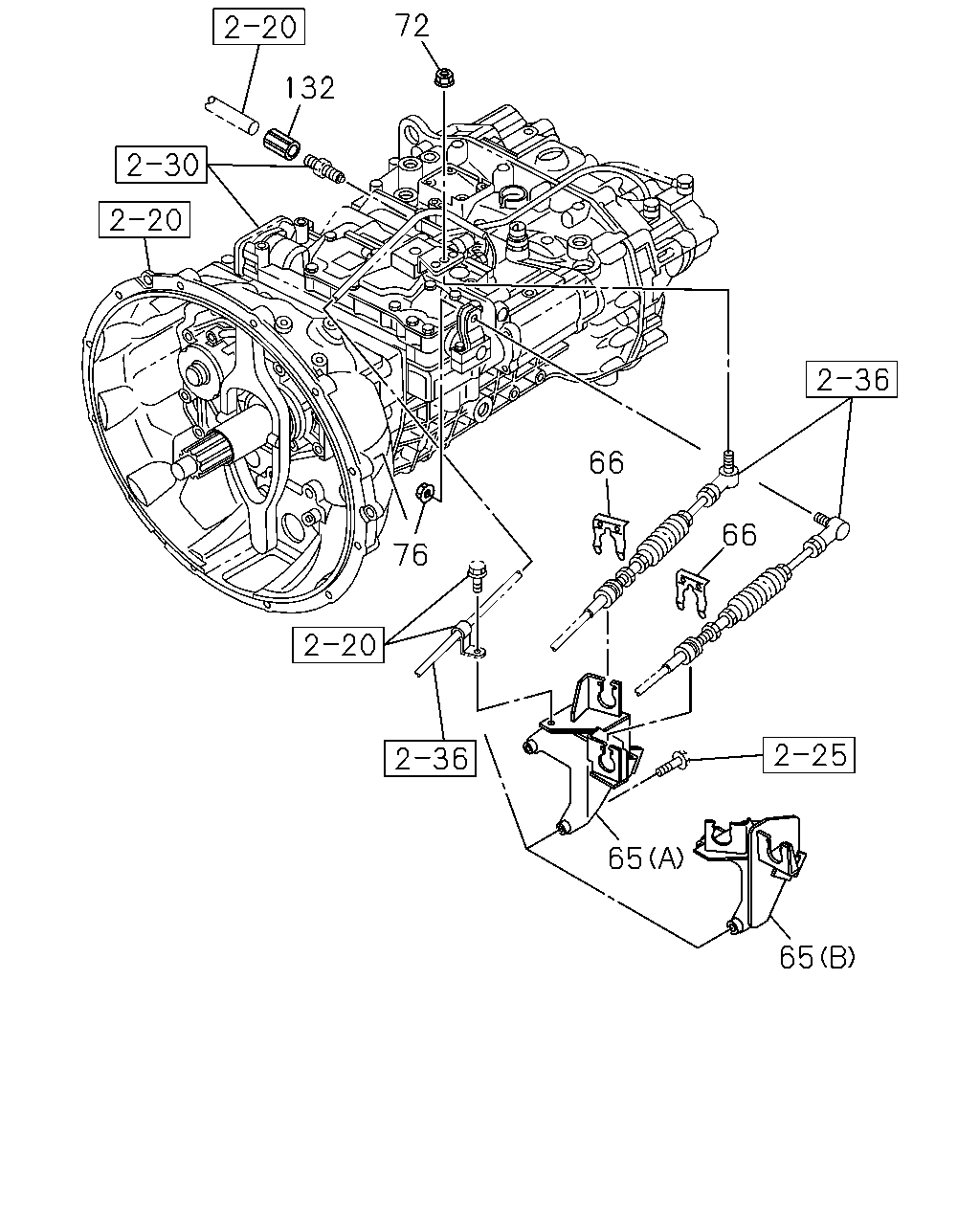

çizim 327449
132 72 66 76 65 65 66
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (C) 		8-98131-609-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98131-609-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98010-158-1 01 1 1305- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98050-563-1 01 1 1305- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98010-160-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 1302- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1302- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1302- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
FULLER FS8209HD DD M/T(Y3A) M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 1302- ●
132 CONNECTOR; FLEX HOSE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1302- ●

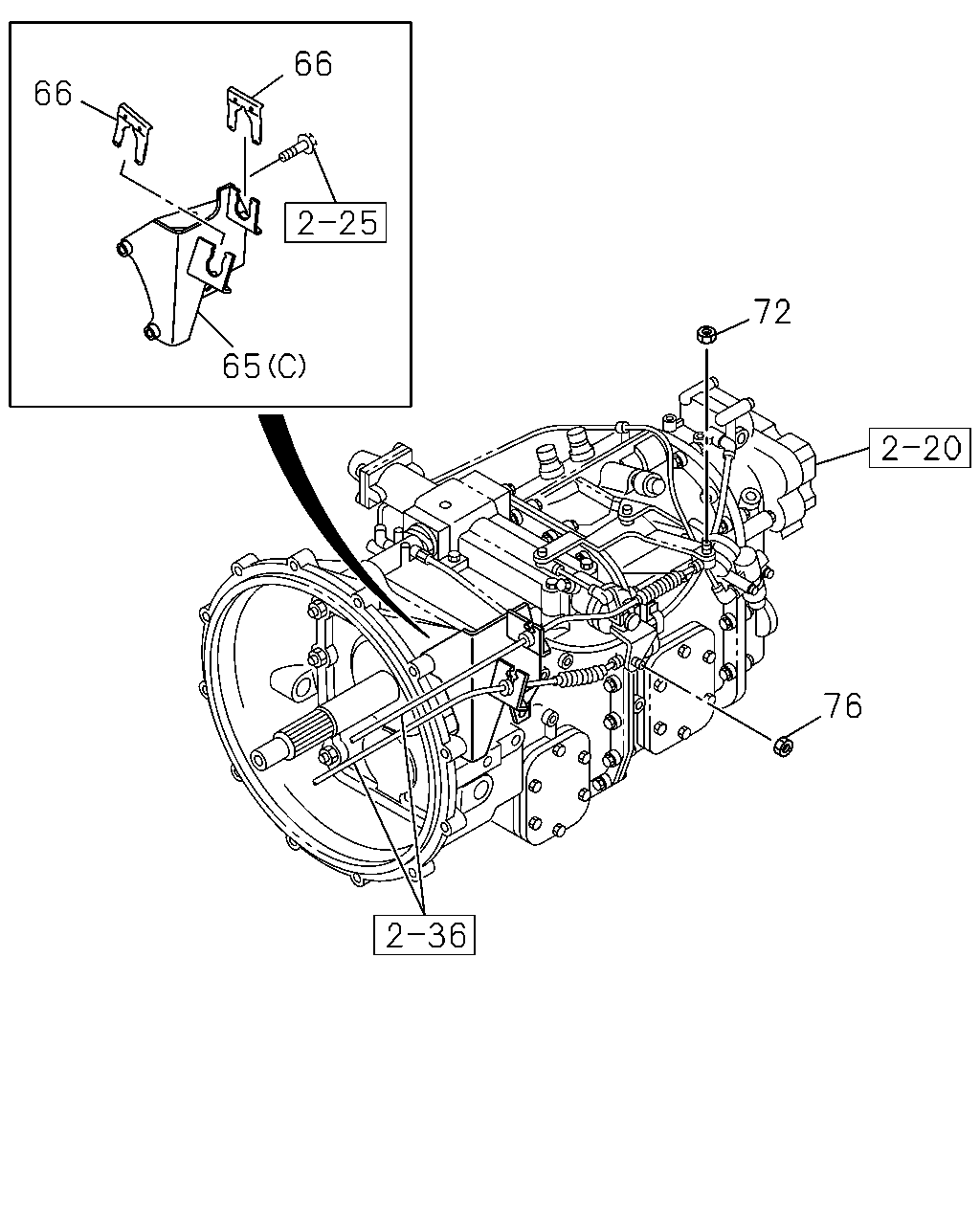

çizim 327480
66 66 65 76 72
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) (C) 		8-98131-609-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(C) 		8-98131-609-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98049-613-1 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98060-386-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98010-158-1 01 1 1305- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98050-563-1 01 1 1305- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98010-160-0 01 1 1302- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (D) 		8-98017-428-0 01 1 1302- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1302- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1302- ● ●
76 NUT; BALL JOINT,SELECT WIRE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V),FULLER ES11109 DD M/T(Y5N) M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
FULLER FS8209HD DD M/T(Y3A) M8 FLANGE 		1-09440-049-0 01 1 1302- ●
76 NUT; BALL JOINT,SELECT WIRE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		1-09440-056-0 01 1 1302- ●
