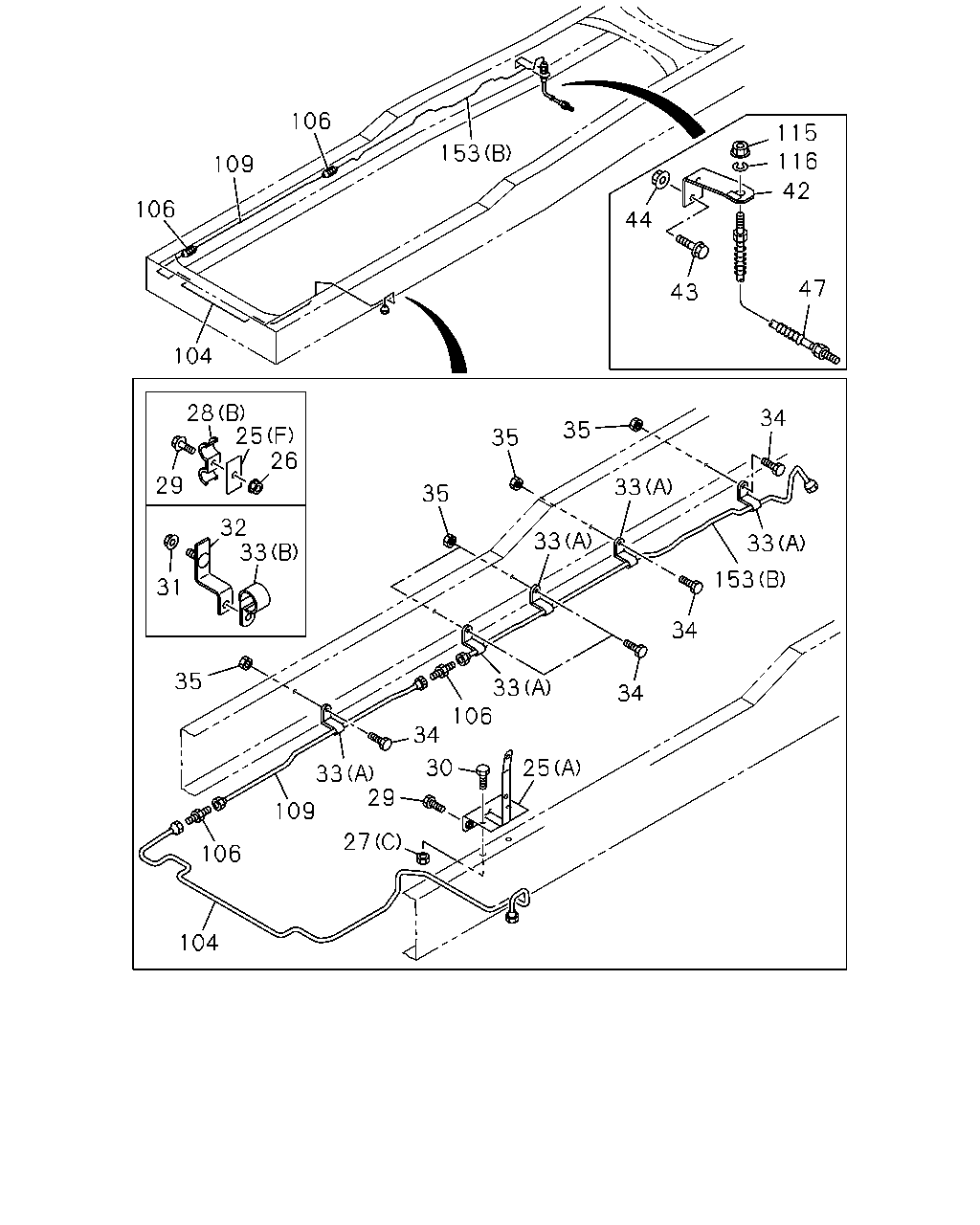

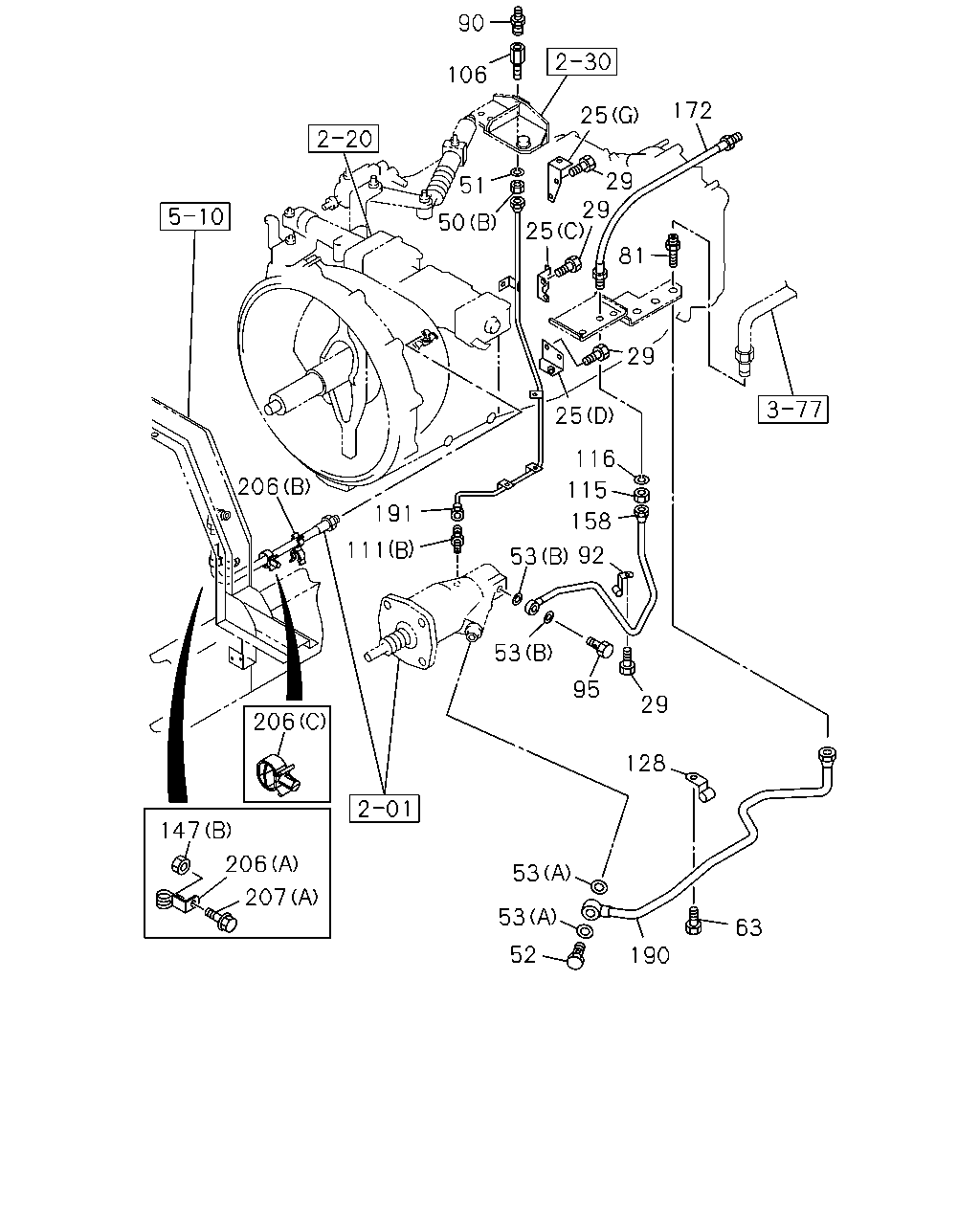

2-05 — CLUTCH PIPING (#11253) — 293 parça

106 115 116 153 109 42 106 44 47 43 104 28 25 26 34 35 35 33 29 35 33 32 33 33 153 31 34 35 33 106 34 34 30 25 33 29 109 27 106 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0107-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0107-
25	BRACKET; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0107-
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91180-108-0	01	1	0603-
28	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28650-820-0	01	1	0601-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-
31	NUT; BRKT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0107-0602
31	NUT; BRKT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-47477-235-0	01	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=9 L=20	0-95234-835-0	01	1	0607-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S151 OD(Y2N) M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	03	1	0107-0602
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	01	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	1-47479-261-0	01	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	02	1	0107-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=2296	1-49166-267-0	01	1	0108-
106	UNION; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14 STRAIGHT	9-09223-008-1	02	1	0107-0607
106	UNION; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14 STRAIGHT	0-92113-008-0	02	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0107-
109	PIPE; AIR,UNION TO UNION MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0107-0205
109	PIPE; AIR,UNION TO UNION MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0107-0107
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0108-0606
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=955	1-49163-430-0	01	1	0107-

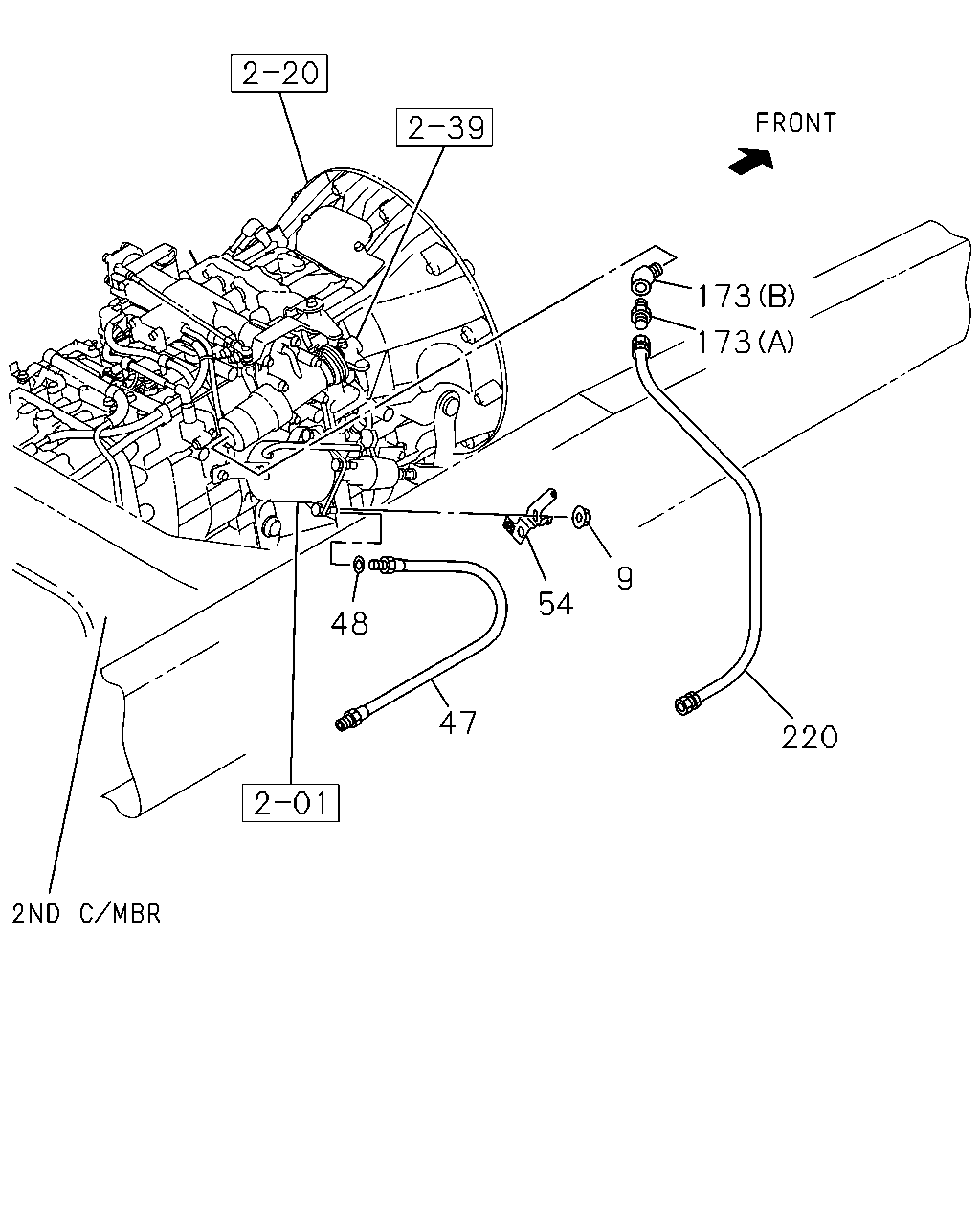

173 173 9 54 48 47 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91150-210-0	02	1	0107-0602
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) M10 FLANGE	0-91180-210-0	02	1	0603-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
48	GASKET; FLEX HOSE,CLU CONT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-
54	BRACKET; AIR,FLEX HOSE MJD7S M/T(Y2Y)	1-47477-284-1	01	1	0107-
173	CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
173	CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0107-0204
173	CONNECTOR MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=340	1-09363-617-0	01	1	0107-0204
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=300	1-09363-611-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=270	1-09363-687-0	01	1	0107-

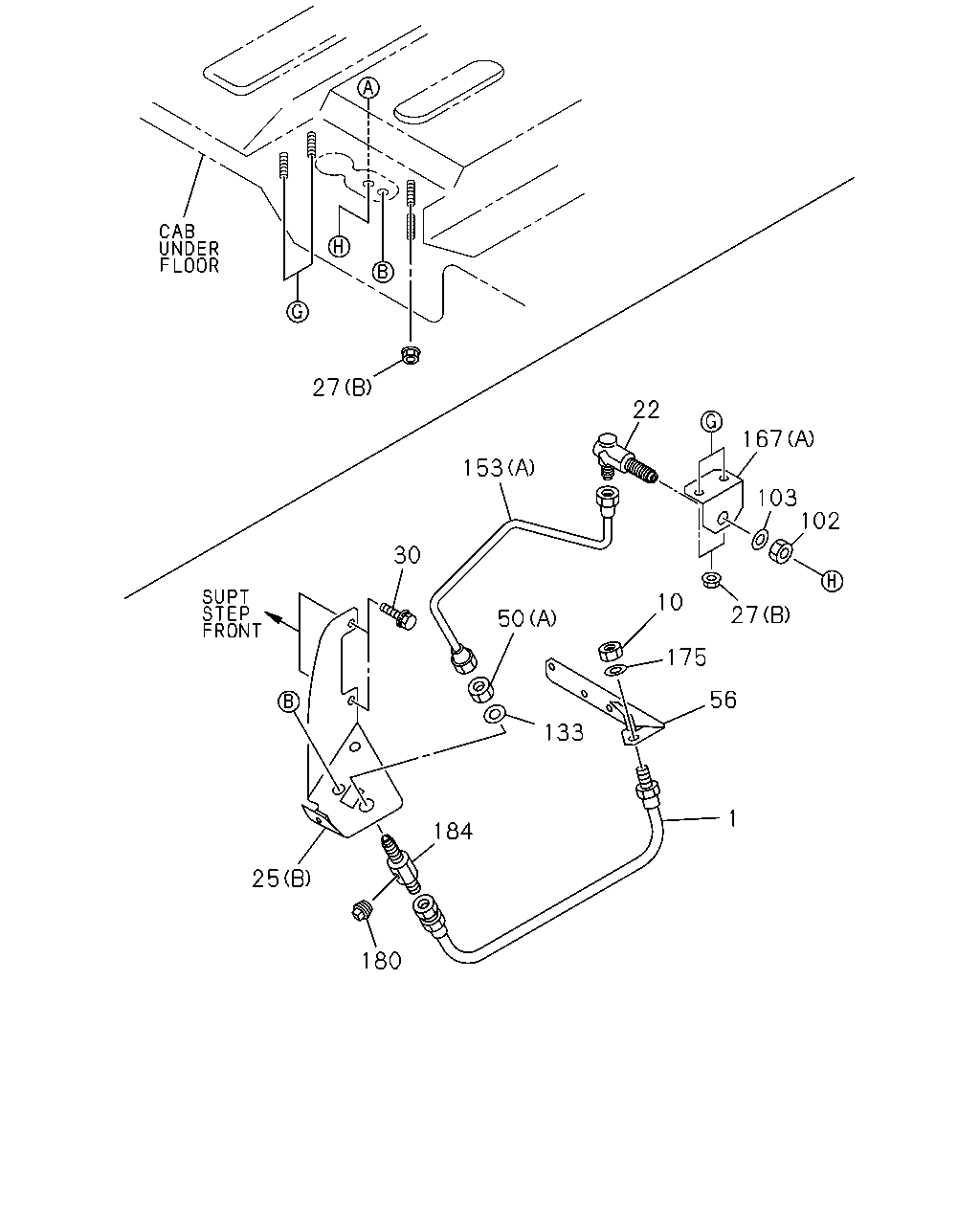

27 22 167 153 103 102 30 10 27 50 175 56 133 1 184 25 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0107-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0107-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0107-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0107-
25	BRACKET; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0107-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0107-
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91180-108-0	01	1	0603-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0107-
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0107-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0107-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0107-0107
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0108-0606
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=955	1-49163-430-0	01	1	0107-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0107-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0107-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0107-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0107-

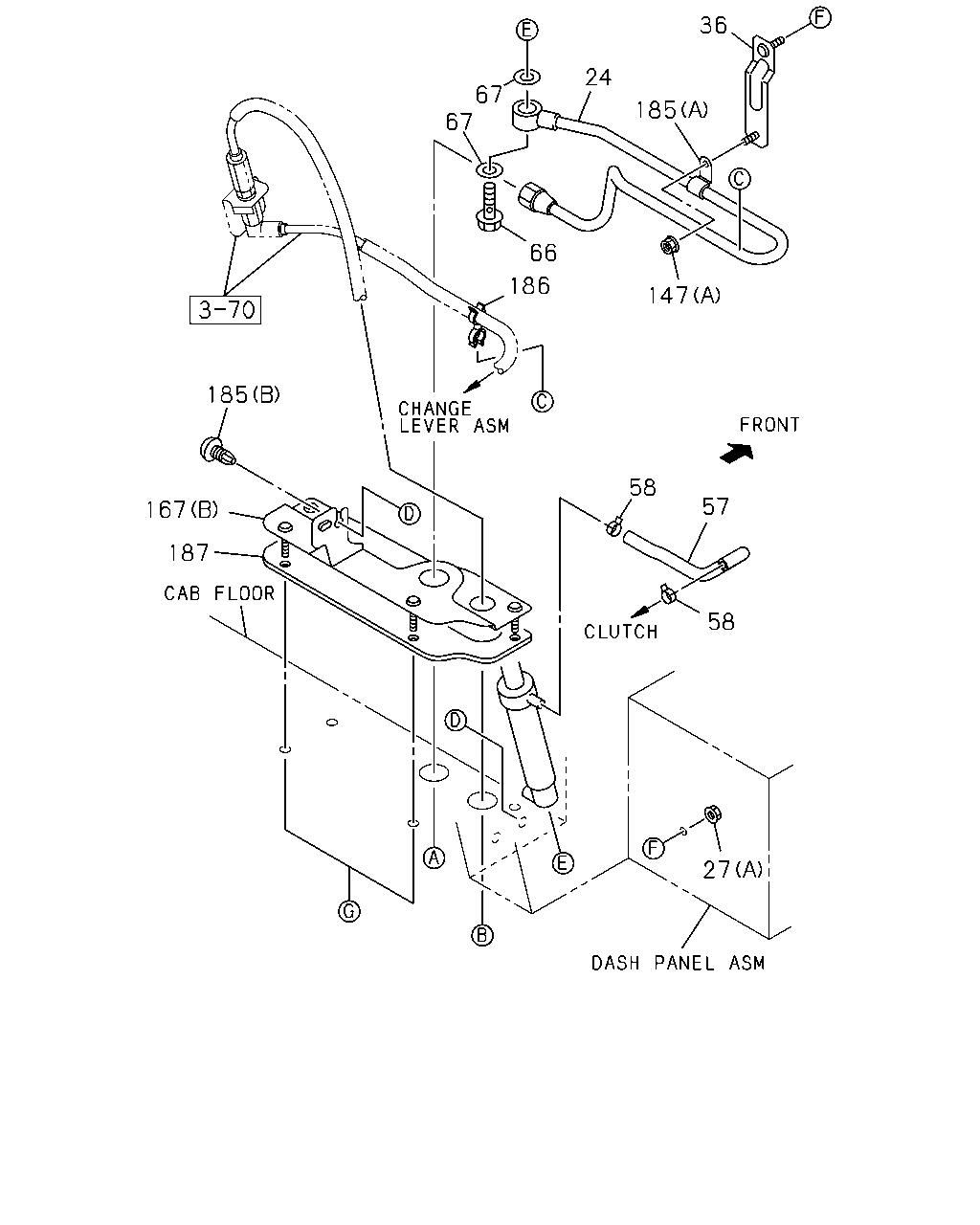

36 24 67 67 185 66 186 147 185 58 57 167 187 58 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=621	1-47428-362-1	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION-ZF 16S151 OD(Y2N) L=628	1-47428-381-1	01	1	0107-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0107-
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91180-108-0	01	1	0603-
36	BRACKET; CLIP	1-71117-191-1	01	1	0107-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0107-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0107-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0107-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
147	NUT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 FLANGE	0-91150-208-0	01	1	0107-0602
147	NUT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 FLANGE	0-91180-208-0	01	1	0603-
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0107-
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0107-
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0107-
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0107-0205
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-0606
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0607-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-
187	SEAL; BRKT	1-71117-209-2	01	1	0107-

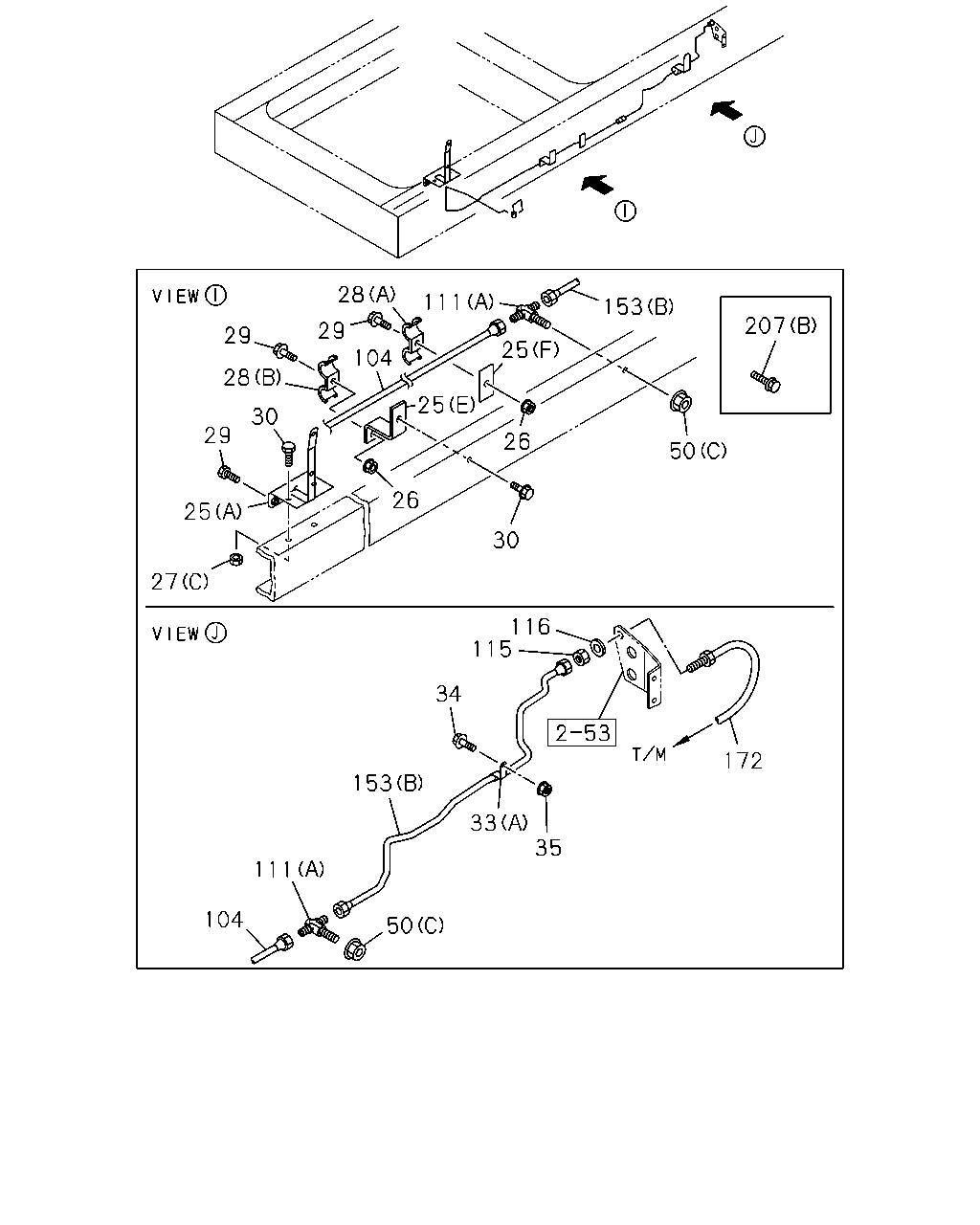

90 106 172 25 29 29 25 51 50 81 29 25 116 206 115 191 158 111 92 53 53 95 29 206 128 147 206 53 207 53 63 52 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0107-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0107-
25	BRACKET; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28650-820-0	01	1	0601-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0107-
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	9-09150-512-0	01	1	0107-0603
51	WASHER; LK TRANSMISSION-ZF 16S151 OD(Y2N) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M16X30	1-09675-026-0	01	1	0107-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16.2	1-09630-086-0	02	1	0107-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	01	1	0601-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09664-233-0	01	1	0107-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-31829-485-0	01	1	0107-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0107-0606
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	0-95234-865-0	01	1	0607-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M14X27 FLANGE	1-09675-086-0	01	1	0107-
106	UNION; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14 STRAIGHT	9-09223-008-1	02	1	0107-0607
106	UNION; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M14 STRAIGHT	0-92113-008-0	02	1	0608-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N)	1-09654-384-0	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M14 2WAY	1-09654-176-2	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0107-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
147	NUT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 FLANGE	0-91150-208-0	01	1	0107-0602
147	NUT; CLIP FIX TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 FLANGE	0-91180-208-0	01	1	0603-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0107-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0107-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0107-
206	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0107-
206	CLIP; TUBE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=13 & 12	8-94178-797-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0107-
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (B) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-

28 111 153 29 29 25 104 28 25 30 29 26 50 26 25 30 27 116 115 34 172 153 33 35 111 104 50 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-47477-669-1	01	1	0107-
25	BRACKET; OIL PIPE (A)	1-47478-582-1	01	1	0107-
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0107-
25	BRACKET; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) L=50	1-47475-299-2	02	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (F) L=50	1-47475-299-2	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0107-
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	02	1	0107-0602
26	NUT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0107-
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91150-108-0	01	1	0107-0602
27	NUT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M8 FLANGE	0-91180-108-0	01	1	0603-
28	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
28	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
29	BOLT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28080-816-0	05	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X16 FLANGE	0-28050-816-0	05	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28650-820-0	01	1	0601-
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
33	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) ID=9 L=20	0-95234-835-0	01	1	0607-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	02	1	0601-
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S151 OD(Y2N) M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	03	1	0107-0602
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	03	1	0603-
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	01	1	0603-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION TRANSMISSION-ZF 16S151 OD(Y2N) (B) M12	9-09840-280-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR TRANSMISSION-ZF 16S151 OD(Y2N) L=2144 SERVICED BY L=2150	1-47426-394-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0107-0107
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=2296	1-49166-267-0	01	1	0108-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M14 2WAY	1-09654-176-2	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0107-0107
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0108-0606
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (B) L=955	1-49163-430-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N) L=470	1-09364-929-0	01	1	0107-
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (B) M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
207	BOLT; CLIP TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
