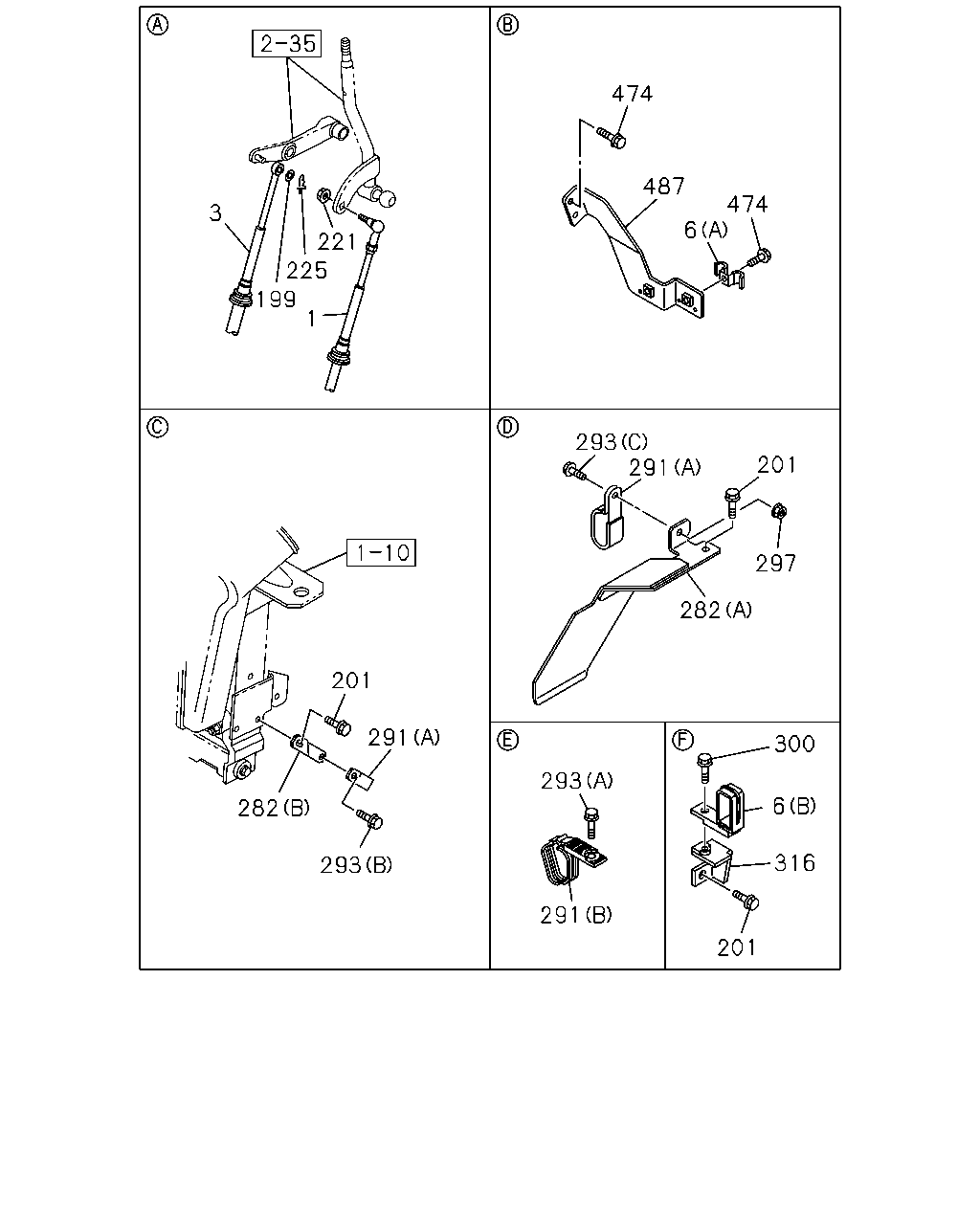

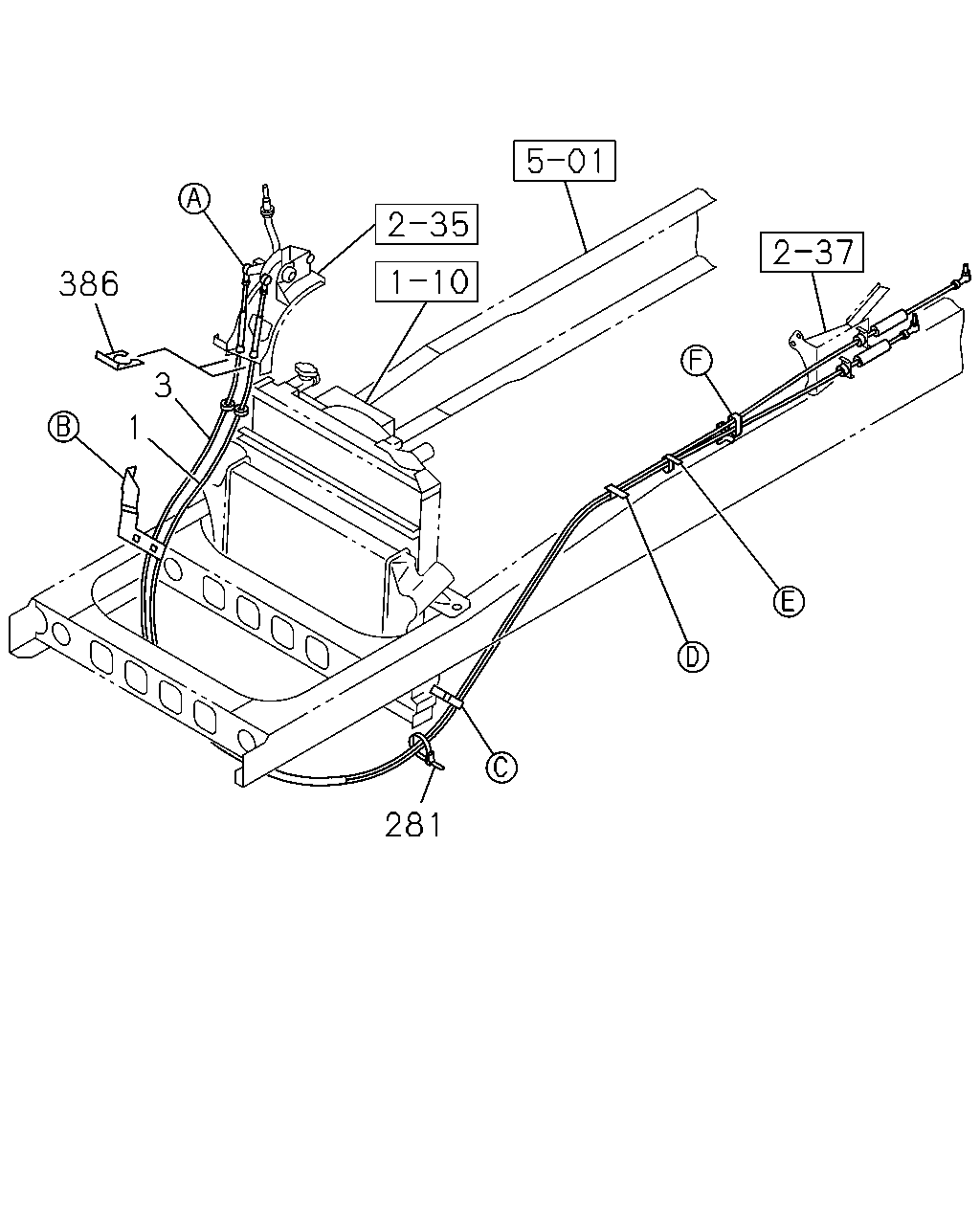

1 |
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS)
ASSISTOR SHIFT CONTROL<WX8>
L=3000
|
8-98231-949-0 |
01 |
1 |
1305- |
| |
1 |
CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3050
|
8-98231-948-1 |
01 |
1 |
1305- |
| |
1 |
CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L)
ASSISTOR SHIFT CONTROL<WX8>
L=3485
|
8-98010-434-4 |
01 |
1 |
1302- |
| |
1 |
CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3510
|
8-98017-469-4 |
01 |
1 |
1302- |
| |
3 |
CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS)
L=3105
|
8-98231-954-0 |
01 |
1 |
1305- |
| |
3 |
CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L)
L=3690
|
8-98010-474-2 |
01 |
1 |
1302- |
| |
6 |
CLIP; CABLE
(A)
ID=11 & 11 L=17.5 & 17.5
|
1-09700-739-0 |
01 |
1 |
1302- |
| |
6 |
CLIP; CABLE
6HK1-TCN ENG(82L)
ASSISTOR SHIFT CONTROL<WX8>
(B)
ID=13 & 10 & 10 L=35.5
|
8-98023-991-0 |
01 |
1 |
1302- |
| |
199 |
WASHER; PL,SELECT
ID=8.4 OD=16
|
0-91614-508-0 |
01 |
1 |
1302- |
| |
201 |
BOLT; BRKT
6HK1-TCN ENG(82L)
M8X20 FLANGE
|
0-28050-820-0 |
01 |
1 |
1302- |
| |
201 |
BOLT; BRKT
6HK1-TCN ENG(82L)
ASSISTOR SHIFT CONTROL<WX8>
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
1302- |
| |
201 |
BOLT; BRKT
6HK1-TCN ENG(82L)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
1302- |
| |
221 |
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
|
1-09440-062-1 |
01 |
1 |
1302- |
| |
225 |
PIN; SELECT CABLE
L=27.7
|
8-94111-137-0 |
01 |
1 |
1302- |
| |
282 |
BRACKET; TRANS SIDE
6HK1-TCN ENG(82L)
(B)
|
8-98010-418-0 |
01 |
1 |
1302- |
| |
282 |
BRACKET; TRANS SIDE
6HK1-TCN ENG(82L)
(A)
|
8-98171-762-0 |
01 |
1 |
1302- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L)
(A)
ID=11X2 L=16
|
0-95325-026-0 |
02 |
1 |
1302- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L)
(B)
ID=13 & 10 & 10 L=35.5
|
8-98023-991-0 |
01 |
1 |
1302- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L)
(B)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
1302- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L)
(A)
M8X20 FLANGE
|
0-28050-820-0 |
01 |
1 |
1302- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L)
(C)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1302- |
| |
297 |
NUT; CLIP
6HK1-TCN ENG(82L)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1302- |
| |
300 |
BOLT; CLIP
6HK1-TCN ENG(82L)
ASSISTOR SHIFT CONTROL<WX8>
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1302- |
| |
316 |
BRACKET; CLIP
6HK1-TCN ENG(82L)
ASSISTOR SHIFT CONTROL<WX8>
|
8-98073-017-1 |
01 |
1 |
1302- |
| |
474 |
BOLT; BRKT
M8X25 W/WASHER
|
0-51640-825-0 |
01 |
1 |
1302- |
| |
474 |
BOLT; BRKT
M8X25 W/WASHER
|
0-51640-825-0 |
02 |
1 |
1302- |
| |
487 |
BRACKET; CONT CABLE
4HK1-TCS ENG(RJS)
|
8-98184-319-0 |
01 |
1 |
1305- |
| |
487 |
BRACKET; CONT CABLE
6HK1-TCN ENG(82L)
|
8-98183-009-0 |
01 |
1 |
1302- |
