2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#112524) — 114 parça

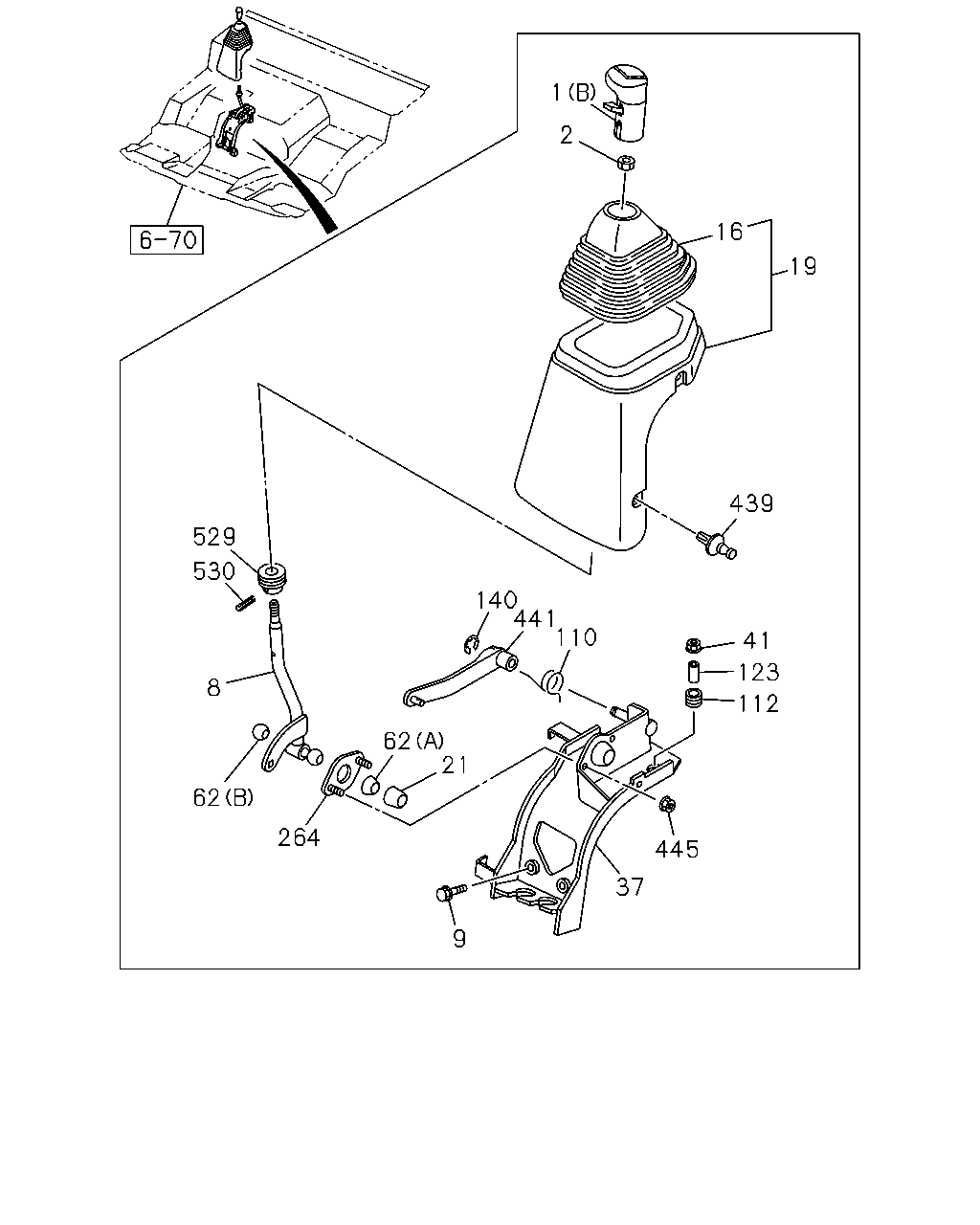

41 123 112 110 441 140 445 37 9 21 62 264 62 8 530 529 1 16 2 19 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1302-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	1302-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-099-1	01	1	1302-
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	1302-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98071-282-0	01	1	1302-
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-455-0	01	1	1302-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-455-0	01	1	1302-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-308-0	01	1	1302-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1302-
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1302-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98071-302-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-444-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-444-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-307-0	01	1	1302-
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1302-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1302-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1302-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1302-
140	RING; SNAP ID=10	0-91805-510-0	01	1	1302-
264	PLATE; COVER	1-33619-430-0	01	1	1302-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1302-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1302-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	1302-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1302-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1302-
529	RING; BOOT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-33619-504-0	01	1	1302-
529	RING; BOOT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-504-0	01	1	1302-
530	PIN; SPRING MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-33619-505-0	01	1	1302-
530	PIN; SPRING ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-505-0	01	1	1302-

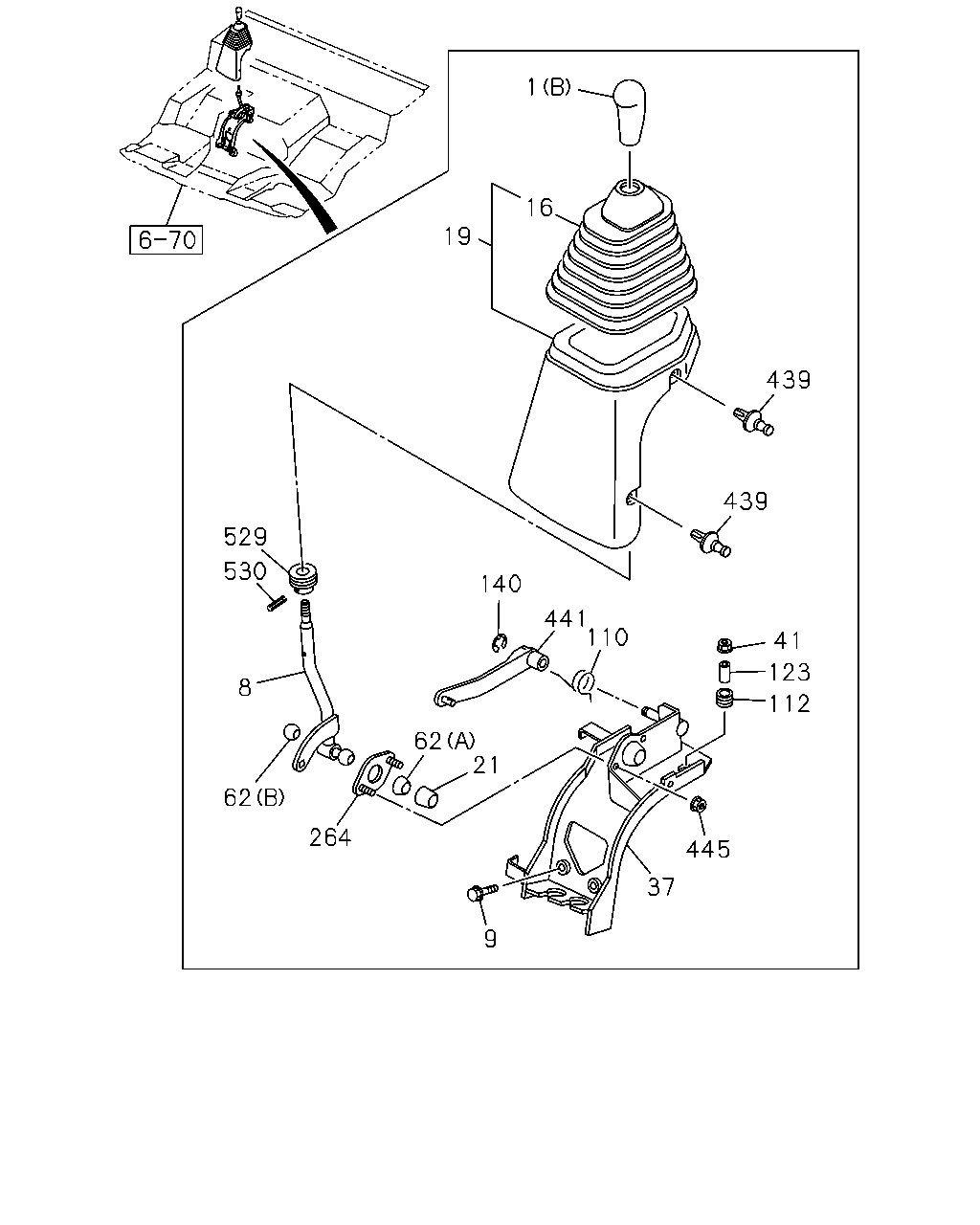

1 16 19 529 140 441 110 41 123 112 445 37 9 264 21 62 62 8 530 439 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1302-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	1302-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-099-1	01	1	1302-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98071-282-0	01	1	1302-
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-455-0	01	1	1302-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-455-0	01	1	1302-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-308-0	01	1	1302-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1302-
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1302-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98071-302-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-444-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-444-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-307-0	01	1	1302-
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1302-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1302-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1302-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1302-
140	RING; SNAP ID=10	0-91805-510-0	01	1	1302-
264	PLATE; COVER	1-33619-430-0	01	1	1302-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1302-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1302-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	1302-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1302-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1302-
529	RING; BOOT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-33619-504-0	01	1	1302-
529	RING; BOOT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-504-0	01	1	1302-
530	PIN; SPRING MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-33619-505-0	01	1	1302-
530	PIN; SPRING ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-505-0	01	1	1302-

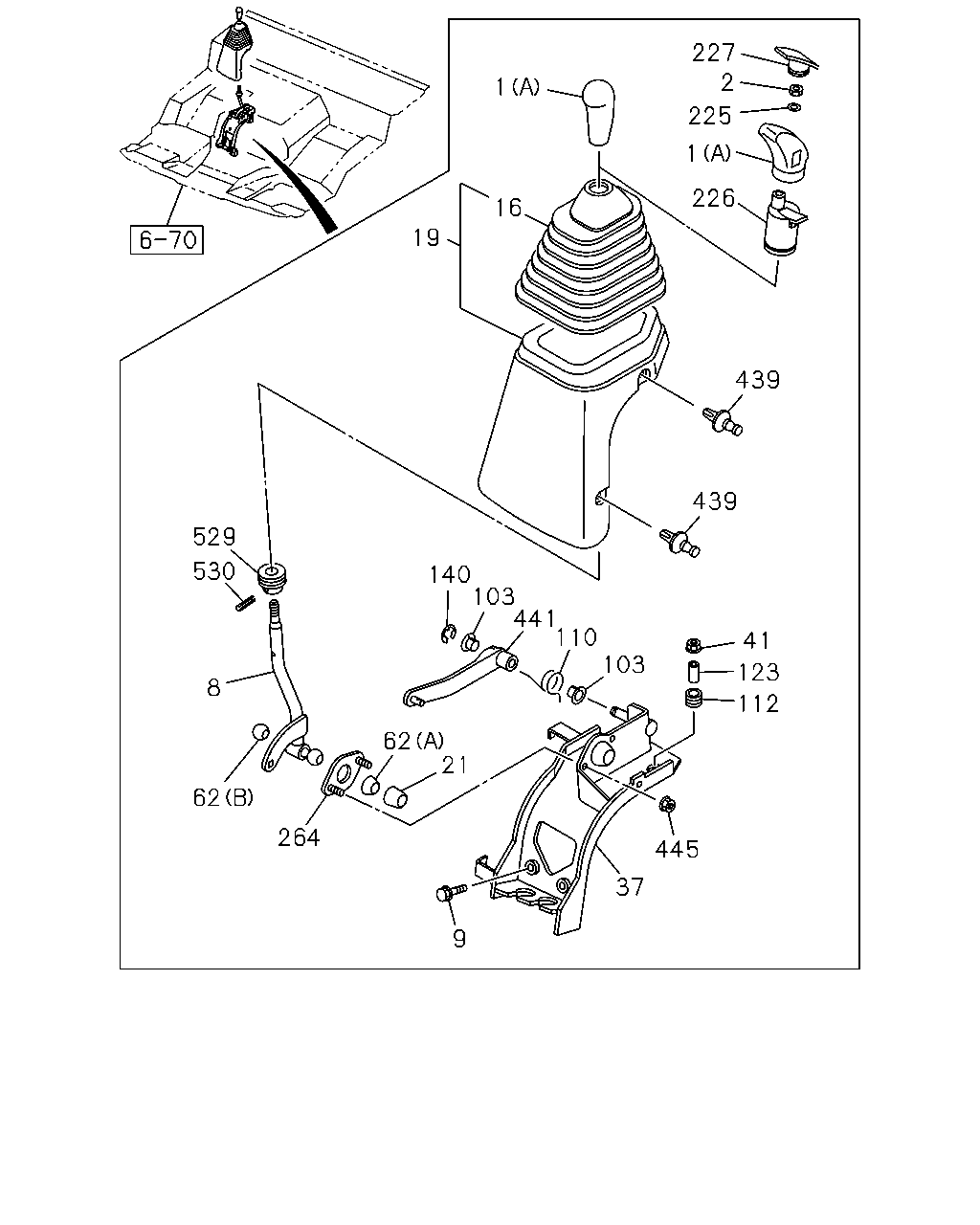

439 41 123 112 439 226 1 225 2 227 1 16 19 529 8 530 140 110 441 103 103 445 37 9 21 62 264 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B)	1-33611-070-1	01	1	1302-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	1302-
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-099-1	01	1	1302-
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	1302-
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98071-282-0	01	1	1302-
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V)	8-98093-455-0	01	1	1302-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-455-0	01	1	1302-
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-308-0	01	1	1302-
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-
16	BOOT; CHANGE LEVER	1-79998-751-4	01	1	1302-
19	COVER; CHANGE LEVER GRAY	8-97407-954-0	01	1	1302-
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98071-302-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V)	8-98093-444-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-444-0	01	1	1302-
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-307-0	01	1	1302-
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1302-
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1302-
103	BUSHING; RELAY LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=14 OD=16	8-94252-671-0	02	1	1302-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V)	1-33619-435-0	01	1	1302-
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1302-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1302-
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1302-
140	RING; SNAP ID=10	0-91805-510-0	01	1	1302-
225	WASHER; PL,KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1302-
226	VALVE; SELECTOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33710-008-0	01	1	1302-
227	COVER; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98013-168-0	01	1	1302-
264	PLATE; COVER	1-33619-430-0	01	1	1302-
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1302-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1302-
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V)	8-98093-449-0	01	1	1302-
441	LEVER; SELECT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1302-
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1302-
529	RING; BOOT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-33619-504-0	01	1	1302-
529	RING; BOOT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-504-0	01	1	1302-
530	PIN; SPRING MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-33619-505-0	01	1	1302-
530	PIN; SPRING ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-505-0	01	1	1302-
