2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#112523) — 157 parça

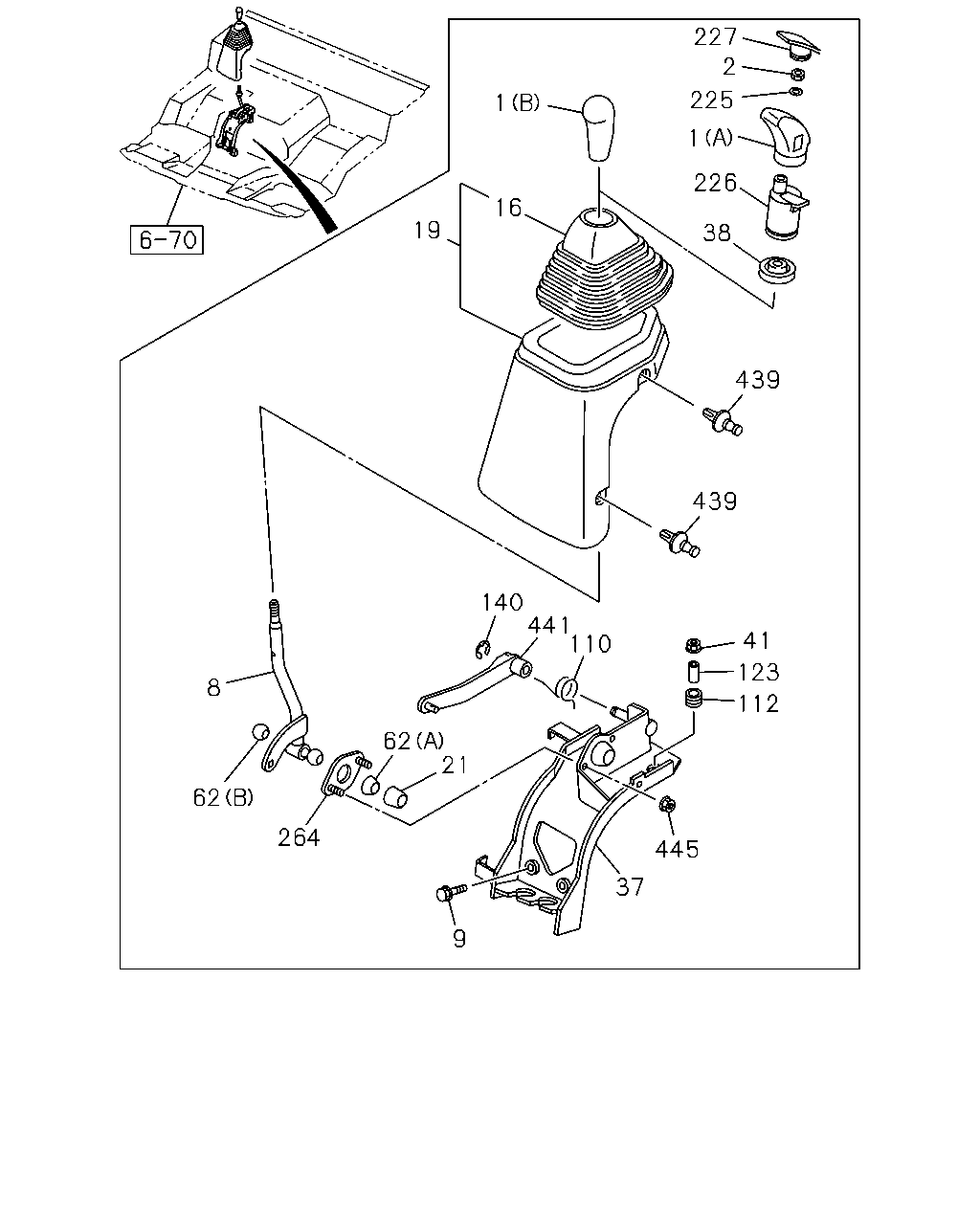

19 16 1 8 62 264 62 21 140 441 110 445 37 9 41 123 112 439 439 38 226 1 225 2 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (C)	1-33611-106-0	01	1	1302-1401	●
1	KNOB; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) (C)	1-33611-106-0	01	1	1302-1401		●
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (C)	8-98224-288-0	01	1	1402-	●
1	KNOB; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) (C)	8-98224-288-0	01	1	1402-		●
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D)	1-33611-070-1	01	1	1302-	●
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	1302-	●
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1302-	●
2	NUT; KNOB FULLER ES11109 DD M/T(Y5N) 1/2-13UNC	1-33619-033-0	01	1	1302-	●
2	NUT; KNOB FULLER FS8209HD DD M/T(Y3A) 1/2-13UNC	1-33619-033-0	01	1	1302-		●
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	1302-	●
8	LEVER; CHANGE FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98149-308-0	01	1	1302-	●
8	LEVER; CHANGE FULLER FS8209HD DD M/T(Y3A)	8-98149-308-0	01	1	1302-		●
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1302-	●
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1302-	●
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1302-	●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-	●	●
16	BOOT; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-97893-962-1	01	1	1302-	●
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	1302-	●
16	BOOT; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	8-97893-962-1	01	1	1302-		●
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	1302-	●
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1302-	●
19	COVER; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) GRAY	8-97411-671-1	01	1	1302-	●
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	1302-	●
19	COVER; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) GRAY	8-97411-671-1	01	1	1302-		●
19	COVER; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	1302-	●
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1302-	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1302-	●	●
37	BRACKET; CHANGE LEVER SUPPORT FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98149-307-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT FULLER FS8209HD DD M/T(Y3A)	8-98149-307-0	01	1	1302-		●
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1302-	●
38	HOLDER; BOOT CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	1-79998-915-1	01	1	1302-	●
38	HOLDER; BOOT CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	1-79998-915-1	01	1	1302-		●
38	HOLDER; BOOT CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98070-460-1	01	1	1302-	●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1302-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1302-	●	●
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1302-	●
110	SPRING; RETURN,CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	1-33619-435-0	01	1	1302-		●
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1302-	●
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-	●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1302-	●	●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1302-	●	●
140	RING; SNAP ID=10	0-91805-510-0	01	1	1302-	●	●
225	WASHER; PL,KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1302-	●
226	VALVE; SELECTOR ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33710-008-0	01	1	1302-	●
227	COVER; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98013-168-0	01	1	1302-	●
264	PLATE; COVER	1-33619-430-0	01	1	1302-	●	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1302-	●	●
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1302-	●
441	LEVER; SELECT FULLER FS8209HD DD M/T(Y3A)	8-98093-449-0	01	1	1302-		●
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1302-	●
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-	●
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1302-	●	●

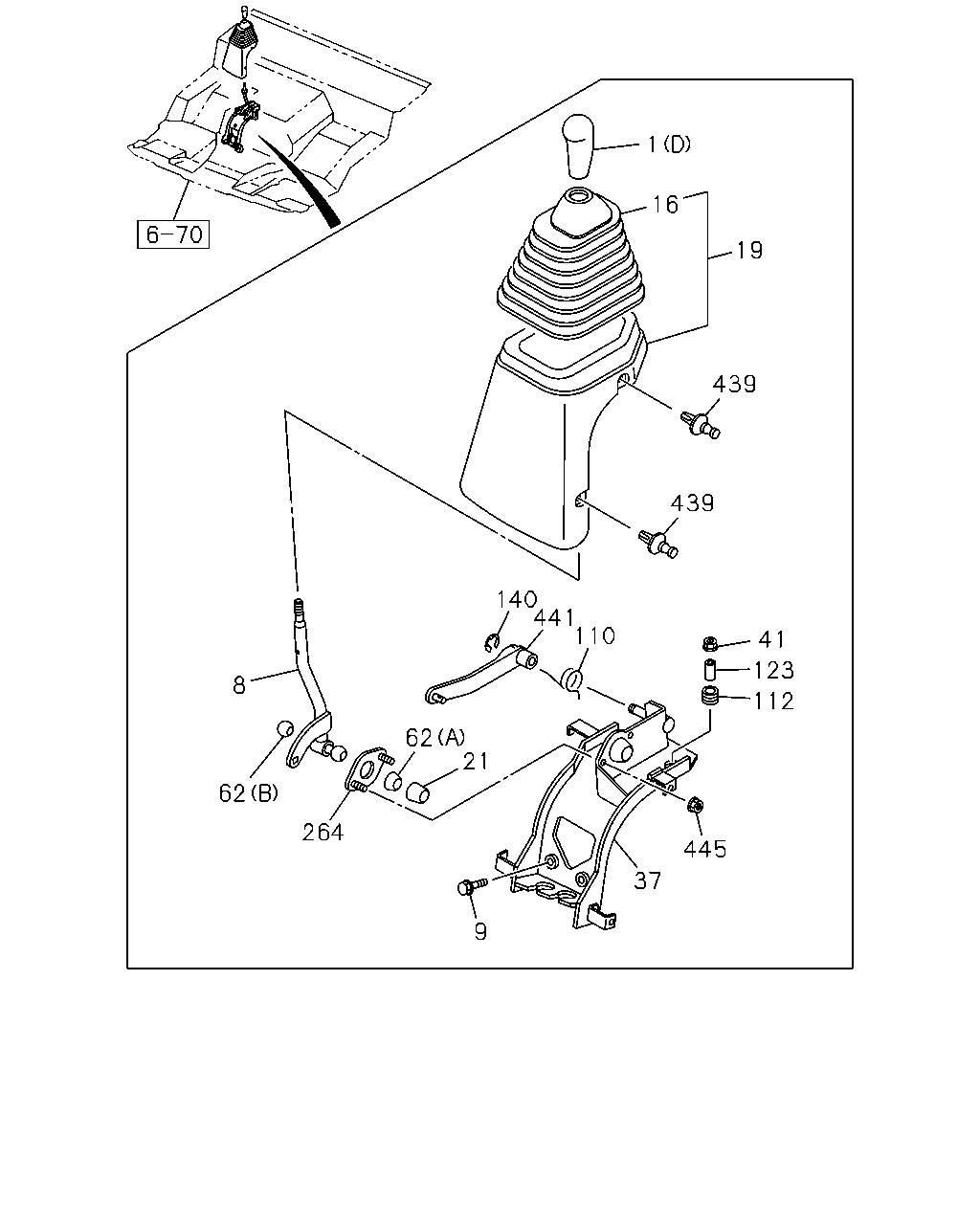

1 16 19 439 439 140 441 110 41 123 112 445 37 9 21 62 264 62 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (C)	1-33611-106-0	01	1	1302-1401	●
1	KNOB; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) (C)	1-33611-106-0	01	1	1302-1401		●
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (C)	8-98224-288-0	01	1	1402-	●
1	KNOB; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) (C)	8-98224-288-0	01	1	1402-		●
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D)	1-33611-070-1	01	1	1302-	●
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	1302-	●
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1302-	●
8	LEVER; CHANGE FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98149-308-0	01	1	1302-	●
8	LEVER; CHANGE FULLER FS8209HD DD M/T(Y3A)	8-98149-308-0	01	1	1302-		●
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1302-	●
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1302-	●
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1302-	●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-	●	●
16	BOOT; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-97893-962-1	01	1	1302-	●
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	1302-	●
16	BOOT; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	8-97893-962-1	01	1	1302-		●
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	1302-	●
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1302-	●
19	COVER; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) GRAY	8-97411-671-1	01	1	1302-	●
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	1302-	●
19	COVER; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) GRAY	8-97411-671-1	01	1	1302-		●
19	COVER; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	1302-	●
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1302-	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1302-	●	●
37	BRACKET; CHANGE LEVER SUPPORT FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98149-307-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT FULLER FS8209HD DD M/T(Y3A)	8-98149-307-0	01	1	1302-		●
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1302-	●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1302-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1302-	●	●
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1302-	●
110	SPRING; RETURN,CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	1-33619-435-0	01	1	1302-		●
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1302-	●
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-	●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1302-	●	●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1302-	●	●
140	RING; SNAP ID=10	0-91805-510-0	01	1	1302-	●	●
264	PLATE; COVER	1-33619-430-0	01	1	1302-	●	●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1302-	●	●
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1302-	●
441	LEVER; SELECT FULLER FS8209HD DD M/T(Y3A)	8-98093-449-0	01	1	1302-		●
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1302-	●
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-	●
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1302-	●	●

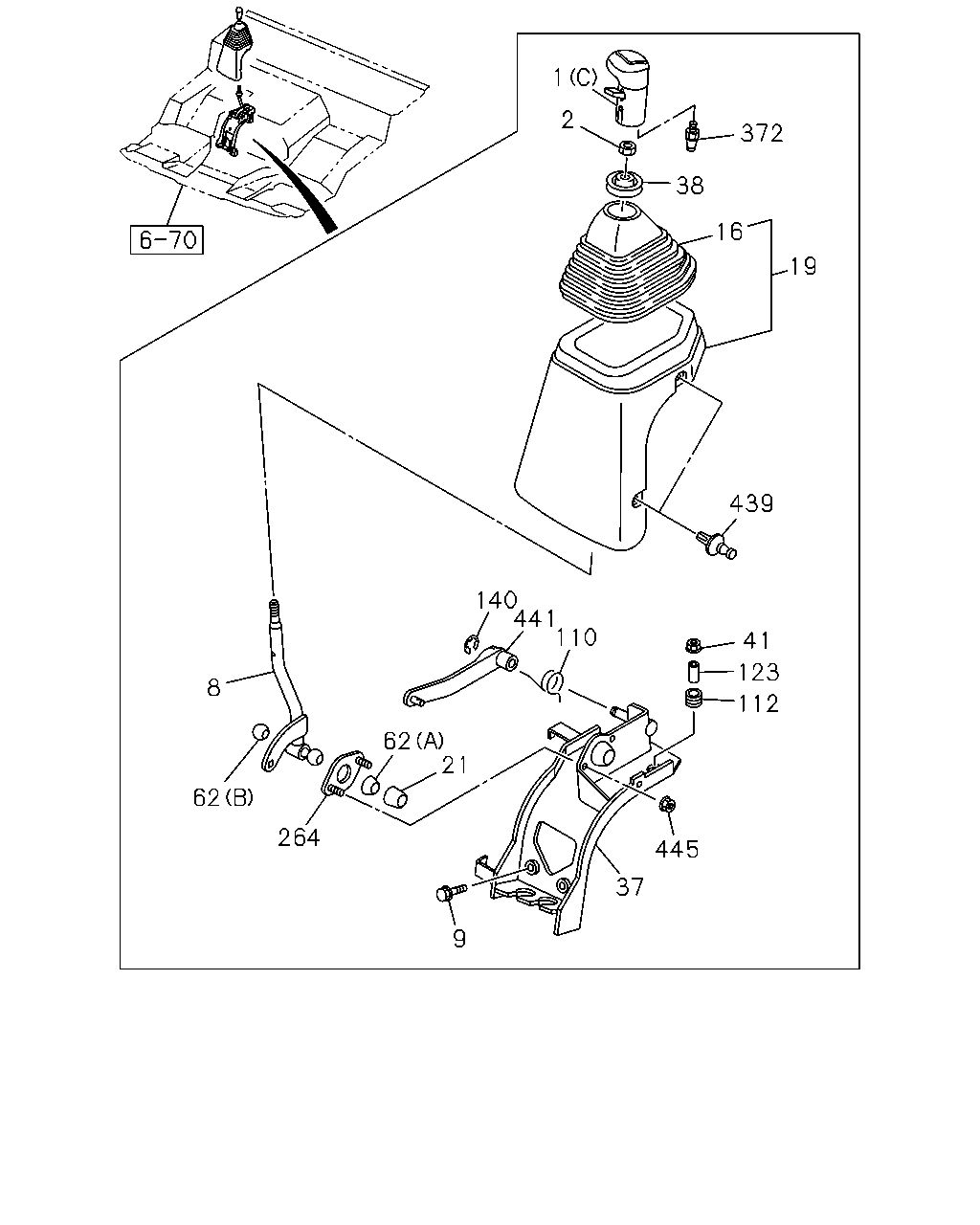

2 372 38 19 16 439 41 123 112 140 441 110 445 37 9 21 62 264 62 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (C)	1-33611-106-0	01	1	1302-1401	●
1	KNOB; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) (C)	1-33611-106-0	01	1	1302-1401		●
1	KNOB; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) (C)	8-98224-288-0	01	1	1402-	●
1	KNOB; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) (C)	8-98224-288-0	01	1	1402-		●
1	KNOB; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (D)	1-33611-070-1	01	1	1302-	●
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33611-038-0	01	1	1302-	●
1	KNOB; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33611-099-1	01	1	1302-	●
2	NUT; KNOB FULLER ES11109 DD M/T(Y5N) 1/2-13UNC	1-33619-033-0	01	1	1302-	●
2	NUT; KNOB FULLER FS8209HD DD M/T(Y3A) 1/2-13UNC	1-33619-033-0	01	1	1302-		●
2	NUT; KNOB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	01	1	1302-	●
8	LEVER; CHANGE FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98149-308-0	01	1	1302-	●
8	LEVER; CHANGE FULLER FS8209HD DD M/T(Y3A)	8-98149-308-0	01	1	1302-		●
8	LEVER; CHANGE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-459-0	01	1	1302-	●
8	LEVER; CHANGE MZW6P M/T(RSZ)	8-98093-453-0	01	1	1302-	●
8	LEVER; CHANGE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-454-0	01	1	1302-	●
9	BOLT; CHANGE LEVER M8X25 W/WAVE&PL WASHER	8-94412-342-0	02	1	1302-	●	●
16	BOOT; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-97893-962-1	01	1	1302-	●
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-97893-962-1	01	1	1302-	●
16	BOOT; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	8-97893-962-1	01	1	1302-		●
16	BOOT; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V)	1-79998-913-1	01	1	1302-	●
16	BOOT; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-79998-913-1	01	1	1302-	●
19	COVER; CHANGE LEVER FULLER ES11109 DD M/T(Y5N) GRAY	8-97411-671-1	01	1	1302-	●
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97411-671-1	01	1	1302-	●
19	COVER; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A) GRAY	8-97411-671-1	01	1	1302-		●
19	COVER; CHANGE LEVER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) GRAY	8-97409-847-0	01	1	1302-	●
19	COVER; CHANGE LEVER ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> GRAY	8-97409-847-0	01	1	1302-	●
21	SEAT; CHANGE LEVER	1-33619-429-0	01	1	1302-	●	●
37	BRACKET; CHANGE LEVER SUPPORT FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98149-307-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT FULLER FS8209HD DD M/T(Y3A)	8-98149-307-0	01	1	1302-		●
37	BRACKET; CHANGE LEVER SUPPORT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-447-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT MZW6P M/T(RSZ)	8-98093-442-0	01	1	1302-	●
37	BRACKET; CHANGE LEVER SUPPORT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98093-451-0	01	1	1302-	●
38	HOLDER; BOOT CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	1-79998-915-1	01	1	1302-	●
38	HOLDER; BOOT CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	1-79998-915-1	01	1	1302-		●
38	HOLDER; BOOT CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98070-460-1	01	1	1302-	●
41	NUT; CHANGE LEVER M8 W/DISHED WASHER	8-97329-625-0	02	1	1302-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1302-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97049-147-0	01	1	1302-	●	●
110	SPRING; RETURN,CHANGE LEVER FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-435-0	01	1	1302-	●
110	SPRING; RETURN,CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	1-33619-435-0	01	1	1302-		●
110	SPRING; RETURN,CHANGE LEVER ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-33619-586-0	01	1	1302-	●
110	SPRING; RETURN,CHANGE LEVER MZW6P M/T(RSZ)	1-33619-586-0	01	1	1302-	●
112	RUBBER; CUSHION	1-33619-442-0	04	1	1302-	●	●
123	COLLAR; DIST,CHANGE LEVER	1-33619-443-0	04	1	1302-	●	●
140	RING; SNAP ID=10	0-91805-510-0	01	1	1302-	●	●
264	PLATE; COVER	1-33619-430-0	01	1	1302-	●	●
372	CONNECTOR; CHANGE LEVER FULLER ES11109 DD M/T(Y5N)	8-98114-396-0	02	1	1302-	●
372	CONNECTOR; CHANGE LEVER FULLER FS8209HD DD M/T(Y3A)	8-98114-396-0	02	1	1302-		●
439	FASTENER; COVER GRAY	8-97407-955-0	04	1	1302-	●	●
441	LEVER; SELECT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E), FULLER ES11109 DD M/T(Y5N) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98093-449-0	01	1	1302-	●
441	LEVER; SELECT FULLER FS8209HD DD M/T(Y3A)	8-98093-449-0	01	1	1302-		●
441	LEVER; SELECT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98071-283-0	01	1	1302-	●
441	LEVER; SELECT MZW6P M/T(RSZ)	8-98071-283-0	01	1	1302-	●
445	NUT; PLATE M6 FLANGE	0-91180-106-0	02	1	1302-	●	●

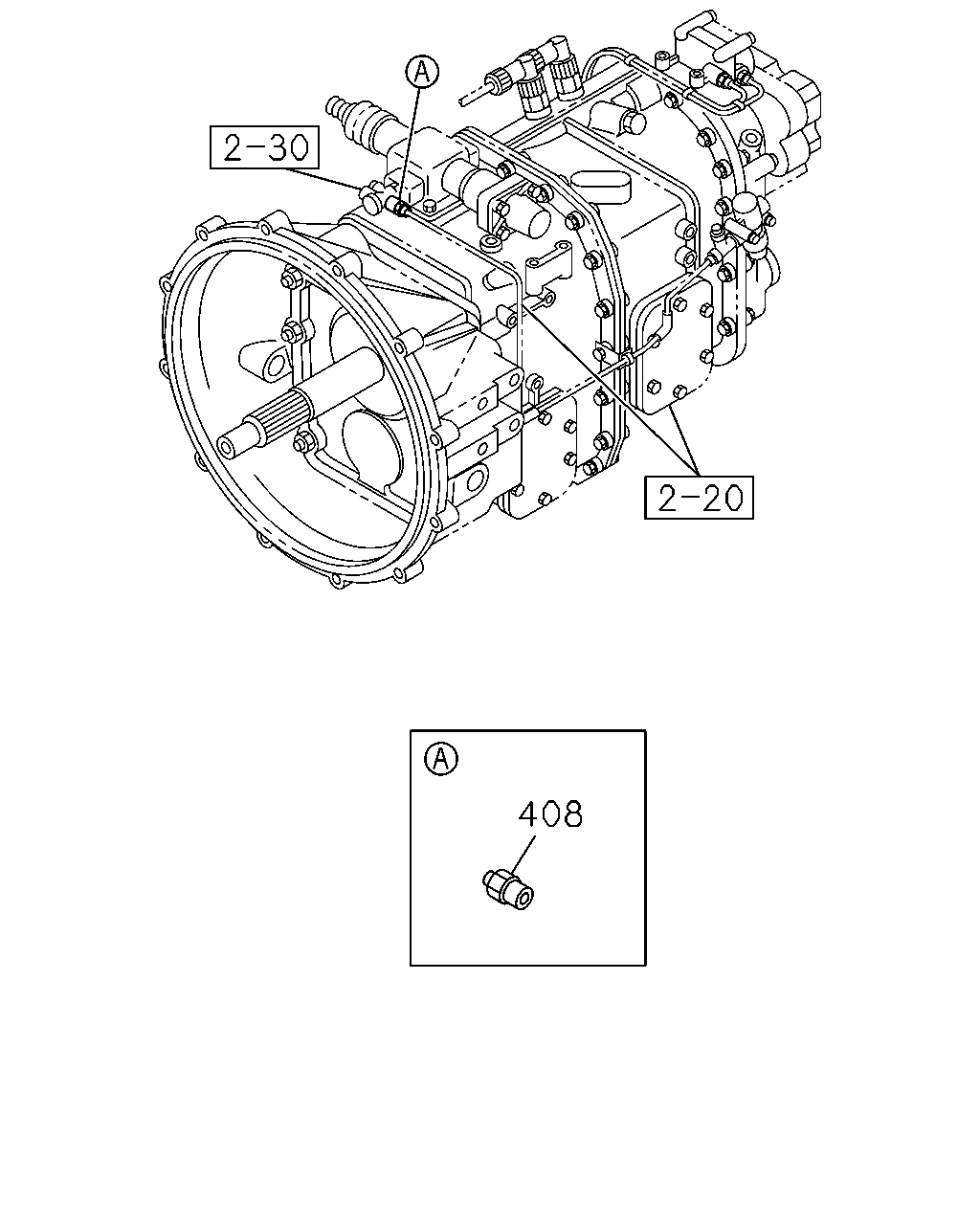

408

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	408	CONNECTOR; AIR HOSE FULLER ES11109 DD M/T(Y5N)	1-33119-473-0	01	1	1302-	●
	408	CONNECTOR; AIR HOSE FULLER FS8209HD DD M/T(Y3A)	1-33119-461-0	01	1	1302-		●
