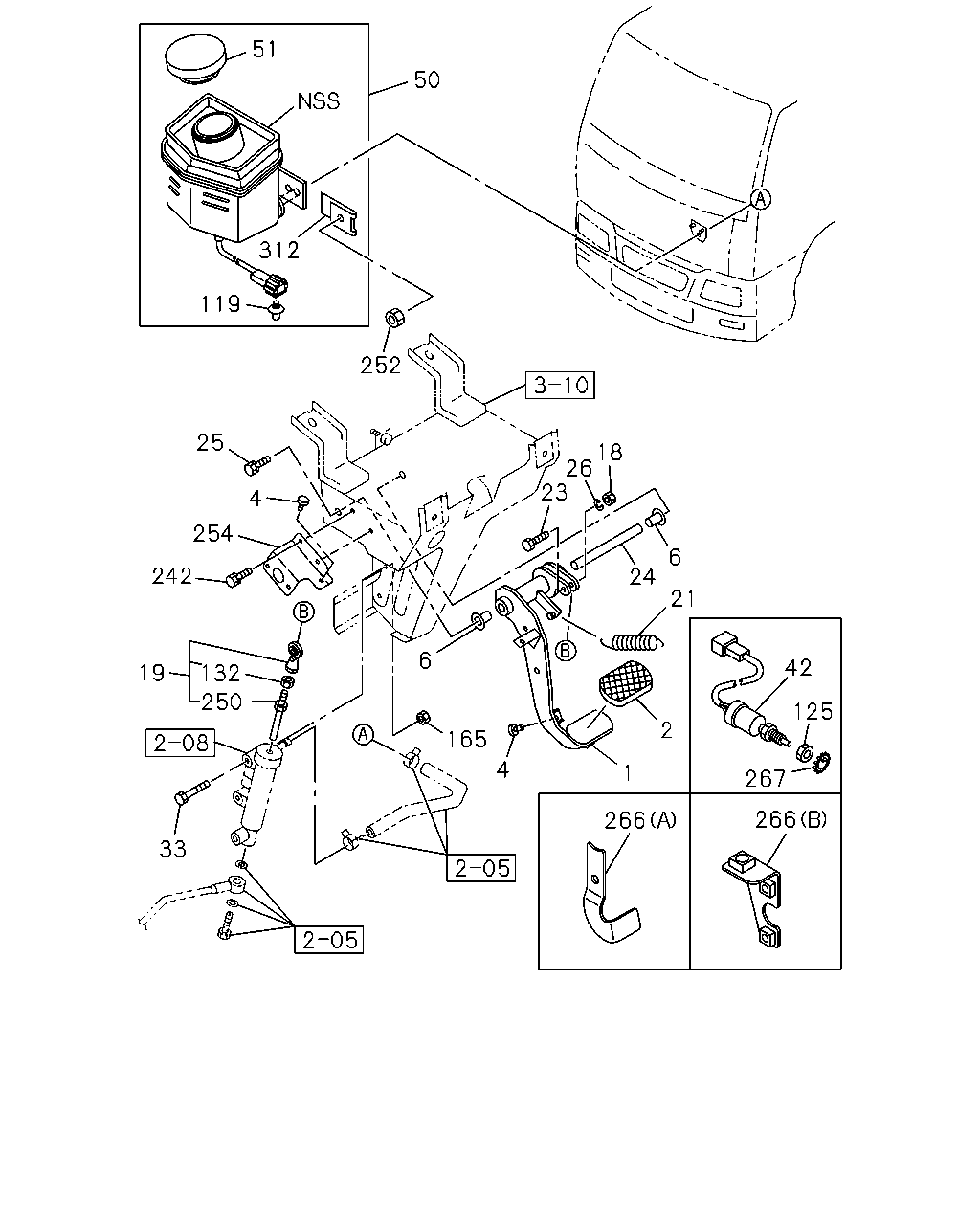

2-03 — CLUTCH PEDAL AND CONTROL (#11252) — 36 parça

51 50 312 119 252 25 18 26 23 4 254 6 242 24 21 6 42 19 132 250 125 2 165 4 1 267 266 266 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU MJD7S M/T(Y2Y)	1-73907-440-2	01	1	0107-
1	PEDAL; CLU TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-73907-472-2	01	1	0107-
2	COVER; CLU PEDAL	8-97893-618-1	01	1	0107-
4	STOPPER; CLU PEDAL	1-47319-014-1	02	1	0107-0109
4	STOPPER; CLU PEDAL	1-47319-014-1	04	1	0110-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	0107-
18	NUT; PUSH ROD MJD7S M/T(Y2Y) M8	0-91110-508-0	01	1	0107-
18	NUT; PUSH ROD TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M8	9-09110-508-0	01	1	0107-
19	ROD ASM; PUSH,CLU	1-73907-320-1	01	1	0107-
21	SPRING; RETURN,CLU PEDAL MJD7S M/T(Y2Y)	1-73908-265-0	01	1	0107-
21	SPRING; RETURN,CLU PEDAL TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-73907-445-0	01	1	0107-
23	BOLT; PUSH ROD M8X39.7	1-09009-150-0	01	1	0107-
24	SHAFT; CLU PEDAL	1-73998-936-1	01	1	0107-
25	BOLT; PEDAL M10X25 W/LK WASHER	0-50051-025-0	02	1	0107-
26	WASHER; LK,PUSH ROD MJD7S M/T(Y2Y) ID=8.2	0-91510-608-0	01	1	0107-
26	WASHER; LK,PUSH ROD TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=8.2	9-09150-608-0	01	1	0107-
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28081-060-0	02	1	0107-0512
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0601-
42	SWITCH; CLU TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-82380-114-2	01	1	0107-
50	TANK; OIL,CLU	1-47530-182-0	01	1	0107-
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	0107-
119	CLIP; CONNECTOR OD=7 H=1.2	8-94364-750-0	01	1	0107-
125	NUT; CLU SWITCH TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M10	9-09110-510-0	01	1	0107-
132	NUT; LK,PUSH ROD MJD7S M/T(Y2Y) M8	0-91110-508-0	01	1	0107-
132	NUT; LK,PUSH ROD TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M8	9-09110-408-0	01	1	0107-
165	NUT; CLU M/CYL TRANSMISSION-ZF 16S151 OD(Y2N) M10 FLANGE	0-91150-210-0	02	1	0107-0602
165	NUT; CLU M/CYL TRANSMISSION-ZF 16S151 OD(Y2N) M10 FLANGE	0-91180-210-0	02	1	0603-
242	BOLT; BRKT,CLUTCH MJD7S M/T(Y2Y) M6X16 W/LK WASHER	0-50040-616-0	02	1	0107-
242	BOLT; BRKT,CLUTCH TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M6X16 W/LK WASHER	0-50040-616-0	04	1	0107-
250	ROD; PUSH,CLU	1-73996-219-0	01	1	0107-
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0107-
254	BRACKET; CLU SENSOR	1-73998-979-5	01	1	0107-
266	BRACKET; CLU SWITCH TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A)	1-73907-395-1	01	1	0107-
266	BRACKET; CLU SWITCH TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-73908-354-0	01	1	0107-
267	WASHER; LK,CLU SWITCH TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=10.2	9-09150-510-0	01	1	0107-
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	0107-
