Sayfa 2-30B - Isuzu EPC

2-30B — GEAR SHIFTER AND QUADRANT BOX (#112519) — 590 parça

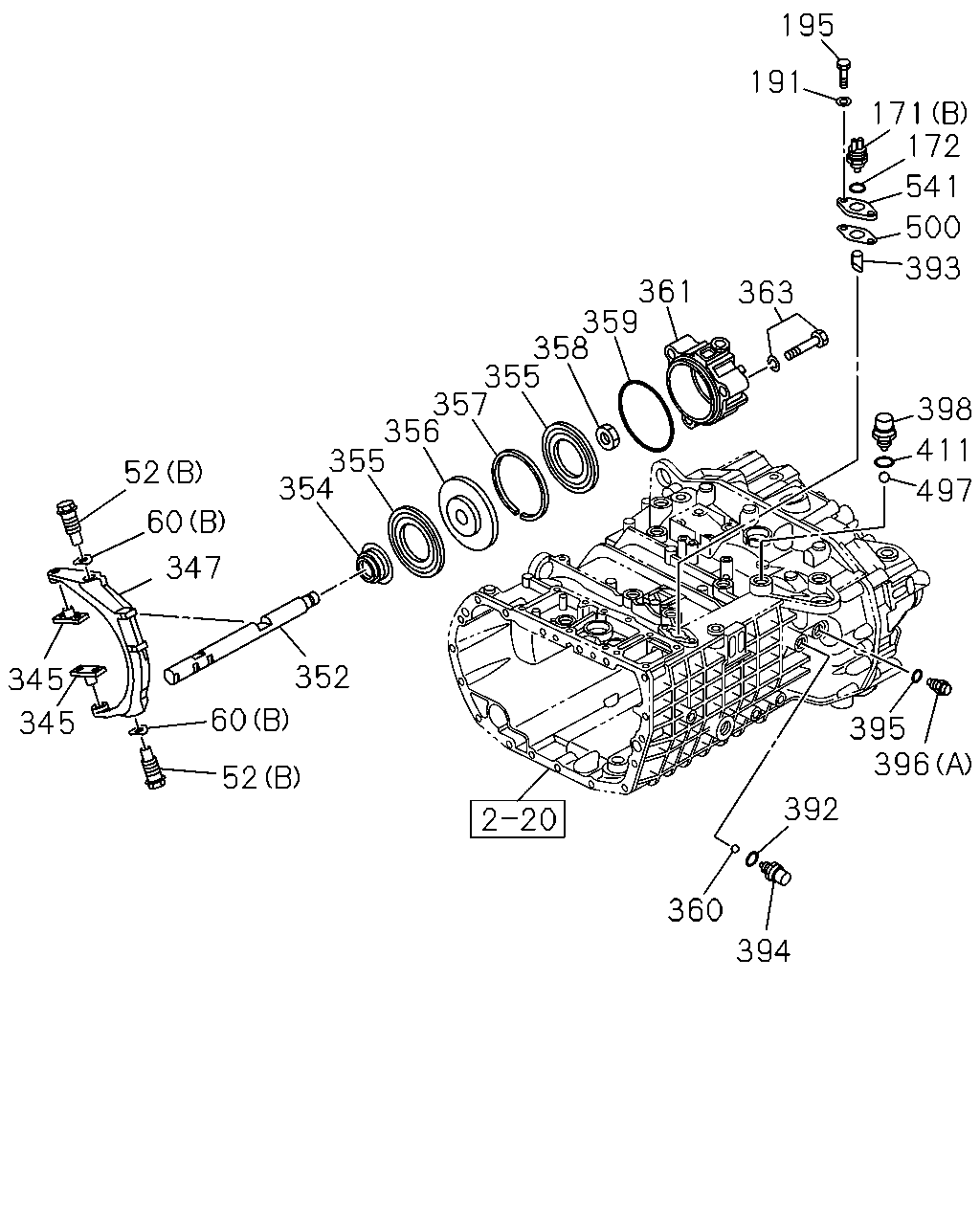

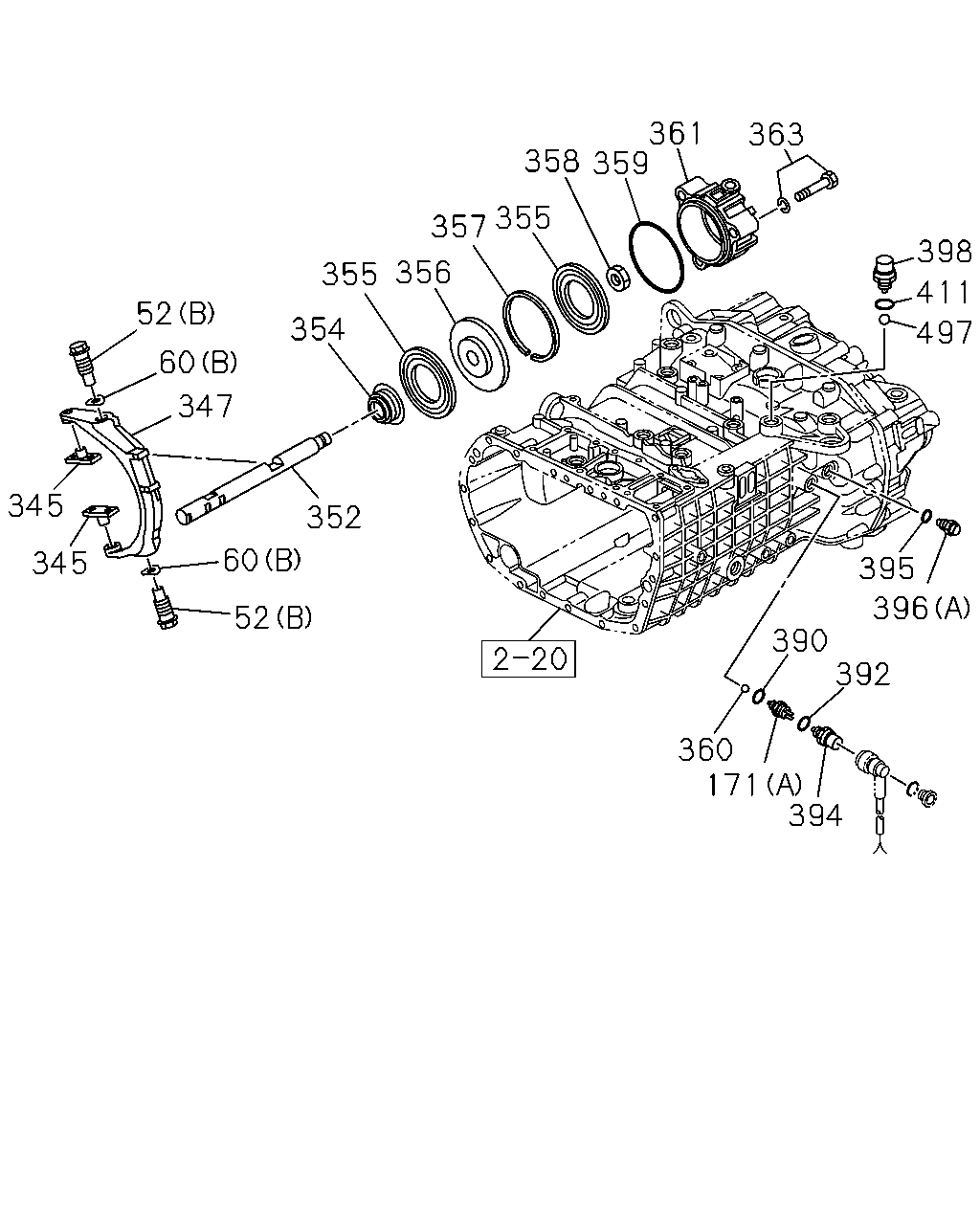

394 363 361 52 345 60 345 347 60 52 352 354 355 356 357 355 358 359 398 497 411 396 360 171 392 395 390

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-627-0	01	1	1306-
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-338-0	01	1	1302-1305
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1302-1305
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1302-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1302-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1302-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-
360	BALL; AIR CYL	1-33119-252-0	01	1	1302-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1302-
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1302-1305
390	GASKET; NEUTRAL SW ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1302-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-
395	GASKET; PLUNGER	1-33519-171-0	01	1	1302-1305
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1302-
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	1302-
497	BALL; SWITCH	1-33119-252-0	01	1	1302-

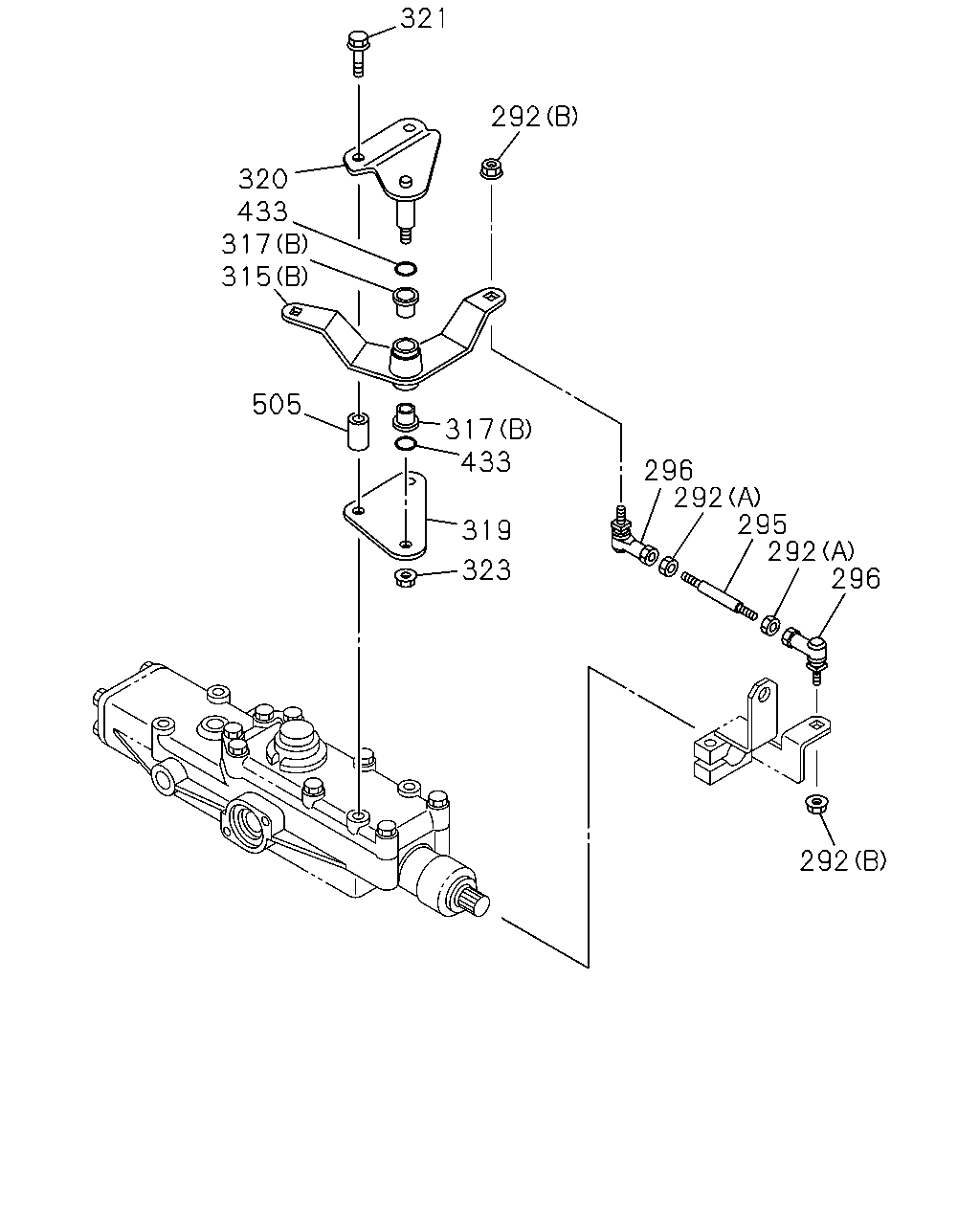

292 323 319 433 317 505 315 317 433 320 321 292 296 292 296 292 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	1302-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	1302-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	1302-
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	1302-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-458-0	01	1	1302-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98085-738-0	01	1	1302-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-322-0	01	1	1302-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09330-119-0	02	1	1302-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	1302-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	1302-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1302-
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1302-
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	1302-

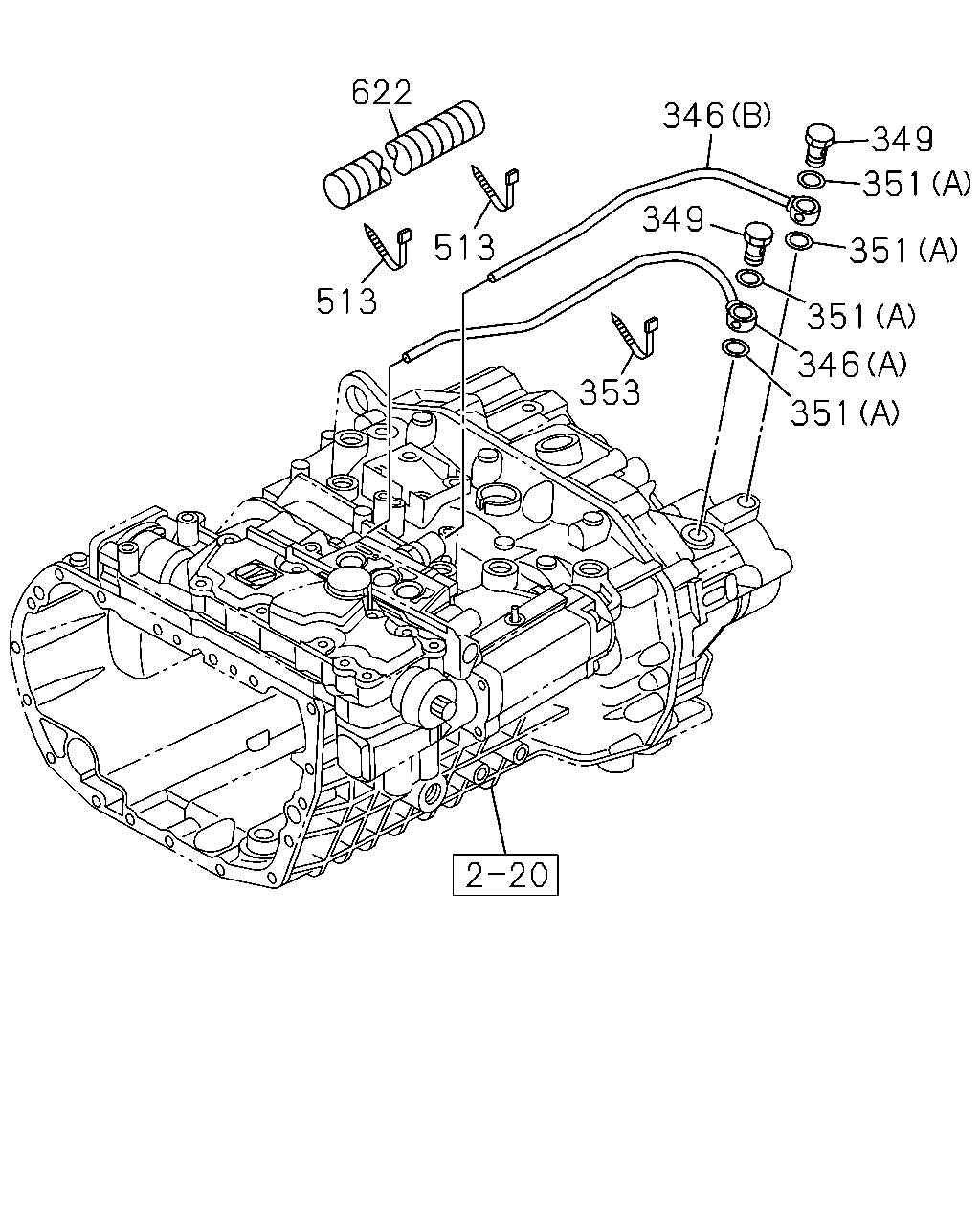

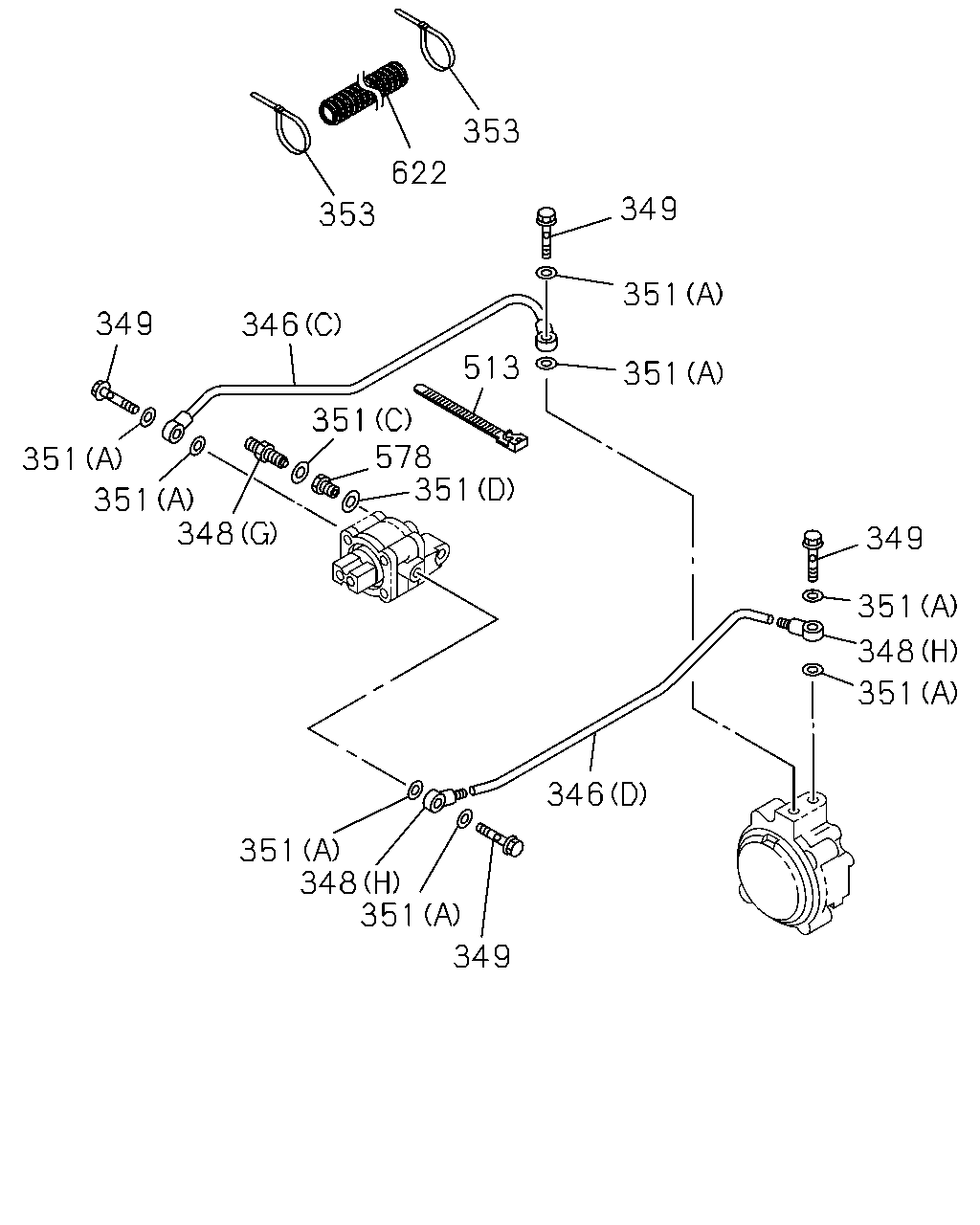

622 513 513 346 349 349 351 346 351 351 351 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1302-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1302-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1306-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1306-
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1302-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1302-1305
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1302-1305
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1302-

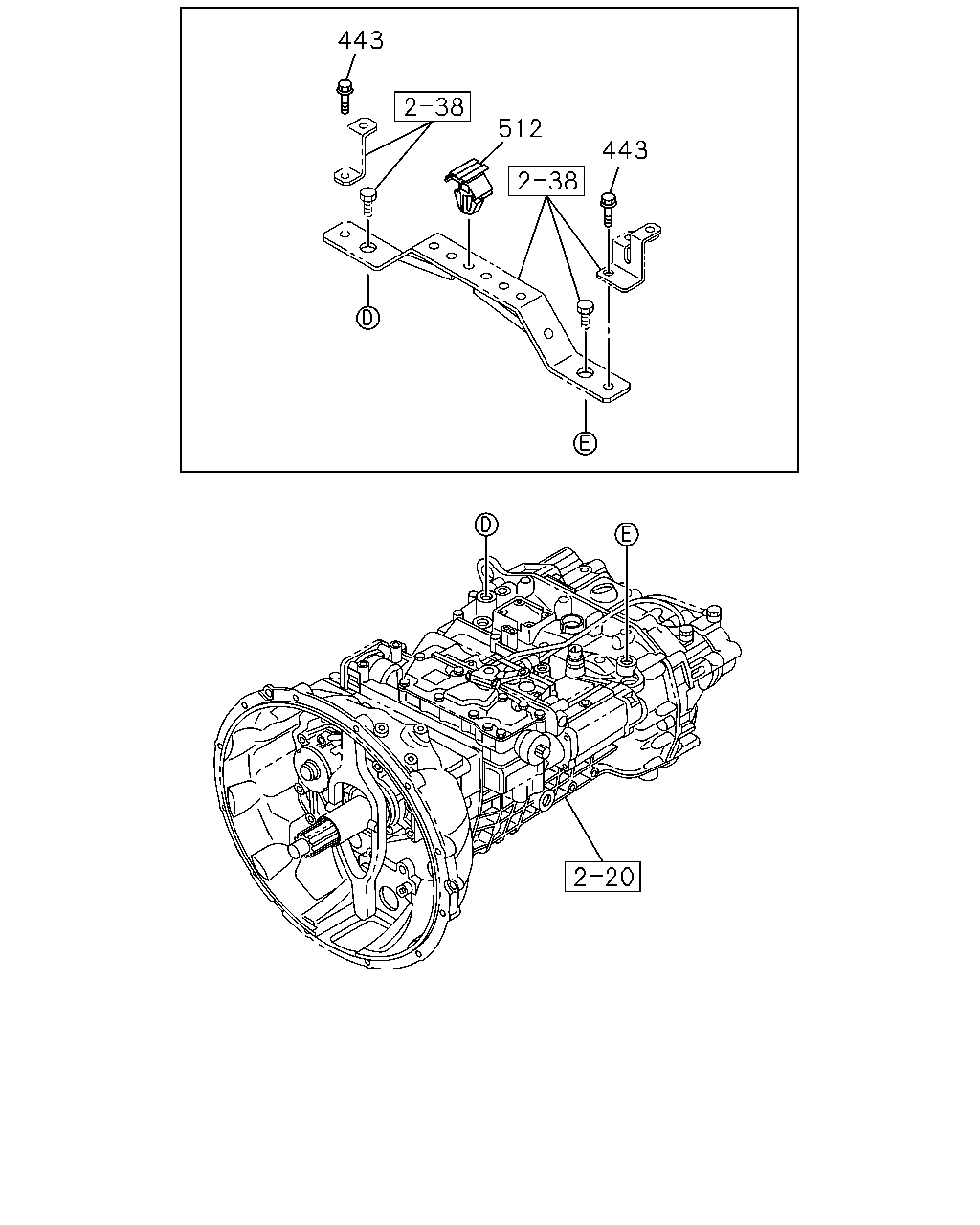

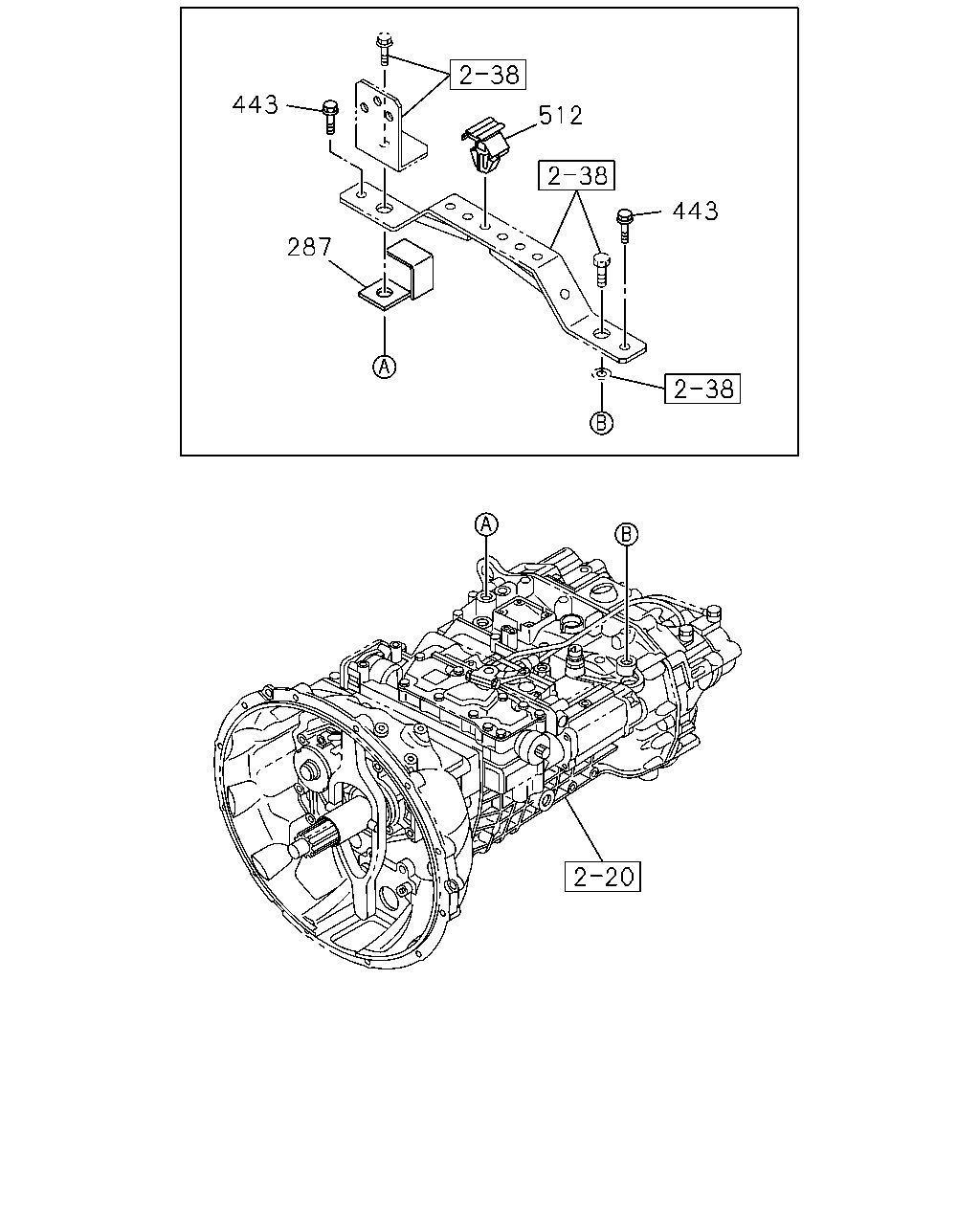

443 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-

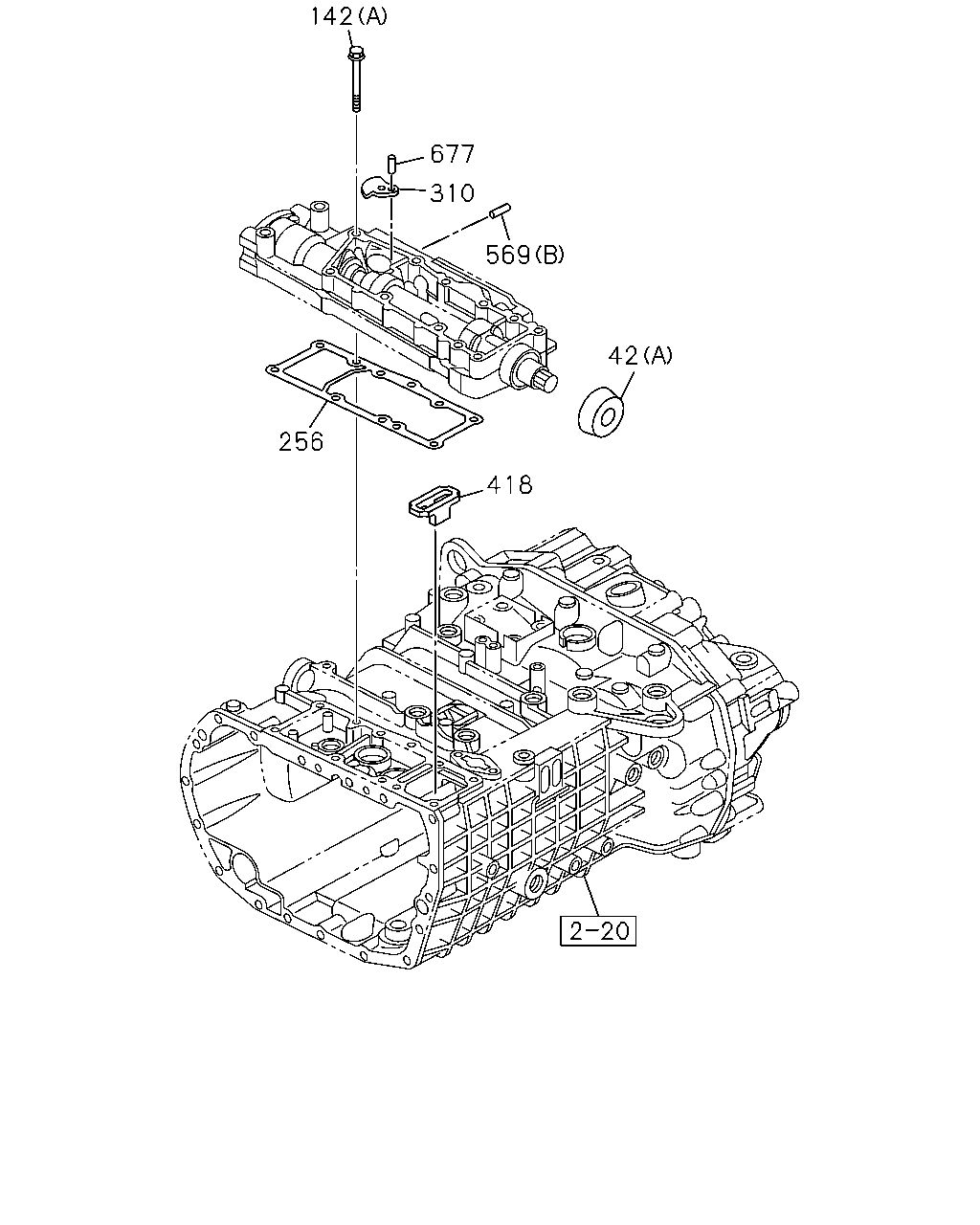

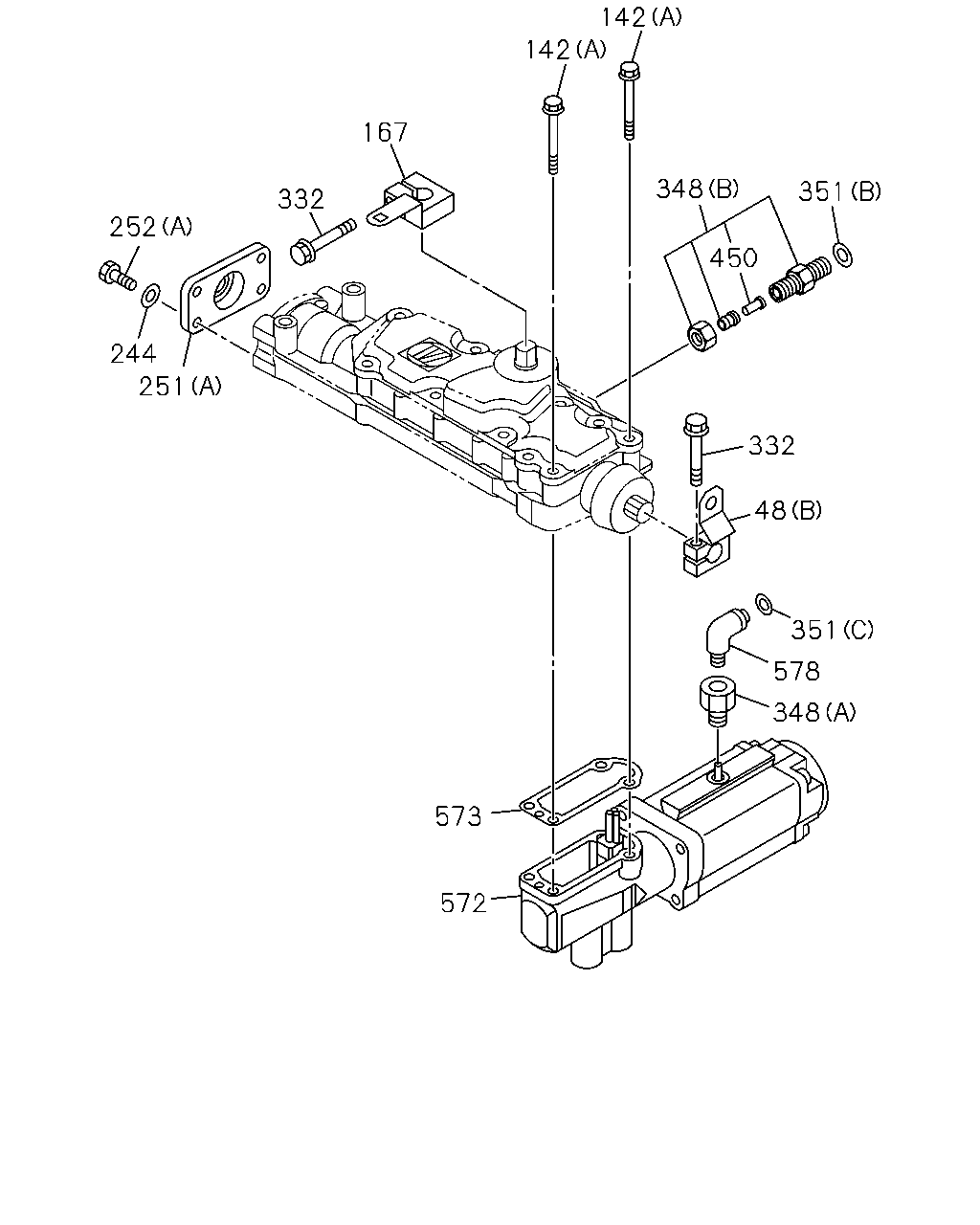

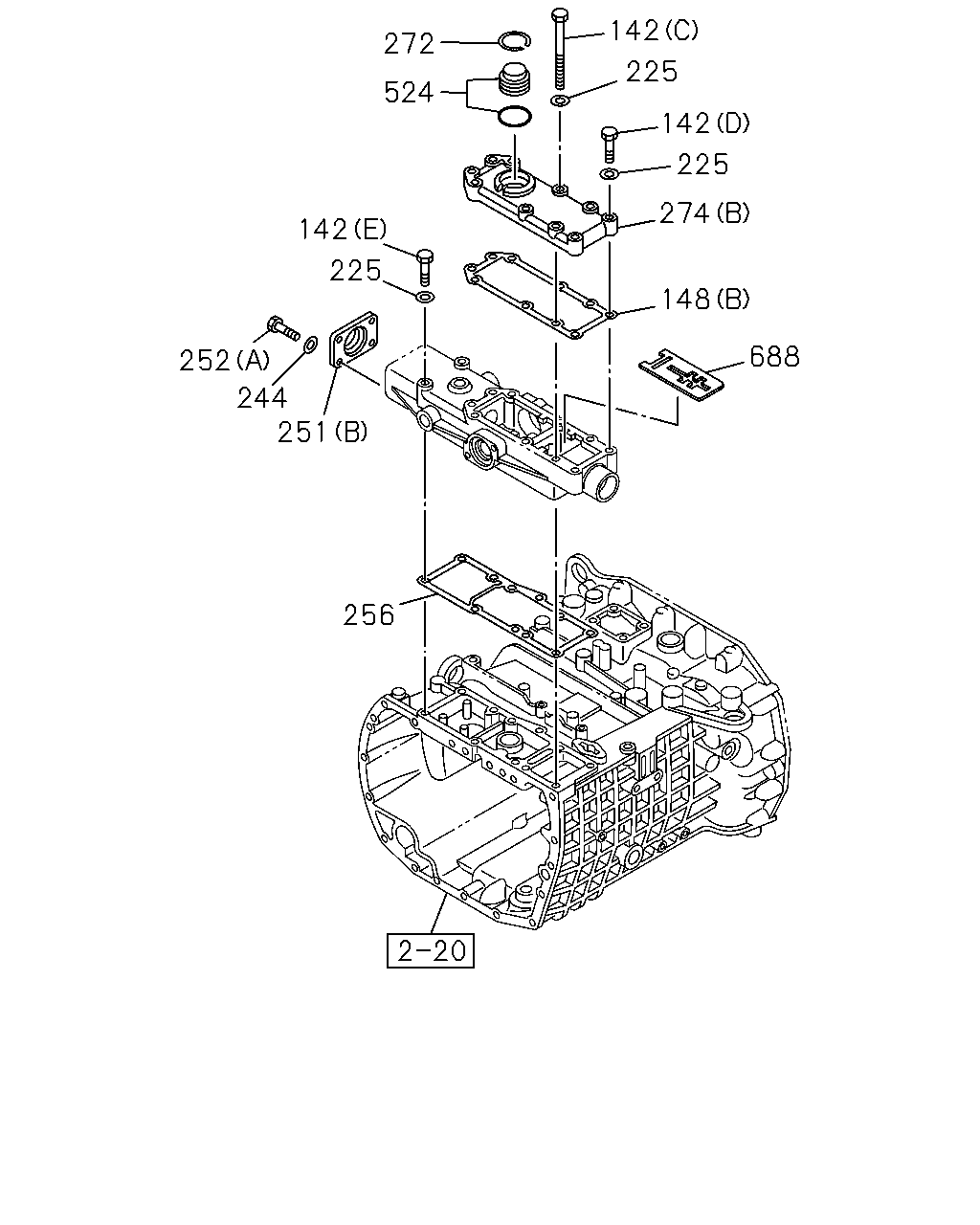

256 251 244 252 225 142 524 272 142 688 148 274 225 142 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33544-056-0	01	1	1302-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33542-064-0	01	1	1302-
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE (B)	1-33549-590-0	01	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1302-1305
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	1302-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-579-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	1302-1305
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	1302-
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1302-

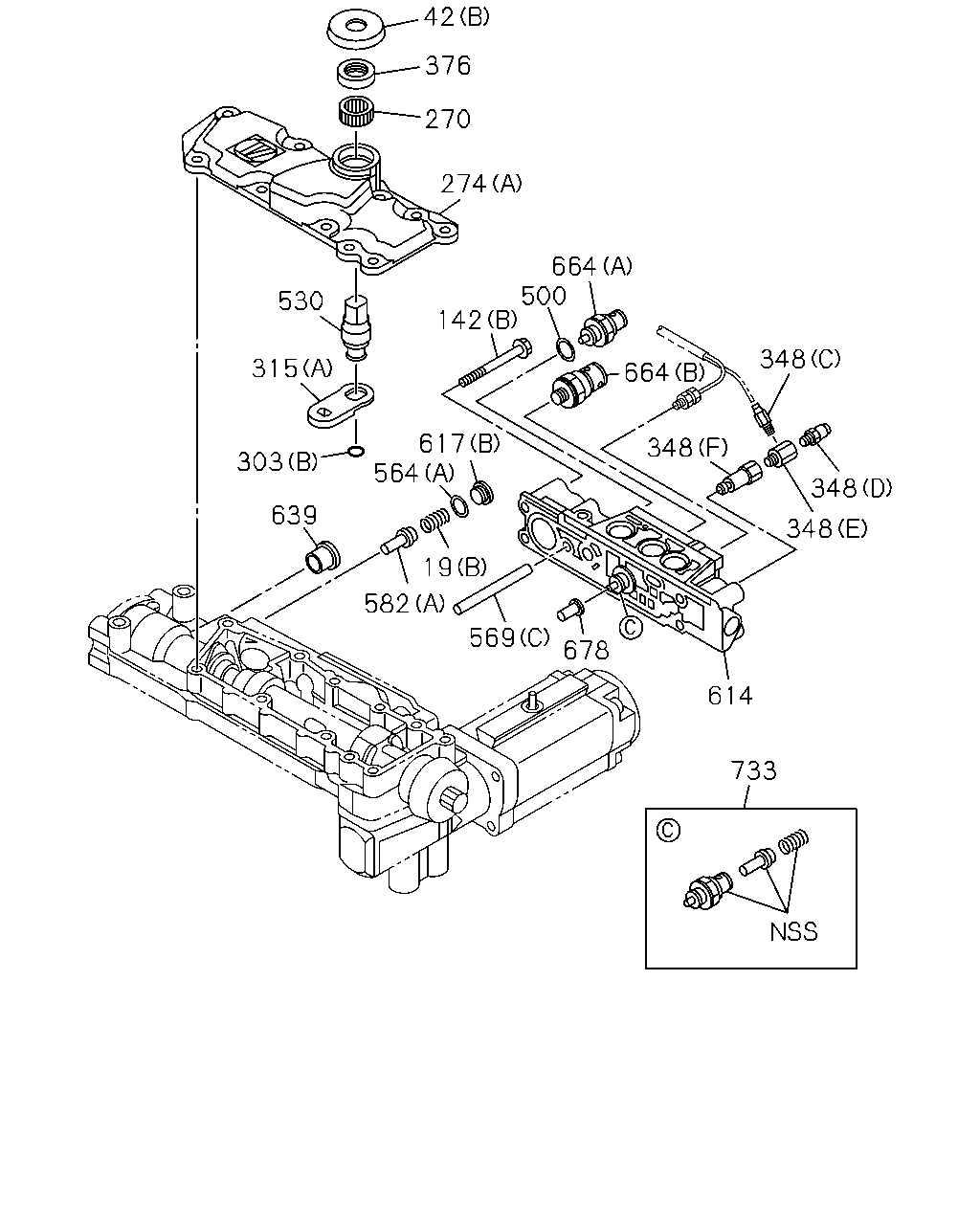

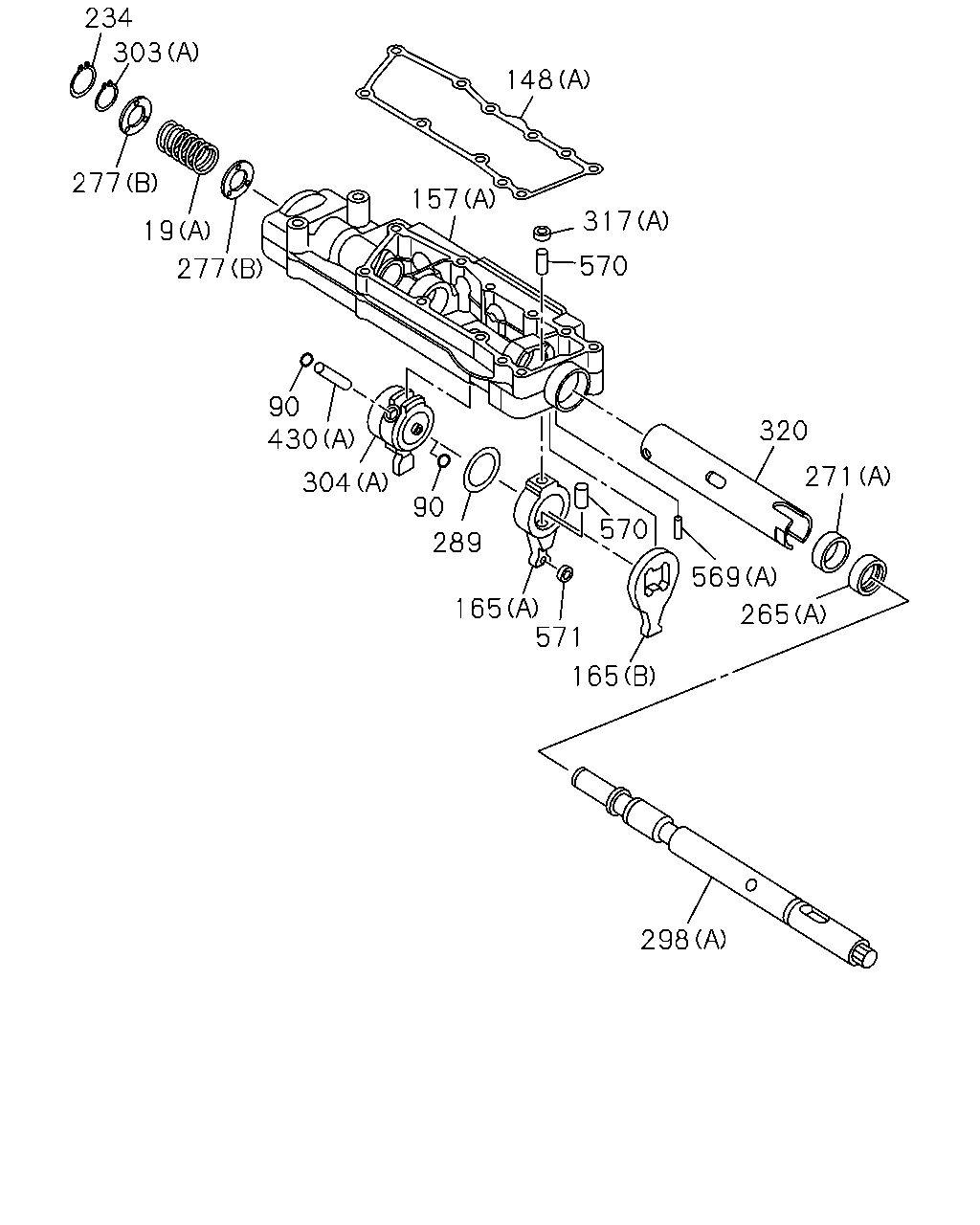

19 19 19 303 277 19 19 277 303 234 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1302-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1302-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1302-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1302-1305
234	RING; SNAP	1-44519-224-0	01	1	1302-
277	PLATE; SPRING SEAT (B)	1-33539-039-0	02	1	1302-1305
277	PLATE; SPRING SEAT (B)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-042-0	01	1	1302-1305
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-

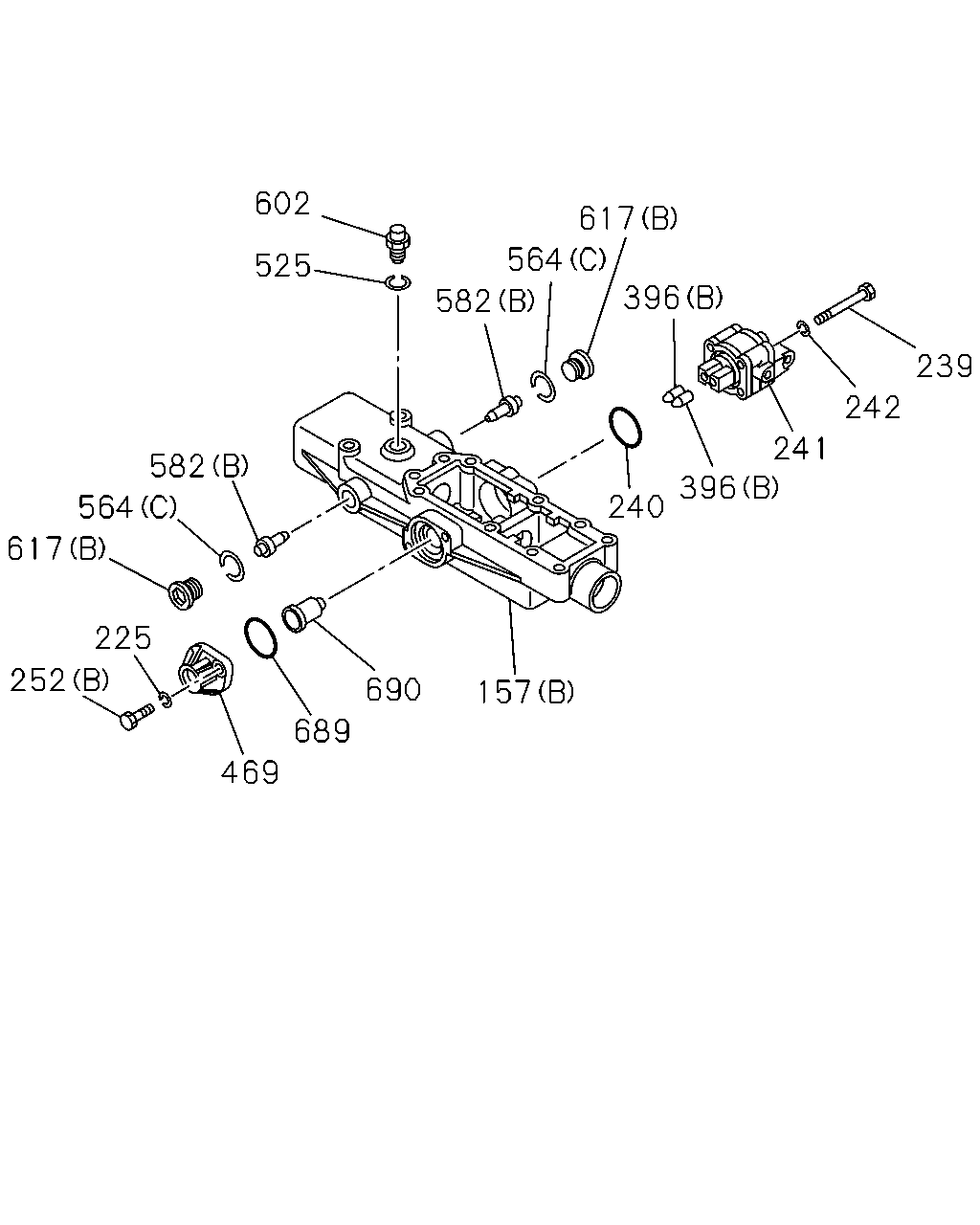

469 690 689 157 240 396 241 242 239 252 617 564 582 525 602 582 564 617 396 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-445-0	01	1	1302-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	1302-
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	1302-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	14	1	1306-
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-302-0	04	1	1302-1305
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-585-0	04	1	1306-
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	1302-
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	1302-
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	04	1	1302-1305
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	04	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	1302-
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1302-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-471-0	01	1	1302-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-487-0	02	1	1302-
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	1302-1305
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-618-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	01	1	1306-
617	PLUG (A)	1-34129-061-0	01	1	1302-1305
617	PLUG (A)	1-33539-109-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	02	1	1306-
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	1302-
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	1302-

90 304 430 90 165 271 165 165 289 298 569 265 264 42 48 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	1302-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1306-
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33651-827-1	01	1	1302-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-725-0	01	1	1302-
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1302-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1306-
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	1302-
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-446-0	01	1	1302-1305
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-118-0	01	1	1302-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-318-0	01	1	1302-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-124-0	01	1	1302-
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1302-
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1302-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1306-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33522-203-0	01	1	1302-1305
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-448-0	01	1	1302-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-492-0	01	1	1302-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	1302-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-

394 360 392 395 396 497 411 398 393 500 541 172 171 195 191 363 361 359 358 355 357 356 355 354 52 60 347 352 60 52 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	1302-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-627-0	01	1	1306-
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-338-0	01	1	1302-1305
172	GASKET; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-36129-007-0	02	1	1302-1305
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-583-0	02	1	1306-
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	1302-1305
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-593-0	02	1	1306-
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	1302-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	1302-
352	ROD; SHIFT,RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33531-047-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33531-497-0	01	1	1306-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	1302-1305
352	ROD; SHIFT,RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33531-495-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	1302-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	1302-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	1302-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	1302-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	1302-
360	BALL; AIR CYL	1-33119-252-0	01	1	1302-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	1302-
363	BOLT; AIR CYL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	03	1	1302-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	1302-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	1302-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	1302-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1302-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
395	GASKET; PLUNGER ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	1306-
395	GASKET; PLUNGER	1-33519-171-0	01	1	1302-1305
395	GASKET; PLUNGER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-171-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	1302-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	1302-
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1302-
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	1302-
497	BALL; SWITCH	1-33119-252-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	1302-

353 622 353 346 349 351 348 351 351 513 578 351 349 351 351 351 348 351 349 346 349 351 351 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	1302-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	1302-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-400-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-618-0	01	1	1306-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	1302-1305
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-598-0	01	1	1306-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	1302-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1302-1305
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> M14	1-33549-592-0	04	1	1306-
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-
353	CLIP; AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-530-0	02	1	1306-
353	CLIP; AIR HOSE	1-33549-475-0	02	1	1302-1305
353	CLIP; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-475-0	02	1	1306-
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1302-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	1302-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1302-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1302-
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1302-

42 376 270 274 664 500 142 664 348 348 348 348 614 733 678 569 582 19 617 564 639 303 315 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1302-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1302-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1302-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	1302-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	1302-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1302-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-579-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	1302-1305
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-458-0	01	1	1302-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98085-738-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	1302-
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	1302-
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	1302-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-471-0	01	1	1302-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-487-0	02	1	1302-
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-464-0	01	1	1302-1305
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-549-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	01	1	1306-
617	PLUG (A)	1-34129-061-0	01	1	1302-1305
617	PLUG (A)	1-33539-109-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	02	1	1306-
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-465-0	01	1	1302-1305
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-576-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	1302-1305
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-627-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	1302-
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	1302-
733	REPAIR KIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-617-0	01	1	1306-

572 573 348 578 351 48 332 450 351 348 142 142 167 332 252 244 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33651-827-1	01	1	1302-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-725-0	01	1	1302-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	1302-
244	WASHER; LK,COVER	1-33549-159-0	04	1	1302-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM) (B)	1-33549-478-0	01	1	1302-1305
251	COVER; SIDE (B)	1-33549-590-0	01	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	1302-1305
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	1302-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	1302-1305
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-581-0	02	1	1306-
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	1302-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A) PT1/4	1-09654-396-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	1302-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	1302-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	1302-
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	1302-1305
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-593-0	04	1	1306-
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1302-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	1-09630-084-0	01	1	1302-1312
351	GASKET; CONNECTOR (C) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	8-98251-344-0	01	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1302-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	1302-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	1302-1305
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-578-0	08	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1302-
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	1302-
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	1302-
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	1302-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	1302-
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1302-

142 677 569 42 418 256 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	1302-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	1302-1305
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-589-0	01	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	1302-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) M8X80	1-33549-614-0	13	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M8X100	1-33549-582-0	06	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-33549-584-0	02	1	1306-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	1302-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M8X40	1-33549-587-0	04	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	1302-1305
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1302-
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1302-
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	1302-
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	1302-

298 570 317 148 157 277 19 277 303 234 90 265 271 320 165 571 165 289 90 304 430 570 569

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	1302-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1302-1305
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1302-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1302-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	1302-1305
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	1302-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	1302-
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33544-056-0	01	1	1302-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33542-064-0	01	1	1302-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-445-0	01	1	1302-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	1302-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	1302-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	1302-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-603-0	01	1	1306-
234	RING; SNAP	1-44519-224-0	01	1	1302-
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-446-0	01	1	1302-1305
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-118-0	01	1	1302-
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-318-0	01	1	1302-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-124-0	01	1	1302-
277	PLATE; SPRING SEAT (B)	1-33539-039-0	02	1	1302-1305
277	PLATE; SPRING SEAT (B)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-042-0	01	1	1302-1305
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	1302-
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1302-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	1306-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33522-203-0	01	1	1302-1305
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	1302-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	1302-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	1302-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-448-0	01	1	1302-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-492-0	01	1	1302-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-322-0	01	1	1302-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09330-119-0	02	1	1302-
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	1302-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	1302-
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	1302-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	1302-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	1302-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	1302-
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-451-0	02	1	1302-1305
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33529-117-0	02	1	1306-
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	1302-

443 287 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	1302-
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	1302-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	1302-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	1302-

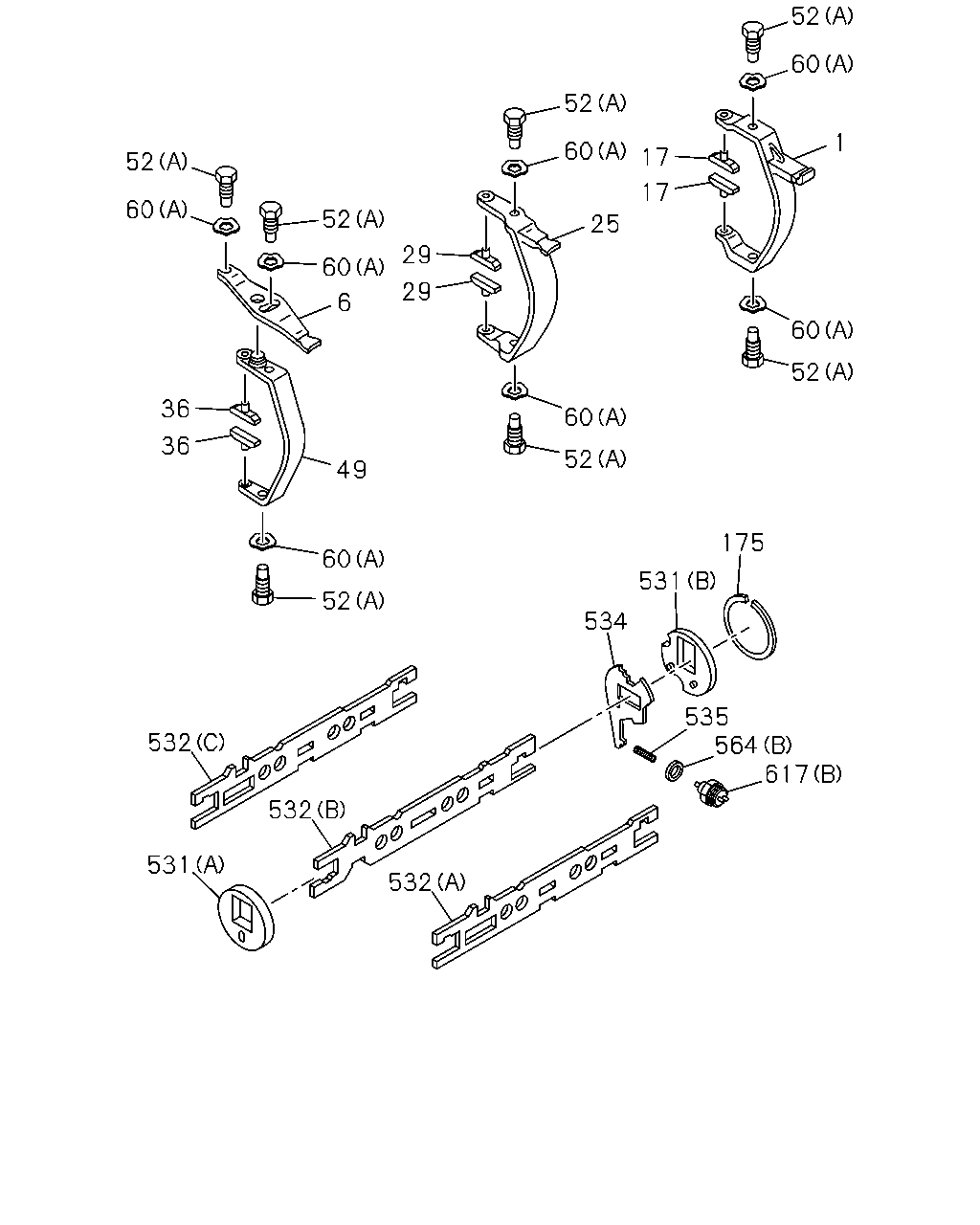

52 60 52 60 29 52 29 25 60 52 60 17 17 1 60 52 60 52 49 36 36 60 52 532 531 532 532 564 617 535 534 531 175 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1302-1305
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1302-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1302-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1302-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1302-
535	SPRING; LEVER	1-33539-049-0	01	1	1302-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	01	1	1306-
617	PLUG (A)	1-34129-061-0	01	1	1302-1305
617	PLUG (A)	1-33539-109-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	02	1	1306-

617 532 532 531 532 534 531 175 535 564 60 52 36 49 52 52 60 60 29 6 52 25 60 52 1 60 29 36 60 17 60 17 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1302-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	1302-1305
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1302-1305
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1302-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
17	BLOCK; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM)	1-33519-172-0	02	1	1302-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	1302-1305
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	1302-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	1302-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	1302-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	1302-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	1302-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	1302-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	1302-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	1302-1305
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1302-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
531	PLATE; BEARING (A)	1-33539-044-0	01	1	1302-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	1302-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	1302-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	1302-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	1302-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	1302-
535	SPRING; LEVER	1-33539-049-0	01	1	1302-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	1302-
564	SEAL; RING (B)	1-33549-444-0	01	1	1302-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	1302-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	01	1	1302-1305
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	01	1	1306-
617	PLUG (A)	1-34129-061-0	01	1	1302-1305
617	PLUG (A)	1-33539-109-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	1302-1305
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-619-0	02	1	1306-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
