Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#112514) — 337 parça

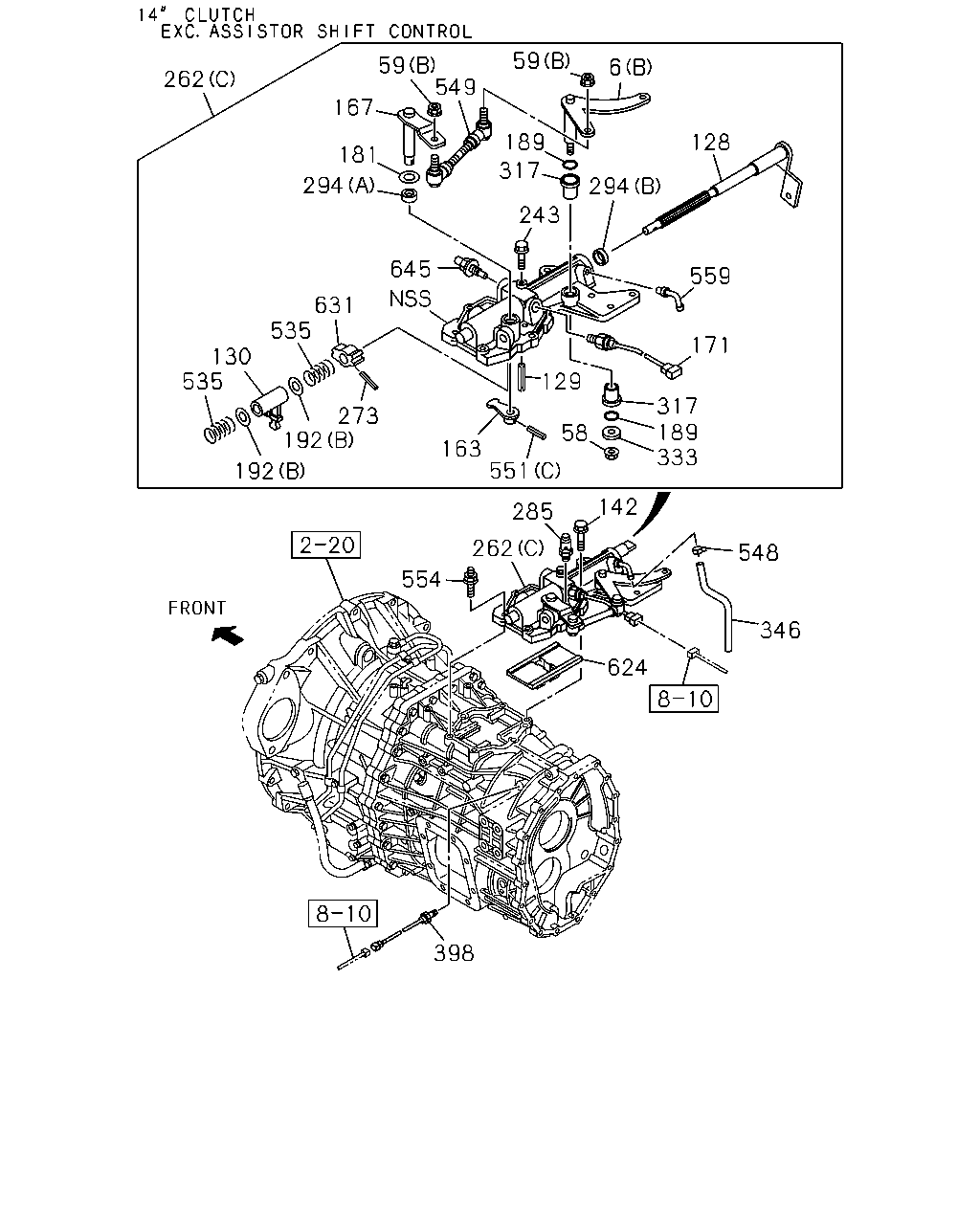

262 167 59 181 294 631 645 535 130 535 273 192 192 549 59 6 128 294 189 317 243 559 171 317 189 333 129 58 163 551 142 285 262 554 624 548 346 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1304
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1305-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1305-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

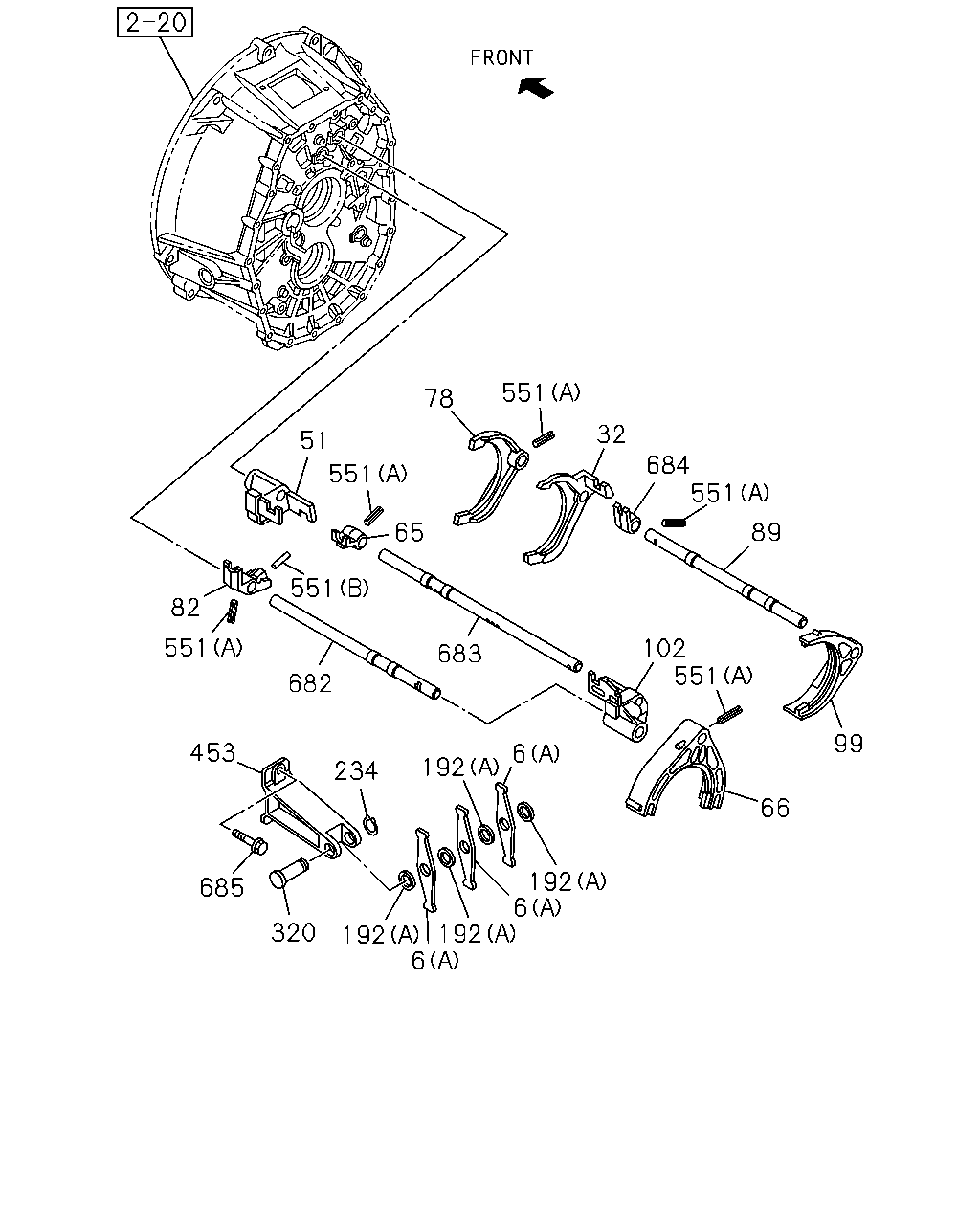

78 551 684 551 32 89 102 551 99 66 6 192 683 65 551 51 551 82 551 682 234 453 685 320 192 6 192 192 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1305-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-

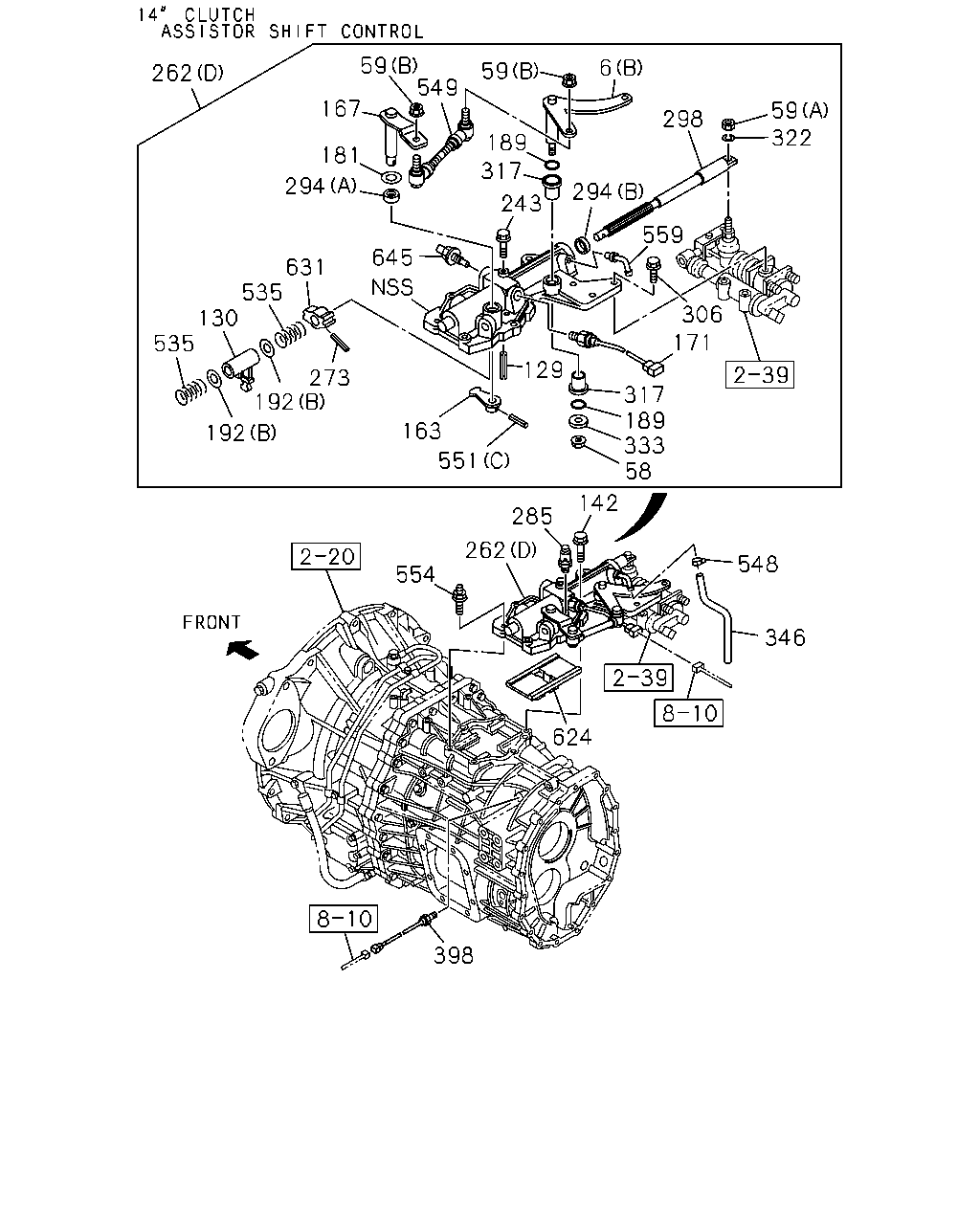

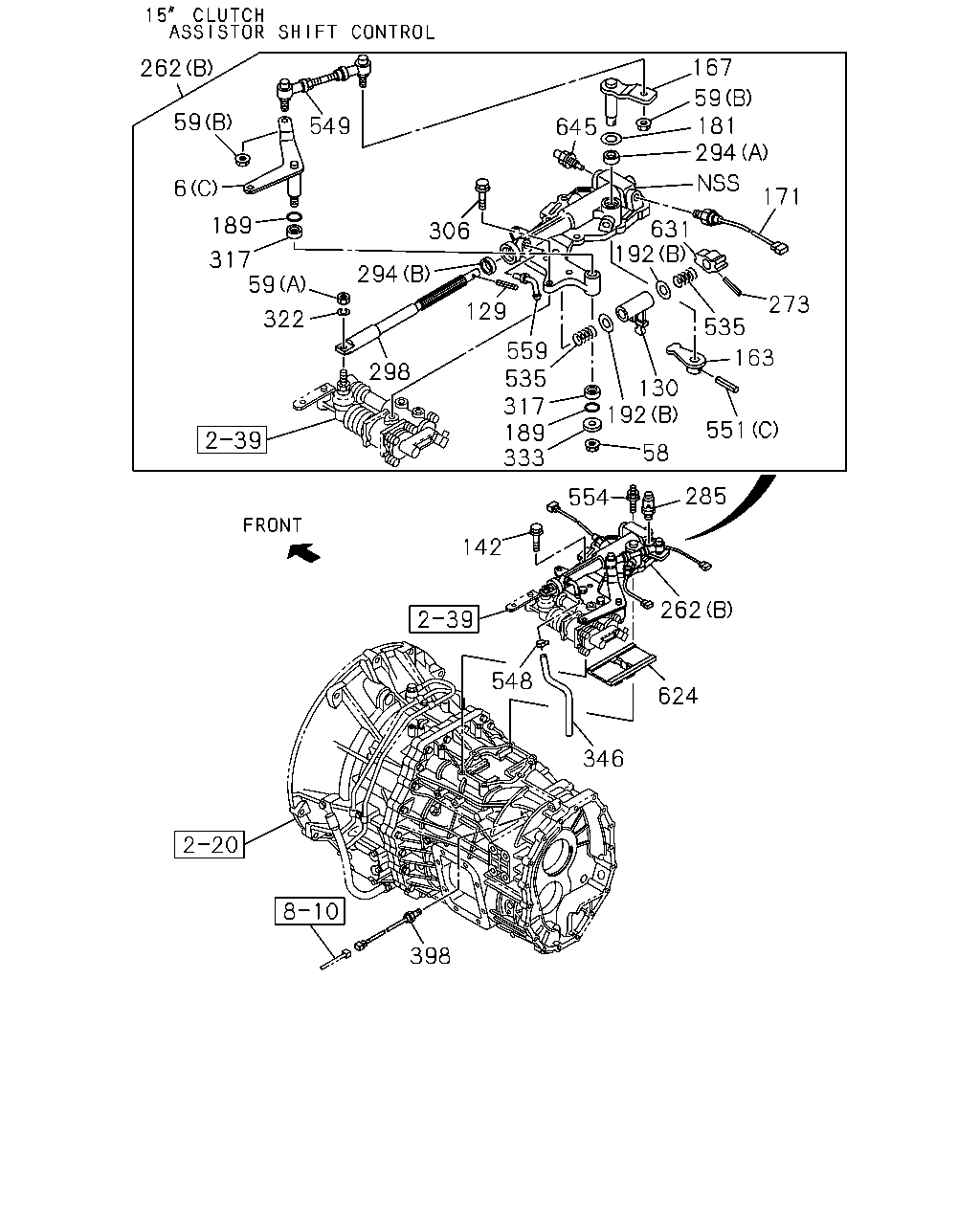

262 59 549 6 189 317 59 322 294 298 306 129 559 535 317 189 333 58 551 192 130 535 273 163 171 294 181 59 167 631 192 398 548 346 624 262 285 554 142 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1304
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1305-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

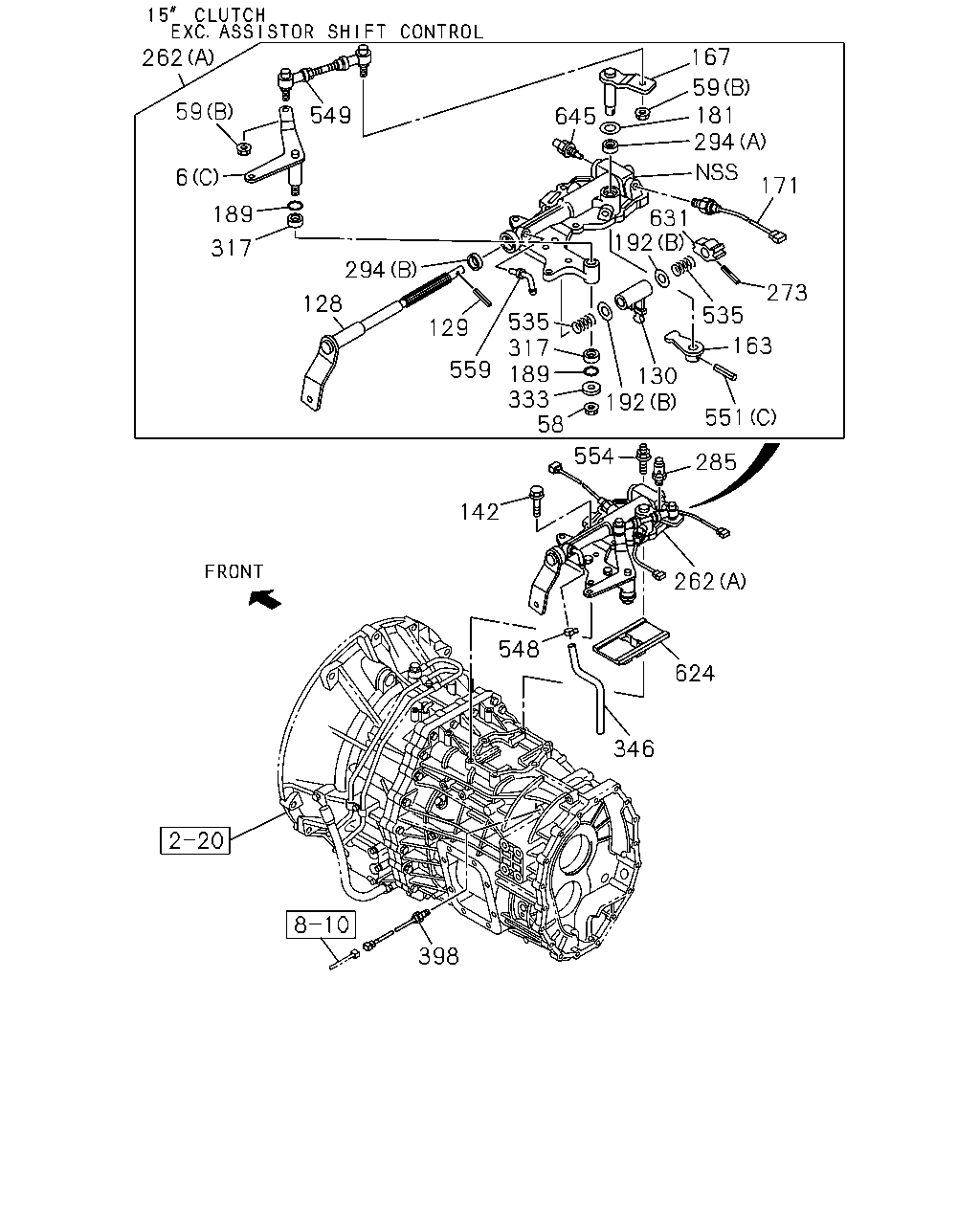

262 59 549 6 189 317 128 294 129 559 535 317 189 333 58 192 130 535 163 551 273 171 192 631 294 181 59 167 645 142 554 285 262 624 346 548 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1302-1304
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-97306-927-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-346-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1305-1507
128	LEVER; SHIFT,EXTERNAL 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1305-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

59 59 549 189 317 243 294 298 6 59 322 559 306 171 317 189 333 58 129 163 551 645 167 181 294 631 535 130 535 273 192 192 554 285 142 262 548 346 624 398 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-1304
6	LEVER; RELAY 14" CLUTCH(WF6) (B)	8-98014-157-1	01	1	1305-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1305-
6	LEVER; RELAY (C)	8-98022-855-0	01	1	1302-1304
6	LEVER; RELAY 15" CLUTCH(RE9) (C)	8-98022-855-0	01	1	1305-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1302-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1302-1304
167	LEVER; SELECT,EXTERNAL 15" CLUTCH(RE9)	8-98022-857-0	01	1	1305-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98021-489-0	01	1	1305-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-
243	BOLT; COVER 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	01	1	1305-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-565-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-040-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1302-1304
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98207-566-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-041-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 15" CLUTCH(RE9) EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-336-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98207-563-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98249-038-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-998-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98276-158-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (D)	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98211-654-0	01	1	1305-1306
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98249-037-0	01	1	1307-1312
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1302-1304
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-97305-685-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8>	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1305-1507
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1302-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK	8-98022-841-0	01	1	1302-1304
549	ROD; LINK 15" CLUTCH(RE9)	8-98022-841-0	01	1	1305-
549	ROD; LINK 14" CLUTCH(WF6)	8-98023-095-0	01	1	1305-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-
631	STOPPER; SPRING	8-97305-666-0	01	1	1302-1304
631	STOPPER; SPRING 15" CLUTCH(RE9)	8-97305-666-0	01	1	1305-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-98014-158-0	01	1	1305-
645	DETENT ASM	8-98019-536-0	01	1	1302-

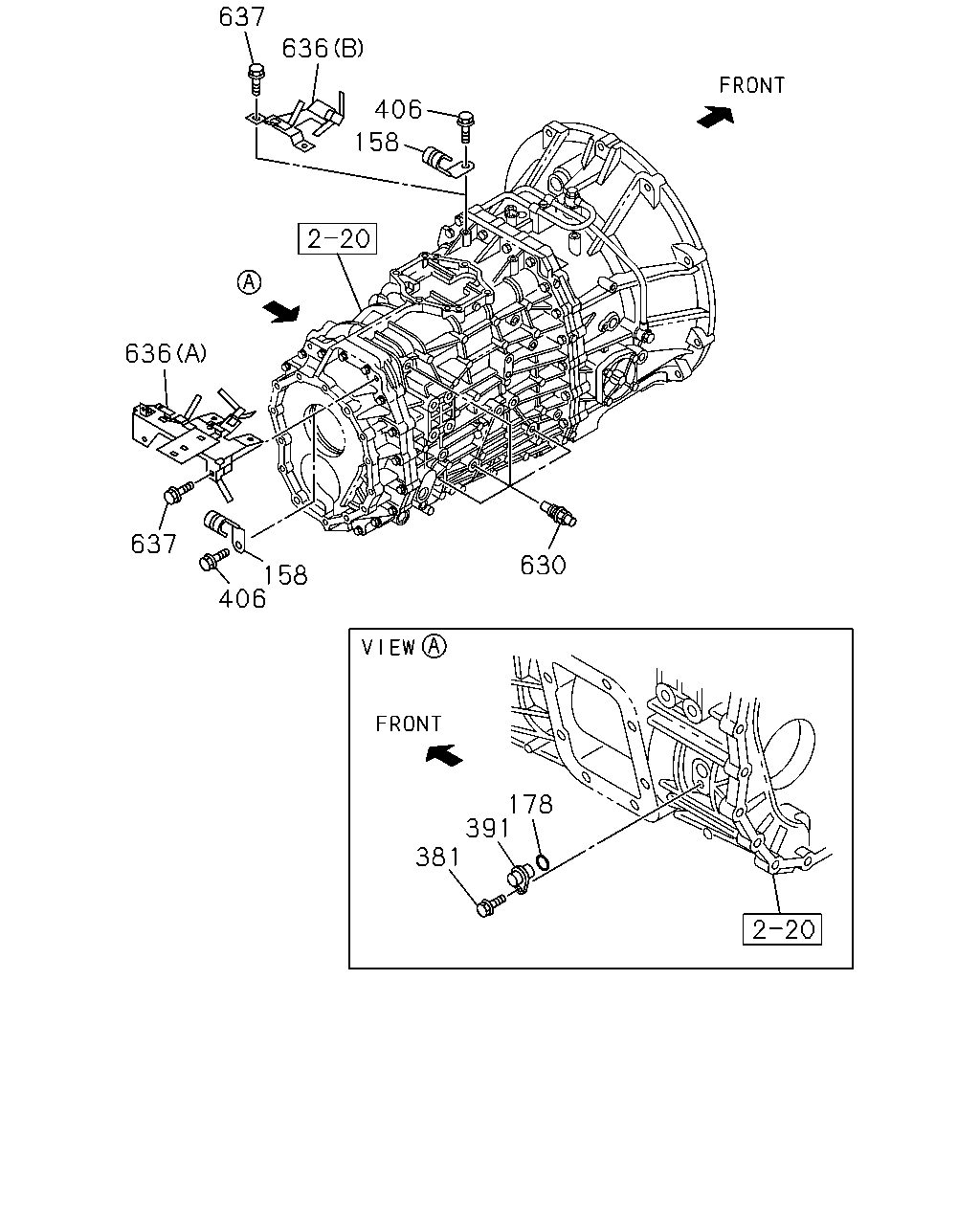

637 636 406 158 636 630 158 406 637 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-
630	DETENT ASM	8-98019-536-0	04	1	1302-
636	BRACKET; CLIP (A)	8-97610-096-2	01	1	1302-1304
636	BRACKET; CLIP 15" CLUTCH(RE9) (A)	8-97610-096-2	01	1	1305-
636	BRACKET; CLIP 14" CLUTCH(WF6) (B)	8-97610-092-1	01	1	1305-1502
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502
637	BOLT; BRACKET 15" CLUTCH(RE9) M8X16 FLANGE	0-28050-816-0	02	1	1503-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
