Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#112513) — 306 parça

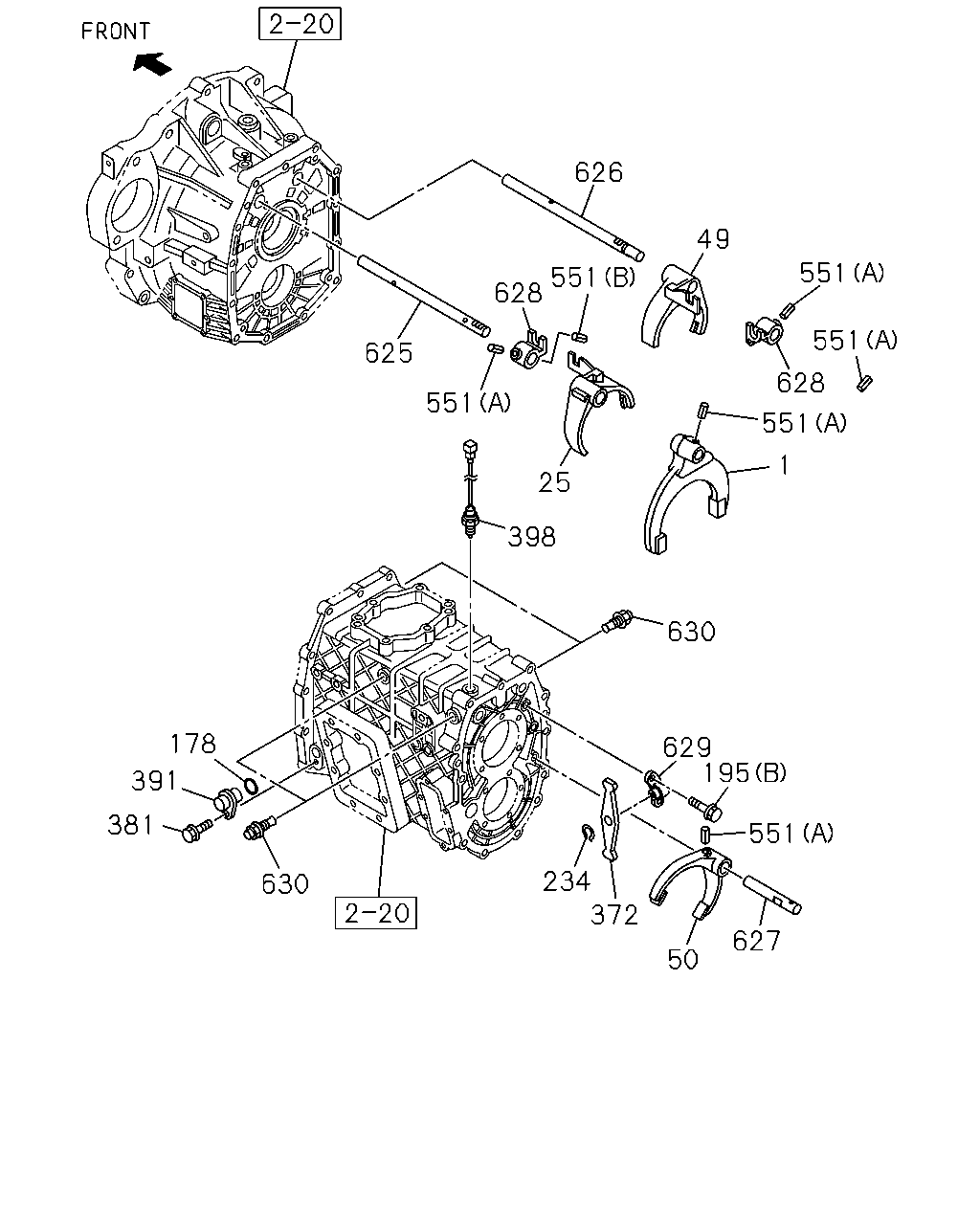

626 49 551 551 628 551 628 551 625 25 630 629 195 551 627 50 372 234 630 178 391 381 398 551 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	8-97255-351-1	01	1	1302-	●
25	ARM; SHIFT,2ND & 3RD	8-97362-737-1	01	1	1302-	●
49	ARM; SHIFT,4TH & 5TH	8-97362-738-1	01	1	1302-	●
50	ARM; SHIFT,6TH	8-97241-324-1	01	1	1302-	●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-	●	●
195	BOLT (A) M10X20 FLANGE	0-28751-020-0	02	1	1302-	●
195	BOLT (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1302-	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-	●	●
372	LEVER; RELAY,6TH	8-97241-342-0	01	1	1302-	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-	●	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-	●	●
625	ROD; GEAR SHIFT,LOW,REV,2ND & 3RD	8-97362-735-0	01	1	1302-	●
626	ROD; GEAR SHIFT,4TH,5TH & 6TH	8-98107-548-0	01	1	1302-	●
627	ROD; GEAR SHIFT,6TH SUB	8-98119-293-0	01	1	1302-	●
628	BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	1302-	●
629	BRIDGE; LEVER	8-97241-345-1	01	1	1302-	●
630	DETENT ASM	8-98019-536-0	04	1	1302-	●	●

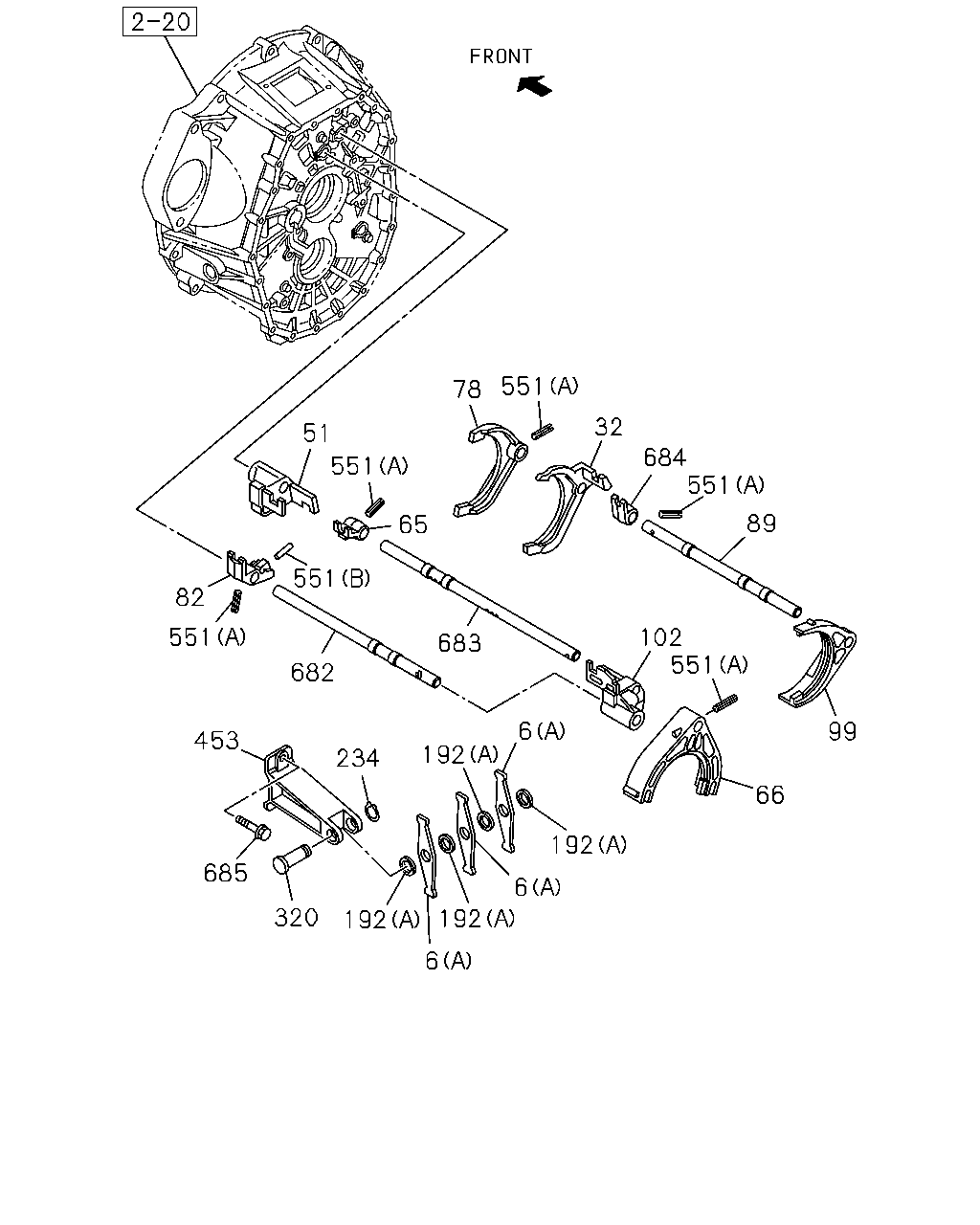

78 89 551 684 32 551 51 65 551 551 82 551 682 453 234 192 685 320 192 6 6 192 192 6 66 99 551 102 683

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-		●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1302-	●	●
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1302-1307		●
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-		●
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1302-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1302-		●
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1302-		●
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1302-		●
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1302-		●
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1302-		●
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1302-1506		●
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-		●
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1302-		●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-	●	●
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1302-	●	●
320	SHAFT; LEVER	8-97377-928-0	01	1	1302-		●
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1302-		●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-	●	●
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1302-		●
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1302-		●
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1302-		●
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1302-		●

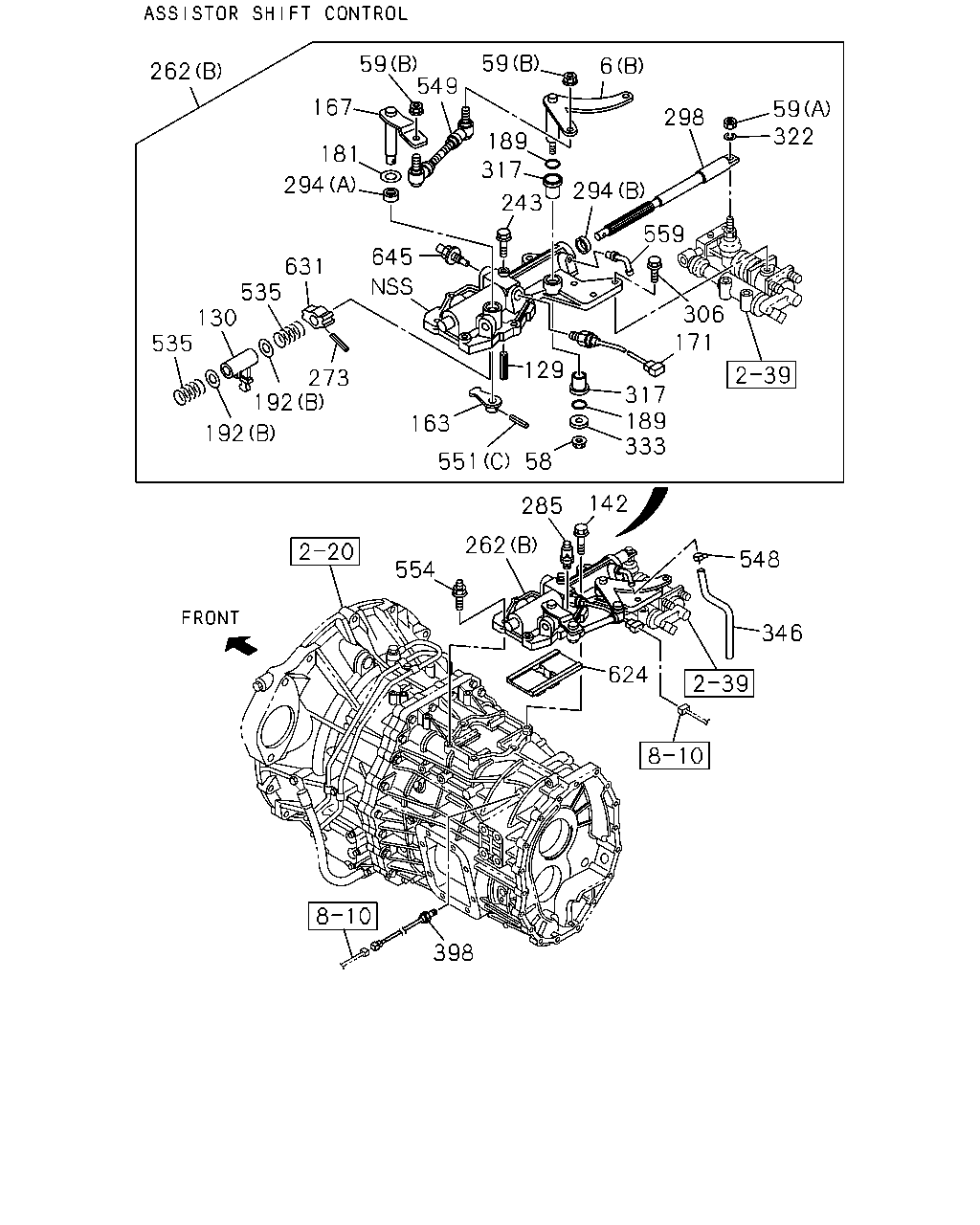

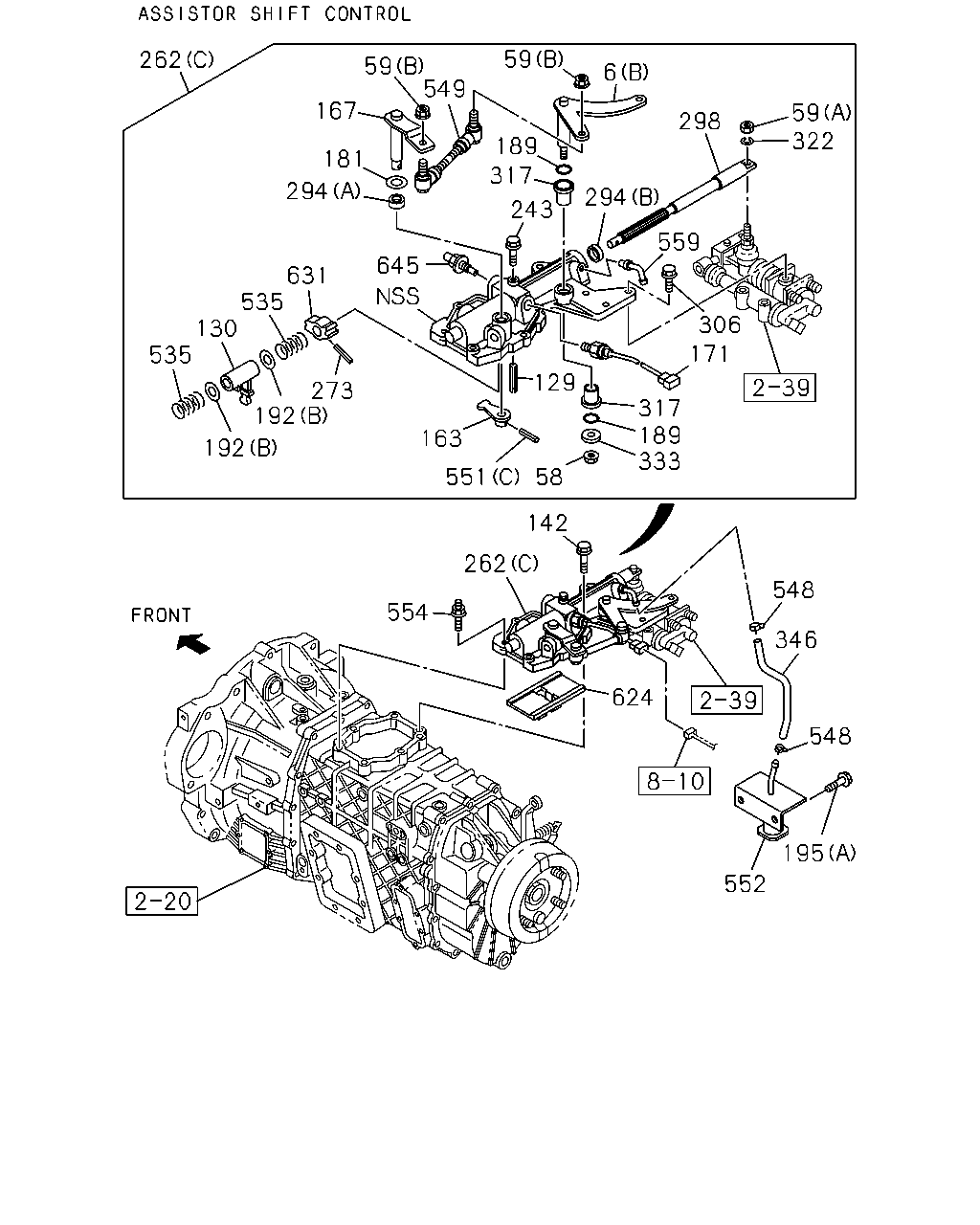

262 167 59 59 6 298 59 322 559 294 317 189 181 294 631 645 535 130 535 192 192 273 163 129 317 171 306 189 333 548 346 548 195 552 624 554 262 551 58 142 243 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-		●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1302-	●	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-	●	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X22 FLANGE	8-97365-376-0	04	1	1302-1405		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1406-	●	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-	●	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1302-	●	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-	●	●
195	BOLT (A) M10X20 FLANGE	0-28751-020-0	02	1	1302-	●
195	BOLT (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1302-	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1302-	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-563-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98211-654-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98044-144-5	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-997-1	01	1	1401-1507	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-482-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98170-719-1	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-990-1	01	1	1401-1506	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98315-825-1	01	1	1507-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR	8-98132-721-0	01	1	1302-	●
535	SPRING; LEVER	8-97385-713-0	02	1	1302-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE ID=8	8-94107-762-0	02	1	1302-	●
549	ROD; LINK	8-98023-095-0	01	1	1302-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-	●	●
552	BRACKET	8-98132-718-0	01	1	1302-	●
554	STUD; CONT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-1405		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1406-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1302-1404	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1302-	●	●
645	DETENT ASM	8-98019-536-0	01	1	1302-	●	●

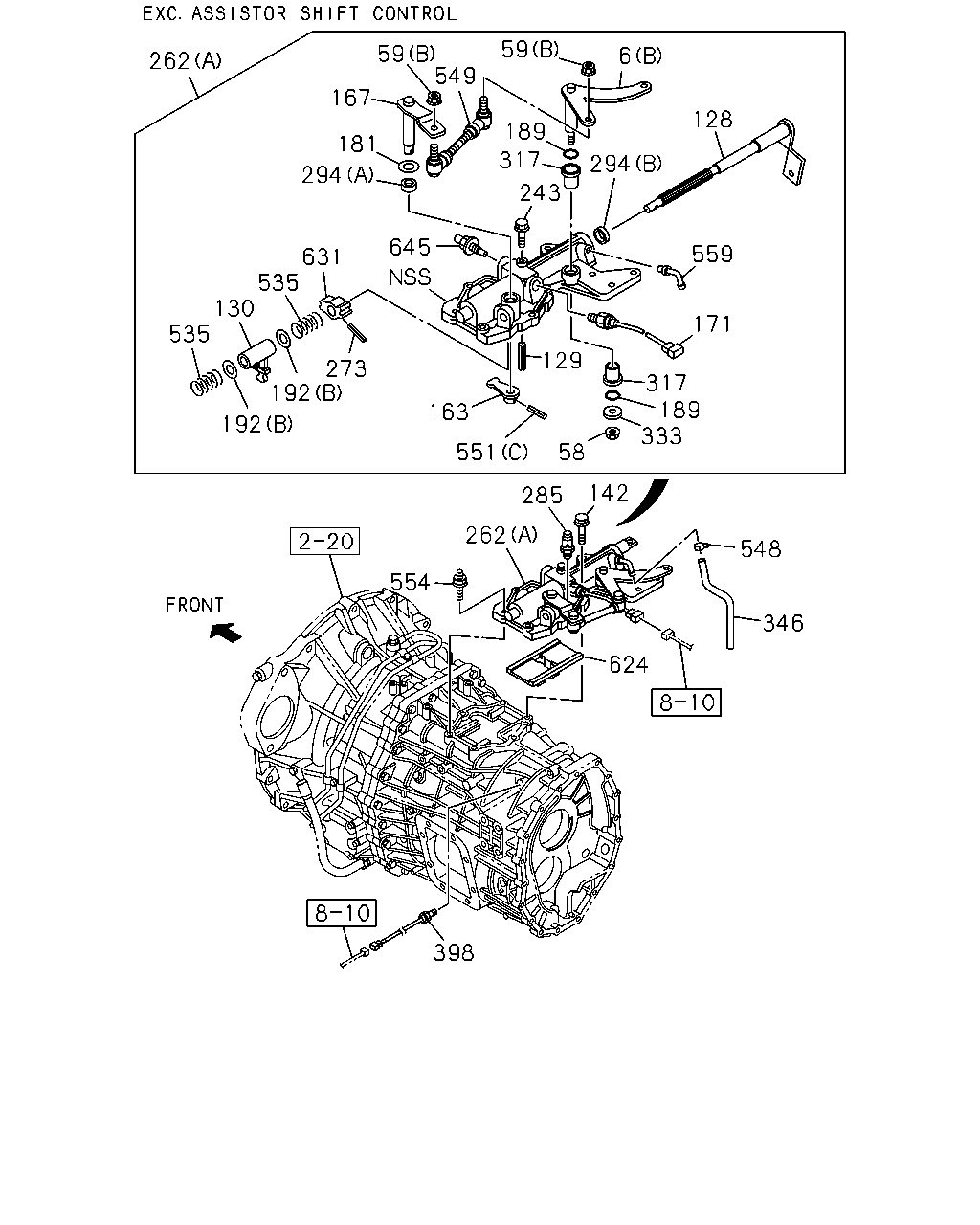

398 554 285 548 346 624 262 142 333 189 317 171 306 322 59 298 559 294 129 58 551 168 243 317 189 59 6 645 549 59 167 294 181 631 535 130 535 192 192 273 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-		●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1302-	●	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-	●	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X22 FLANGE	8-97365-376-0	04	1	1302-1405		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1406-	●	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1302-	●	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-	●	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1302-	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-563-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98211-654-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98044-144-5	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-997-1	01	1	1401-1507	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-482-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98170-719-1	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-990-1	01	1	1401-1506	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98315-825-1	01	1	1507-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1302-1507	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1302-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-	●	●
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1302-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR	8-98132-721-0	01	1	1302-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
535	SPRING; LEVER	8-97385-713-0	02	1	1302-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE ID=8	8-94107-762-0	02	1	1302-	●
549	ROD; LINK	8-98023-095-0	01	1	1302-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-	●	●
554	STUD; CONT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-1405		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1406-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1302-1404	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1302-	●	●
645	DETENT ASM	8-98019-536-0	01	1	1302-	●	●

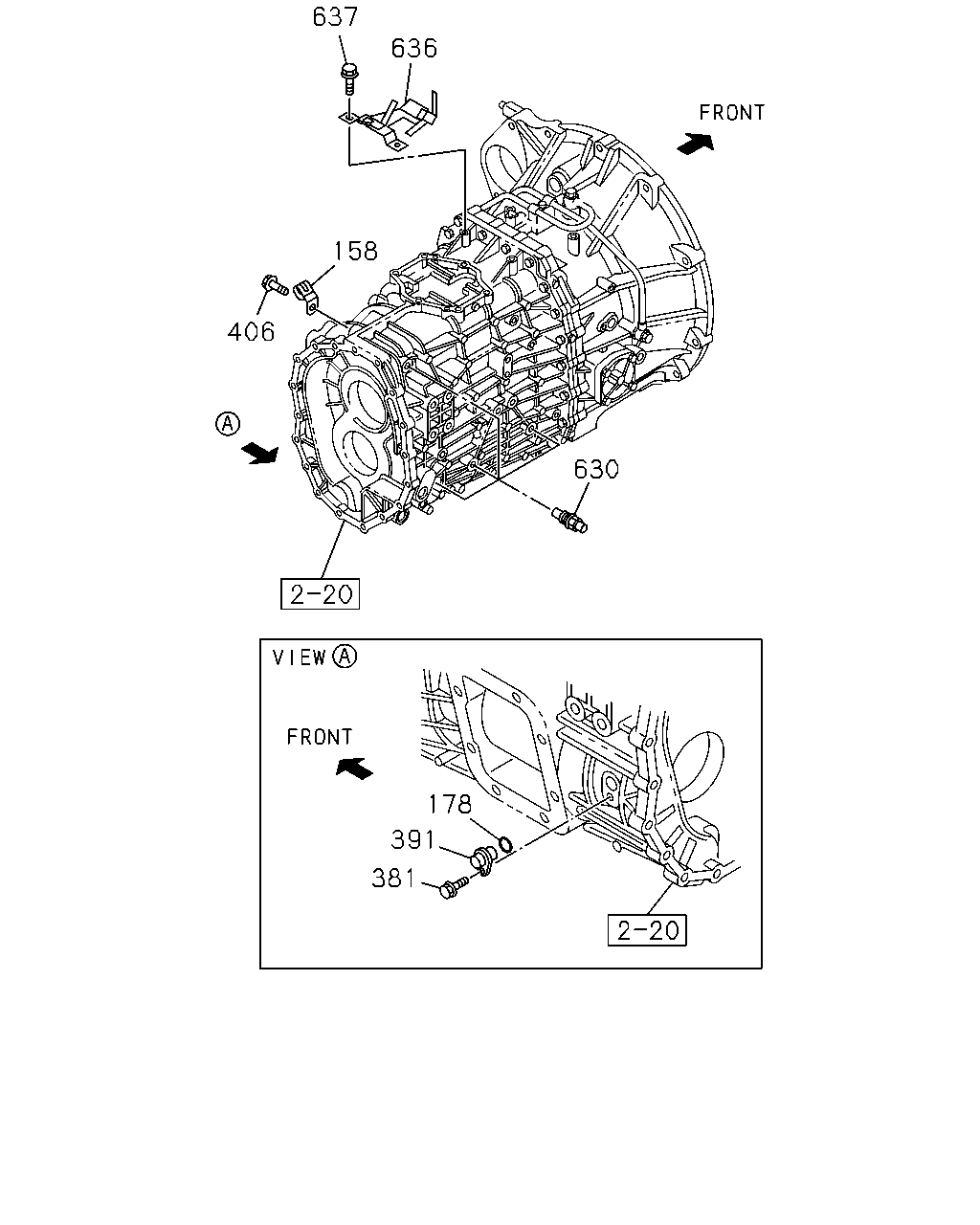

637 630 158 406 178 391 381 636

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1302-		●
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1302-	●	●
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1302-	●	●
391	PLUG; SW HOLE	8-97300-273-1	01	1	1302-	●	●
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
630	DETENT ASM	8-98019-536-0	04	1	1302-	●	●
636	BRACKET; CLIP	8-97610-092-1	01	1	1302-1502		●
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1302-1502		●

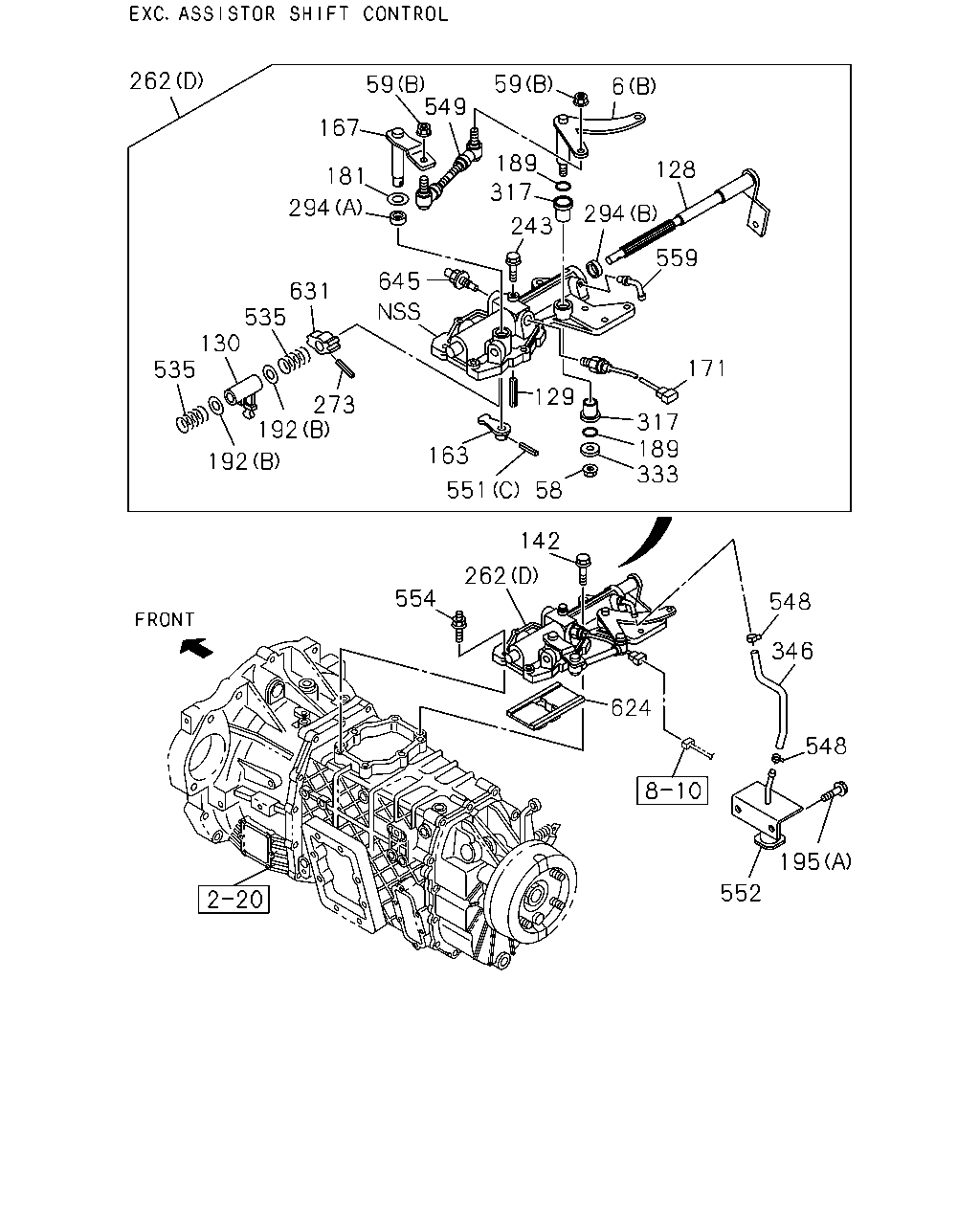

262 59 167 181 294 631 535 130 535 192 192 273 645 549 59 6 128 294 189 243 317 163 129 551 58 333 189 317 171 559 142 285 262 554 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-		●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1302-	●	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-	●	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507		●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-		●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98170-720-0	01	1	1302-1506	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98315-829-0	01	1	1507-	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X22 FLANGE	8-97365-376-0	04	1	1302-1405		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1406-	●	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-	●	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1302-	●	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-	●	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1302-	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-563-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98211-654-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98044-144-5	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-997-1	01	1	1401-1507	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-482-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98170-719-1	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-990-1	01	1	1401-1506	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98315-825-1	01	1	1507-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1302-1404		●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR	8-98132-721-0	01	1	1302-	●
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1302-1312	●	●
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-	●	●
535	SPRING; LEVER	8-97385-713-0	02	1	1302-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE ID=8	8-94107-762-0	02	1	1302-	●
549	ROD; LINK	8-98023-095-0	01	1	1302-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-	●	●
554	STUD; CONT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-1405		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1406-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1302-1404	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1302-	●	●
645	DETENT ASM	8-98019-536-0	01	1	1302-	●	●

262 59 59 6 167 549 181 189 294 317 128 294 243 645 631 535 130 535 273 192 192 163 129 551 317 171 559 189 58 142 262 554 624 548 346 548 195 552 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1302-		●
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1302-	●	●
58	NUT M10 FLANGE	0-91180-110-0	01	1	1302-	●	●
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1302-	●	●
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1302-	●	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1302-1507		●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-		●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98170-720-0	01	1	1302-1506	●
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98315-829-0	01	1	1507-	●
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1302-	●	●
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1302-	●	●
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X22 FLANGE	8-97365-376-0	04	1	1302-1405		●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1406-	●	●
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1302-	●	●
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1302-	●	●
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1302-1312	●	●
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509	●	●
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-	●	●
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1302-	●	●
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1302-	●	●
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1302-		●
192	WASHER; PL (B)	8-97305-661-0	02	1	1302-	●	●
195	BOLT (A) M10X20 FLANGE	0-28751-020-0	02	1	1302-	●
195	BOLT (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1302-	●
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1302-	●	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98207-563-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98249-038-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98240-998-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98276-158-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (B)	8-98305-333-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98211-654-0	01	1	1302-1306		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98249-037-0	01	1	1307-1312		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98240-991-0	01	1	1401-1404		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98276-157-1	01	1	1405-1507		●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98305-332-1	01	1	1508-		●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98044-144-5	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98240-997-1	01	1	1401-1507	●
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8> (C)	8-98305-482-1	01	1	1508-	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98170-719-1	01	1	1302-1312	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98240-990-1	01	1	1401-1506	●
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	8-98315-825-1	01	1	1507-	●
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1302-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1302-	●	●
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1302-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	1302-	●	●
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1302-	●	●
346	HOSE; AIR	8-97309-855-0	01	1	1405-		●
346	HOSE; AIR	8-98132-721-0	01	1	1302-	●
535	SPRING; LEVER	8-97385-713-0	02	1	1302-	●	●
548	CLIP; HOSE	8-97031-674-0	01	1	1405-		●
548	CLIP; HOSE ID=8	8-94107-762-0	02	1	1302-	●
549	ROD; LINK	8-98023-095-0	01	1	1302-	●	●
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1302-	●	●
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1302-	●	●
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1302-	●	●
552	BRACKET	8-98132-718-0	01	1	1302-	●
554	STUD; CONT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> M8X15,M8X25 L=49	8-97365-378-0	02	1	1302-1405		●
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1406-	●	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1302-1404	●
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-	●	●
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1302-	●	●
631	STOPPER; SPRING	8-98014-158-0	01	1	1302-	●	●
645	DETENT ASM	8-98019-536-0	01	1	1302-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
