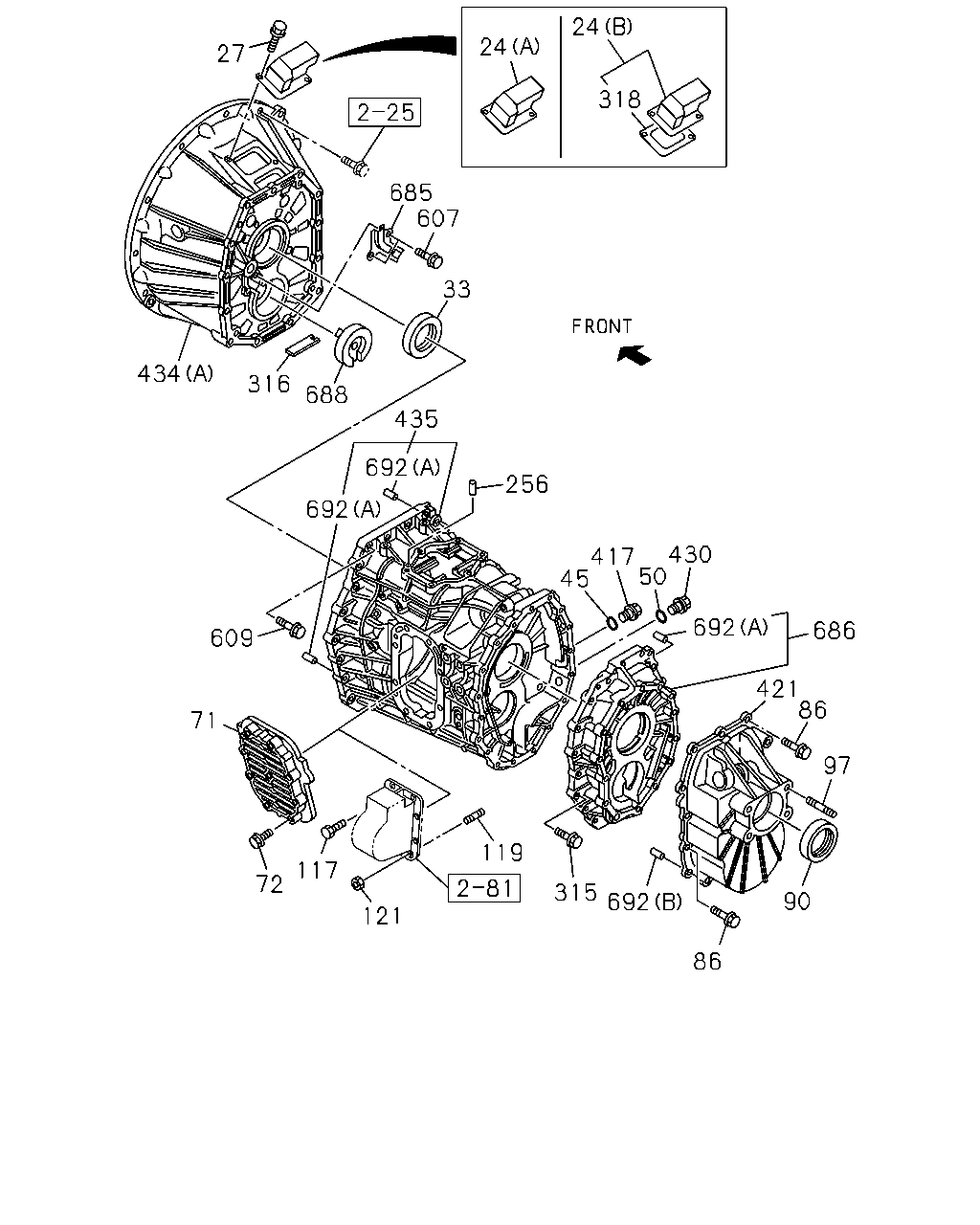

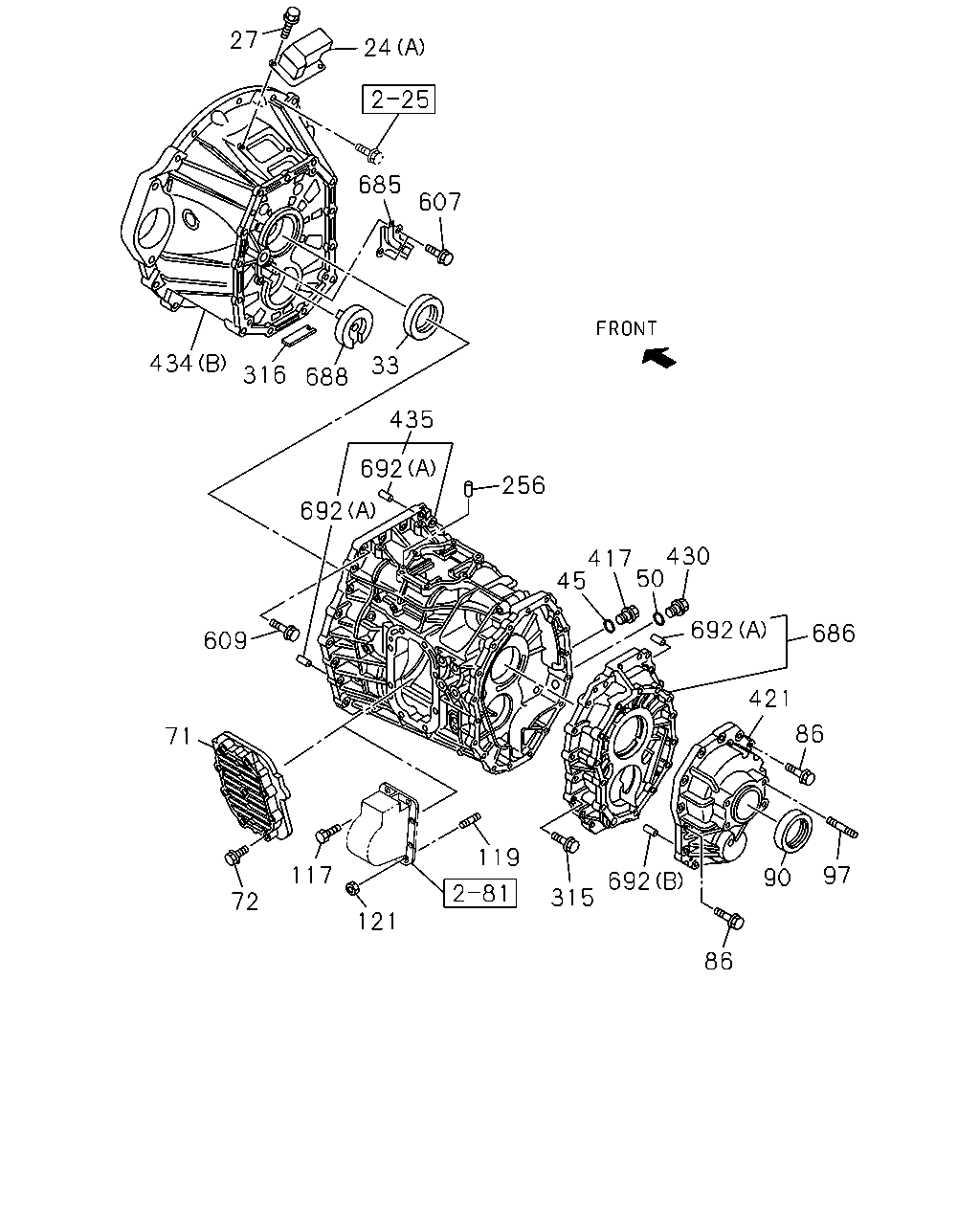

2-20 — MANUAL TRANSMISSION ASM AND CASE (#112490) — 108 parça

24 27 685 688 33 316 434 692 692 607 435 256 609 71 72 121 117 119 315 45 417 430 50 692 686 421 86 90 692 86 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) (B)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1302-1410
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1302-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. PTO CONTROL<SV6>	8-98122-318-0	01	1	1302-1408
71	COVER; SIDE,TRANS CASE EXC. PTO CONTROL<SV6>	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. PTO CONTROL<SV6> M10X50 FLANGE	1-09044-081-0	08	1	1302-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1302-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-
97	STUD; PARKING BRK EXC. PARKING BRAKE DRUM 10"(B1T) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
117	BOLT; PTO FIX PTO CONTROL<SV6> M10X40 FLANGE	0-28151-040-0	02	1	1302-
119	STUD; PTO FIX PTO CONTROL<SV6> M10X35 L=50	0-44011-035-0	06	1	1302-
121	NUT; PTO FIX PTO CONTROL<SV6> M10 FLANGE	0-91180-210-0	06	1	1302-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1302-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98051-477-0	01	1	1302-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	8-98004-790-1	01	1	1302-
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1302-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (B)	8-98004-507-2	01	1	1302-
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1302-
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-

86 90 97 86 421 686 692 430 50 417 45 692 315 119 121 117 72 71 609 692 692 435 256 688 33 607 685 27 434 316 24 24 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) (B)	8-98283-062-0	01	1	1411-
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	1302-1410
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) (A)	8-98284-107-0	01	1	1411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1302-1410
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1302-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1302-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. PTO CONTROL<SV6>	8-98122-318-0	01	1	1302-1408
71	COVER; SIDE,TRANS CASE EXC. PTO CONTROL<SV6>	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. PTO CONTROL<SV6> M10X50 FLANGE	1-09044-081-0	08	1	1302-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1302-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1302-
97	STUD; PARKING BRK EXC. PARKING BRAKE DRUM 10"(B1T) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1302-
117	BOLT; PTO FIX PTO CONTROL<SV6> M10X40 FLANGE	0-28151-040-0	02	1	1302-
119	STUD; PTO FIX PTO CONTROL<SV6> M10X35 L=50	0-44011-035-0	06	1	1302-
121	NUT; PTO FIX PTO CONTROL<SV6> M10 FLANGE	0-91180-210-0	06	1	1302-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1302-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1302-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1302-
318	GASKET; COVER 6HK1-TCN ENG(82L)	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1302-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>	8-98051-477-0	01	1	1302-
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4>	8-98004-790-1	01	1	1302-
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1302-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1302-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (B)	8-98004-507-2	01	1	1302-
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1302-
435	CASE; TRANS	8-98186-449-0	01	1	1302-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	1302-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1302-
685	COVER; OIL PORT	8-98018-864-1	01	1	1302-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1302-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1302-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1302-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1302-

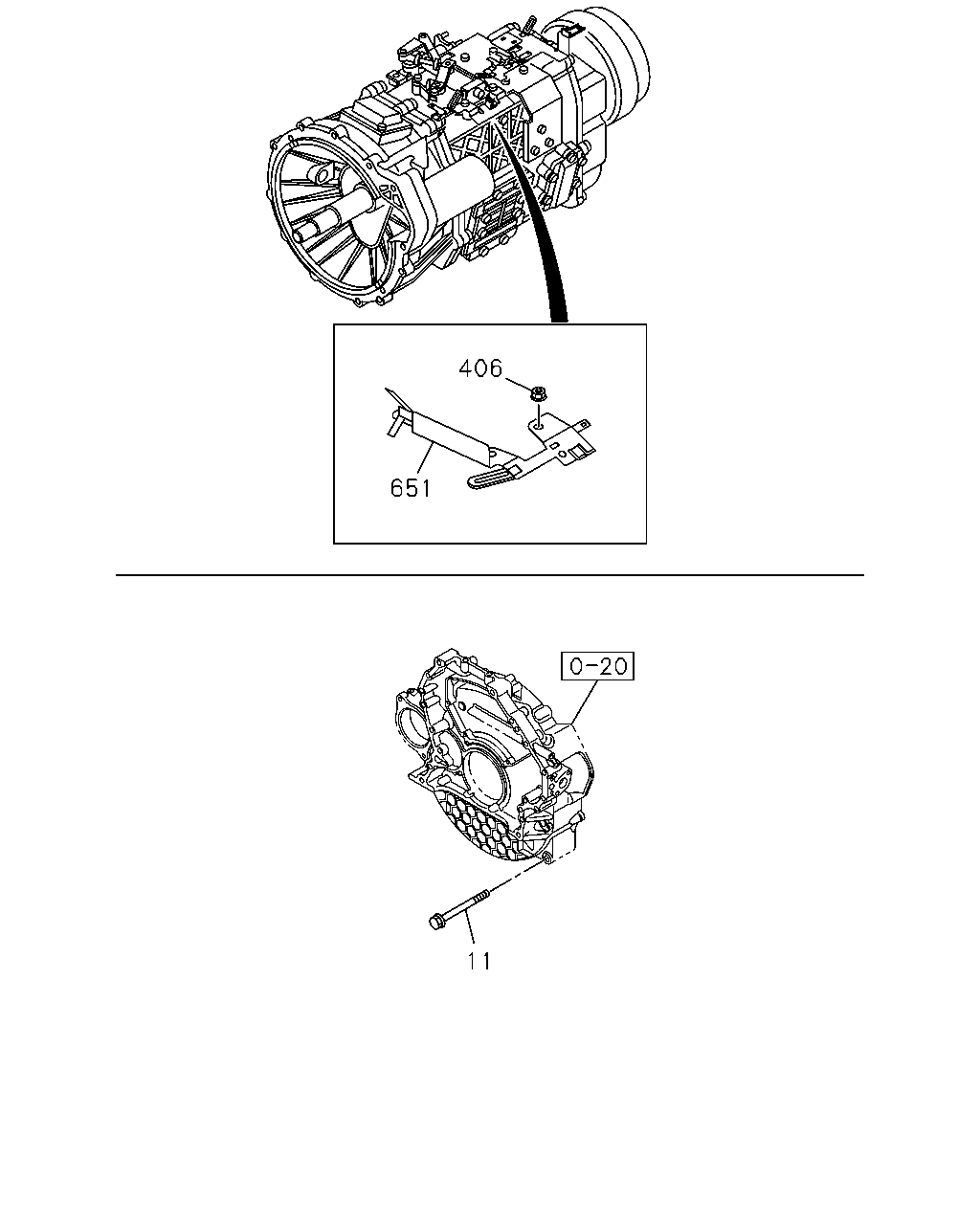

11 651 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	01	1	1302-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1302-1405
406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1406-
651	BRACKET; T/M HARNESS	8-97609-800-3	01	1	1302-1405
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1406-

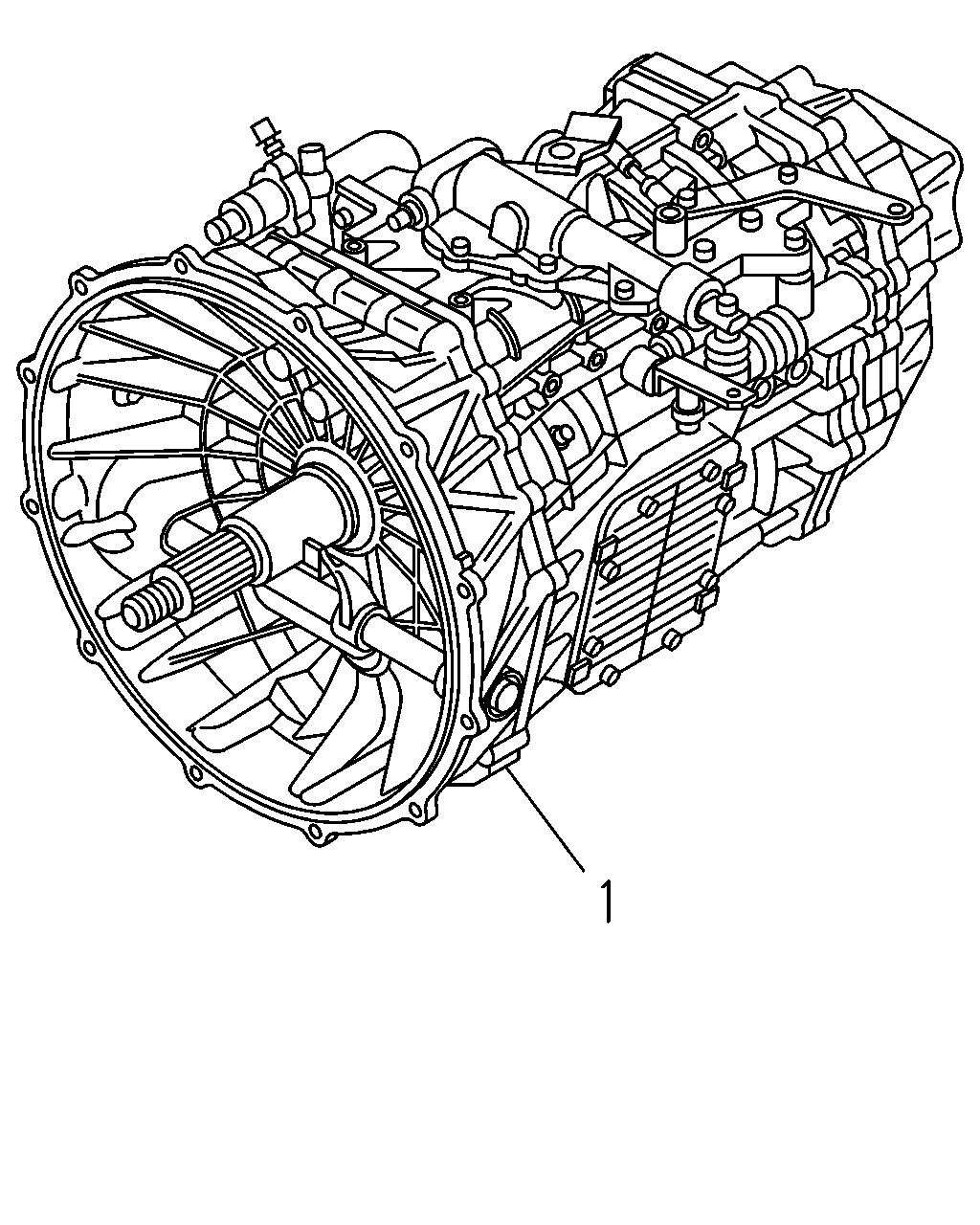

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	8-98134-578-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	8-98134-578-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	8-98134-586-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98206-046-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EURO4 SPECIFICATION<NT4> 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>	8-98206-046-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EURO4 SPECIFICATION<NT4> TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98206-048-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) EURO4 SPECIFICATION<NT4> 14" CLUTCH(WF6) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98206-048-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	8-98134-518-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	8-98134-518-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	8-98134-510-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	8-98134-510-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PTO CONTROL<SV6>	8-98134-520-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1302-
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1302-
