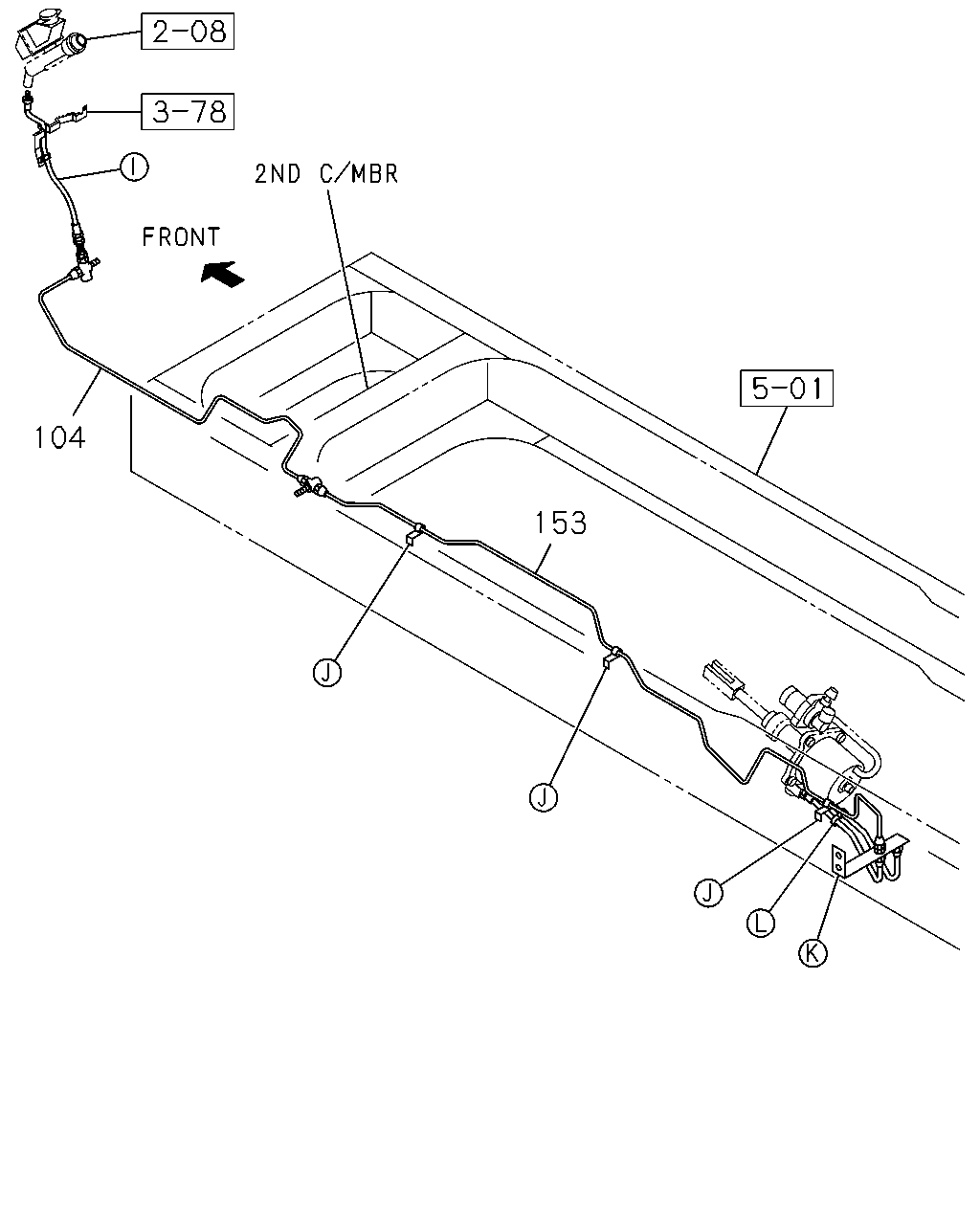

2-05 — CLUTCH PIPING (#112484) — 112 parça

47 47 131 153 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1302-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-

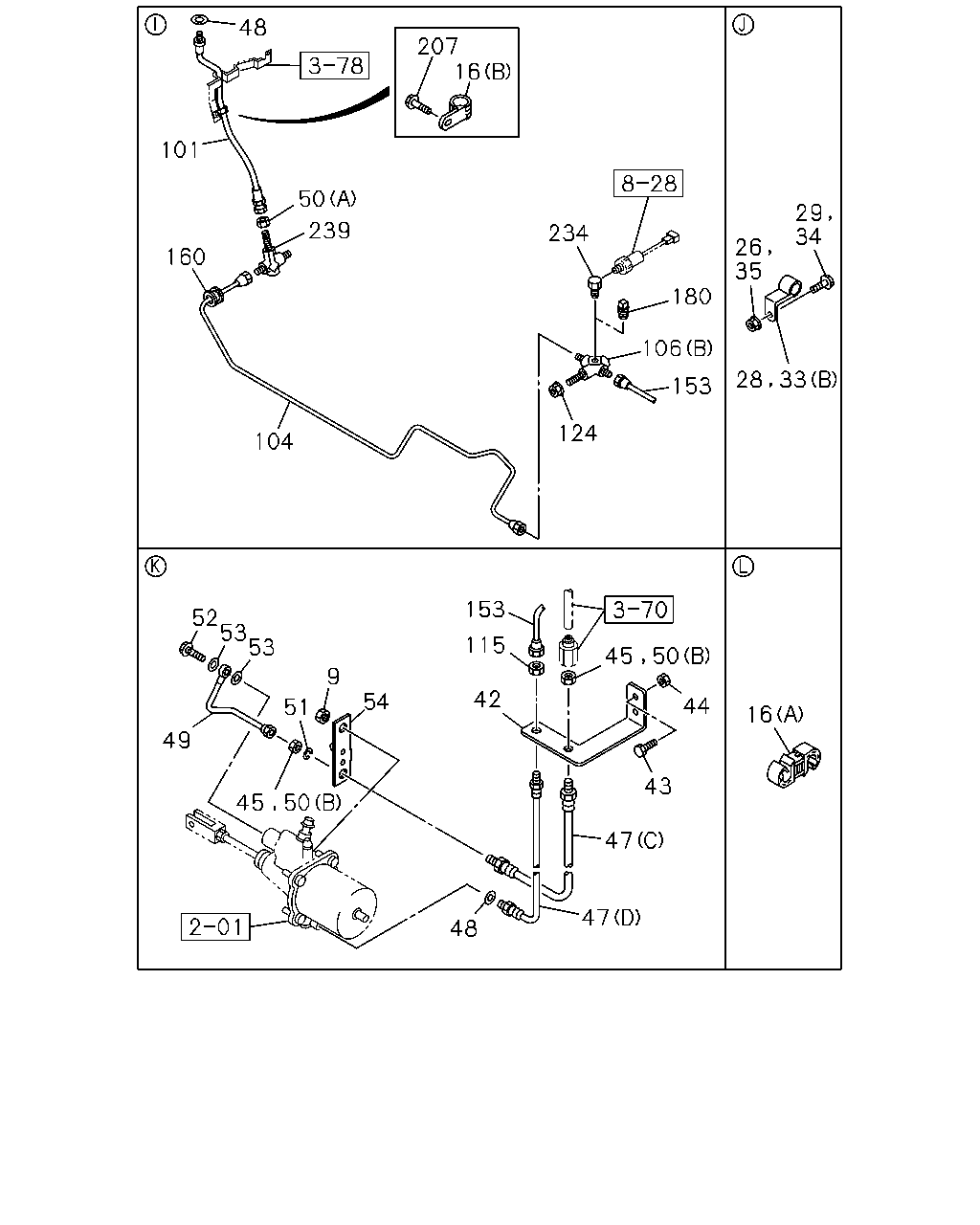

48 101 239 160 104 106 109 124 180 234 50 153 115 45 50 44 43 42 47 47 131 16 29 28 26 106 33 34 33 35 52 53 49 53 45 50 51 47 48 47 207 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (B) ID=18 L=28	1-09701-067-0	01	1	1302-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (A) ID=10 & 12	1-09709-278-1	01	1	1302-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1302-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1302-
29	BOLT; CLIP,OIL PIPE FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1302-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1302-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1302-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1302-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1302-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1302-
45	NUT; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> M12	9-09840-280-0	01	1	1302-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1302-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1302-
50	NUT; UNION (A) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION (B) M12	9-09840-280-0	01	1	1302-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1302-
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=719 SERVICED BY L=730	1-47428-758-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1302-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-
207	BOLT; CLIP MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1302-
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	1302-

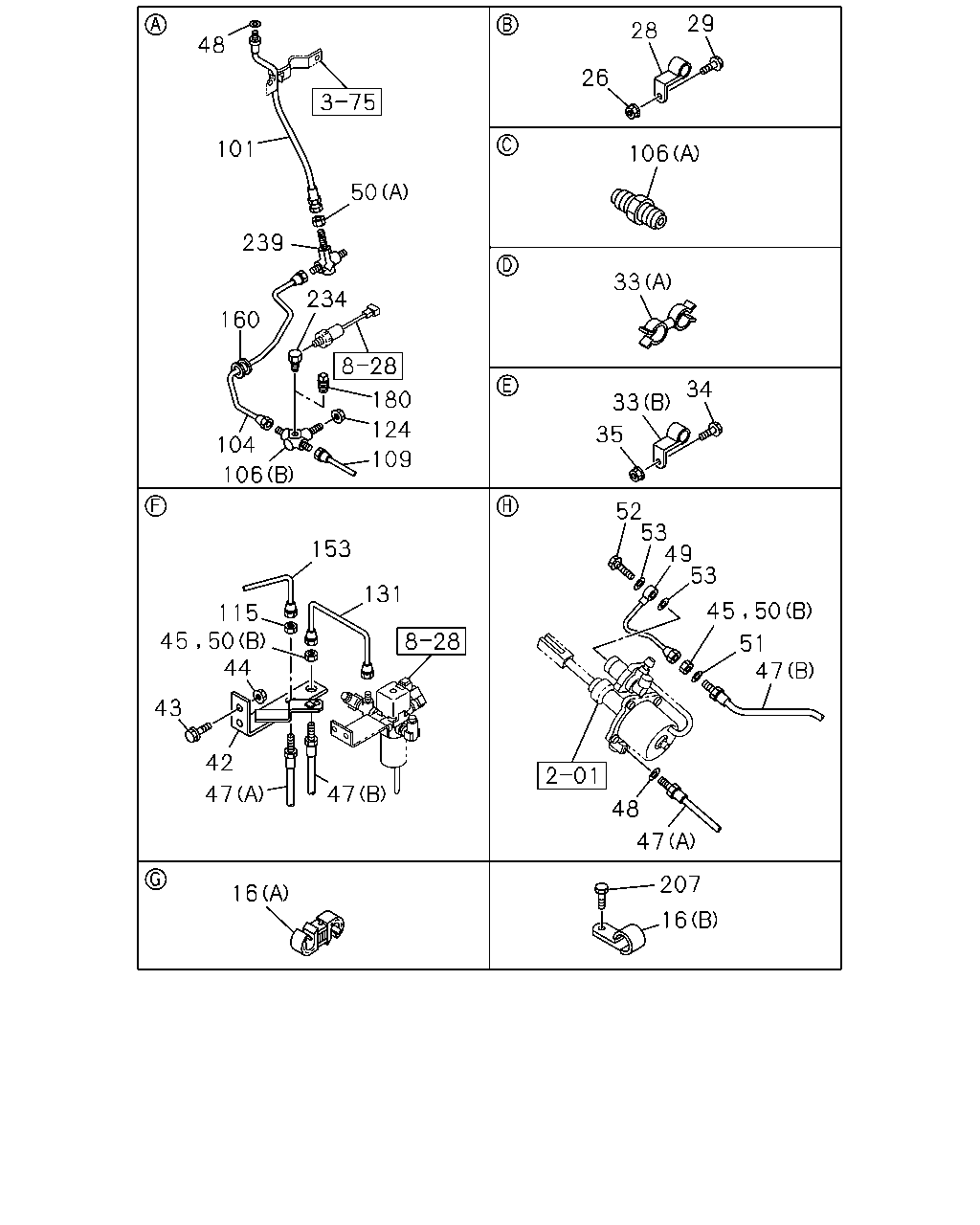

47 47 43 44 16 45 50 115 153 54 51 53 53 52 49 45 50 9 104 160 239 50 101 48 207 234 124 153 106 180 35 26 34 29 28 33 16 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER ES11109 DD M/T(Y5N) M10 FLANGE	0-91180-210-0	02	1	1302-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (B) ID=18 L=28	1-09701-067-0	01	1	1302-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> (A) ID=10 & 12	1-09709-278-1	01	1	1302-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1302-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	1302-
29	BOLT; CLIP,OIL PIPE FULLER ES11109 DD M/T(Y5N) M8X25 FLANGE	0-28650-825-0	01	1	1302-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1302-
33	CLIP; OIL PIPE FULLER ES11109 DD M/T(Y5N) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1302-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1302-
34	BOLT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8X30 FLANGE	0-28650-830-0	05	1	1302-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1302-
35	NUT; PIPE CLIP FULLER ES11109 DD M/T(Y5N) M8 FLANGE	0-91180-108-0	05	1	1302-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT FULLER ES11109 DD M/T(Y5N)	8-98100-603-0	01	1	1302-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1302-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1302-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1302-
45	NUT; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> M12	9-09840-280-0	01	1	1302-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (C) L=390	1-09363-629-0	01	1	1302-
47	HOSE; FLEX,CLU CONT FULLER ES11109 DD M/T(Y5N) (D) L=370	1-09364-646-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	1302-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER ES11109 DD M/T(Y5N)	1-49124-974-0	01	1	1302-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1302-
50	NUT; UNION (A) M12	0-91111-512-0	01	1	1302-
50	NUT; UNION (B) M12	9-09840-280-0	01	1	1302-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1302-
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1302-
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1302-1312
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
54	BRACKET; AIR,FLEX HOSE FULLER ES11109 DD M/T(Y5N)	8-98081-247-0	01	1	1302-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=480	8-98072-349-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1302-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1302-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1302-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1302-
207	BOLT; CLIP MANUAL TRANSMISSION<X9C> M8X20 FLANGE	0-28650-820-0	01	1	1302-
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1302-
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	1302-

104 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER ES11109 DD M/T(Y5N) L=1225 SERVICED BY L=1250	1-47428-764-0	01	1	1302-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=512 SERVICED BY L=550	1-47428-753-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX FULLER ES11109 DD M/T(Y5N) L=2743	8-98152-245-0	01	1	1302-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1302-
