2-05 — CLUTCH PIPING (#112483) — 52 parça
çizim 330906
47 131 47 153 109
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (B) L=280 		1-09363-610-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98130-713-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1302-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1302-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1302-

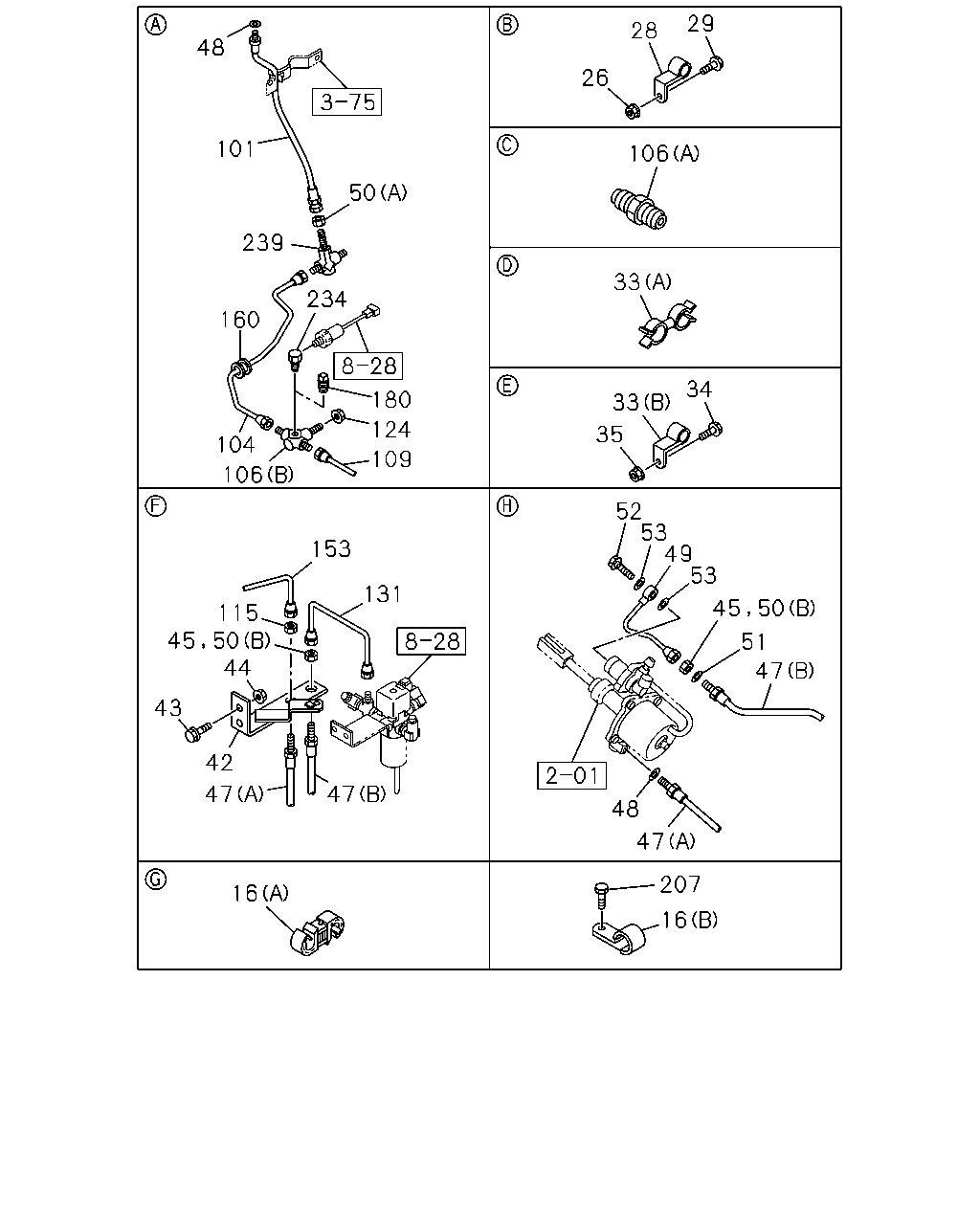

çizim 331318
29 28 26 106 33 33 34 47 51 52 53 49 53 45 50 48 47 207 16 16 47 131 153 115 45 50 44 43 42 47 109 124 180 234 160 104 106 239 50 101 48 35
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MANUAL TRANSMISSION<X9C> (B) ID=18 L=28 		1-09701-067-0 01 1 1302-
16 CLIP; FLEX HOSE
MANUAL TRANSMISSION<X9C> (A) ID=10 & 12 		1-09709-278-1 01 1 1302-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1302-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 01 1 1302-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1302-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1302-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1302-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1302-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1302-
42 BRACKET; FLEX HOSE,CLU CONT
ZF6S1000 M/T(Y5D) 		8-98185-051-0 01 1 1302-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) 		8-98099-521-1 01 1 1302-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
MANUAL TRANSMISSION<X9C> M8X30 FLANGE 		0-28650-830-0 02 1 1302-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
MANUAL TRANSMISSION<X9C> M8 FLANGE 		0-91180-108-0 02 1 1302-
45 NUT; FLEX HOSE,CLU CONT
MANUAL TRANSMISSION<X9C> M12 		9-09840-280-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (B) L=280 		1-09363-610-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF6S1000 M/T(Y5D) (A) L=520 		8-98130-713-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (B) L=500 		1-09363-720-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ZF9S1110 M/T(Y5E) (A) L=500 		1-09364-329-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1302-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) L=232 		1-49124-795-0 01 1 1302-
50 NUT; UNION
(A) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
ZF9S1110 M/T(Y5E) (B) M12 		9-09840-280-0 01 1 1302-
51 WASHER; LK
ZF9S1110 M/T(Y5E) ID=12.2 		0-91510-812-0 01 1 1302-
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 1302-
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1302-1312
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=512 SERVICED BY L=550 		1-47428-753-0 01 1 1302-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1302-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1302-
109 PIPE; AIR,UNION TO UNION
L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1302-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1302-
124 NUT; PIPE UNION
MANUAL TRANSMISSION<X9C> M12 		0-91111-512-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1302-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1302-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1302-
160 GROMMET; OIL PIPE
MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1302-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1302-
207 BOLT; CLIP
MANUAL TRANSMISSION<X9C> M8X20 FLANGE 		0-28650-820-0 01 1 1302-
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1302-
239 UNION; CLU HOSE
M12 & M14 2WAY 		1-09654-141-2 01 1 1302-
