2-05 — CLUTCH PIPING (#112482) — 30 parça

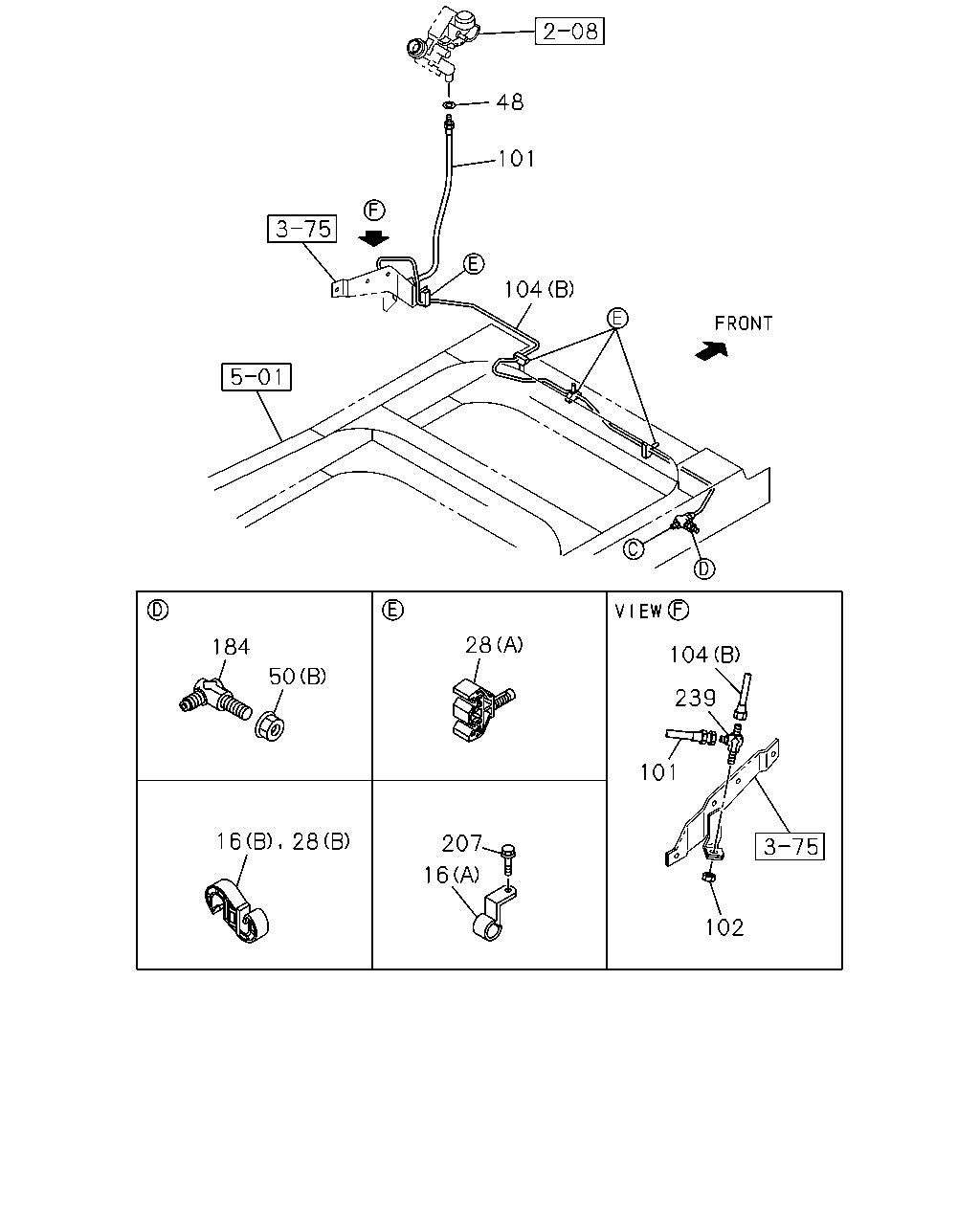

çizim 326985
48 101 104 102 10 239 104 28 207 16 28 16 50 184
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(A) ID=18 L=28 		1-09701-067-0 01 1 1302-
16 CLIP; FLEX HOSE
(A) ID=15 L=22 H=30 		1-09701-215-1 01 1 1302-
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 1302-
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 1302-
28 CLIP; OIL PIPE
(A) 		8-98012-254-1 05 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1302-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=510 		8-98059-811-0 01 1 1302-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2054 		8-98216-627-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1554 		8-98217-177-0 01 1 1302-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1302-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1302-
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1302-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1302-

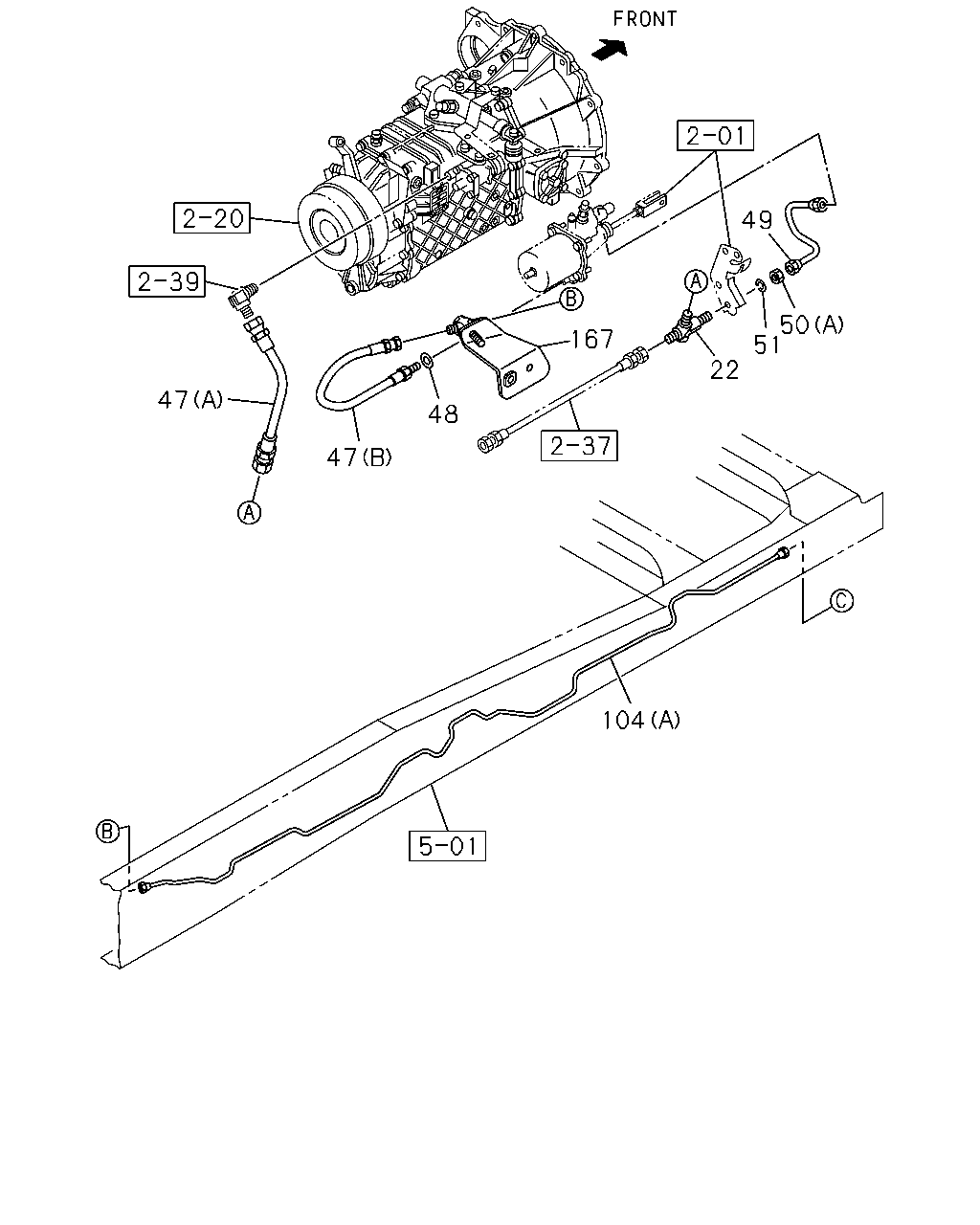

çizim 327162
47 47 48 167 49 50 51 22 104
BalonParca AdiParca NoAdetTipApplied Date
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=620 		1-09363-705-0 01 1 1302-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=700 		1-09363-718-0 01 1 1302-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1302-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1302-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1302-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2054 		8-98216-627-0 01 1 1302-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1554 		8-98217-177-0 01 1 1302-
167 BRACKET; UNION 8-98115-978-1 01 1 1302-
