2-01B — CLUTCH (#112477) — 66 parça

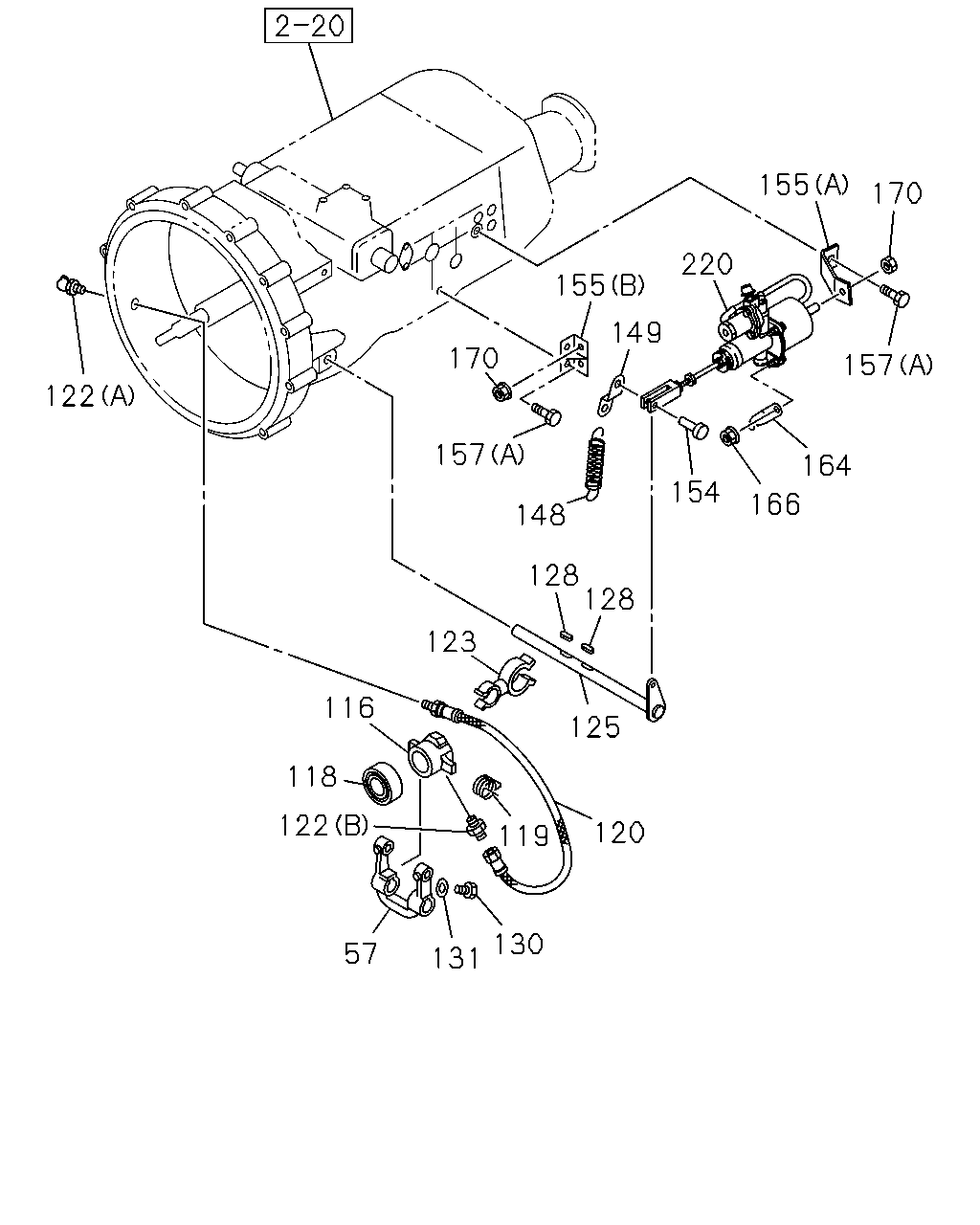

122 170 155 220 155 170 157 164 166 154 157 148 128 128 123 125 116 118 122 57 119 120 130 131 149

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	1302-
116	BLOCK; SHIFT,CLU	1-31321-086-1	01	1	1302-
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	1302-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	1302-
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	1302-
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	1302-
120	HOSE; FLEX,SHIFT BLOCK,CLU L=360	1-09364-881-0	01	1	1302-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 ELBOW	0-90301-610-0	01	1	1302-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	1302-
123	CLIP; FLEX HOSE,SHIFT BLOCK	8-97010-484-0	01	1	1302-
125	SHAFT; CLU	1-31342-336-0	01	1	1302-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1302-
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	1302-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1302-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1302-
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	1302-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1302-
155	BRACKET; MINIPACK (B)	1-31429-472-1	01	1	1302-
155	BRACKET; MINIPACK (A)	1-31429-473-0	01	1	1302-
157	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	03	1	1302-
164	EYE; SPRING	1-31426-050-0	01	1	1302-
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	01	1	1302-
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	1302-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1302-

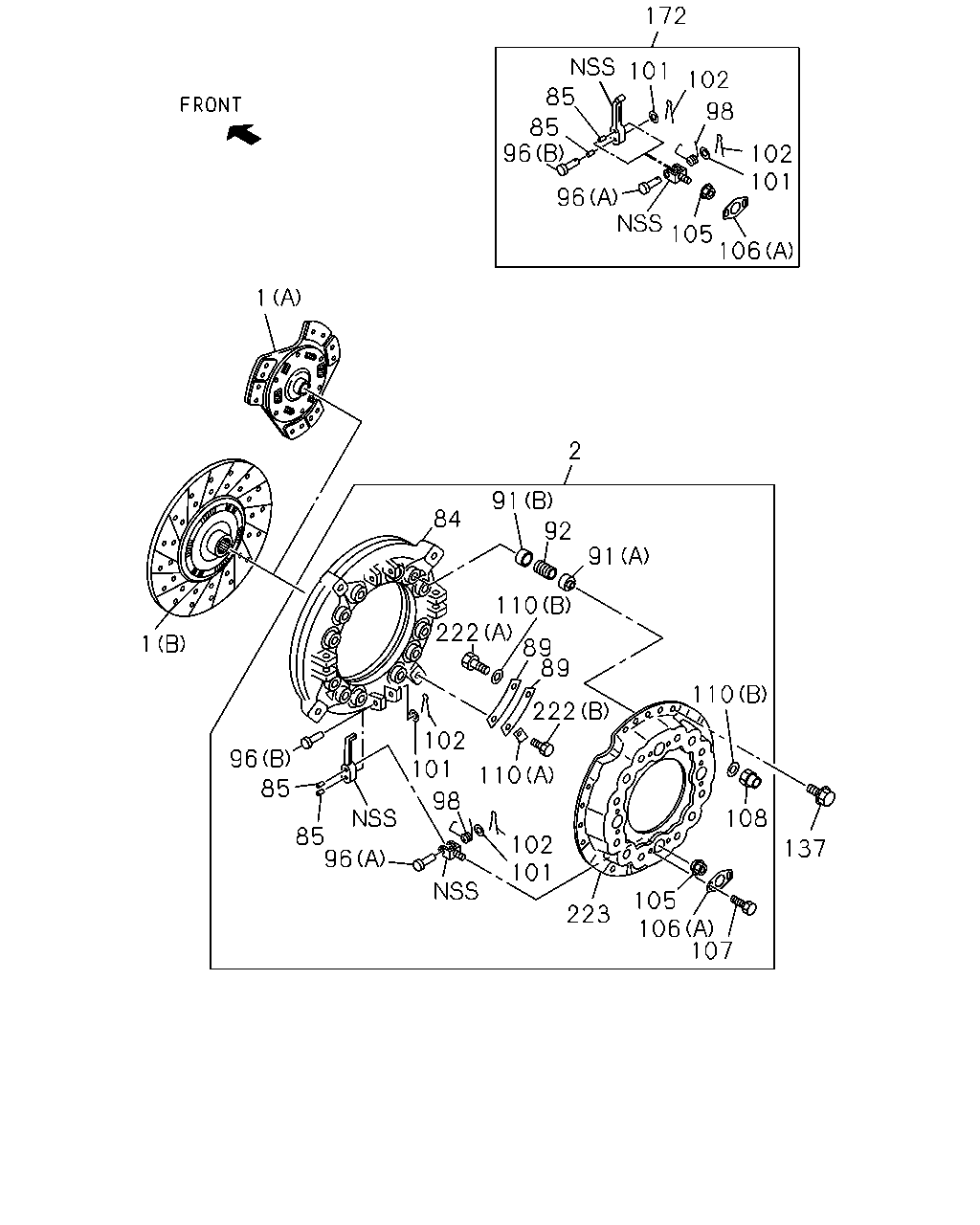

172 85 85 96 96 105 102 101 101 106 102 98 1 1 2 84 92 91 91 110 222 96 89 89 110 222 102 85 85 96 101 110 98 102 101 108 223 106 107 105 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH EURO5 SPECIFICATION<NT5> (B) BEST VALUE PARTS	1-87610-119-0	01	1	1506-
1	DISC; CLUTCH EURO4 SPECIFICATION<NT4> PERU EQUIPMENT(E07) (B) 15"	1-31240-977-2	01	1	1601-
1	DISC; CLUTCH EURO4 SPECIFICATION<NT4> PERU EQUIPMENT(E07) (B) BEST VALUE PARTS	1-87610-143-0	01	1	1601-
1	DISC; CLUTCH EURO5 SPECIFICATION<NT5> (B) 15"	1-31240-851-2	01	1	1506-
1	DISC; CLUTCH EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) 15"	1-31240-972-1	01	1	1302-1512
1	DISC; CLUTCH EURO2 SPECIFICATION<NT2> (B) 15"	1-31240-972-1	01	1	1601-
1	DISC; CLUTCH EURO4 SPECIFICATION<NT4> EXC. PERU EQUIPMENT(E07) (B) 15"	1-31240-972-1	01	1	1601-
1	DISC; CLUTCH EURO3 SPECIFICATION<NT3> (A) 15"	1-31240-977-2	01	1	1302-1511
1	DISC; CLUTCH EURO3 SPECIFICATION<NT3> (A) BEST VALUE PARTS	1-87610-143-0	01	1	1411-1511
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCS ENG(80L)	1-31220-380-2	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L)	1-31220-377-2	01	1	1506-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCS ENG(80L) BEST VALUE PARTS	1-87610-145-0	01	1	1302-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) BEST VALUE PARTS	1-87610-146-0	01	1	1506-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1302-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1302-
89	PLATE; STRAP	1-31229-050-0	16	1	1302-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1302-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1302-
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1302-
92	SPRING; CLU 6HK1-TCS ENG(80L)	1-31214-053-0	12	1	1302-
92	SPRING; CLU 6HK1-TCC ENG(81L)	1-31214-066-0	12	1	1506-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1302-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1302-
98	SPRING; RETURN	1-31233-003-0	04	1	1302-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1302-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1302-
105	NUT; SUPPORT	1-31235-014-0	04	1	1302-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1302-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1302-
108	NUT; STRAP	1-09449-036-0	04	1	1302-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1302-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1302-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1302-
172	LEVER KIT; RELEASE,CLU 6HK1-TCN ENG(82L)	1-87831-170-1	01	1	1302-1505
172	LEVER KIT; RELEASE,CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	1-87831-170-1	01	1	1506-
172	LEVER KIT; RELEASE,CLU 6HK1-TCS ENG(80L)	1-87831-172-1	01	1	1302-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1302-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1302-
223	COVER; CLU	1-31211-019-1	01	1	1302-
