Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11521 - FVZ(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

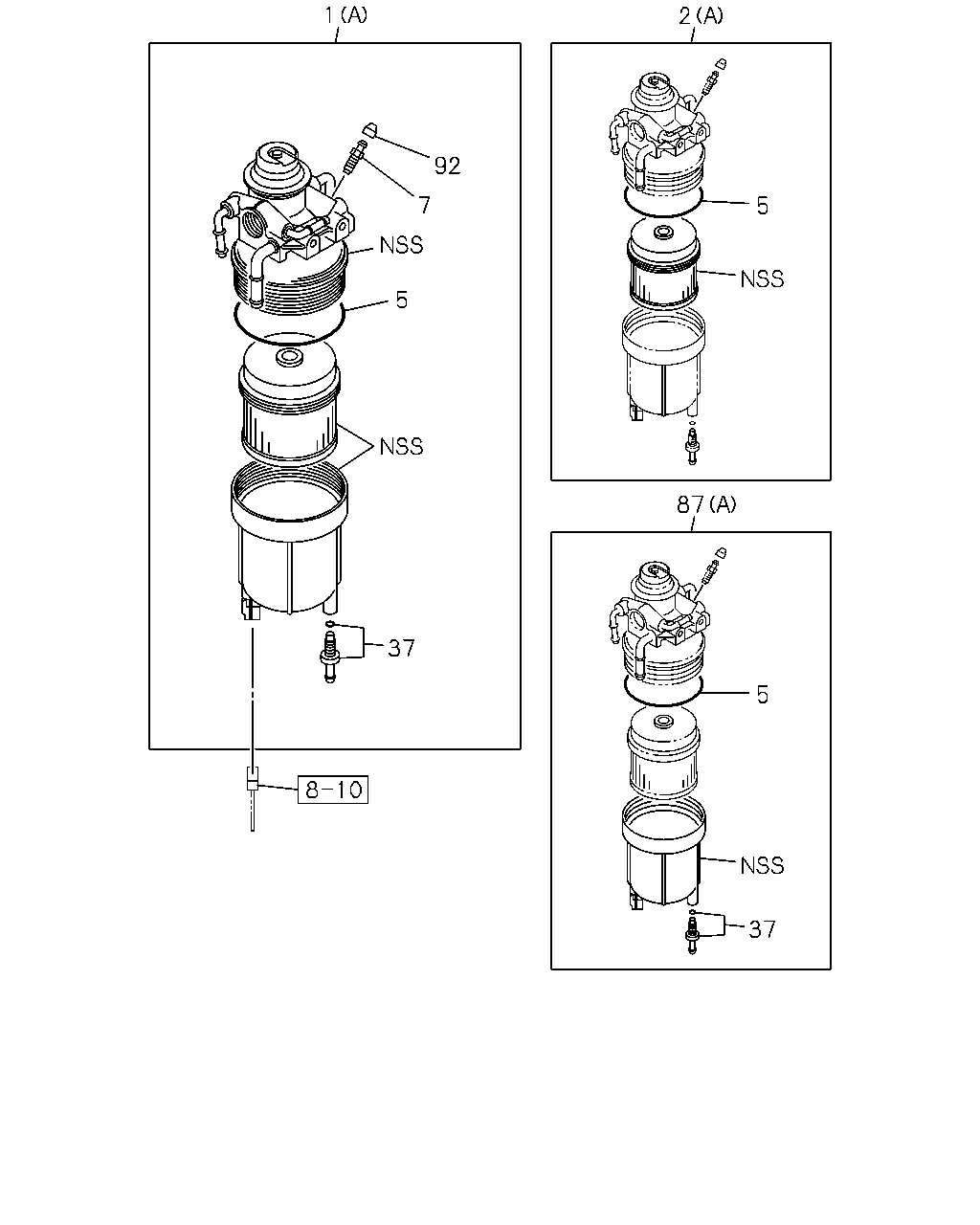

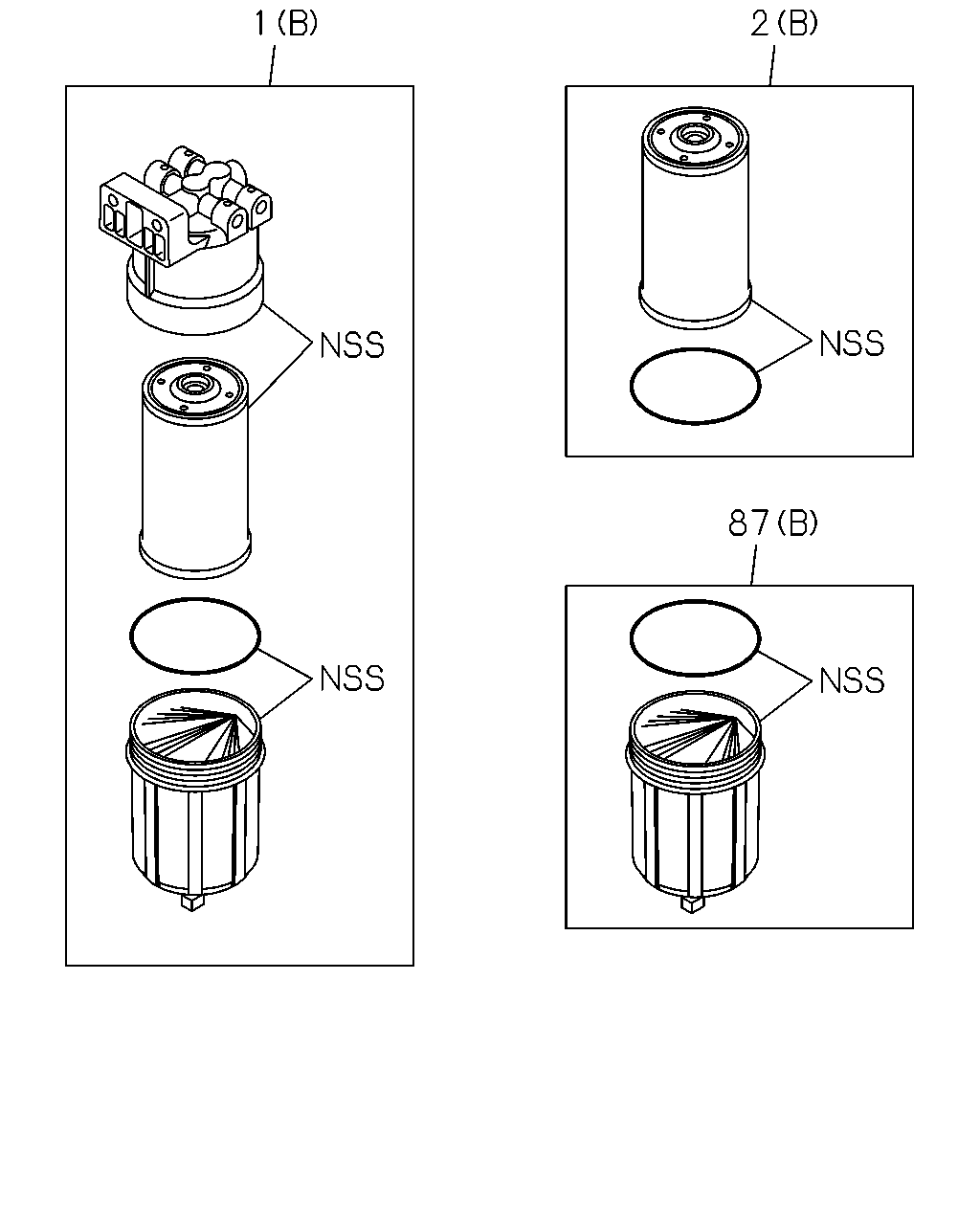

1-45 - WATER SEDIMENTER; FUEL
▶
1-45 — WATER SEDIMENTER; FUEL
(#112475) — 20 parça
◀
[145A] NO.1 (12 parça)
[145A] NO.2 (8 parça)
▶
1
92
7
5
37
2
5
87
5
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SEDIMENTER; FUEL
(B)
8-98086-193-1
01
1
1302-
1
SEDIMENTER; FUEL
(A)
8-98162-904-4
01
1
1302-
2
ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS
1-87610-093-0
01
1
1302-
2
ELEMENT; FUEL FILTER
(B) BEST VALUE PARTS
1-87610-094-0
01
1
1302-
2
ELEMENT; FUEL FILTER
(B)
8-98092-481-1
01
1
1302-
2
ELEMENT; FUEL FILTER
(A)
8-98203-599-0
01
1
1302-
5
GASKET; UPR COVER,SEDIMENTER
8-98203-600-0
01
1
1302-
7
PLUG; DRAIN,SEDIMENTER
M8X10
8-98034-312-0
01
1
1302-
37
PLUG; SENSOR
8-98037-095-0
01
1
1302-
87
CASE ASM; SEDIMENTER
(A)
8-98039-987-1
01
1
1302-
87
CASE ASM; SEDIMENTER
(B)
8-98092-482-1
01
1
1302-
92
CAP; DRAIN
8-98034-314-0
01
1
1302-
87
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SEDIMENTER; FUEL
(B)
8-98086-193-1
01
1
1302-
1
SEDIMENTER; FUEL
(A)
8-98162-904-4
01
1
1302-
2
ELEMENT; FUEL FILTER
(A) BEST VALUE PARTS
1-87610-093-0
01
1
1302-
2
ELEMENT; FUEL FILTER
(B) BEST VALUE PARTS
1-87610-094-0
01
1
1302-
2
ELEMENT; FUEL FILTER
(B)
8-98092-481-1
01
1
1302-
2
ELEMENT; FUEL FILTER
(A)
8-98203-599-0
01
1
1302-
87
CASE ASM; SEDIMENTER
(A)
8-98039-987-1
01
1
1302-
87
CASE ASM; SEDIMENTER
(B)
8-98092-482-1
01
1
1302-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
