Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#112469) — 389 parça

304 279 228 39 41 65 29 39 41 345 345 303 304 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3900MM(39W)	8-98136-381-0	01	1	1302-

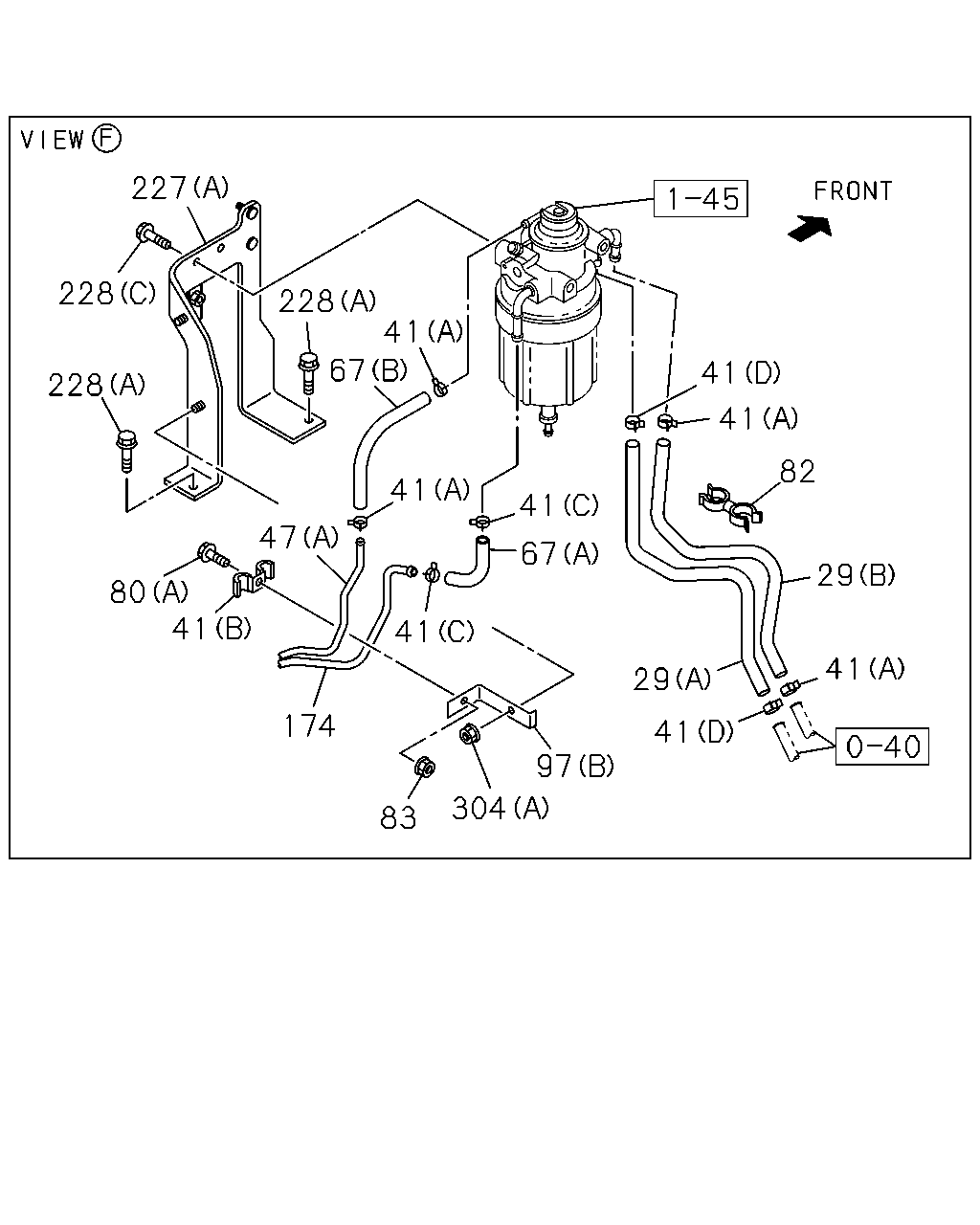

227 228 228 80 174 83 304 97 29 41 41 29 82 41 41 67 41 41 41 41 47 67 41 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (B)	8-98213-750-0	01	1	1305-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG(82L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C)	8-98206-489-0	01	1	1305-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D)	8-98208-821-0	01	1	1305-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
82	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) ID=13 & 16.5	8-94169-028-0	01	1	1302-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D)	1-47475-427-1	01	1	1305-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L) L=685	8-98129-920-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS) (B)	8-98203-480-0	01	1	1305-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-

279 228 345 345 304 39 41 65 39 41 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

47 634 174 65 29 29 41 634 41 83 41 304 47 174 41 634 65 41 303 97 41 55 97 41 80 41 80 83 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (B)	8-98213-750-0	01	1	1305-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1305-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D)	1-47475-427-1	01	1	1305-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L) L=685	8-98129-920-0	01	1	1302-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) L=810	8-98186-973-0	01	1	1302-

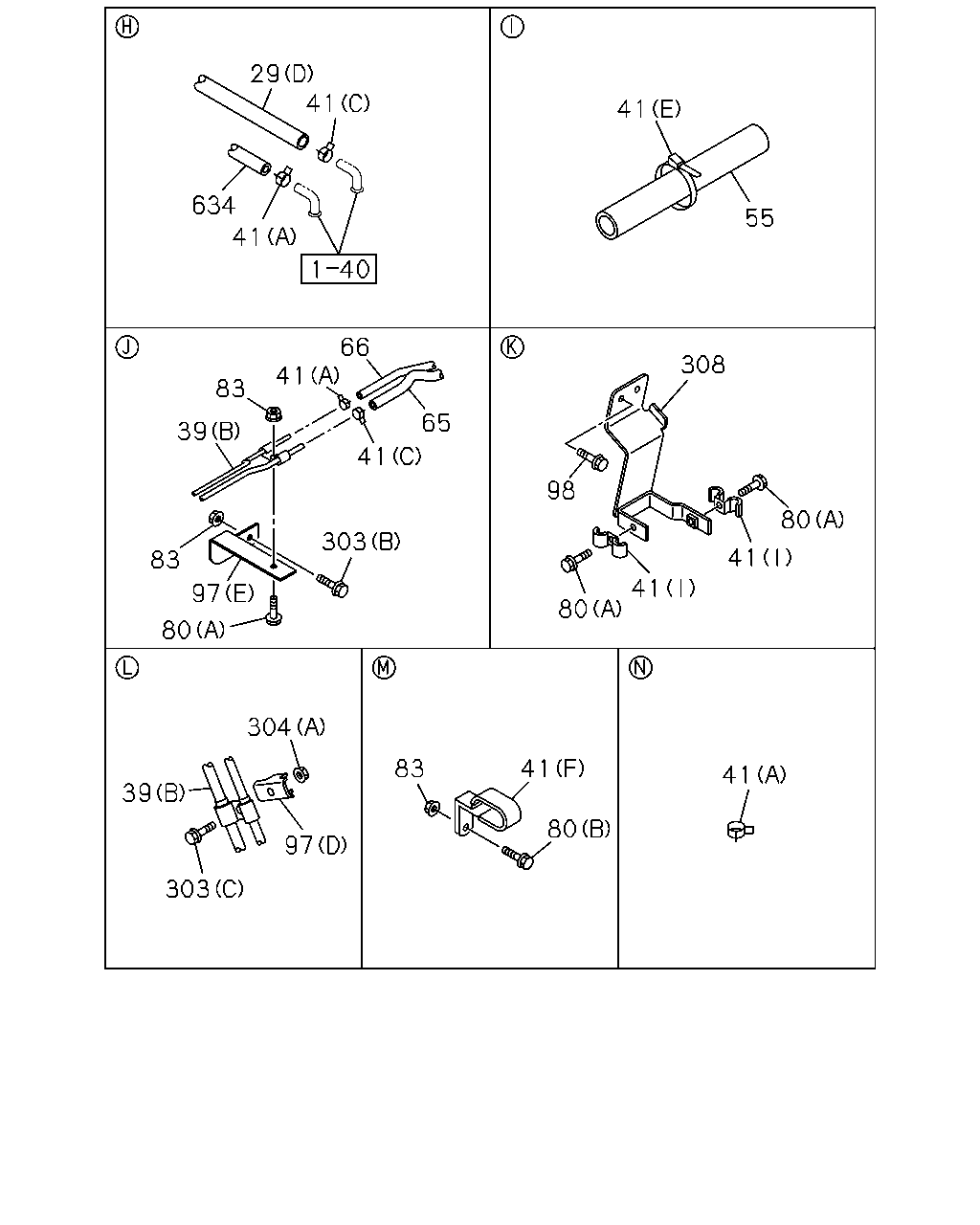

29 41 634 41 55 308 80 41 41 80 98 65 66 41 41 303 80 83 39 83 304 39 97 303 83 41 80 41 41 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
55	COVER; PIPE,FUEL TANK 4HK1-TCS ENG(RJS) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	1305-
55	COVER; PIPE,FUEL TANK 6HK1-TCN ENG(82L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1305-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (A) M8X20 FLANGE	0-28650-820-0	03	1	1305-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (B) M8X30 FLANGE	0-28650-830-0	01	1	1302-1304
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
80	BOLT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91180-108-0	03	1	1302-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (D)	1-47475-427-1	01	1	1305-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (E)	8-98126-612-0	01	1	1305-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (A) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98053-654-0	01	1	1302-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98129-922-0	01	1	1302-
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	02	1	1305-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS)	8-98213-361-0	01	1	1305-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) L=810	8-98186-973-0	01	1	1302-

29 41 41 41 65 634 47 39 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) (B)	8-98213-750-0	01	1	1305-
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) (A) L=688	8-98129-921-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1305-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) L=830	8-98238-644-0	01	1	1305-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) L=810	8-98186-973-0	01	1	1302-

304 279 228 65 41 39 41 29 39 345 345 303 304 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
303	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1302-
303	BOLT; BRKT WHEEL BASE 3900MM(39W) (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X40 FLANGE	0-28650-840-0	01	1	1305-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3900MM(39W)	8-98136-381-0	01	1	1302-

279 228 345 304 39 41 65 29 41 39 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) L=1450	8-98238-730-0	01	1	1305-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) L=1370	8-98212-451-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) L=1380	8-98186-528-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 3900MM(39W) (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

228 228 227 41 29 41 41 39 41 67 41 41 41 67 41 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 3900MM(39W) (D) L=710	8-98186-527-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1302-1304
29	HOSE; FUEL WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (D) L=730	8-98205-834-0	01	1	1305-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (C)	8-98220-011-0	01	1	1305-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1302-
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1302-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
39	PIPE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98229-613-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (I) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (H) ID=13-18 L=14.5	1-09709-290-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (D) ID=16	8-94238-568-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	05	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3900MM(39W) FUEL TANK 200L FRAME SIDE<N20> (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-1304
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (F) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1305-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG(82L) (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 6HK1-TCN ENG(82L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (C)	8-98206-489-0	01	1	1305-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (D)	8-98208-821-0	01	1	1305-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS) (B)	8-98203-480-0	01	1	1305-
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L) (A)	8-98044-366-3	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 3900MM(39W) (B) M10X50 FLANGE	0-28051-050-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEELBASE 5000MM(50W) (B) M10X60 FLANGE	0-28051-060-0	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
