Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#112467) — 283 parça

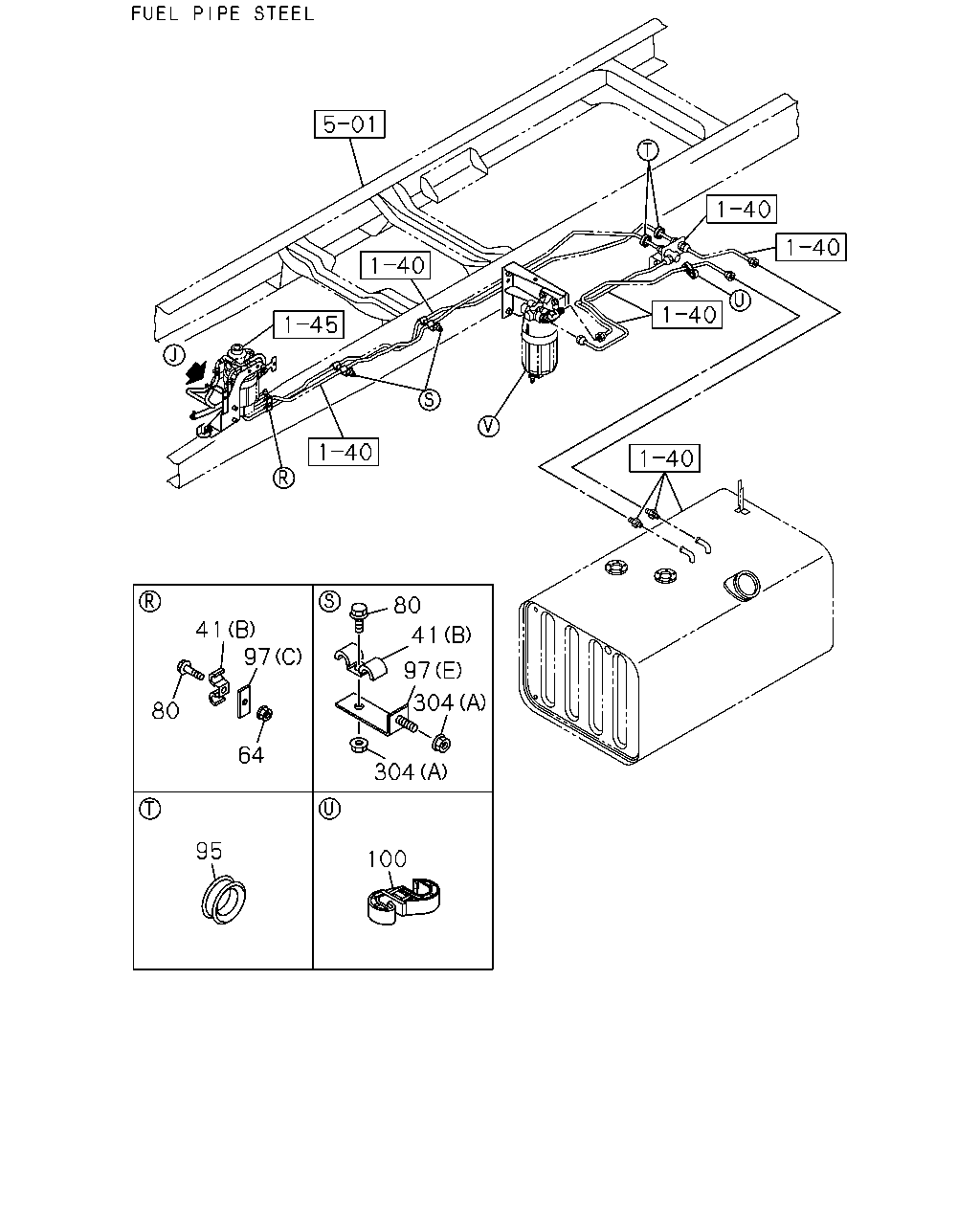

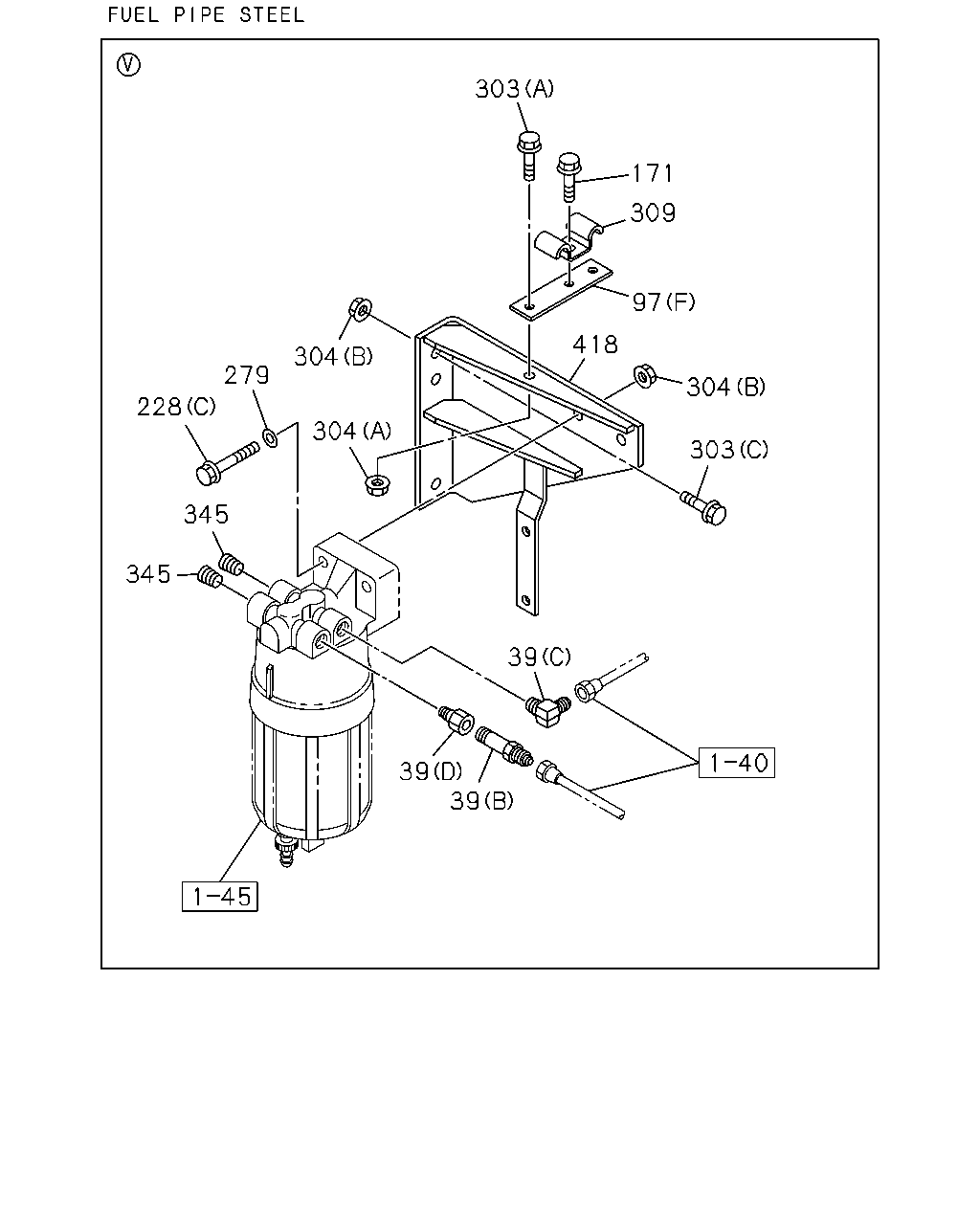

345 345 228 279 304 304 418 97 309 171 303 39 39 39 303 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (C) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1302-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1302-	●
97	BRACKET; CLIP (B)	8-98117-691-0	01	1	1302-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1302-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-	●	●
97	BRACKET; CLIP (E)	8-98111-710-1	02	1	1302-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (F) L=105	1-47477-409-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-697-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (H)	8-98204-698-0	01	1	1302-		●
171	BOLT; CLIP FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	1302-		●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-		●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1302-	●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
309	CLIP; PIPE FUEL PIPE STEEL<E2N> ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1302-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1302-		●

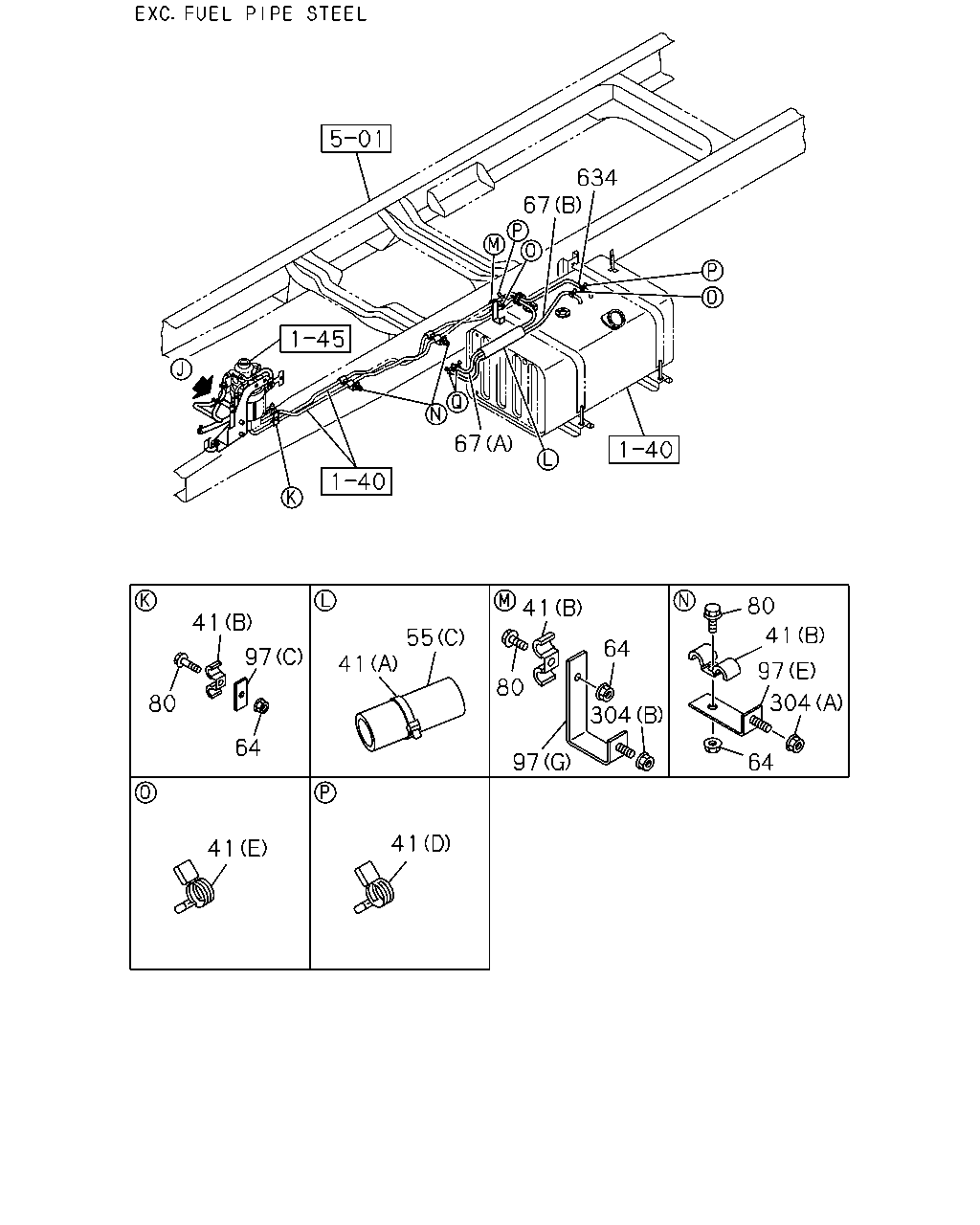

279 96 228 67 41 39 304 345 345 39 41 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (C) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) L=250	5-09707-030-1	02	1	1302-		●
67	HOSE; FUEL,DELIVERY (A) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-		●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●

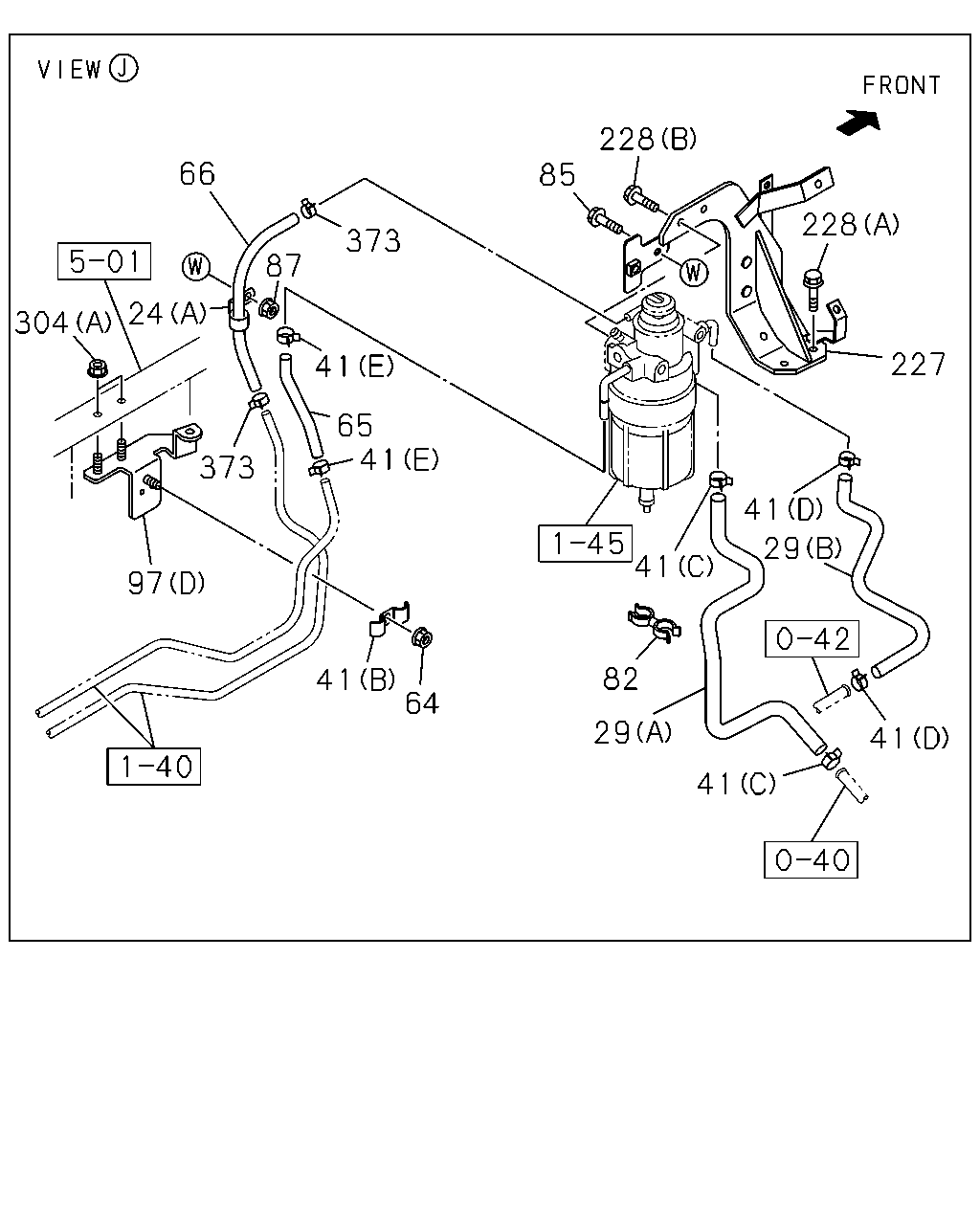

41 29 41 82 29 41 41 227 228 228 85 373 41 41 65 373 97 41 64 24 66 304 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-		●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●	●
29	HOSE; FUEL (A)	8-98078-194-3	01	1	1302-	●	●
29	HOSE; FUEL (B)	8-98078-195-1	01	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) L=250	5-09707-030-1	02	1	1302-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-		●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1302-		●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●	●
66	HOSE; FUEL,RETURN PIPE L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●	●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1302-	●	●
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1302-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1302-	●	●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1302-	●
97	BRACKET; CLIP (B)	8-98117-691-0	01	1	1302-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1302-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-	●	●
97	BRACKET; CLIP (E)	8-98111-710-1	02	1	1302-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (F) L=105	1-47477-409-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-697-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (H)	8-98204-698-0	01	1	1302-		●
227	BRACKET; FUEL SEDIMENTER	8-98130-667-0	01	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	1302-	●	●

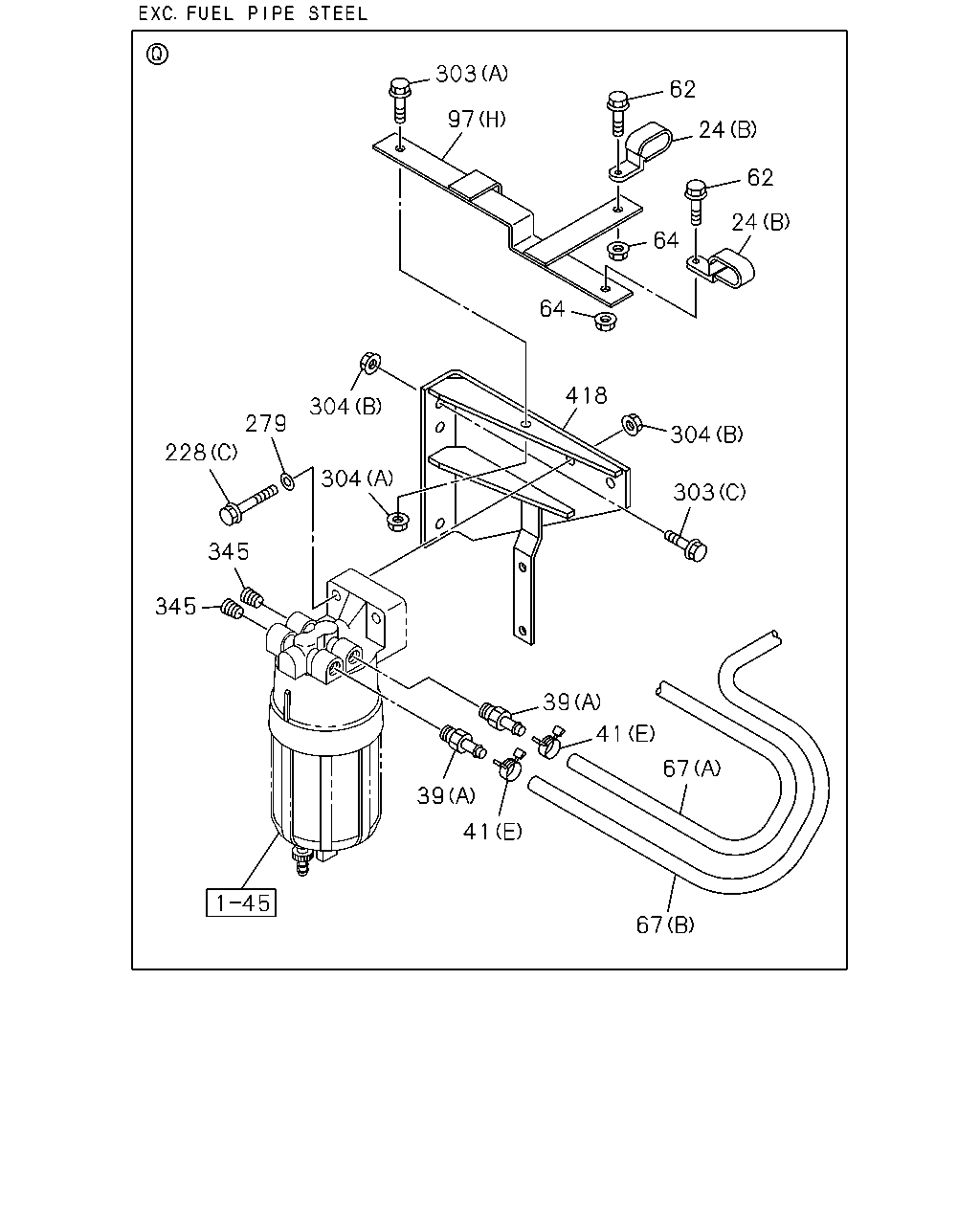

67 67 41 39 39 41 303 304 418 64 64 24 62 62 24 303 97 304 304 279 228 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-		●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●	●
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-	●
39	PIPE; FUEL EXC. FUEL PIPE STEEL<E2N> (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (B) M16 & PT3/8 STRAIGHT	1-09650-233-1	01	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (C) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	1302-		●
39	PIPE; FUEL FUEL PIPE STEEL<E2N> (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) L=250	5-09707-030-1	02	1	1302-		●
62	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-		●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1302-		●
67	HOSE; FUEL,DELIVERY (A) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1302-	●
97	BRACKET; CLIP (B)	8-98117-691-0	01	1	1302-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1302-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-	●	●
97	BRACKET; CLIP (E)	8-98111-710-1	02	1	1302-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (F) L=105	1-47477-409-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-697-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (H)	8-98204-698-0	01	1	1302-		●
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	1302-		●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-	●	●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1302-	●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-	●	●
418	BRACKET; PRE FUEL FILTER	8-98136-381-0	01	1	1302-		●

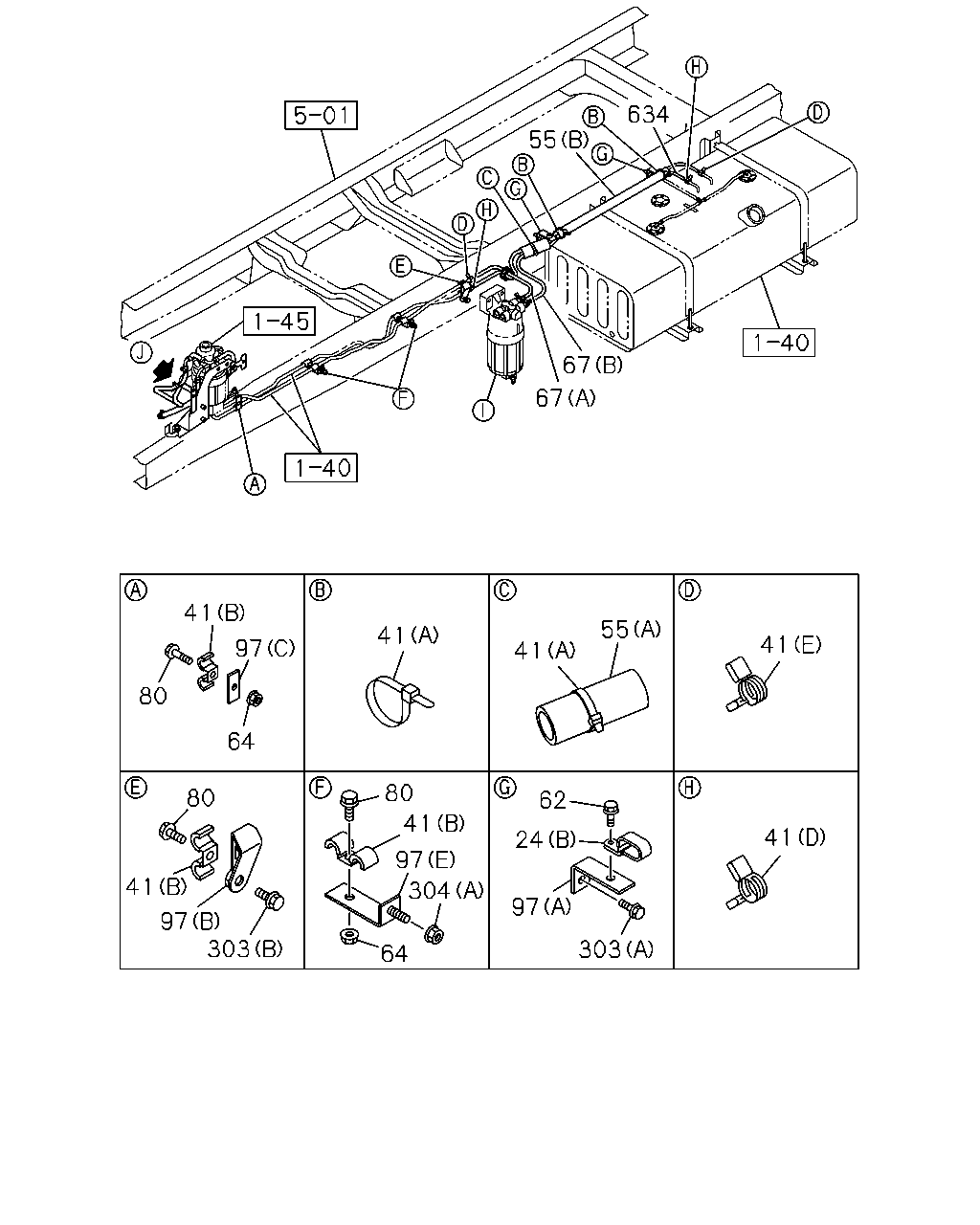

634 55 67 67 41 41 41 41 55 62 24 97 303 304 97 80 41 64 41 80 303 97 64 97 41 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	1302-		●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) L=250	5-09707-030-1	02	1	1302-		●
55	COVER; PIPE,FUEL TANK (A) ID=29 OD=39 L=100	1-09337-022-0	01	1	1302-	●
55	COVER; PIPE,FUEL TANK (B) ID=27 L=500	8-98119-327-0	01	1	1302-	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (C) L=250 SERVICED BY L=1300	1-09360-677-1	01	1	1302-		●
62	BOLT; CLIP FIX M8X16 FLANGE	0-28050-816-0	02	1	1302-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	1302-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-		●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1302-		●
67	HOSE; FUEL,DELIVERY (A) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	04	1	1302-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1302-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1302-	●
97	BRACKET; CLIP (B)	8-98117-691-0	01	1	1302-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1302-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-	●	●
97	BRACKET; CLIP (E)	8-98111-710-1	02	1	1302-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (F) L=105	1-47477-409-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-697-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (H)	8-98204-698-0	01	1	1302-		●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1302-	●
303	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1302-	●
303	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
303	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> L=490 SERVICED BY L=3000	0-01558-300-0	01	1	1302-		●

41 97 80 41 97 304 304 100 95 80 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) L=250	5-09707-030-1	02	1	1302-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-		●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1302-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	04	1	1302-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1302-		●
95	BUSHING; PIPE,FUEL TANK FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	1302-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1302-	●
97	BRACKET; CLIP (B)	8-98117-691-0	01	1	1302-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1302-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-	●	●
97	BRACKET; CLIP (E)	8-98111-710-1	02	1	1302-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (F) L=105	1-47477-409-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-697-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (H)	8-98204-698-0	01	1	1302-		●
100	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=10 & 10	1-09709-277-1	01	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●

67 67 634 80 41 97 304 64 97 80 41 64 304 41 55 41 41 80 41 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	05	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (E) ID=14	1-09704-102-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) L=250	5-09707-030-1	04	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=14	1-09704-102-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=13	8-94238-571-0	02	1	1302-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=13	8-94238-571-0	02	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-		●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) L=250	5-09707-030-1	02	1	1302-		●
55	COVER; PIPE,FUEL TANK (A) ID=29 OD=39 L=100	1-09337-022-0	01	1	1302-	●
55	COVER; PIPE,FUEL TANK (B) ID=27 L=500	8-98119-327-0	01	1	1302-	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (C) L=250 SERVICED BY L=1300	1-09360-677-1	01	1	1302-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1302-		●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1302-		●
67	HOSE; FUEL,DELIVERY (A) L=350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1302-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	04	1	1302-	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	04	1	1302-		●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	03	1	1302-		●
97	BRACKET; CLIP (A)	8-98111-711-0	02	1	1302-	●
97	BRACKET; CLIP (B)	8-98117-691-0	01	1	1302-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	1302-	●	●
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-	●	●
97	BRACKET; CLIP (E)	8-98111-710-1	02	1	1302-	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (F) L=105	1-47477-409-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-697-0	01	1	1302-		●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (H)	8-98204-698-0	01	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-		●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-		●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> (B) M10 FLANGE	0-91180-210-0	01	1	1302-		●
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> L=490 SERVICED BY L=3000	0-01558-300-0	01	1	1302-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
