Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#112466) — 214 parça

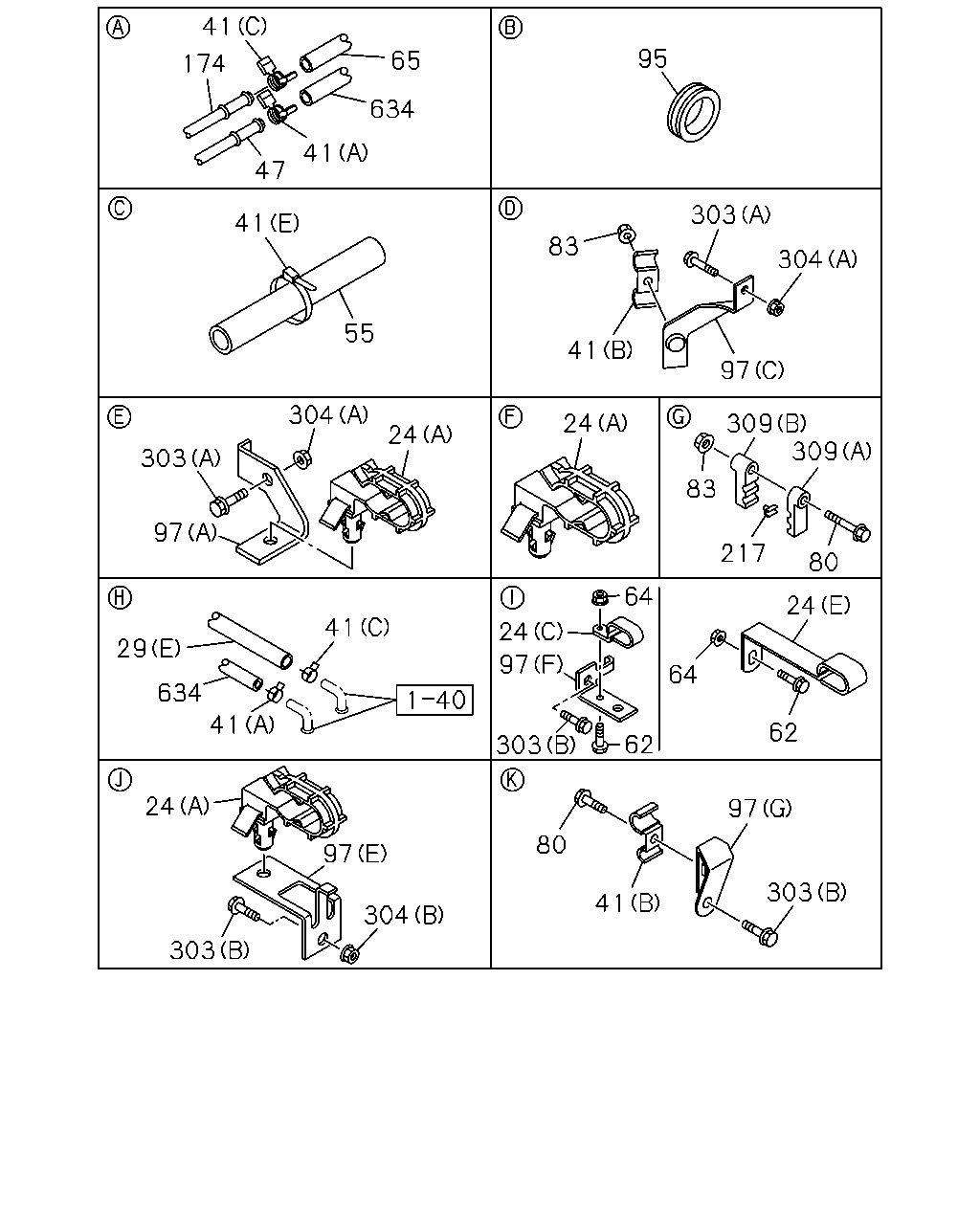

228 227 41 29 54 24 41 41 29 41 87 228 24 41 67 41 41 83 80 41 47 174 97 97 41 85 304 67 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) EXC. SINGAPORE EQUIPMENT(2G0) (E) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
54	SPACER; CLIP,FUEL PIPE EURO4 SPECIFICATION<NT4>	8-98148-172-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1302-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (F)	8-98100-216-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-

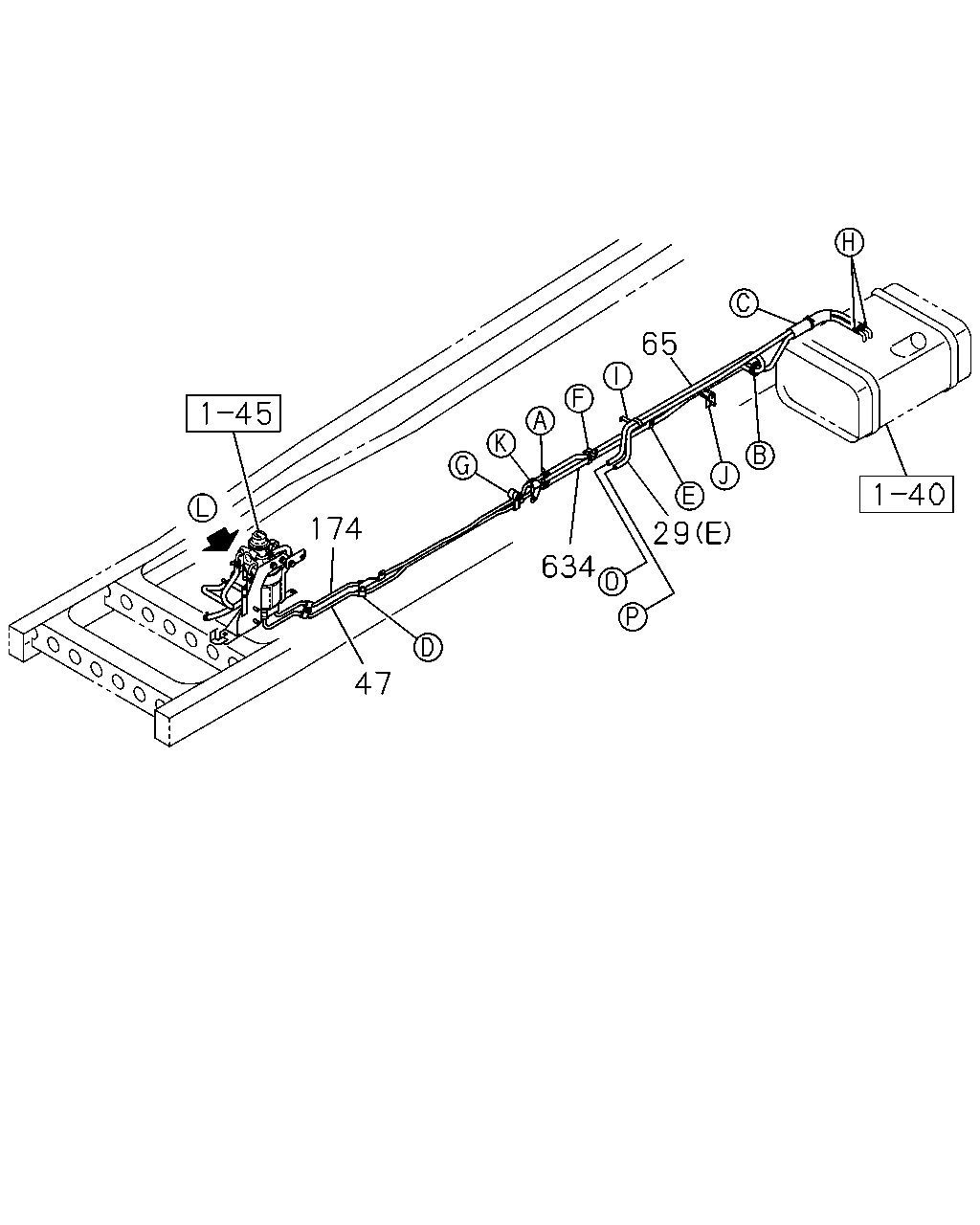

174 47 634 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

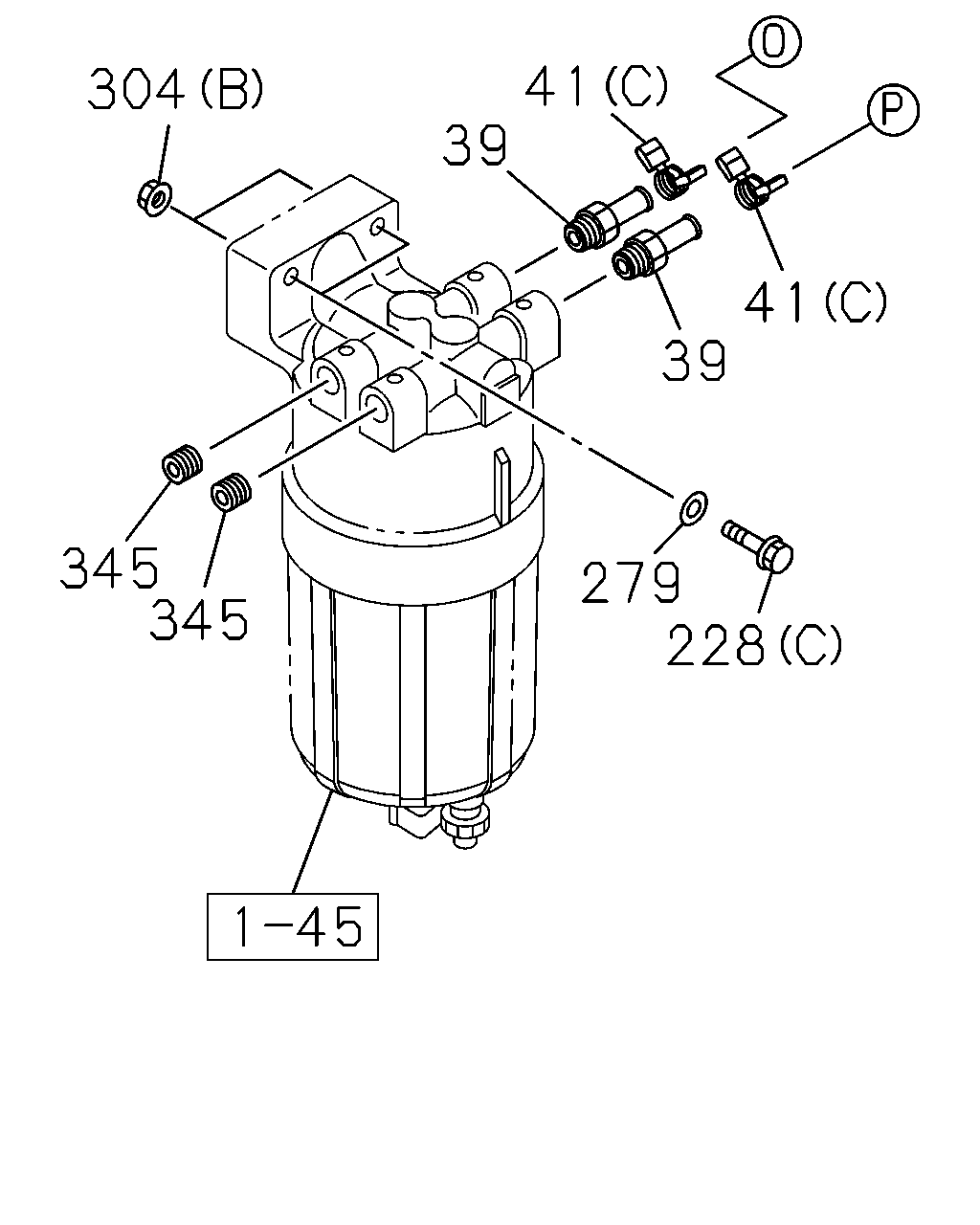

228 279 39 41 41 39 304 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1302-

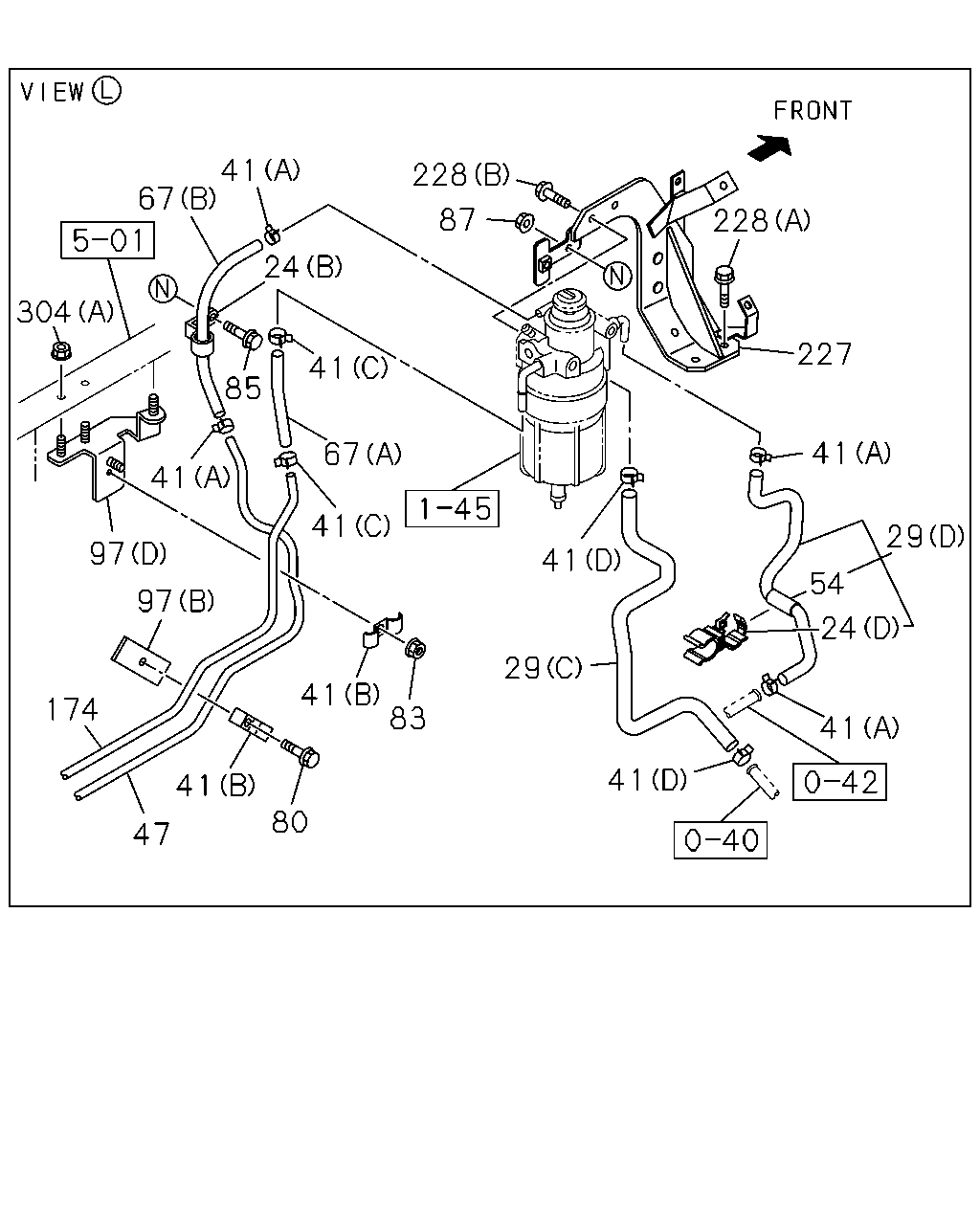

67 41 24 41 67 82 41 41 83 80 41 47 174 97 97 41 304 85 87 228 228 227 41 29 41 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) EXC. SINGAPORE EQUIPMENT(2G0) (E) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	1302-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1302-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (F)	8-98100-216-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1302-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE	0-28051-060-0	02	1	1302-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-

41 174 47 41 634 65 95 303 304 83 41 97 55 41 24 304 303 97 24 309 83 217 80 309 24 62 64 62 303 97 64 24 41 41 634 29 24 303 304 97 80 41 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1302-
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> (D) ID=16.5 & 10.5-14	8-98147-093-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) EXC. SINGAPORE EQUIPMENT(2G0) (E) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	02	1	1302-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1302-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> (E) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4300MM(43W) (E) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4600MM(46W) (E) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (A)	8-98078-194-3	01	1	1302-
29	HOSE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98078-195-1	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (C)	8-98136-901-0	01	1	1302-
29	HOSE; FUEL EURO4 SPECIFICATION<NT4> (D)	8-98147-183-0	01	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	1302-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) L=1588	8-98208-975-0	01	1	1302-
47	PIPE; FUEL,RETURN WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2240	8-98220-907-0	01	1	1302-
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1302-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) M8X20 FLANGE	0-28650-820-0	01	1	1302-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) EXC. SINGAPORE EQUIPMENT(2G0) M8X30 FLANGE	0-28650-830-0	01	1	1302-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	01	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	03	1	1302-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1302-
83	NUT; CLIP,FUEL TANK WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1302-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1302-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1302-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1302-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	8-98117-691-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (F)	8-98100-216-1	01	1	1302-
97	BRACKET; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98083-349-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) L=1414	8-98208-965-0	01	1	1302-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2080	8-98220-906-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W) ID=8	1-47459-011-0	04	1	1506-1506
217	COLLAR; FUEL PIPE FIX WHEEL BASE 3700MM(37W) ID=8	1-47459-011-0	01	1	1302-
217	COLLAR; FUEL PIPE FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) ID=8	1-47459-011-0	03	1	1302-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1302-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1302-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	01	1	1302-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1302-
304	NUT; BRKT TURBO - CONVENTIONAL<Q5T> (A) M8 FLANGE	0-91180-108-0	02	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) SINGAPORE EQUIPMENT(2G0) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (A) ID=10 & 10	1-09709-241-0	02	1	1506-1506
309	CLIP; PIPE WHEEL BASE 4300MM(43W) (B) ID=10 & 10	1-09709-243-0	02	1	1506-1506
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (A) ID=10 & 10	1-09709-241-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 3700MM(37W) (B) ID=10 & 10	1-09709-243-0	01	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=10 & 10	1-09709-241-0	03	1	1302-
309	CLIP; PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=10 & 10	1-09709-243-0	03	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=800 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1302-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1550 SERVICED BY L=3000	0-01558-300-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
