1 |

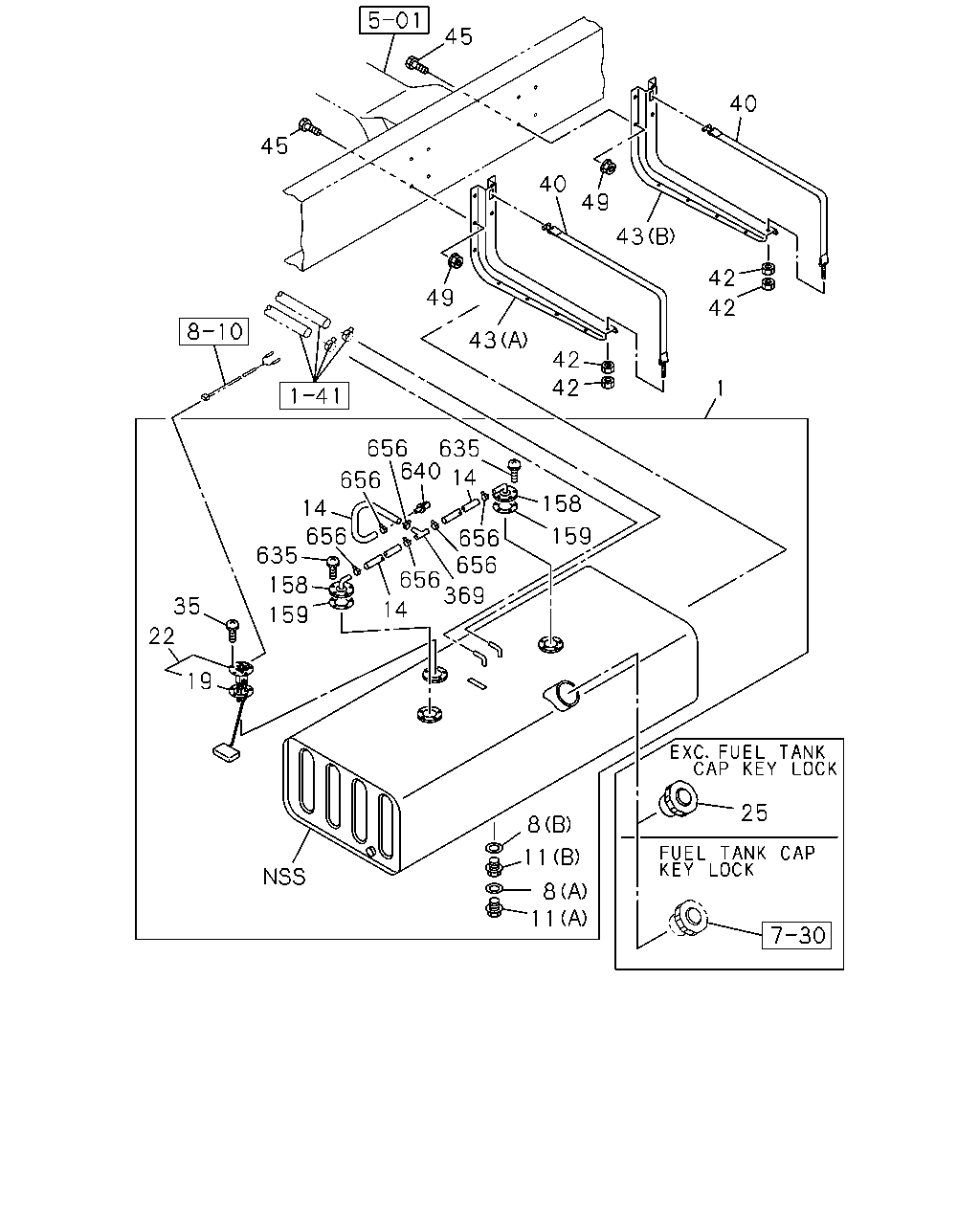

TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
EURO5 SPECIFICATION<NT5>
1345X532X322 200L
|
8-98271-186-0 |
01 |
1 |
1506- |
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
1345X532X322 200L
|
8-98122-992-3 |
01 |
1 |
1302-1404 |
| |
1 |
TANK; FUEL
1345X532X322 200L
|
8-98122-992-3 |
01 |
1 |
1405-1409 |
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
1345X532X322 200L
|
8-98122-992-3 |
01 |
1 |
1410-1505 |
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
EXC. EURO5 SPECIFICATION<NT5>
1345X532X322 200L
|
8-98122-992-3 |
01 |
1 |
1506- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1302-1404 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1405-1409 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1410-1505 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
ID=30
|
8-98067-041-0 |
01 |
1 |
1506- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1302-1404 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(A)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1405-1409 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1410-1505 |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
ID=18.2 OD=26.0
|
9-09571-418-0 |
01 |
1 |
1506- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
M18X12
|
0-92002-418-0 |
01 |
1 |
1302-1404 |
| |
11 |
PLUG; DRAIN,FUEL TANK
(A)
M18X12
|
0-92002-418-0 |
01 |
1 |
1405-1409 |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
M18X12
|
0-92002-418-0 |
01 |
1 |
1410-1504 |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
M18
|
8-98068-006-0 |
01 |
1 |
1505-1505 |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
M18
|
8-98068-006-0 |
01 |
1 |
1506- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
M30
|
8-98067-038-0 |
01 |
1 |
1302-1404 |
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M30
|
8-98067-038-0 |
01 |
1 |
1405-1409 |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
M30
|
8-98067-038-0 |
01 |
1 |
1410-1505 |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
M30
|
8-98067-038-0 |
01 |
1 |
1506- |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1302-1404 |
| |
14 |
HOSE; BREATHER,OUTLET
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1405-1409 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1410-1504 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=430
|
8-98131-037-0 |
01 |
1 |
1505-1505 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=430
|
8-98131-037-0 |
01 |
1 |
1506- |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1302-1404 |
| |
14 |
HOSE; BREATHER,OUTLET
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1405-1409 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1410-1504 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=460
|
8-98304-414-0 |
01 |
1 |
1505-1505 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=460
|
8-98304-414-0 |
01 |
1 |
1506- |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=450
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1302-1404 |
| |
14 |
HOSE; BREATHER,OUTLET
L=450
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1405-1409 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=450
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1410-1504 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=90
|
8-98304-415-0 |
01 |
1 |
1505-1505 |
| |
14 |
HOSE; BREATHER,OUTLET
FUEL TANK 200L FRAME SIDE<N20>
L=90
|
8-98304-415-0 |
01 |
1 |
1506- |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1302-1404 |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1405-1409 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1410-1505 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1506- |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98099-320-0 |
01 |
1 |
1302-1404 |
| |
22 |
UNIT; FUEL TANK
|
8-98099-320-0 |
01 |
1 |
1405-1409 |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98099-320-0 |
01 |
1 |
1410-1505 |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98099-320-0 |
01 |
1 |
1506- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
EXC. FUEL TANK CAP KEY LOCK<N05>
|
8-97387-179-0 |
01 |
1 |
1302-1404 |
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05>
|
8-97387-179-0 |
01 |
1 |
1405-1409 |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
EXC. FUEL TANK CAP KEY LOCK<N05>
|
8-97387-179-0 |
01 |
1 |
1410- |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
1302-1404 |
| |
35 |
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
1405-1409 |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
1410-1505 |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
1506- |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
L=880
|
8-98042-715-1 |
02 |
1 |
1302-1404 |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=880
|
8-98042-715-1 |
02 |
1 |
1405-1409 |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
L=880
|
8-98042-715-1 |
02 |
1 |
1410- |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>
M12
|
0-91110-512-0 |
04 |
1 |
1302-1404 |
| |
42 |
NUT; SUPPORT BELT
M12
|
0-91110-512-0 |
04 |
1 |
1405-1409 |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>
M12
|
0-91110-512-0 |
04 |
1 |
1410- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
8-98088-123-0 |
01 |
1 |
1302-1404 |
| |
43 |
BRACKET; FUEL TANK
(A)
|
8-98088-123-0 |
01 |
1 |
1405-1409 |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
8-98088-123-0 |
01 |
1 |
1410- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
|
8-98122-883-0 |
01 |
1 |
1302-1404 |
| |
43 |
BRACKET; FUEL TANK
(B)
|
8-98122-883-0 |
01 |
1 |
1405-1409 |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(B)
|
8-98122-883-0 |
01 |
1 |
1410- |
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
M10X35 FLANGE
|
0-28651-035-0 |
12 |
1 |
1302-1404 |
| |
45 |
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
|
0-28651-035-0 |
12 |
1 |
1405-1409 |
| |
45 |
BOLT; BRKT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
M10X35 FLANGE
|
0-28651-035-0 |
12 |
1 |
1410- |
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1302-1404 |
| |
49 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1405-1409 |
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1410- |
| |
158 |
VALVE; ROLL OVER & FLOAT
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-039-0 |
02 |
1 |
1302-1404 |
| |
158 |
VALVE; ROLL OVER & FLOAT
|
8-98067-039-0 |
02 |
1 |
1405-1409 |
| |
158 |
VALVE; ROLL OVER & FLOAT
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-039-0 |
02 |
1 |
1410-1505 |
| |
158 |
VALVE; ROLL OVER & FLOAT
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-039-0 |
02 |
1 |
1506- |
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
ID=45 OD=67
|
1-83149-003-0 |
02 |
1 |
1302-1404 |
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
|
1-83149-003-0 |
02 |
1 |
1405-1409 |
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
ID=45 OD=67
|
1-83149-003-0 |
02 |
1 |
1410-1505 |
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
ID=45 OD=67
|
1-83149-003-0 |
02 |
1 |
1506- |
| |
369 |
JOINT; HOSE
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-080-0 |
01 |
1 |
1302-1404 |
| |
369 |
JOINT; HOSE
|
8-98067-080-0 |
01 |
1 |
1405-1409 |
| |
369 |
JOINT; HOSE
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-080-0 |
01 |
1 |
1410-1505 |
| |
369 |
JOINT; HOSE
FUEL TANK 200L FRAME SIDE<N20>
|
8-98067-080-0 |
01 |
1 |
1506- |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
EURO5 SPECIFICATION<NT5>
M5X10 W/LK WASHER
|
0-36220-510-0 |
10 |
1 |
1506- |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
1302-1404 |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
1405-1409 |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
1410-1505 |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 200L FRAME SIDE<N20>
EXC. EURO5 SPECIFICATION<NT5>
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
1506- |
| |
640 |
VENTILATOR; HOSE,BREATHER
FUEL TANK 200L FRAME SIDE<N20>
|
8-98092-398-0 |
01 |
1 |
1302-1404 |
| |
640 |
VENTILATOR; HOSE,BREATHER
|
8-98092-398-0 |
01 |
1 |
1405-1409 |
| |
640 |
VENTILATOR; HOSE,BREATHER
FUEL TANK 200L FRAME SIDE<N20>
|
8-98092-398-0 |
01 |
1 |
1410-1505 |
| |
640 |
VENTILATOR; HOSE,BREATHER
FUEL TANK 200L FRAME SIDE<N20>
|
8-98092-398-0 |
01 |
1 |
1506- |
| |
656 |
CLAMP; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98304-416-0 |
06 |
1 |
1505-1505 |
| |
656 |
CLAMP; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
8-98304-416-0 |
06 |
1 |
1506- |
