Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11520 - FVZ(RHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#112461) — 40 parça
◀

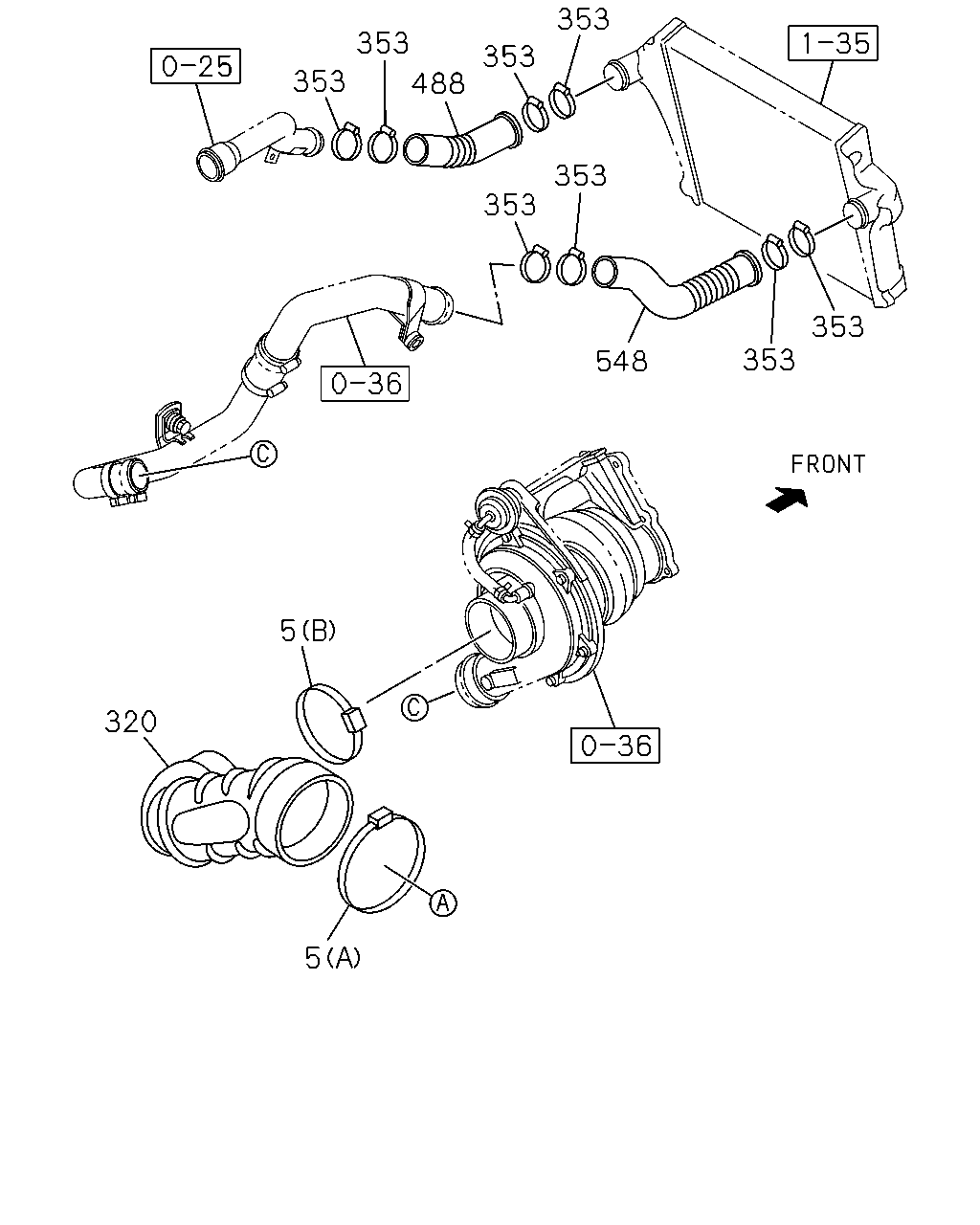

[131A] PIPING (9 parça)
[131A] DUCT FIXING (31 parça)
▶
353
353
488
353
353
353
353
548
353
353
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=130-150
8-98133-360-0
01
1
1302-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=90-110
8-98133-365-0
01
1
1302-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=87-116
1-09707-138-0
01
1
1302-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=130-169
8-98155-950-0
01
1
1302-
320
HOSE; CONN,ACL
8-98073-259-0
01
1
1302-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
08
1
1302-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
08
1
1302-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1302-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-974-1
01
1
1302-
49
58
56
56
49
58
245
48
357
379
357
210
543
558
316
560
49
480
368
252
543
61
26
242
58
242
49
56
56
58
564
71
242
209
296
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1302-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1302-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1302-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1302-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1302-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1302-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1302-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1302-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1302-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1302-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1302-
209
BRACKET; ACL
8-98021-995-1
01
1
1302-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1302-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1302-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1302-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1302-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1302-
252
DUCT; AIR INT
8-98021-989-1
01
1
1302-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1302-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1302-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1302-
368
SENSOR; TEMP
8-98065-377-0
01
1
1302-
379
HOSE; RUBBER
8-98077-470-0
01
1
1302-
450
CLAMP; HOSE
9-09915-504-1
01
1
1302-
480
ADAPTER
8-98086-417-0
01
1
1302-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1302-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1302-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1302-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1302-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1302-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1302-
