1-56 — EXHAUST BRAKE SYSTEM (#112443) — 15 parça

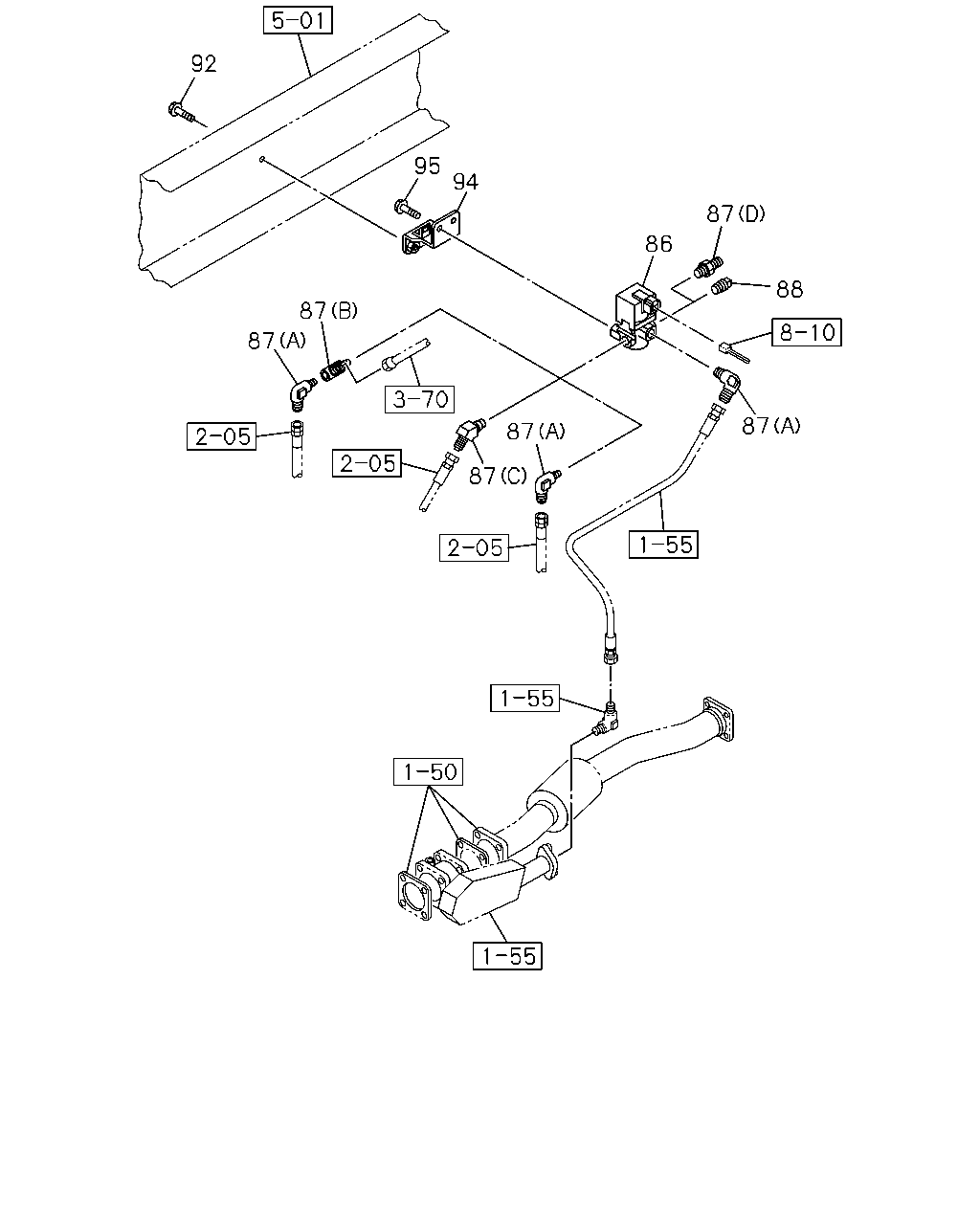

çizim 327173
87 87 88 87 87 87 87 95 86 94 92
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		1-82563-871-2 01 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ADR(TDU) (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. BRAKE REGULATION ADR(TDU) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) BRAKE REGULATION ADR(TDU) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1302- ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-48629-258-0 01 1 1302-1503 ● ●
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ADR(TDU) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1504- ● ●
88 PLUG
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. BRAKE REGULATION ADR(TDU) PT1/4 		9-99204-513-0 01 1 1302- ● ●
92 BOLT; MAG VLV
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE 		0-28651-030-0 02 1 1302- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98078-098-0 01 1 1302- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE 		0-28650-820-0 02 1 1302- ● ●
