1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#112442) — 86 parça

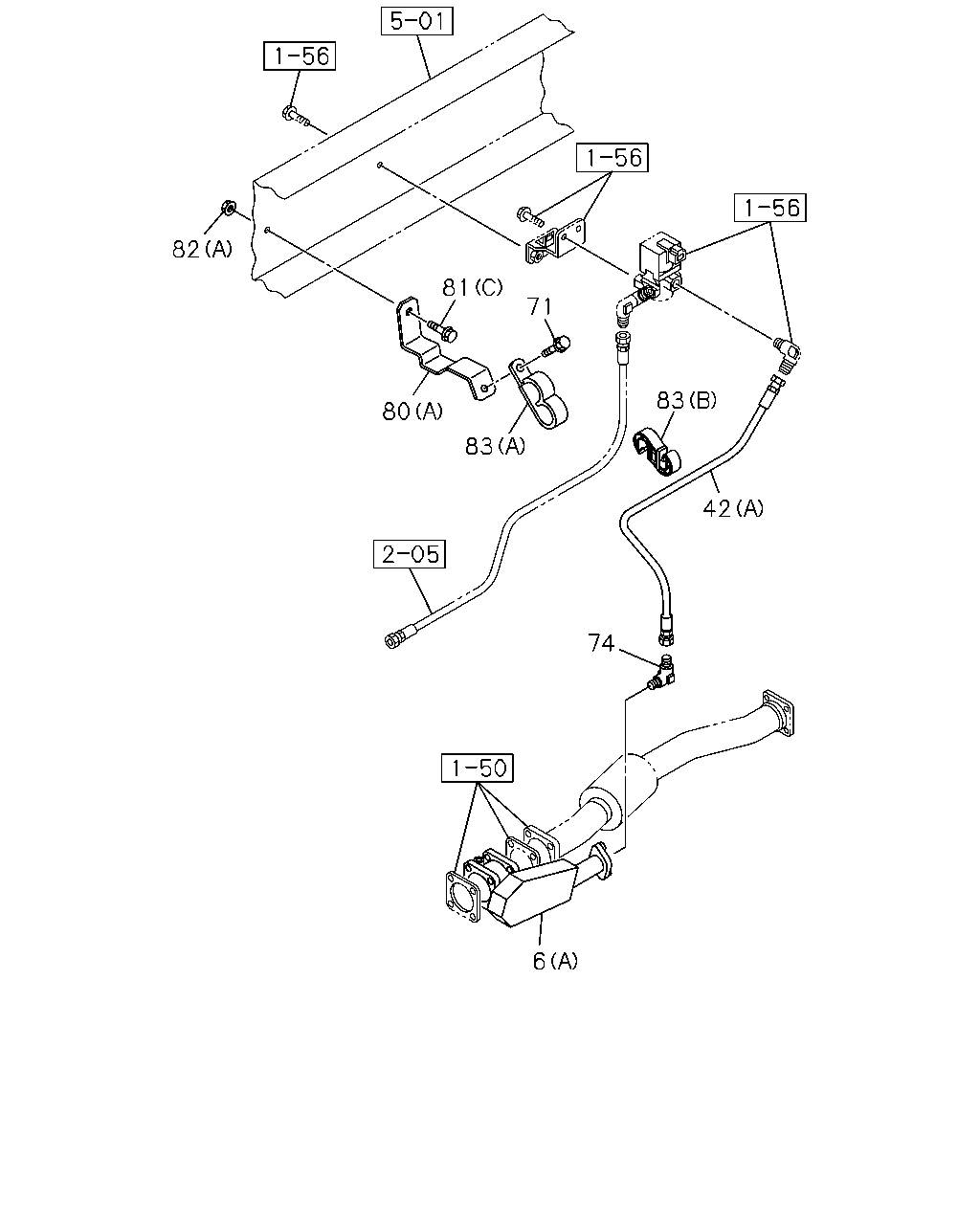

42 83 71 81 80 83 74 82 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	8-98054-172-6	01	1	1302-	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> (B)	8-97602-527-1	01	1	1302-		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98054-173-6	01	1	1302-1302		●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (C)	8-98054-173-6	01	1	1302-1302		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98233-801-0	01	1	1303-		●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (C)	8-98233-801-0	01	1	1303-		●
42	HOSE; FLEX,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=600	1-09363-639-0	01	1	1302-	●
42	HOSE; FLEX,EXH BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=500	1-09363-733-0	01	1	1302-	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1302-		●
42	HOSE; FLEX,EXH BRK EXC. TURBO - CONVENTIONAL<Q5T> (C) L=520	1-09363-957-0	01	1	1302-		●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
71	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●	●
80	BRACKET; FLEX HOSE (A)	8-98078-153-0	01	1	1302-	●
80	BRACKET; FLEX HOSE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98078-153-0	01	1	1302-		●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2> (B)	8-98182-767-0	01	1	1302-		●
81	BOLT; HOSE BRKT (C) M10X25 FLANGE	0-28051-025-0	01	1	1302-	●
81	BOLT; HOSE BRKT EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28051-025-0	01	1	1302-		●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2> (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-		●
81	BOLT; HOSE BRKT TURBO - CONVENTIONAL<Q5T> (B) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●
82	NUT; HOSE BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1302-	●
82	NUT; HOSE BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	01	1	1302-		●
82	NUT; HOSE BRKT TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	02	1	1302-		●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	1302-	●
83	CLIP; FLEX HOSE EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11X2 L=16	1-09700-820-0	01	1	1302-		●
83	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=10 & 10	1-09709-277-1	01	1	1302-	●

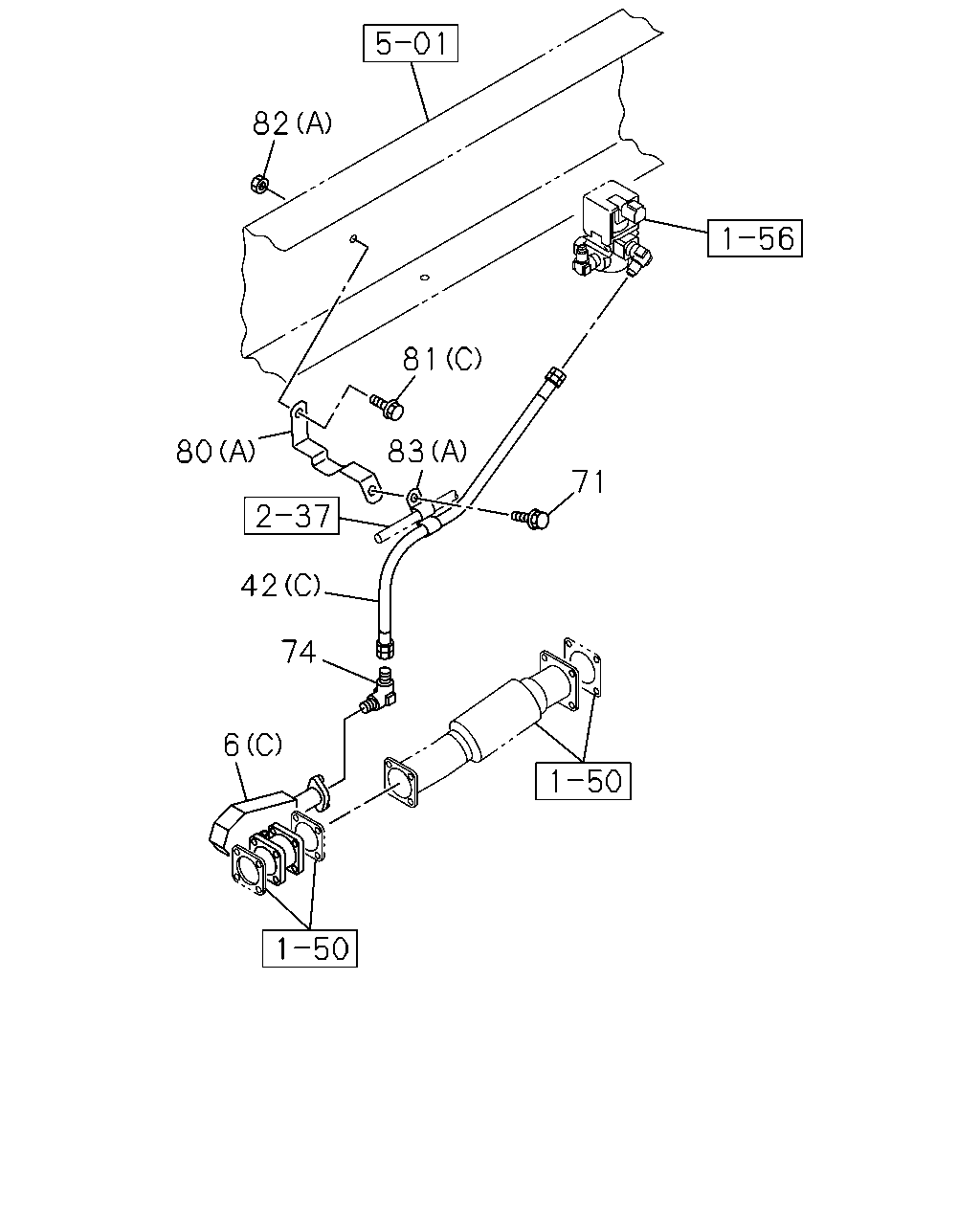

6 74 42 71 83 80 81 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	8-98054-172-6	01	1	1302-	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> (B)	8-97602-527-1	01	1	1302-		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98054-173-6	01	1	1302-1302		●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (C)	8-98054-173-6	01	1	1302-1302		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98233-801-0	01	1	1303-		●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (C)	8-98233-801-0	01	1	1303-		●
42	HOSE; FLEX,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=600	1-09363-639-0	01	1	1302-	●
42	HOSE; FLEX,EXH BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=500	1-09363-733-0	01	1	1302-	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1302-		●
42	HOSE; FLEX,EXH BRK EXC. TURBO - CONVENTIONAL<Q5T> (C) L=520	1-09363-957-0	01	1	1302-		●
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1302-	●
71	BOLT; CLIP EXC. TURBO - CONVENTIONAL<Q5T> M8X25 FLANGE	0-28650-825-0	01	1	1302-		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●	●
80	BRACKET; FLEX HOSE (A)	8-98078-153-0	01	1	1302-	●
80	BRACKET; FLEX HOSE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98078-153-0	01	1	1302-		●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2> (B)	8-98182-767-0	01	1	1302-		●
81	BOLT; HOSE BRKT (C) M10X25 FLANGE	0-28051-025-0	01	1	1302-	●
81	BOLT; HOSE BRKT EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28051-025-0	01	1	1302-		●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2> (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-		●
81	BOLT; HOSE BRKT TURBO - CONVENTIONAL<Q5T> (B) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●
82	NUT; HOSE BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1302-	●
82	NUT; HOSE BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	01	1	1302-		●
82	NUT; HOSE BRKT TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	02	1	1302-		●
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	1302-	●
83	CLIP; FLEX HOSE EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11X2 L=16	1-09700-820-0	01	1	1302-		●
83	CLIP; FLEX HOSE HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=10 & 10	1-09709-277-1	01	1	1302-	●

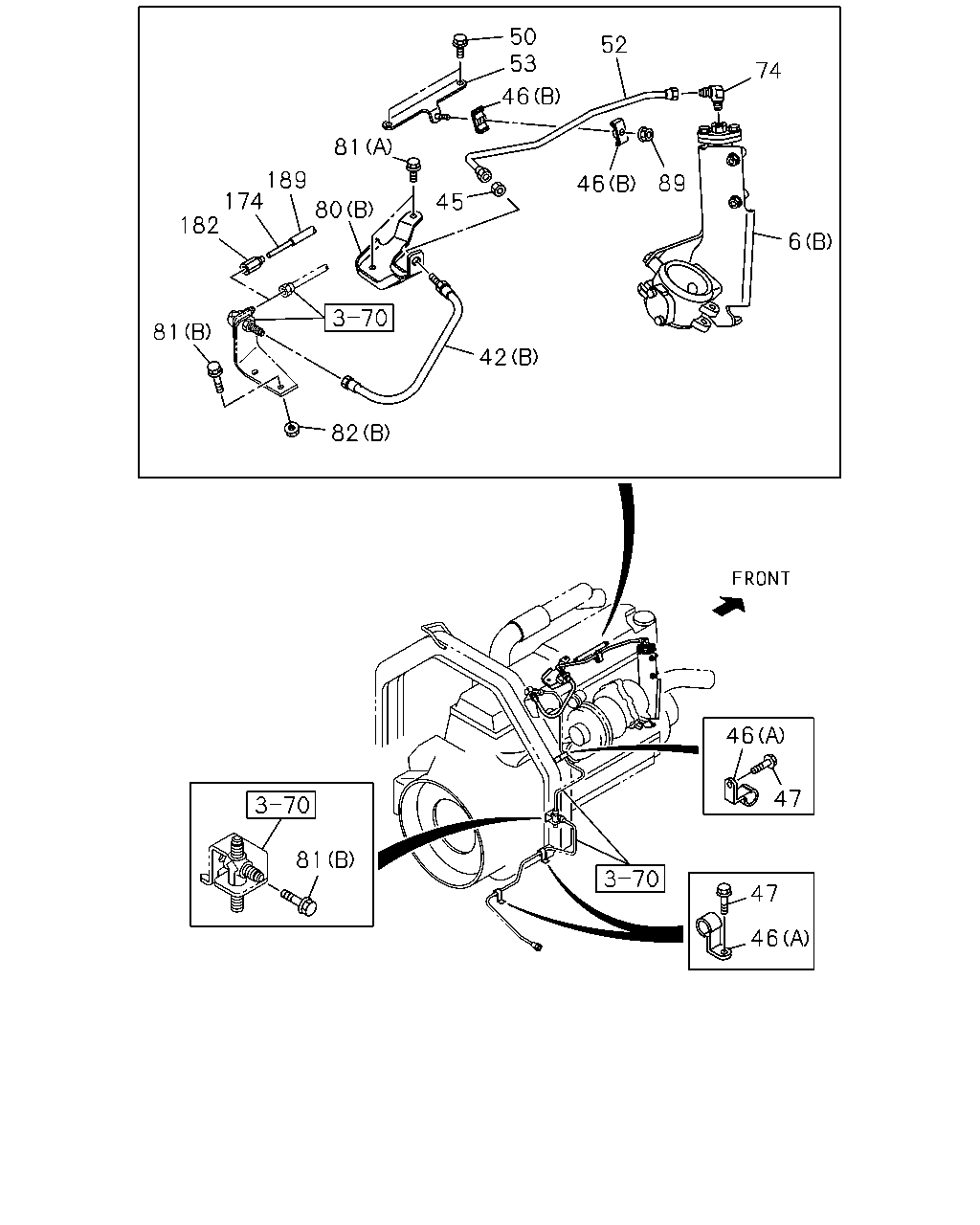

47 46 46 47 81 82 42 6 89 74 46 52 46 53 50 45 80 81 189 174 182 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	VALVE; EXH BRAKE (A)	8-98054-172-6	01	1	1302-	●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> (B)	8-97602-527-1	01	1	1302-		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98054-173-6	01	1	1302-1302		●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (C)	8-98054-173-6	01	1	1302-1302		●
6	VALVE; EXH BRAKE EURO2 SPECIFICATION<NT2> EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98233-801-0	01	1	1303-		●
6	VALVE; EXH BRAKE EURO4 SPECIFICATION<NT4> (C)	8-98233-801-0	01	1	1303-		●
42	HOSE; FLEX,EXH BRK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=600	1-09363-639-0	01	1	1302-	●
42	HOSE; FLEX,EXH BRK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=500	1-09363-733-0	01	1	1302-	●
42	HOSE; FLEX,EXH BRK TURBO - CONVENTIONAL<Q5T> (B) L=340	1-09363-622-0	01	1	1302-		●
42	HOSE; FLEX,EXH BRK EXC. TURBO - CONVENTIONAL<Q5T> (C) L=520	1-09363-957-0	01	1	1302-		●
45	NUT; FLEX HOSE TURBO - CONVENTIONAL<Q5T> M12	9-09840-280-0	01	1	1302-		●
46	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> (B) ID=11 & 11 L=19	8-98148-996-2	02	1	1302-		●
46	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1302-		●
46	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	1302-		●
47	BOLT; CLIP TURBO - CONVENTIONAL<Q5T> M8X20 FLANGE	0-28650-820-0	01	1	1302-		●
47	BOLT; CLIP TURBO - CONVENTIONAL<Q5T> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE	0-28650-820-0	02	1	1302-		●
50	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X12 FLANGE	0-28050-812-0	02	1	1302-		●
52	PIPE ASM; AIR FLEX HOSE EURO2 SPECIFICATION<NT2>	8-97603-547-0	01	1	1302-		●
53	BRACKET; CLIP EURO2 SPECIFICATION<NT2>	8-98182-766-0	01	1	1302-		●
74	CONNECTOR; EXH BRK VLV M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1302-	●	●
80	BRACKET; FLEX HOSE (A)	8-98078-153-0	01	1	1302-	●
80	BRACKET; FLEX HOSE EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98078-153-0	01	1	1302-		●
80	BRACKET; FLEX HOSE EURO2 SPECIFICATION<NT2> (B)	8-98182-767-0	01	1	1302-		●
81	BOLT; HOSE BRKT (C) M10X25 FLANGE	0-28051-025-0	01	1	1302-	●
81	BOLT; HOSE BRKT EXC. TURBO - CONVENTIONAL<Q5T> (C) M10X25 FLANGE	0-28051-025-0	01	1	1302-		●
81	BOLT; HOSE BRKT EURO2 SPECIFICATION<NT2> (A) M8X12 FLANGE	0-28050-812-0	02	1	1302-		●
81	BOLT; HOSE BRKT TURBO - CONVENTIONAL<Q5T> (B) M8X20 FLANGE	0-28650-820-0	03	1	1302-		●
82	NUT; HOSE BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1302-	●
82	NUT; HOSE BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	01	1	1302-		●
82	NUT; HOSE BRKT TURBO - CONVENTIONAL<Q5T> (B) M8 FLANGE	0-91180-108-0	02	1	1302-		●
89	NUT; BRKT EURO2 SPECIFICATION<NT2> M6 FLANGE	0-91180-106-0	01	1	1302-		●
174	TUBE; NYLON TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1302-		●
182	CONNECTOR TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1302-		●
189	TUBE; CORRUGATE TURBO - CONVENTIONAL<Q5T> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1302-		●
