Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

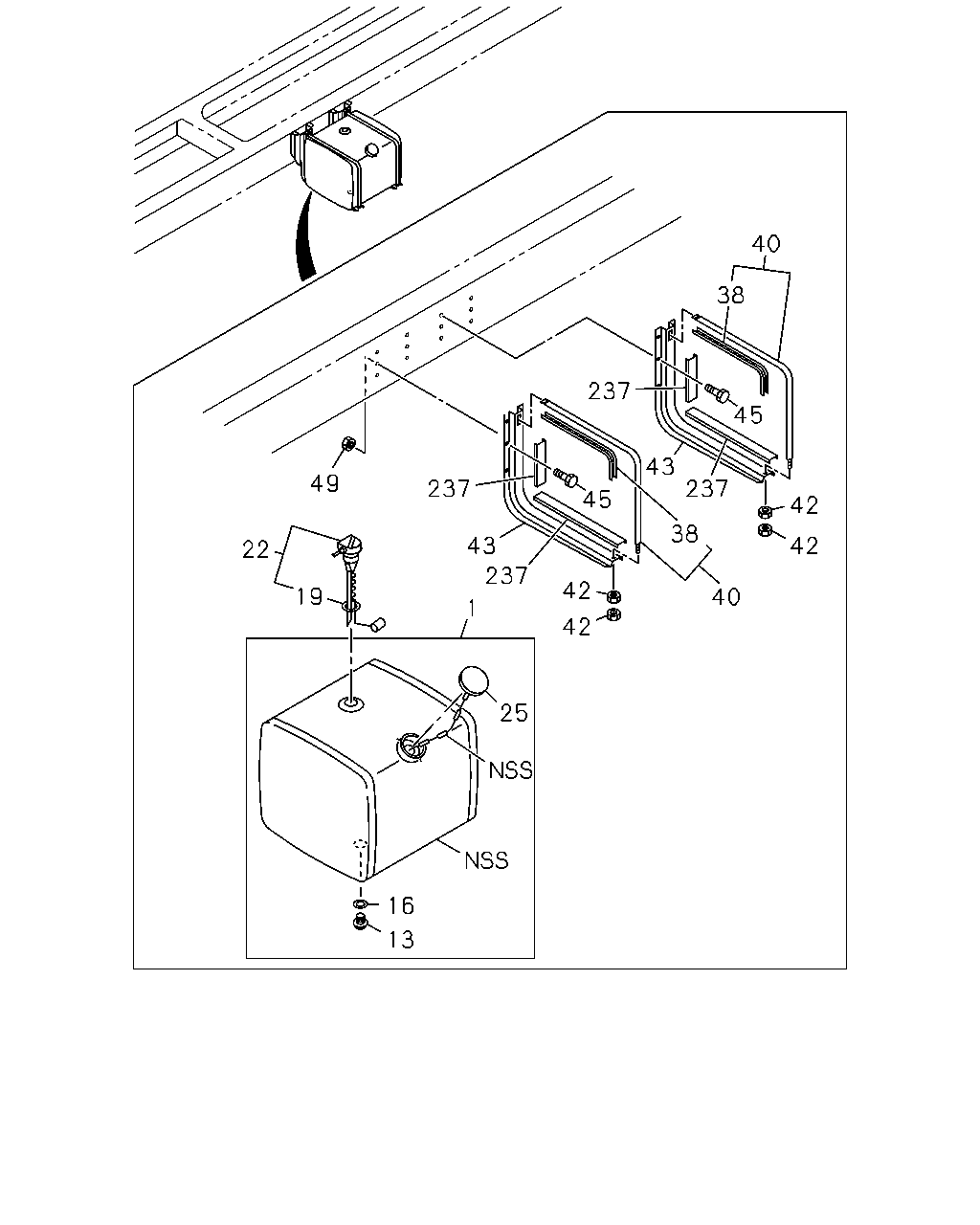

1-40 — FUEL TANK
(#11244) — 19 parça
40
38
237
45
43
49
237
237
45
42
38
43
42
22
237
42
19
40
1
42
25
16
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1020X680X625 400L
1-87411-168-0
01
1
0107-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
9-99202-318-0
01
1
0107-0606
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
0607-
16
GASKET; PLUG
T=1.60
1-22416-001-0
01
1
0107-0509
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
0510-
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0107-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
0107-
25
CAP; FILLER,FUEL TANK
1-22440-056-0
01
1
0107-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0107-
40
BELT; SUPPORT,FUEL TANK
L=1205
1-22550-227-2
02
1
0107-0303
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
0304-
42
NUT; SUPPORT BELT
M10
9-09110-510-0
04
1
0107-0512
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0601-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0107-
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28681-240-0
12
1
0107-0512
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28651-240-0
12
1
0601-
49
NUT; BRKT
M12
9-99110-512-0
08
1
0107-0512
49
NUT; BRKT
M12
0-91110-512-0
08
1
0601-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-0
04
1
0107-
