Sayfa 1-50 - Isuzu EPC

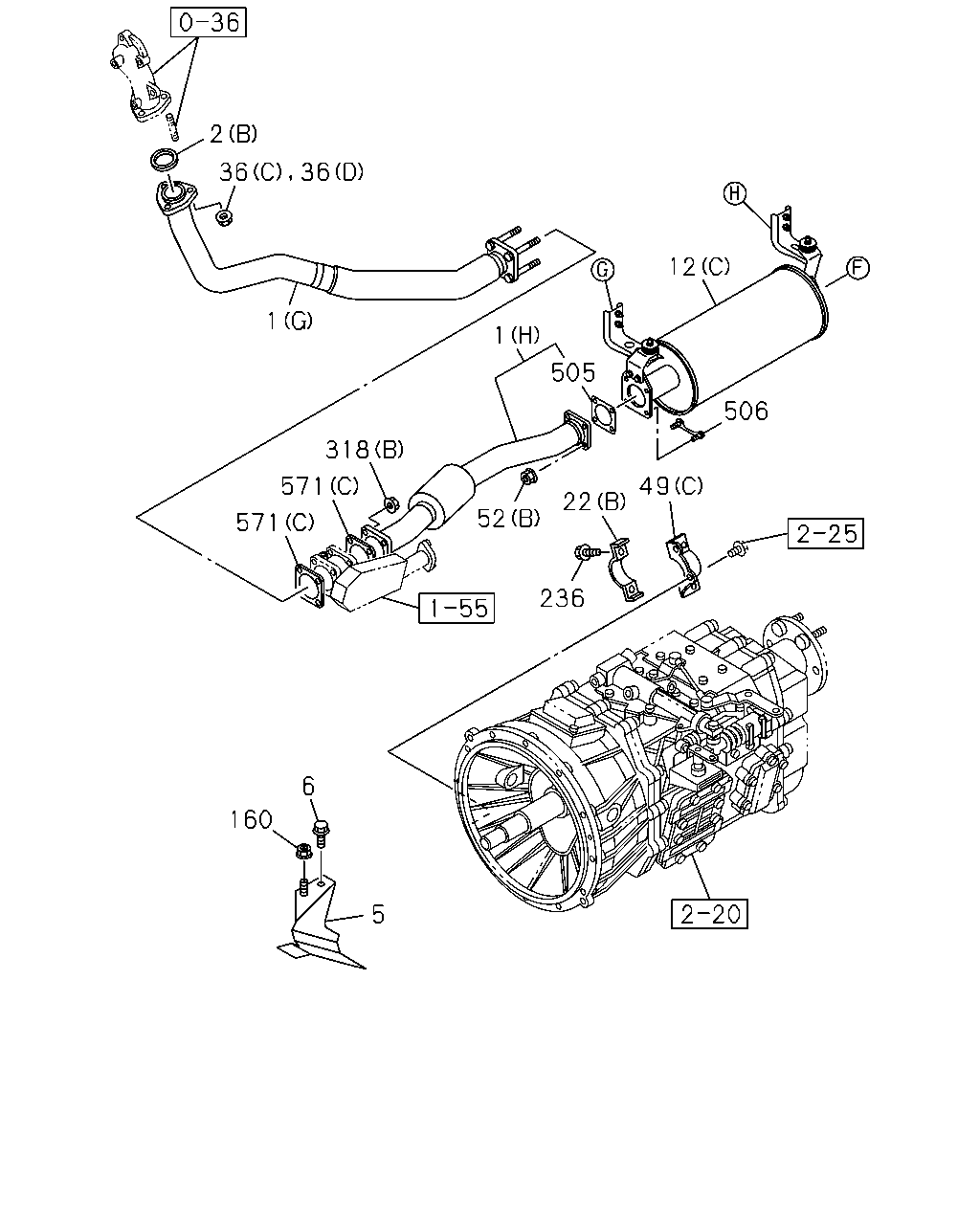

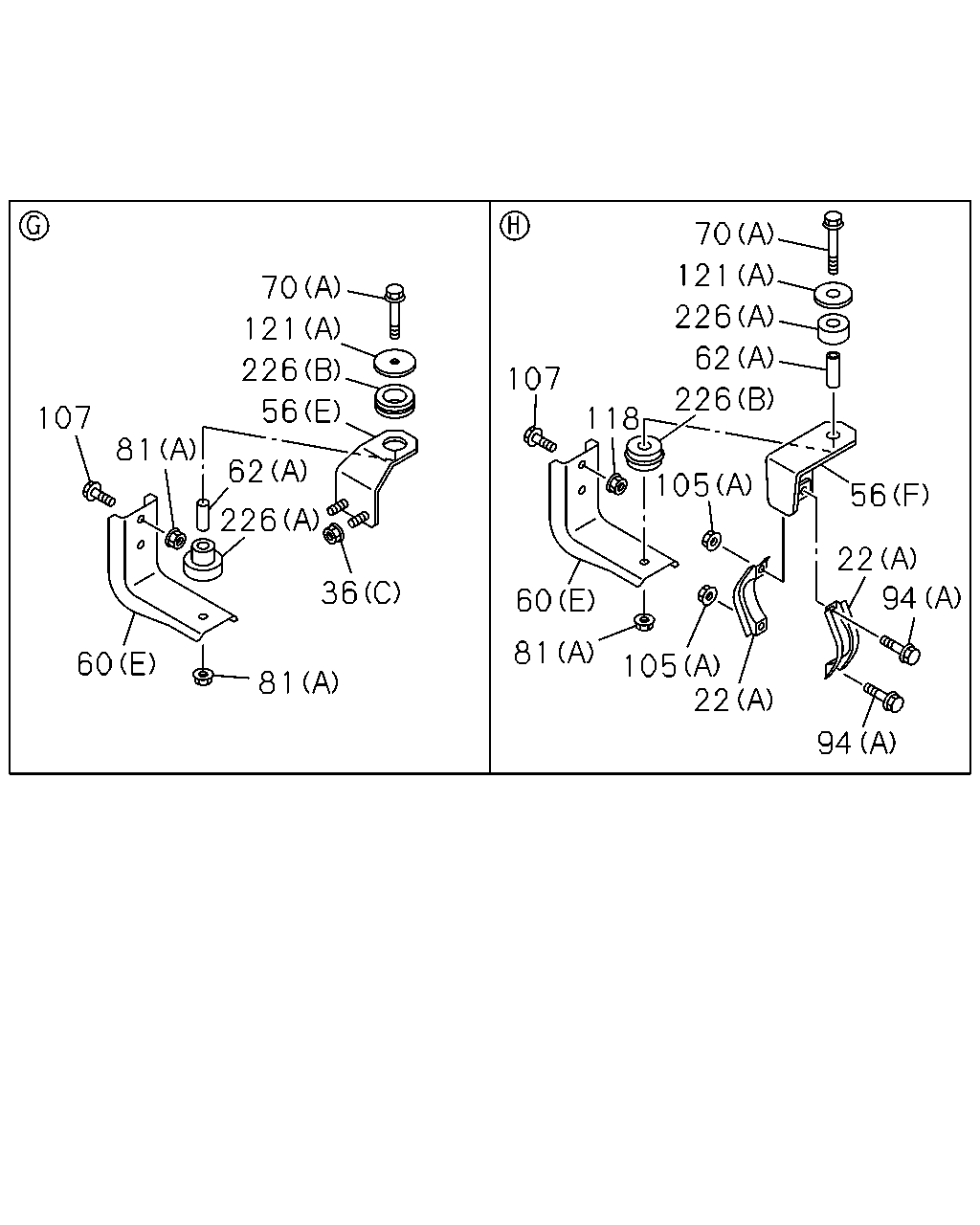

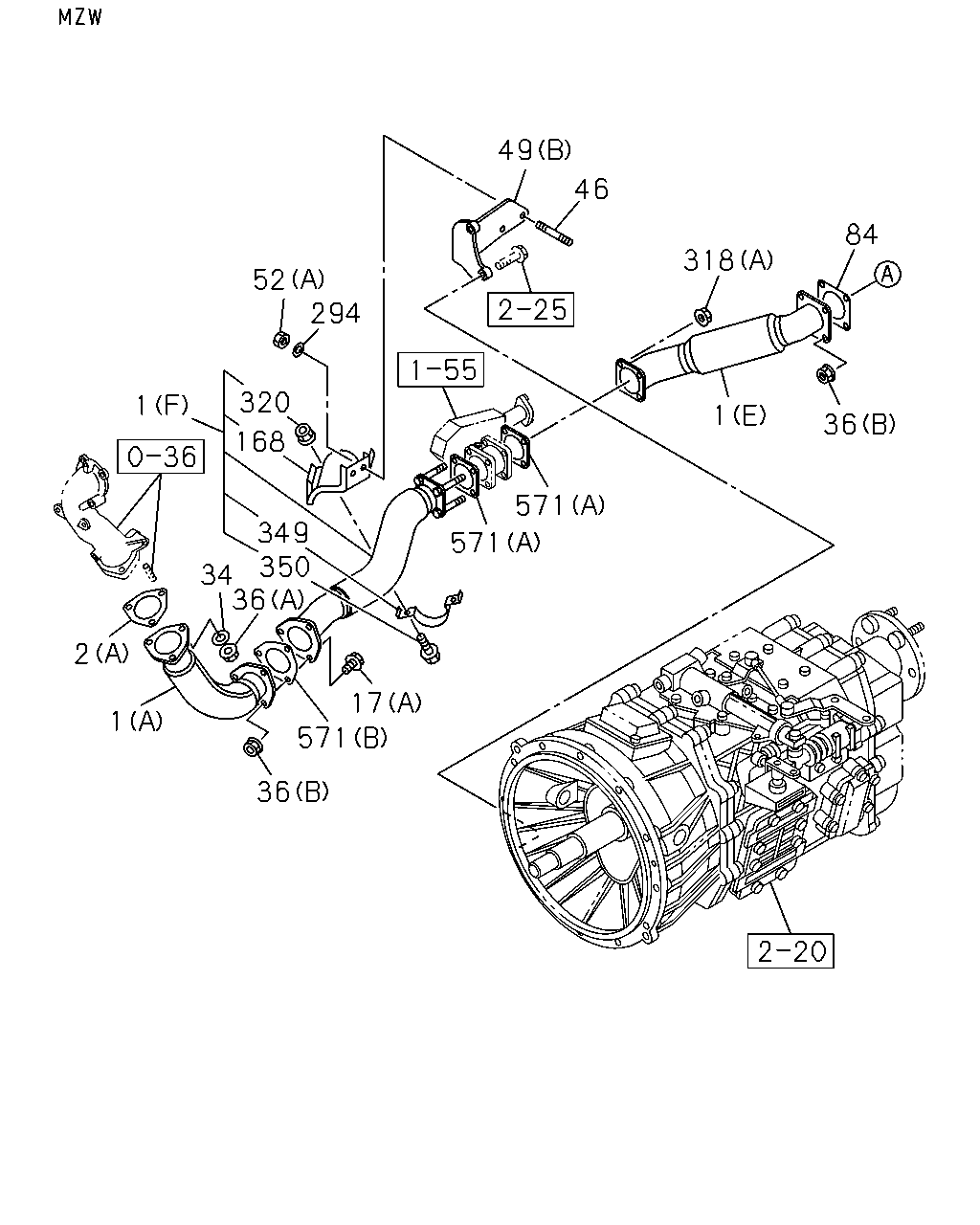

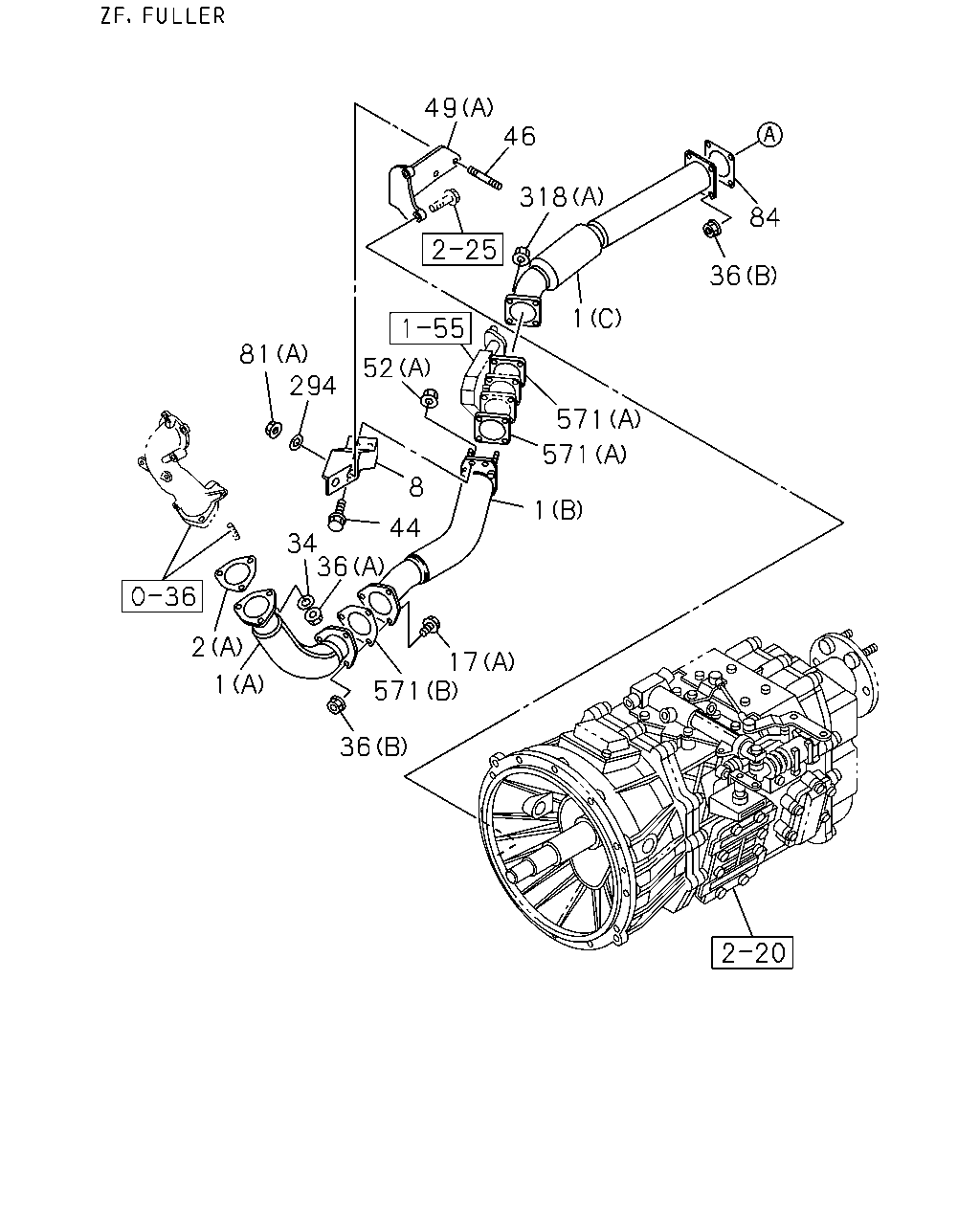

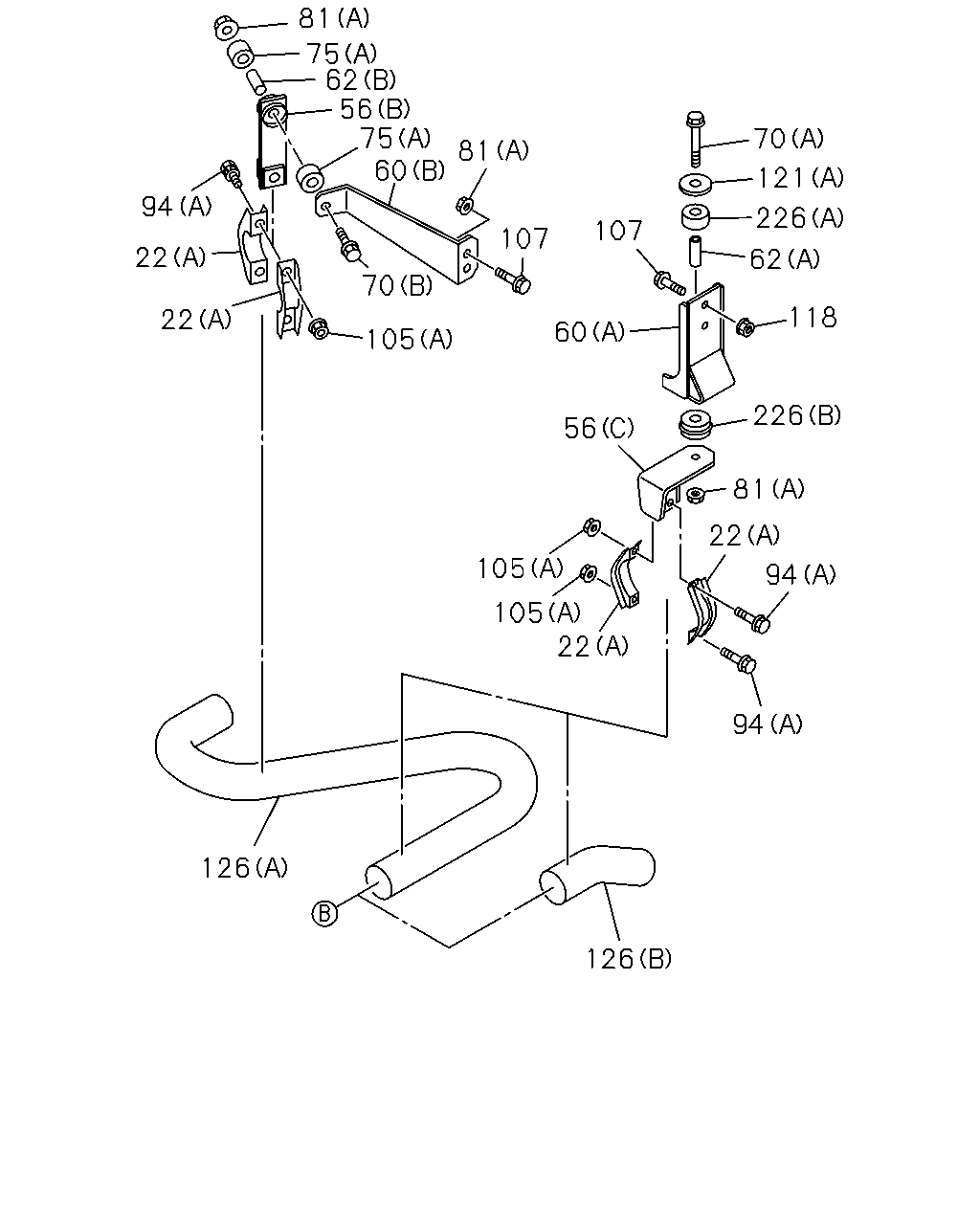

1-50 — EXHAUST PIPE AND SILENCER (#112439) — 531 parça

36 34 1 34 36 17 107 81 118 60 81 121 75 75 56 70 105 63 94 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (H)	8-98206-298-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
34	WASHER; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-303-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98206-302-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-

12 1 1 20 476 20 475 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (H)	8-98206-298-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98219-189-0	01	1	1302-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98219-189-0	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A)	8-98165-988-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98165-988-0	01	1	1512-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X49.8	8-97039-586-0	02	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> OD=112	1-22119-294-1	01	1	1302-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-94141-851-0	02	1	1302-

84 36 1 318 49 571 571 1 52 8 44 36 34 17 571 36 1 2 81 46 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (H)	8-98206-298-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=81	8-98043-481-0	01	1	1302-
8	BRACKET; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. TURBO - CONVENTIONAL<Q5T>	8-98069-914-0	01	1	1302-
8	BRACKET; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T>	8-98120-522-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
34	WASHER; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
44	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> M10X35 FLANGE	0-28651-035-0	02	1	1302-
46	BOLT; BRKT,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X25 L=40	0-44011-025-0	02	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98234-530-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98120-493-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98123-995-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98120-497-0	01	1	1302-
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1302-
52	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
84	GASKET; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98096-305-0	01	1	1302-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5	8-98073-091-0	02	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1302-
318	NUT; EXH PIPE,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1302-
571	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-

81 107 60 17 12 506 81 226 36 70 56 62 226 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98219-189-0	01	1	1302-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98219-189-0	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A)	8-98165-988-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98165-988-0	01	1	1512-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-303-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98206-302-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1302-
506	BRACKET; STUD 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-

52 49 46 318 84 36 1 294 571 320 1 168 571 349 350 34 17 36 571 2 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (H)	8-98206-298-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=81	8-98043-481-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
34	WASHER; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
46	BOLT; BRKT,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X25 L=40	0-44011-025-0	02	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98234-530-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98120-493-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98123-995-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98120-497-0	01	1	1302-
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1302-
52	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
84	GASKET; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98096-305-0	01	1	1302-
168	BRACKET; EXH PIPE,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T>	8-98221-369-1	01	1	1302-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5	8-98073-091-0	02	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1302-
318	NUT; EXH PIPE,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
320	NUT; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1302-
349	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T>	8-98115-162-0	01	1	1302-
350	BOLT; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28651-030-0	02	1	1302-
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1302-
571	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-

81 94 75 56 62 75 60 81 107 70 105 22 126 126 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-303-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98206-302-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-

81 70 226 118 226 81 22 94 94 22 105 105 56 60 107 121 62 107 70 81 75 75 105 22 22 94 62 60 56 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-303-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98206-302-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-

2 12 506 49 22 505 1 36 36 318 1 571 571 52 236 5 6 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (H)	8-98206-298-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G)	8-98082-498-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (G)	8-98243-546-0	01	1	1304-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98090-386-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-515-0	01	1	1302-
1	PIPE; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=81	8-98043-481-0	01	1	1302-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS)	8-98208-210-1	01	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (C)	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (C)	8-98219-189-0	01	1	1302-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98219-189-0	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> (A)	8-98165-988-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98165-988-0	01	1	1512-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (C)	8-98234-530-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98120-493-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98123-995-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98120-497-0	01	1	1302-
52	NUT; BRKT 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-212-0	04	1	1302-
52	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1302-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1302-
318	NUT; EXH PIPE,FRT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1302-
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1302-
506	BRACKET; STUD 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1302-
571	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-

70 62 56 75 75 97 94 22 22 105 97 81 60 107 126 126 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-303-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98206-302-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-

70 121 226 56 62 226 36 81 81 107 60 70 121 226 62 107 226 118 105 56 22 94 94 22 105 81 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
36	NUT; EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-303-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (E)	8-98206-302-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-
121	WASHER; PL,BRKT 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1302-
226	RUBBER; CUSHION 6HK1-TCS ENG(80L),6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
