Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#112438) — 227 parça

36 34 1 17 107 36 34 81 118 81 121 75 60 75 56 94 22 63 70 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98082-498-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98212-603-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) M12X120	1-09000-293-0	01	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-611-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (B) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) (A) ID=10.5 OD=32	0-91614-810-0	02	1	1302-

81 94 22 126 126 22 105 70 107 60 81 75 56 62 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-611-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (B) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-

1 12 1 20 476 475 476 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98082-498-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98212-603-0	01	1	1302-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98090-389-2	01	1	1305-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98212-605-0	01	1	1302-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L) M10X49.8	8-97039-586-0	02	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L) OD=112	1-22119-294-1	01	1	1302-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L)	8-94141-851-0	02	1	1302-

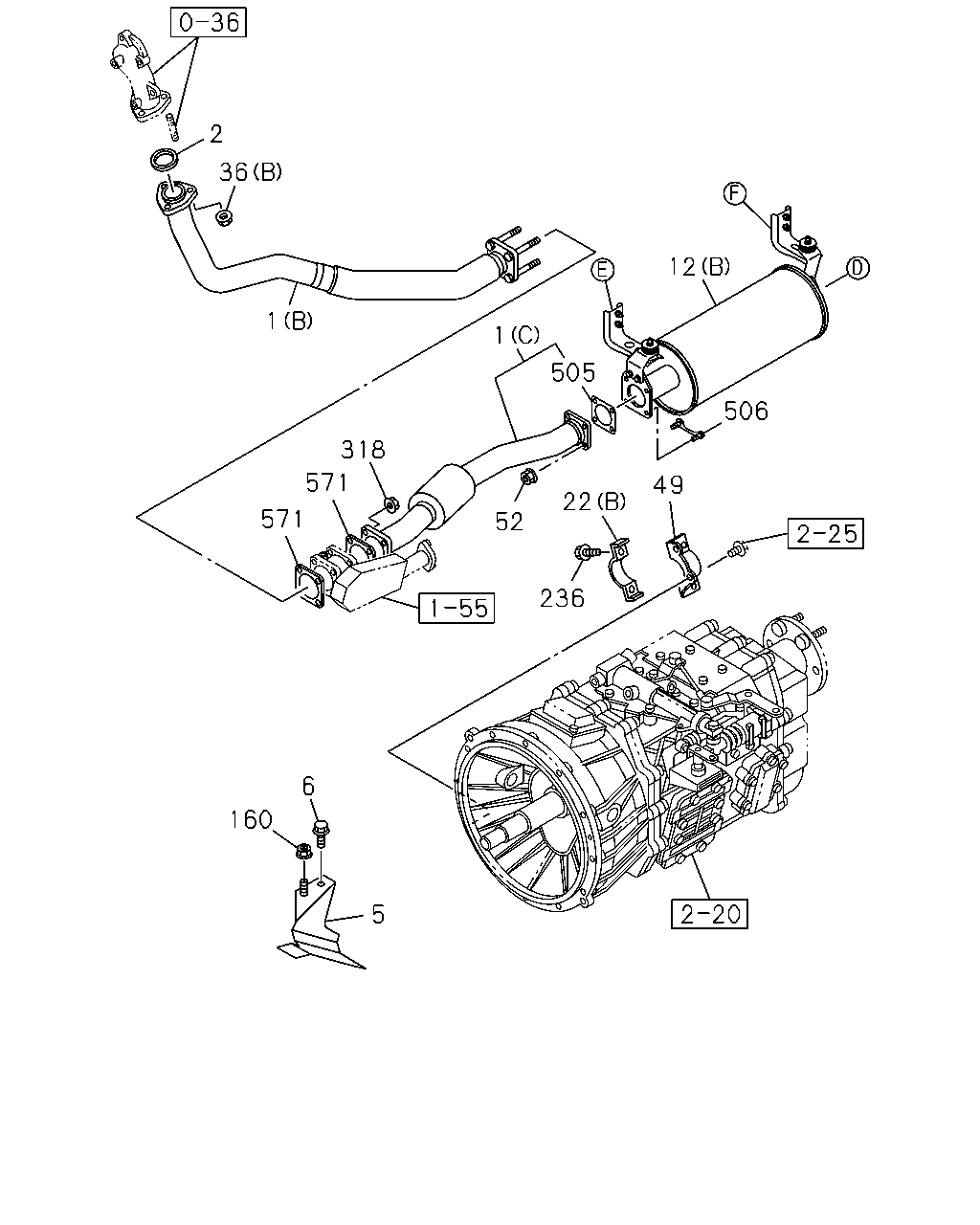

36 2 1 1 12 506 22 52 571 318 49 236 160 5 6 571 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (C)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (B)	8-98082-498-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98212-603-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97381-455-0	01	1	1305-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS)	8-98208-210-1	01	1	1305-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1305-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98090-389-2	01	1	1305-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98212-605-0	01	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS)	8-98234-530-0	01	1	1305-
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	04	1	1305-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1305-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) M8 W/LK WASHER	8-97581-234-0	04	1	1305-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1305-
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1305-
571	GASKET 4HK1-TCS ENG(RJS) ID=64	8-97373-108-0	02	1	1305-

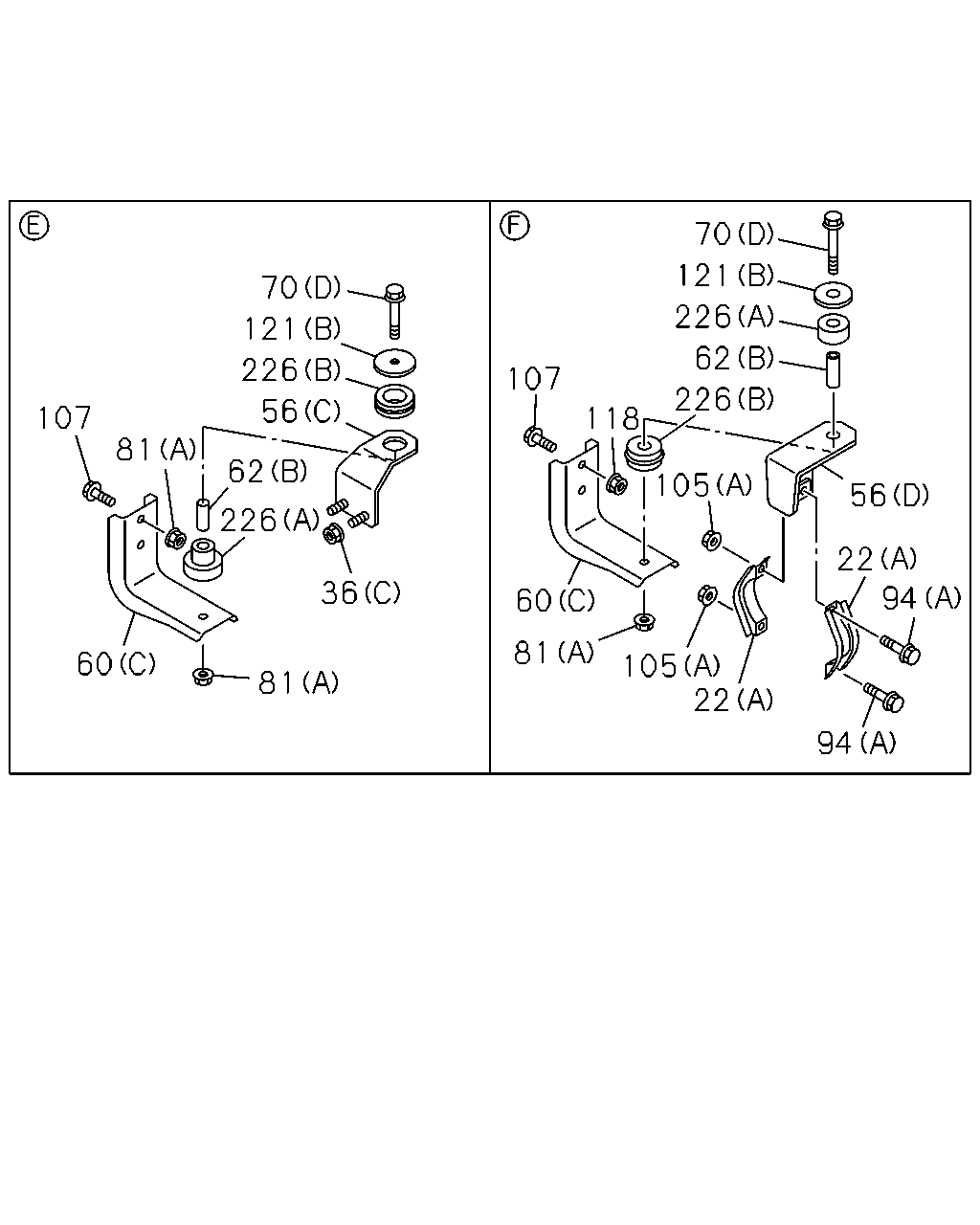

70 70 121 121 226 226 56 107 62 118 226 105 56 22 60 94 81 22 105 94 81 36 62 107 226 81 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (B) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-611-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (B) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (B) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) (A) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1305-

70 62 56 75 75 94 97 22 22 105 97 81 60 81 107 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (C)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98212-611-0	01	1	1302-
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (B) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (D) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M10X50	0-10856-050-0	02	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) (B) OD=30	1-22159-106-1	04	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1305-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
