Sayfa 1-50 - Isuzu EPC

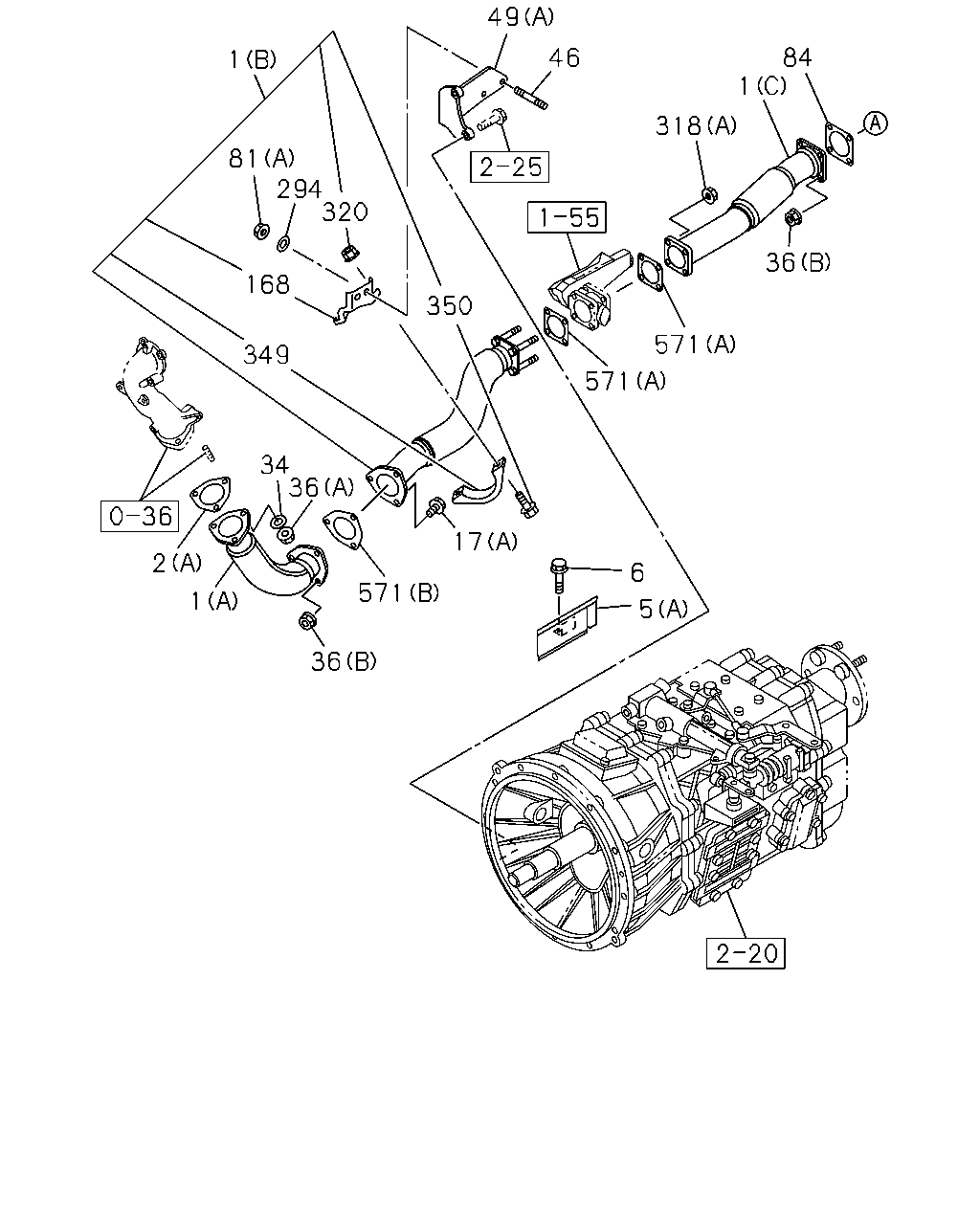

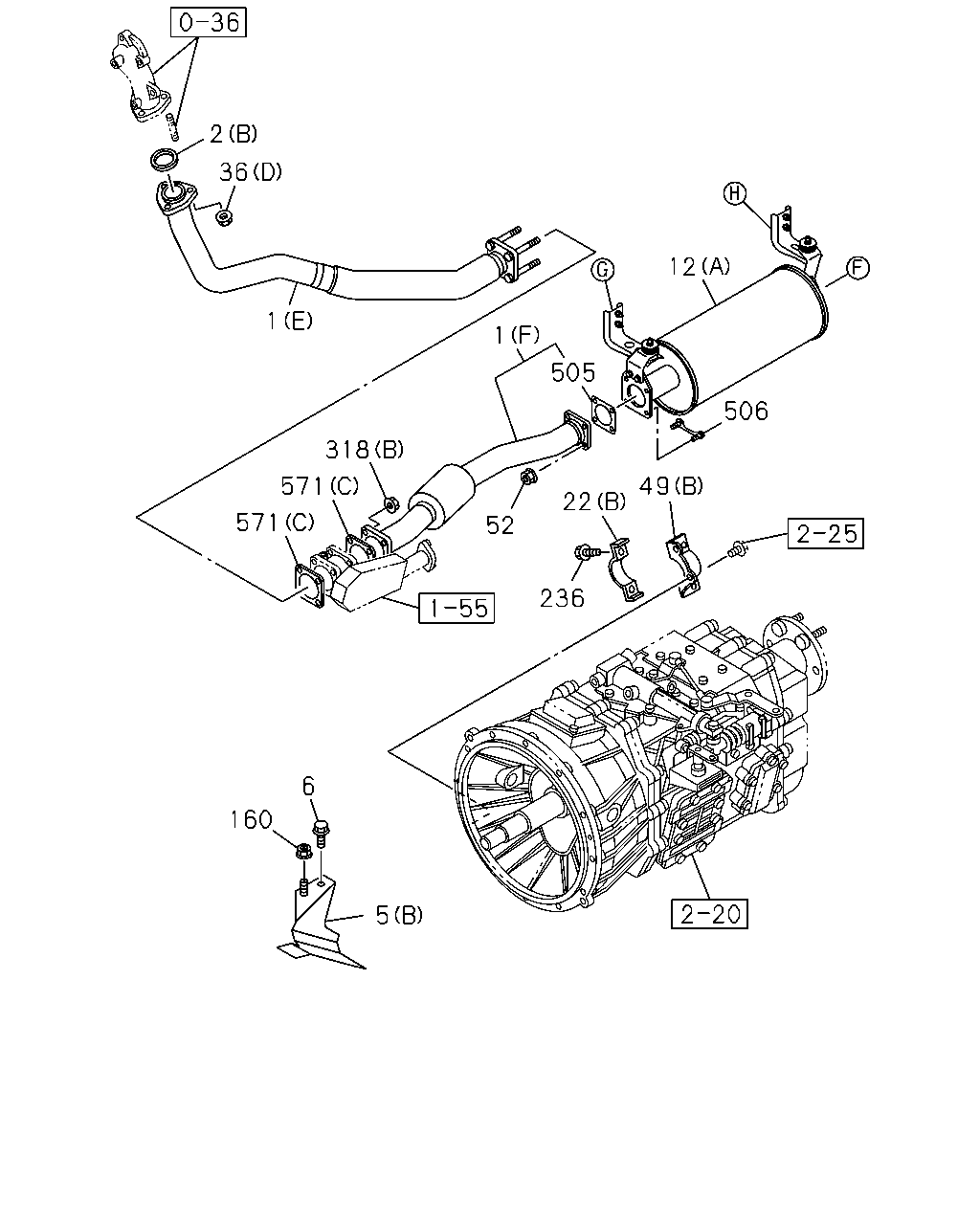

1-50 — EXHAUST PIPE AND SILENCER (#112437) — 878 parça

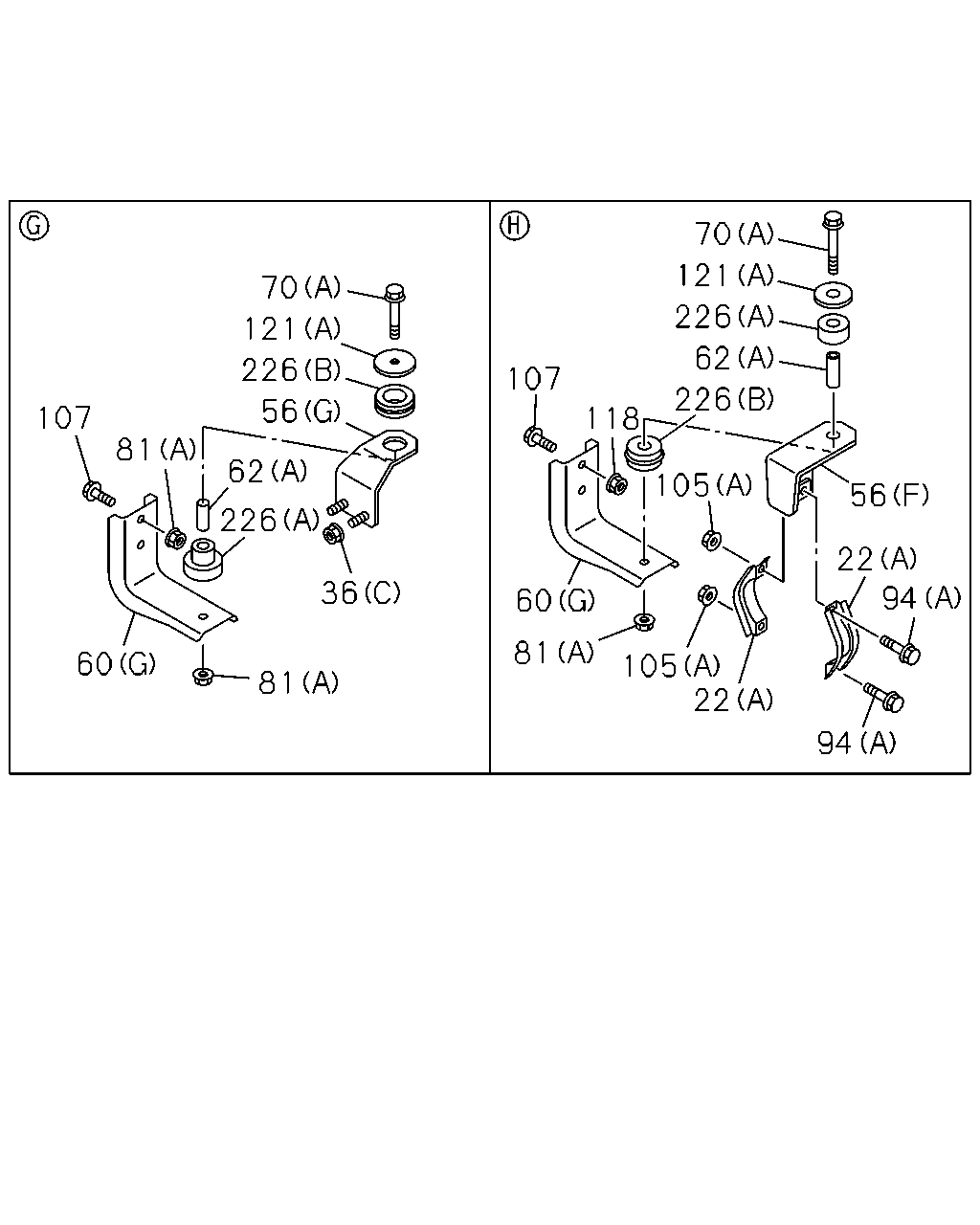

81 121 226 62 107 81 17 60 226 56 36 70 506 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ> (A)	8-98236-535-0	01	1	1506-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98219-189-0	01	1	1305-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> (A)	8-98219-189-0	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-604-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1302-1304
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98090-389-2	01	1	1305-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1305-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98090-389-2	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A)	8-98165-988-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> (A)	8-98165-988-0	01	1	1512-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-1304
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-1304
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-1304
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1305-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-1304
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-1304
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-1304
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1305-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1305-
506	BRACKET; STUD EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-1304
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1305-
506	BRACKET; STUD 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1305-

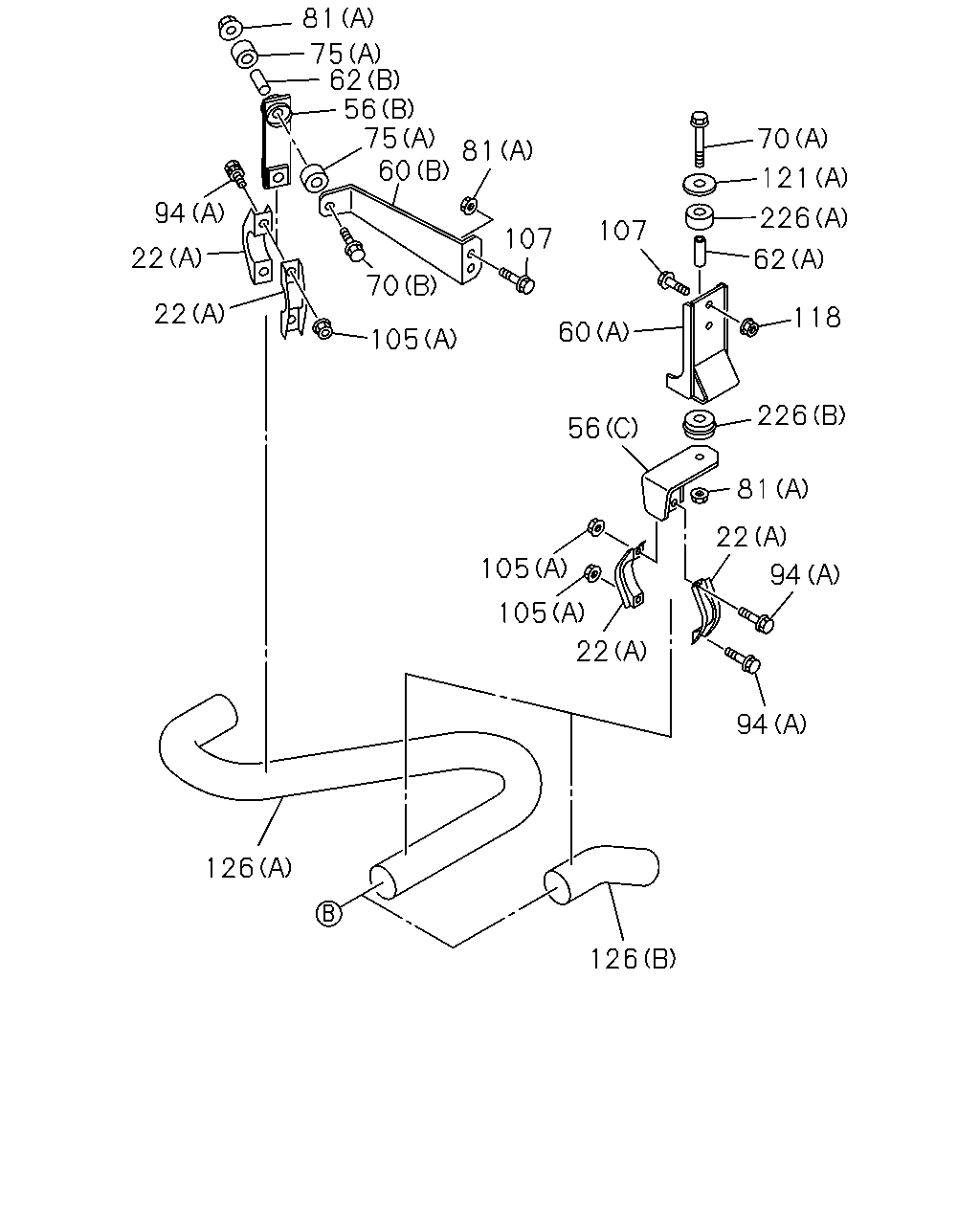

81 62 75 56 60 75 81 107 107 70 226 121 118 226 81 22 94 22 94 105 105 56 60 105 70 94 22 22 126 126 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-1304
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-1304
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1305-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-1304
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98270-405-0	01	1	1406-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98270-406-0	01	1	1406-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1302-1405
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1406-1511
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) PERU EQUIPMENT(E07) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) TURBO - CONVENTIONAL<Q5T> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-607-0	01	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-1304
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-1304
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1305-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1305-

36 1 34 34 36 17 107 118 81 81 75 60 121 75 56 70 105 22 63 22 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E)	8-98243-546-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (F)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98082-498-0	01	1	1305-1511
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E)	8-98082-498-0	01	1	1512-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-1304
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-1304
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-

1 49 81 294 46 318 1 84 36 571 571 17 5 6 36 571 1 2 36 34 349 168 320 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E)	8-98243-546-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (F)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98082-498-0	01	1	1305-1511
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E)	8-98082-498-0	01	1	1512-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=81	8-98043-481-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1305-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (A)	8-98073-436-0	01	1	1302-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (A)	8-98255-001-0	01	1	1407-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (B)	8-98208-210-1	01	1	1305-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1305-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M12X35 FLANGE	0-28051-235-0	03	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M12X120	1-09000-293-0	01	1	1302-
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1302-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-1304
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X25 L=40	0-44011-025-0	02	1	1302-
49	BRACKET; EXH PIPE TO TRANS EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98120-493-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1305-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98096-305-0	01	1	1302-
168	BRACKET; EXH PIPE,FRT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98221-369-1	01	1	1302-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5	8-98073-091-0	02	1	1302-
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1305-
320	NUT; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE	0-91180-210-0	02	1	1302-
349	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>	8-98115-162-0	01	1	1302-
350	BOLT; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10X30 FLANGE	0-28651-030-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1305-

81 94 75 75 62 81 56 60 107 70 105 22 126 126 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-1304
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-1304
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1305-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98270-405-0	01	1	1406-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98270-406-0	01	1	1406-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1302-1405
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1406-1511
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) PERU EQUIPMENT(E07) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) TURBO - CONVENTIONAL<Q5T> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-607-0	01	1	1302-

81 121 75 60 105 97 56 81 107 75 70 94 105 97 63 22 22 94 126 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1305-
97	WASHER; PL,CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5	0-91614-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-1304
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98270-405-0	01	1	1406-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98270-406-0	01	1	1406-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1302-1405
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1406-1511
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) PERU EQUIPMENT(E07) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) TURBO - CONVENTIONAL<Q5T> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-607-0	01	1	1302-

81 81 75 121 60 107 97 105 56 75 105 97 63 70 22 22 94 94 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> L=11	1-22139-026-0	01	1	1302-
63	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> L=11	1-22139-026-0	02	1	1302-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1305-
97	WASHER; PL,CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5	0-91614-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-1304
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98270-405-0	01	1	1406-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98270-406-0	01	1	1406-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1302-1405
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1406-1511
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) PERU EQUIPMENT(E07) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) TURBO - CONVENTIONAL<Q5T> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-607-0	01	1	1302-

1 12 1 20 476 475 476 20 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E)	8-98243-546-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (F)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98082-498-0	01	1	1305-1511
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E)	8-98082-498-0	01	1	1512-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (A)	8-98073-436-0	01	1	1302-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (A)	8-98255-001-0	01	1	1407-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (B)	8-98208-210-1	01	1	1305-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1305-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ> (A)	8-98236-535-0	01	1	1506-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98219-189-0	01	1	1305-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> (A)	8-98219-189-0	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-604-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1302-1304
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98090-389-2	01	1	1305-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1305-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98090-389-2	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A)	8-98165-988-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> (A)	8-98165-988-0	01	1	1512-
20	BOLT; FLANGE,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10X49.8	8-97039-586-0	02	1	1302-
475	BEARING; SEAL,VIBNON,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> OD=112	1-22119-294-1	01	1	1302-
476	SPRING; VIBNON,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T>	8-94141-851-0	02	1	1302-

2 12 36 1 1 505 506 49 22 236 5 6 160 571 571 318 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (E)	8-98243-546-0	01	1	1305-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98096-668-2	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98234-516-1	01	1	1302-
1	PIPE; EXH 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98234-511-0	01	1	1302-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (F)	8-98206-298-0	01	1	1305-
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (E)	8-98082-498-0	01	1	1305-1511
1	PIPE; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E)	8-98082-498-0	01	1	1512-
1	PIPE; EXH 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D)	8-98212-603-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=81	8-98043-481-0	01	1	1302-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1305-
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (A)	8-98073-436-0	01	1	1302-1406
5	PROTECTOR; HEAT ANTI LOCK BRAKE<JE5> (A)	8-98255-001-0	01	1	1407-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS) (B)	8-98208-210-1	01	1	1305-
6	BOLT; HEAT PROTECTOR ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	1302-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1305-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO5 SPECIFICATION<NT5> CATALYSIS CONTROL<6MZ> (A)	8-98236-535-0	01	1	1506-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> (A)	8-98219-189-0	01	1	1305-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> (A)	8-98219-189-0	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-605-0	01	1	1302-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98212-604-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1302-1304
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-98090-389-2	01	1	1305-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98090-389-2	01	1	1305-1511
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (A)	8-98090-389-2	01	1	1512-
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> (A)	8-98165-988-0	01	1	1302-1511
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ> (A)	8-98165-988-0	01	1	1512-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-1304
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
49	BRACKET; EXH PIPE TO TRANS EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98120-493-0	01	1	1302-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1305-
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	04	1	1305-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1305-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1305-
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1305-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1305-
506	BRACKET; STUD EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1302-1304
506	BRACKET; STUD 4HK1-TCS ENG(RJS) M12X35	1-22131-963-0	02	1	1305-
506	BRACKET; STUD 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M12X35	1-22131-963-0	02	1	1305-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=85.8	1-22116-043-0	02	1	1302-
571	GASKET 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=81	8-98043-481-0	01	1	1302-
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1305-

70 121 226 56 62 81 107 36 81 60 226 70 121 226 107 226 118 105 56 22 94 94 22 105 81 60 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
36	NUT; EXH PIPE EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1302-1304
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C) M10 FLANGE	0-91180-210-0	02	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B) M12 FLANGE	0-91180-212-0	07	1	1302-
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1305-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-1304
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-1304
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1305-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1302-1304
121	WASHER; PL,BRKT 4HK1-TCS ENG(RJS) (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=11 OD=54	1-09503-154-2	02	1	1305-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) ID=10.5 OD=32	0-91614-810-0	01	1	1302-
121	WASHER; PL,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) ID=10.5 OD=32	0-91614-810-0	02	1	1302-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1302-1304
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-94457-277-1	02	1	1305-
226	RUBBER; CUSHION EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1302-1304
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	02	1	1305-
226	RUBBER; CUSHION 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-94457-278-1	02	1	1305-

70 62 56 75 75 94 97 22 105 22 107 126 126 97 81 60 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	1-22133-295-0	01	1	1305-1309
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	04	1	1302-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1302-1304
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (A) ID=80-84	1-22133-233-0	02	1	1305-
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (C)	1-22152-324-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-639-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-536-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (G)	8-98206-303-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (F)	8-98206-304-0	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22139-124-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1302-1304
56	BRACKET; CLAMP,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1305-
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) L=40 B=50 H=74	1-22139-045-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98245-532-0	02	1	1310-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (G)	8-98206-302-0	02	1	1305-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1305-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	1-22151-782-1	01	1	1302-1509
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (E)	8-98334-990-0	01	1	1510-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C)	8-98183-955-0	02	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98212-611-0	01	1	1302-
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T>,TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>,TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1302-
62	TUBE; DIST,BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1302-1304
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) L=39	8-98060-852-0	02	1	1305-
62	TUBE; DIST,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-1304
62	TUBE; DIST,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1305-
70	BOLT; BRKT EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X70 FLANGE	0-28051-070-0	02	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1302-1304
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C) M10X50	0-10856-050-0	01	1	1305-
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
70	BOLT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) M10X50	0-10856-050-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (C) OD=40	1-22159-094-0	02	1	1305-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) OD=30	1-22159-106-1	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) OD=30	1-22159-106-1	04	1	1302-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
81	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1305-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-1511
81	NUT; BRKT 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10 LOCK NUT	0-91370-010-0	01	1	1302-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	01	1	1302-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-1511
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10 LOCK NUT	0-91370-010-0	02	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	04	1	1302-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1302-1304
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1305-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1305-
97	WASHER; PL,CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> ID=10.5	0-91614-510-0	02	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (B) M10	0-91110-510-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	04	1	1302-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1302-1304
105	NUT; CLAMP 4HK1-TCS ENG(RJS) (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1305-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 3900MM(39W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-98270-405-0	01	1	1406-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) MOROCCO EQUIPMENT(CGA) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (G)	8-98270-406-0	01	1	1406-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98206-305-0	01	1	1305-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1302-1405
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1406-1511
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) PERU EQUIPMENT(E07) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> EXC. MOROCCO EQUIPMENT(CGA),PERU EQUIPMENT(E07), TURBO - CONVENTIONAL<Q5T> (D)	8-98212-606-0	01	1	1512-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR>, TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1302-
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) TURBO - CONVENTIONAL<Q5T> TAIL PIPE SINGLE HORIZONTAL TURN LEFT<SBR> (C)	8-98212-607-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
