1-50 — EXHAUST PIPE AND SILENCER (#112436) — 107 parça

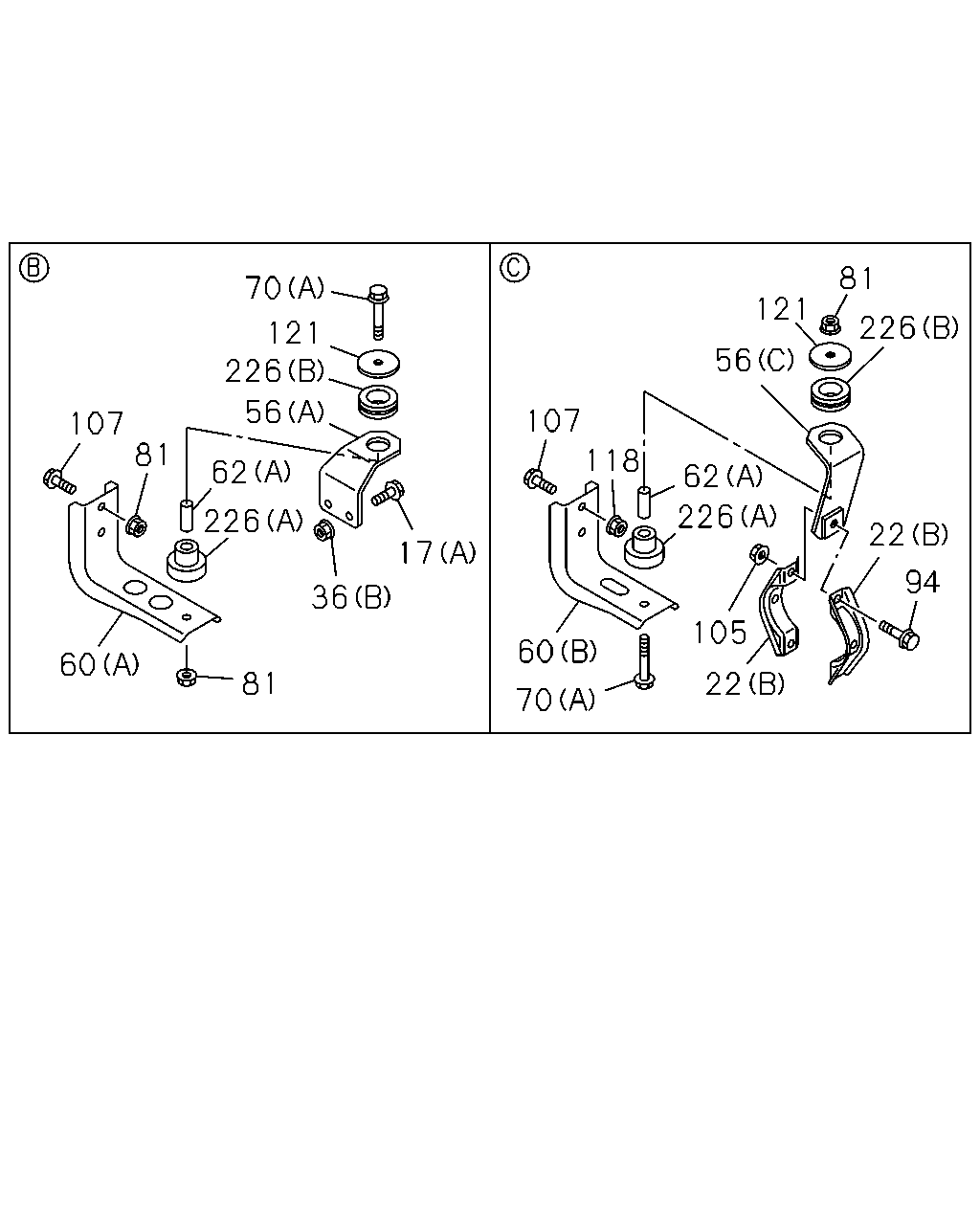

70 121 226 56 107 62 81 17 36 226 81 60 107 56 121 81 226 22 22 94 105 226 62 118 60 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1302-
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-1405
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1405
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-
70	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1406-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1406-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1406-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	03	1	1302-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1302-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1302-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-1405
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1406-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1406-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-1405
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1406-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1406-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-1405
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1406-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1406-

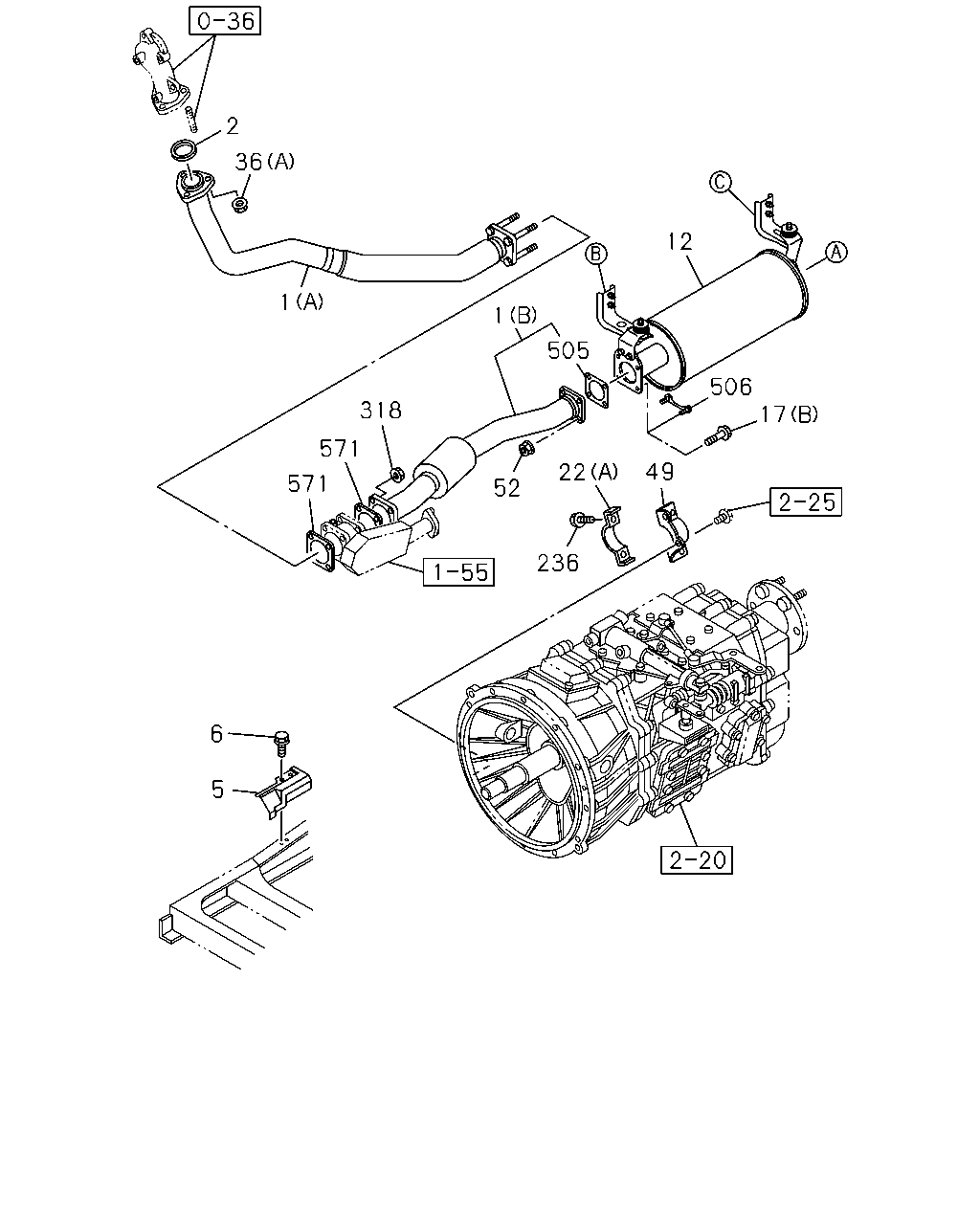

5 6 571 571 318 52 236 22 505 1 1 36 2 12 506 49 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (B)	8-98096-347-0	01	1	1302-
1	PIPE; EXH EURO2 SPECIFICATION<NT2> (A)	8-98082-498-0	01	1	1302-
1	PIPE; EXH EURO4 SPECIFICATION<NT4> (A)	8-98208-160-0	01	1	1302-1303
1	PIPE; EXH EURO4 SPECIFICATION<NT4> (A)	8-98243-546-0	01	1	1304-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1302-
5	PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>	8-98089-287-1	01	1	1302-
5	PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<NT2>	8-98044-122-0	01	1	1302-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	1302-
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2>	8-98090-389-2	01	1	1302-
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4>	8-98175-970-3	01	1	1302-1505
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4> CATALYSIS CONTROL<6MZ>	8-98175-970-3	01	1	1506-
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	1302-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1302-
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	1302-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1302-
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1302-
52	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	1302-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	1302-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1302-
505	GASKET; CONV TO EXH PIPE	8-98096-305-0	01	1	1302-
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1302-
571	GASKET ID=64	8-97373-108-0	02	1	1302-

81 75 62 56 75 60 81 107 70 105 94 22 22 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) ID=80-84	1-22133-233-0	02	1	1302-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1302-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1302-
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-584-0	01	1	1302-1309
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98245-522-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1302-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	1302-1309
60	BRACKET; FRAME TO BRKT (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98090-167-0	01	1	1302-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-1405
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1406-
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1302-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-1405
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1406-
70	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1302-
75	RUBBER; SUPPORT,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> OD=40	1-22159-193-0	02	1	1302-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1406-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1405
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1406-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1406-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	03	1	1302-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1302-
94	BOLT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X40 FLANGE	0-28651-040-0	02	1	1302-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1302-
105	NUT; CLAMP EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1302-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1302-
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1302-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1302-
126	PIPE; EXH,RR EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98073-427-0	01	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
