10866 - EXD LHD FUEL TANK 400L
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

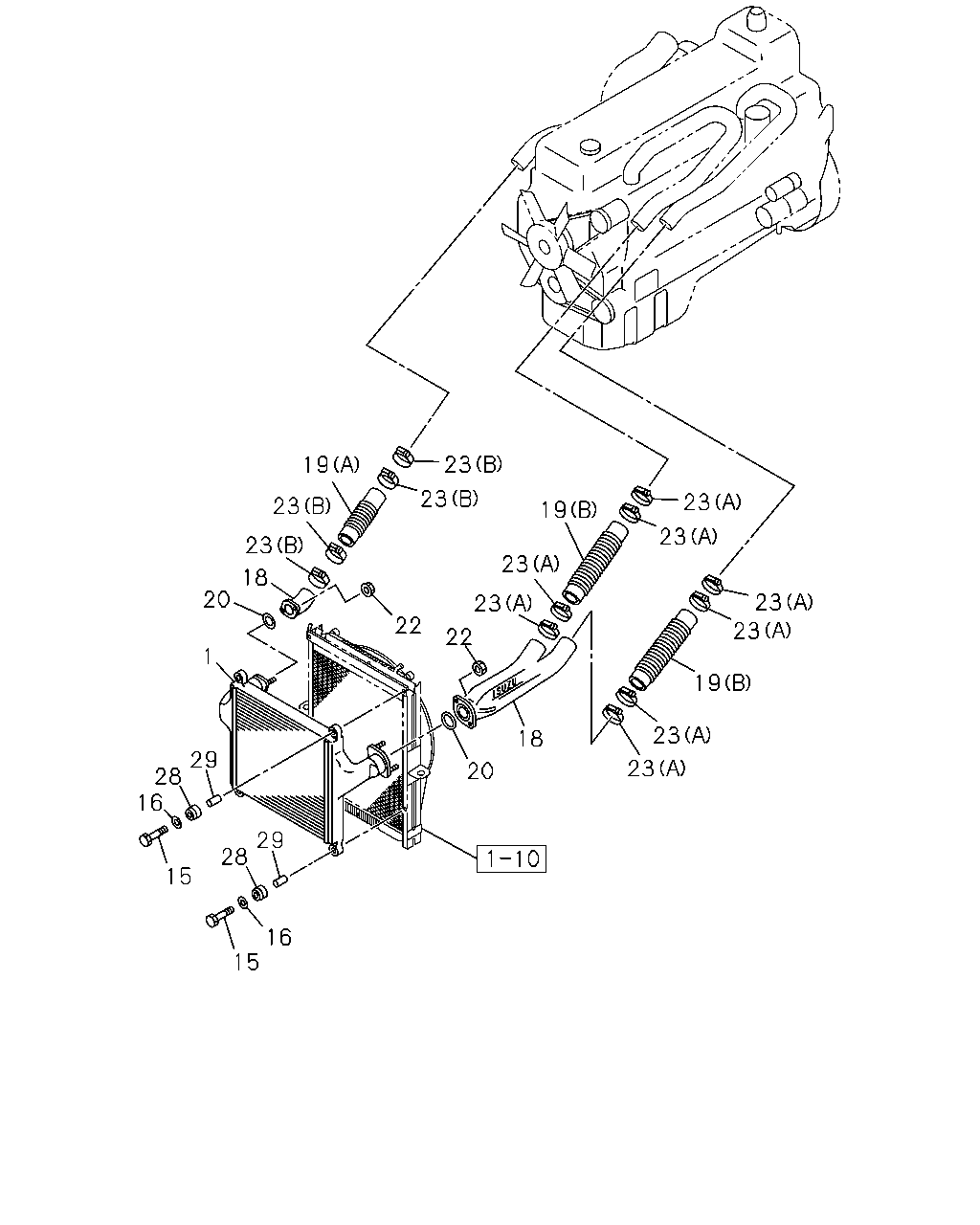

1-35 — CHARGE AIR COOLER
(#11243) — 16 parça
23
19
23
23
23
19
23
23
23
18
20
23
23
22
23
22
1
19
23
18
29
28
16
23
20
29
28
15
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-047-0
01
1
0107-
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
0107-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0107-
18
ADAPTER
1-14112-491-1
01
1
0107-
18
ADAPTER
1-14112-567-0
01
1
0107-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A) L=280
1-09360-757-3
01
1
0107-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B) L=270
1-09360-914-2
02
1
0107-
20
GASKET
ID=84.6
1-09623-431-0
02
1
0107-
22
NUT
M10 FLANGE
0-91150-210-0
04
1
0107-0602
22
NUT
M10 FLANGE
0-91180-210-0
04
1
0603-
23
CLIP; HOSE
(B) ID=77-95
1-09707-114-0
04
1
0107-0306
23
CLIP; HOSE
(B) ID=77-95
1-09707-198-0
04
1
0307-
23
CLIP; HOSE
(A) ID=68-85
8-94320-428-0
08
1
0107-0306
23
CLIP; HOSE
(A) ID=68-85
1-09707-202-0
08
1
0307-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0107-
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0107-
