Sayfa 4-15 - Isuzu EPC

4-15 — FRONT FINAL DRIVE (#112426) — 202 parça

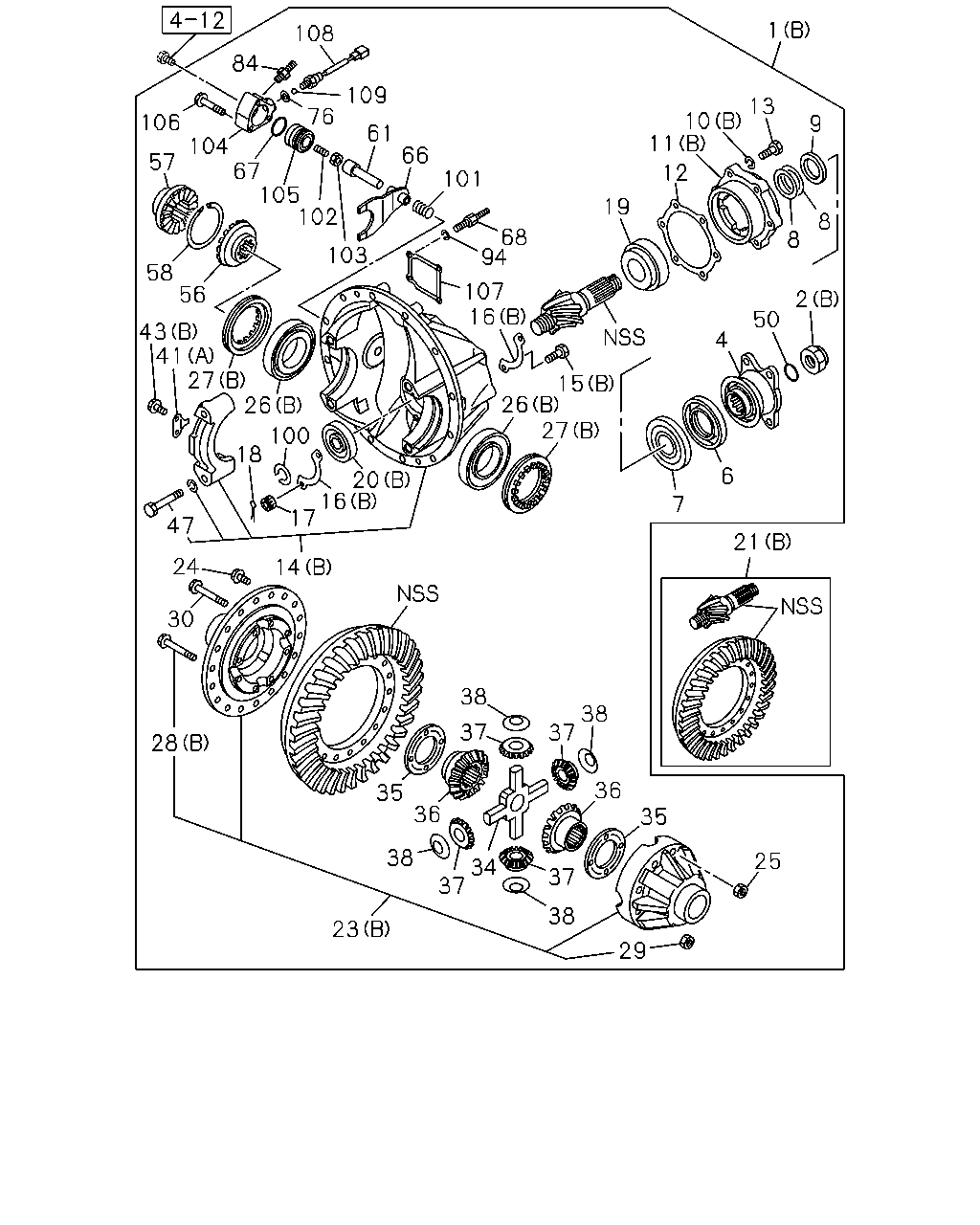

84 108 109 76 61 66 101 68 94 107 16 19 12 11 10 13 9 8 8 2 50 4 6 7 15 26 27 38 37 37 38 36 35 25 29 38 37 34 37 38 36 35 28 30 24 14 47 17 16 20 18 100 26 27 41 43 56 58 57 103 102 105 67 104 106 23 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT FINAL GEAR 39/6 14.5"(W1J) (B) 39/6	1-41003-384-0	01	1	1302-
1	DRIVE ASM; FINAL,FRT FINAL GEAR 39/7 15.5"(W3K) (A) 39/7	1-41003-339-0	01	1	1302-
1	DRIVE ASM; FINAL,FRT FINAL GEAR 43/7 14.5"(W1G) (B) 43/7	1-41003-385-0	01	1	1302-
2	NUT; FINAL DRIVE PINION FINAL GEAR 39/7 15.5"(W3K) (A) M30 FLANGE	1-09449-066-1	01	1	1302-
2	NUT; FINAL DRIVE PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M36 FLANGE	1-09449-083-0	01	1	1302-
4	COUPLING; FINAL DRIVE PINION	1-37245-415-0	01	1	1302-
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1302-
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1302-
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1302-
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	1302-
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-
10	WASHER; LK,FINAL PINION FINAL GEAR 39/7 15.5"(W3K) (A) ID=12.2	0-91510-512-0	06	1	1302-
10	WASHER; LK,FINAL PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) ID=12.2	0-91510-812-0	06	1	1302-
11	CAGE; FINAL PINION FINAL GEAR 39/7 15.5"(W3K) (A)	1-41151-063-0	01	1	1302-
11	CAGE; FINAL PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-41151-027-0	01	1	1302-
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1302-
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1302-
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1302-
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1302-
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1302-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-41110-042-0	01	1	1302-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-41110-122-0	01	1	1302-
15	BOLT; RET FINAL GEAR 39/7 15.5"(W3K) (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-
15	BOLT; RET FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-
16	RETAINER; PILOT BRG,PINION FINAL GEAR 39/7 15.5"(W3K) (A)	9-41227-004-0	02	1	1302-
16	RETAINER; PILOT BRG,PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) T=2.3	1-41227-006-0	02	1	1302-
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-
18	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	1302-
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	1302-
20	BEARING; FINAL DRIVE PINION FINAL GEAR 39/7 15.5"(W3K) (A)	9-00094-081-0	01	1	1302-
20	BEARING; FINAL DRIVE PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09810-073-2	01	1	1302-
20	BEARING; FINAL DRIVE PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT	1-09810-074-1	01	1	1302-
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR 39/6 14.5"(W1J) (B) 39/6	1-41210-394-2	01	1	1302-
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR 39/7 15.5"(W3K) (A) 39/7	1-41210-259-2	01	1	1302-
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR 43/7 14.5"(W1G) (B) 43/7	1-41210-392-2	01	1	1302-
23	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) (A)	1-41510-123-0	01	1	1302-
23	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-41510-335-0	01	1	1302-
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1302-
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	02	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-
27	NUT; ADJ,DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) M128 H=22	1-41121-013-0	02	1	1302-
27	NUT; ADJ,DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M138 H=30	1-41121-054-0	01	1	1302-
27	NUT; ADJ,DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M128 H=22	1-41121-013-0	01	1	1302-
28	BOLT; DIFF CAGE SETTING FINAL GEAR 39/7 15.5"(W3K) (A) M14X107	1-09044-024-0	04	1	1302-
28	BOLT; DIFF CAGE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M14X112 FLANGE	1-09070-057-1	04	1	1302-
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	1302-
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	1302-
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	1302-
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1302-
36	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1302-
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	1302-
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	1302-
41	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	1302-
41	PLATE; LK,ADJ NUT FINAL GEAR 39/7 15.5"(W3K) (B) T=1.0	9-41124-005-0	02	1	1302-
43	BOLT; LK PLATE FINAL GEAR 39/7 15.5"(W3K) (A) M8X16	0-20850-816-0	04	1	1302-
43	BOLT; LK PLATE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-
47	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1302-
50	GASKET; FLANGE,FINAL PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=37.5 T=4	1-09623-582-0	01	1	1302-
56	CLUTCH; CLAW,FRT DIFF FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41266-025-0	01	1	1302-
57	SLEEVE; CLU,FRT DIFF FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41266-027-0	01	1	1302-
58	RING; SNAP,CLAW CLU FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-09588-186-0	01	1	1302-
61	ROD; SHIFT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41271-014-0	01	1	1302-
66	FORK; SHIFT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41271-015-0	01	1	1302-
67	GASKET; PISTON FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=43.7	9-09561-344-0	01	1	1302-
68	BOLT; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M6X14,M8X17 L=42	5-09309-006-1	04	1	1302-
76	GASKET; SWITCH FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=14.2	8-94462-114-0	01	1	1302-
84	CONNECTOR; HOSE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1302-
94	WASHER; COVER FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) ID=8.2	1-09985-177-0	04	1	1302-
100	RING; SNAP,PILOT BRG FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) OD=34.2	1-09588-214-0	01	1	1302-
101	SPRING; RETUN,DIFF LK FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-09580-507-0	01	1	1302-
102	SCREW; SET,DIFF LK FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12X31	1-09120-021-0	01	1	1302-
103	NUT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M12	0-91111-512-0	01	1	1302-
104	CYLINDER; DIFF LK FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41279-021-0	01	1	1302-
105	PISTON; CHAMBER,DIFF LK FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41279-020-0	01	1	1302-
106	BOLT FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) M8X60 FLANGE	0-28050-860-0	03	1	1302-
107	COVER; CARRIER,DIFF LK FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-41117-005-0	01	1	1302-
108	SWITCH; STROKE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	1-82340-534-0	01	1	1302-
109	BALL FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J)	9-00097-010-0	01	1	1302-

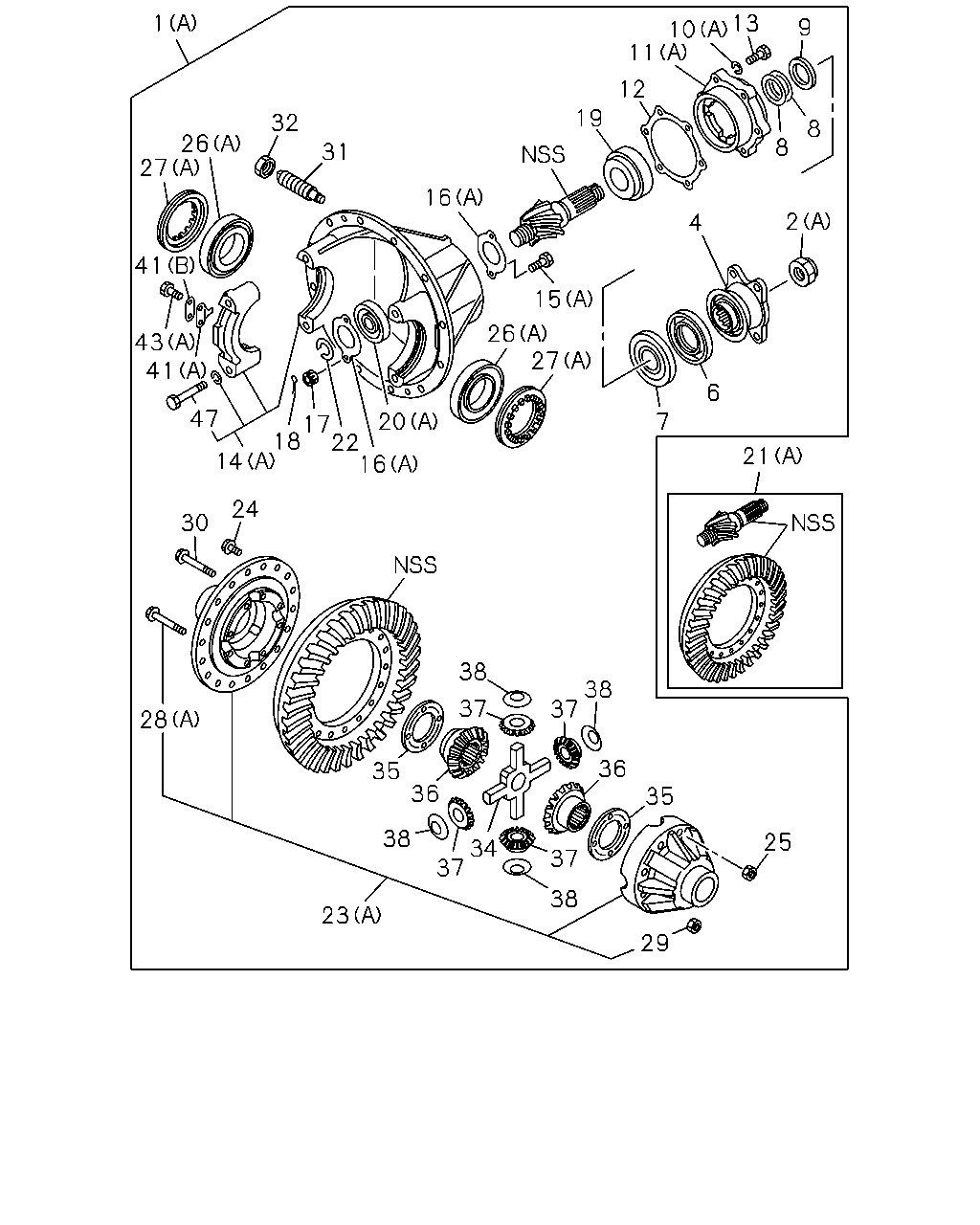

27 26 32 31 16 19 12 11 10 13 9 8 8 4 2 15 26 27 7 6 38 37 37 38 36 35 25 29 38 37 34 37 38 36 35 28 30 24 23 20 16 22 17 18 14 47 41 43 41 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,FRT FINAL GEAR 39/6 14.5"(W1J) (B) 39/6	1-41003-384-0	01	1	1302-
1	DRIVE ASM; FINAL,FRT FINAL GEAR 39/7 15.5"(W3K) (A) 39/7	1-41003-339-0	01	1	1302-
1	DRIVE ASM; FINAL,FRT FINAL GEAR 43/7 14.5"(W1G) (B) 43/7	1-41003-385-0	01	1	1302-
2	NUT; FINAL DRIVE PINION FINAL GEAR 39/7 15.5"(W3K) (A) M30 FLANGE	1-09449-066-1	01	1	1302-
2	NUT; FINAL DRIVE PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M36 FLANGE	1-09449-083-0	01	1	1302-
4	COUPLING; FINAL DRIVE PINION	1-37245-415-0	01	1	1302-
6	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1302-
6	SEAL; OIL,FINAL PINION TKK	1-09625-637-0	01	1	1302-
7	BEARING; PINION,OUTER JTEKT	5-09812-062-1	01	1	1302-
7	BEARING; PINION,OUTER NSK	5-09812-063-0	01	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.60	1-41229-179-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.61	1-41229-180-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.62	1-41229-181-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.63	1-41229-182-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.64	1-41229-183-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.65	1-41229-184-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.66	1-41229-185-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.67	1-41229-186-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.68	1-41229-187-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.69	1-41229-188-0	AR	1	1302-
8	SHIM; PINION,FINAL DRIVE T=1.70	1-41229-189-0	AR	1	1302-
9	COLLAR; DIST,PINION T=10.70	1-36355-031-0	01	1	1302-
9	COLLAR; DIST,PINION T=10.90	1-36355-033-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.10	1-36355-035-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.30	1-36355-037-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.50	1-36355-039-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.70	1-36355-041-0	01	1	1302-
9	COLLAR; DIST,PINION T=11.90	1-36355-043-0	01	1	1302-
9	COLLAR; DIST,PINION T=12.10	1-36355-045-0	01	1	1302-
9	COLLAR; DIST,PINION T=12.30	1-36355-047-0	01	1	1302-
10	WASHER; LK,FINAL PINION FINAL GEAR 39/7 15.5"(W3K) (A) ID=12.2	0-91510-512-0	06	1	1302-
10	WASHER; LK,FINAL PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) ID=12.2	0-91510-812-0	06	1	1302-
11	CAGE; FINAL PINION FINAL GEAR 39/7 15.5"(W3K) (A)	1-41151-063-0	01	1	1302-
11	CAGE; FINAL PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-41151-027-0	01	1	1302-
12	SHIM; FINAL PINION CAGE T=0.50	1-41154-021-1	AR	1	1302-
12	SHIM; FINAL PINION CAGE T=0.30	1-41154-051-1	AR	1	1302-
12	SHIM; FINAL PINION CAGE T=0.40	1-41154-052-1	AR	1	1302-
12	SHIM; FINAL PINION CAGE T=1.00	1-41154-053-1	AR	1	1302-
13	BOLT; FINAL PINION CAGE M12X40	9-02361-240-0	06	1	1302-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE FINAL GEAR 39/7 15.5"(W3K) (A)	1-41110-042-0	01	1	1302-
14	CARRIER ASM; FINAL DRIVE,FRT AXLE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-41110-122-0	01	1	1302-
15	BOLT; RET FINAL GEAR 39/7 15.5"(W3K) (A) M8X36 W/PIN HOLE	1-09042-035-0	02	1	1302-
15	BOLT; RET FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M8X35 W/PIN HOLE	1-09042-046-0	02	1	1302-
16	RETAINER; PILOT BRG,PINION FINAL GEAR 39/7 15.5"(W3K) (A)	9-41227-004-0	02	1	1302-
16	RETAINER; PILOT BRG,PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) T=2.3	1-41227-006-0	02	1	1302-
17	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1302-
18	PIN; SPLIT,RET	0-81122-012-0	02	1	1302-
19	BEARING; PINION,INNER NSK	1-09812-041-2	01	1	1302-
19	BEARING; PINION,INNER JTEKT	1-09812-042-1	01	1	1302-
20	BEARING; FINAL DRIVE PINION FINAL GEAR 39/7 15.5"(W3K) (A)	9-00094-081-0	01	1	1302-
20	BEARING; FINAL DRIVE PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK	1-09810-073-2	01	1	1302-
20	BEARING; FINAL DRIVE PINION FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT	1-09810-074-1	01	1	1302-
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR 39/6 14.5"(W1J) (B) 39/6	1-41210-394-2	01	1	1302-
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR 39/7 15.5"(W3K) (A) 39/7	1-41210-259-2	01	1	1302-
21	GEAR SET; FINAL DRIVE,FRT FINAL GEAR 43/7 14.5"(W1G) (B) 43/7	1-41210-392-2	01	1	1302-
22	RING; SNAP,FINAL DRIVE PINION FINAL GEAR 39/7 15.5"(W3K)	9-09952-005-0	01	1	1302-
23	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR 39/7 15.5"(W3K) (A)	1-41510-123-0	01	1	1302-
23	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B)	1-41510-335-0	01	1	1302-
24	BOLT; FINAL DRIVE GEAR M16X34.5 FLANGE	9-09802-575-1	16	1	1302-
25	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) NSK ID=70 OD=125 T=26.3	1-09812-011-0	02	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) NACHI ID=70 OD=125 T=26.3	1-09812-024-0	02	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	02	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK ID=85 OD=130 T=29	1-09812-088-0	01	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT ID=85 OD=130 T=29	1-09812-089-0	01	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) NSK ID=70 OD=125 T=26.3	1-09812-058-1	01	1	1302-
26	BEARING; DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) JTEKT ID=70 OD=125 T=26.3	1-09812-249-0	01	1	1302-
27	NUT; ADJ,DIFF CAGE FINAL GEAR 39/7 15.5"(W3K) (A) M128 H=22	1-41121-013-0	02	1	1302-
27	NUT; ADJ,DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M138 H=30	1-41121-054-0	01	1	1302-
27	NUT; ADJ,DIFF CAGE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M128 H=22	1-41121-013-0	01	1	1302-
28	BOLT; DIFF CAGE SETTING FINAL GEAR 39/7 15.5"(W3K) (A) M14X107	1-09044-024-0	04	1	1302-
28	BOLT; DIFF CAGE SETTING FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M14X112 FLANGE	1-09070-057-1	04	1	1302-
29	NUT; DIFF CAGE SETTING M14	1-09400-077-1	04	1	1302-
30	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	1302-
31	BOLT; ADJ,DRIVEN GEAR FINAL GEAR 39/7 15.5"(W3K) M24X104	9-41127-005-0	01	1	1302-
32	NUT; ADJ,BOLT FINAL GEAR 39/7 15.5"(W3K) M24	9-09840-264-0	01	1	1302-
34	PIN; CROSS,DIFF PINION	1-41521-050-2	01	1	1302-
35	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-061-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-062-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-063-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-064-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-080-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-081-0	AR	1	1302-
35	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-082-0	AR	1	1302-
36	GEAR; SIDE,DIFF Z=16	1-41561-149-0	02	1	1302-
37	GEAR; PINION DIFF Z=10	1-41551-049-0	04	1	1302-
38	WASHER; THRUST,PINION GEAR ID=29 OD=60	1-41562-119-0	04	1	1302-
41	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	02	1	1302-
41	PLATE; LK,ADJ NUT FINAL GEAR 39/7 15.5"(W3K) (B) T=1.0	9-41124-005-0	02	1	1302-
43	BOLT; LK PLATE FINAL GEAR 39/7 15.5"(W3K) (A) M8X16	0-20850-816-0	04	1	1302-
43	BOLT; LK PLATE FINAL GEAR 43/7 14.5"(W1G),FINAL GEAR 39/6 14.5"(W1J) (B) M8X12 FLANGE	8-94479-696-1	04	1	1302-
47	BOLT; BRG CAP M16X100 FLANGE	1-09070-047-0	04	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
