4-10 — FRONT AXLE (#112420) — 83 parça

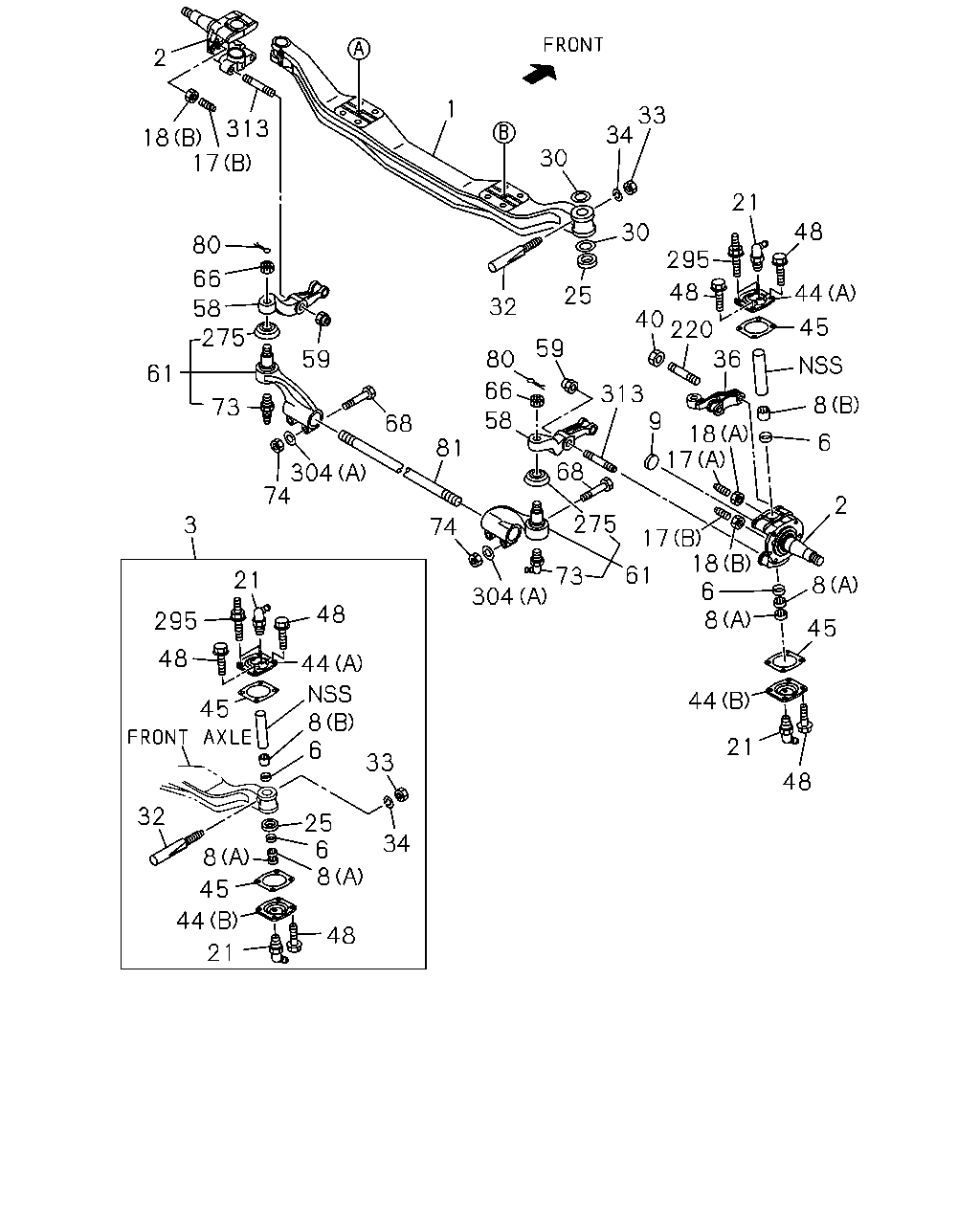

2 18 313 17 80 66 58 61 275 59 73 68 304 74 81 74 304 73 61 275 68 58 66 80 59 313 32 25 30 33 34 30 1 21 48 44 45 8 6 2 8 45 48 21 44 8 6 18 17 17 18 36 220 40 48 295 3 21 48 44 8 6 33 34 25 6 8 48 21 44 45 8 32 45 48 295 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	8-98170-180-2	01	1	1302-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1302-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1302-
3	KING PIN SET	1-87831-410-3	02	1	1302-
6	SEAL; KING PIN	9-09926-024-0	04	1	1302-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1302-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1302-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1302-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1302-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1302-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1302-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1302-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1302-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1302-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1302-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1302-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1302-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1302-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
36	ARM; KNUCKLE	1-43133-073-3	01	1	1302-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1302-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1302-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1302-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1302-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1302-
58	ARM; TIE ROD	1-43134-049-4	01	1	1302-
58	ARM; TIE ROD	1-43135-049-4	01	1	1302-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1302-
61	ROD END; TIE ROD	8-98096-753-0	01	1	1302-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98096-754-0	01	1	1302-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1302-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1302-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1302-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1302-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1302-
81	ROD; TIE	8-98171-947-0	01	1	1302-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1302-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1302-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1302-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1302-

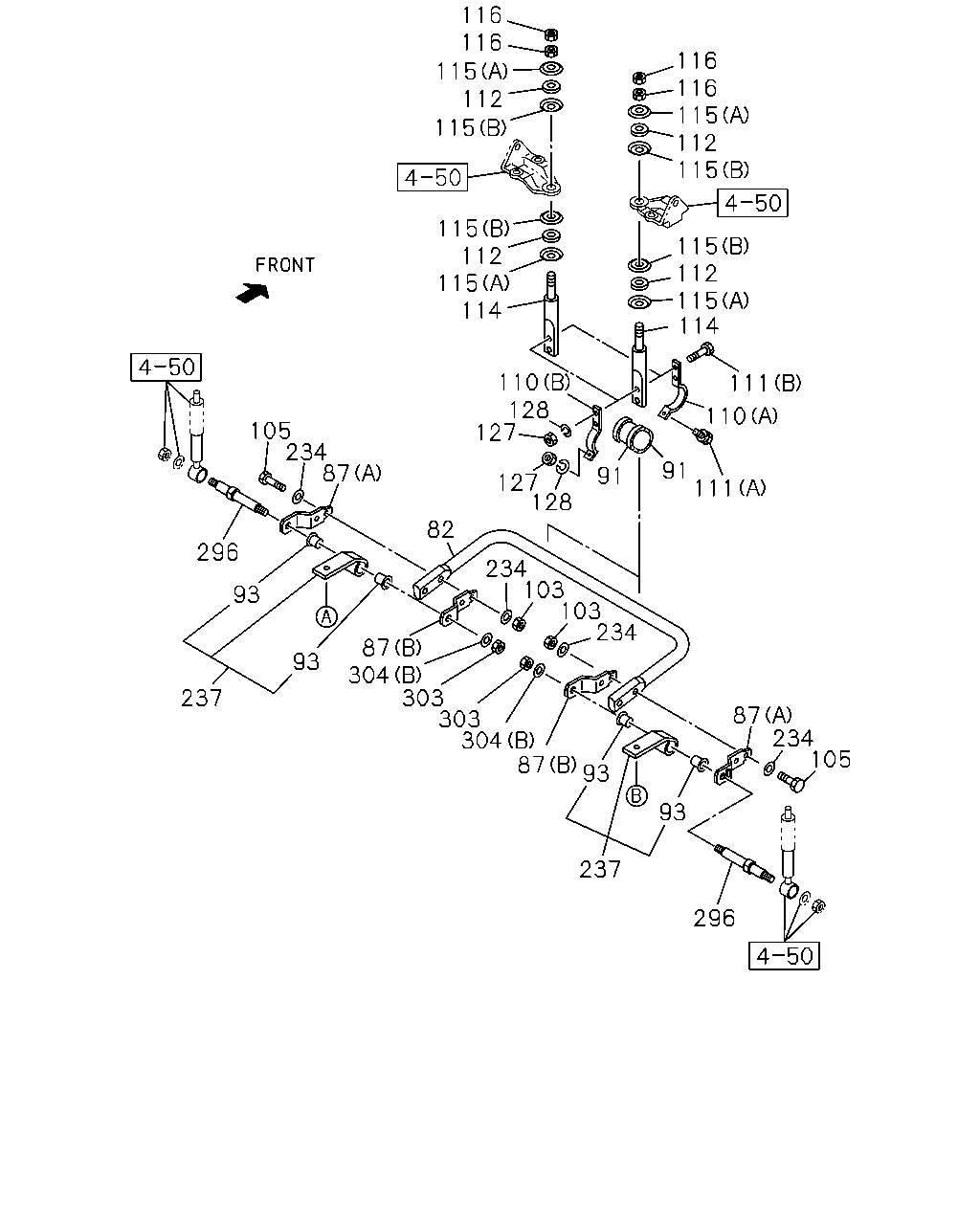

116 116 115 112 115 116 116 115 112 115 115 112 115 114 115 112 115 114 111 110 91 111 91 128 127 127 128 110 105 87 82 234 103 103 234 87 234 105 296 237 93 93 87 304 303 303 304 87 93 296 93 234 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1302-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1302-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1302-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1302-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1302-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1302-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1302-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1302-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1302-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1302-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1302-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1302-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1302-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1302-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1302-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1302-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1302-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1302-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1302-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1302-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1302-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1302-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1302-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1302-
